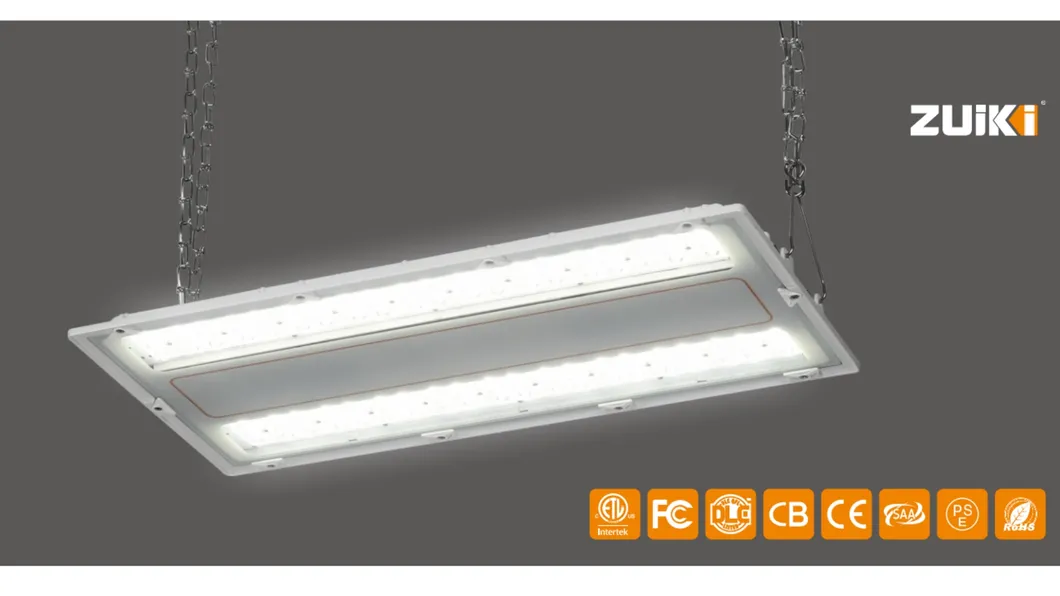

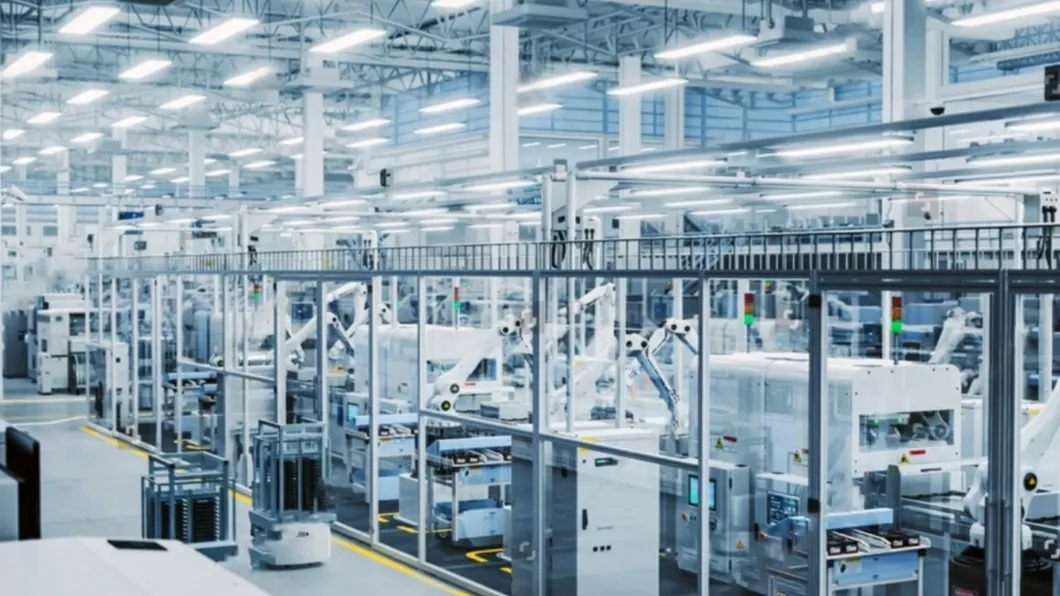

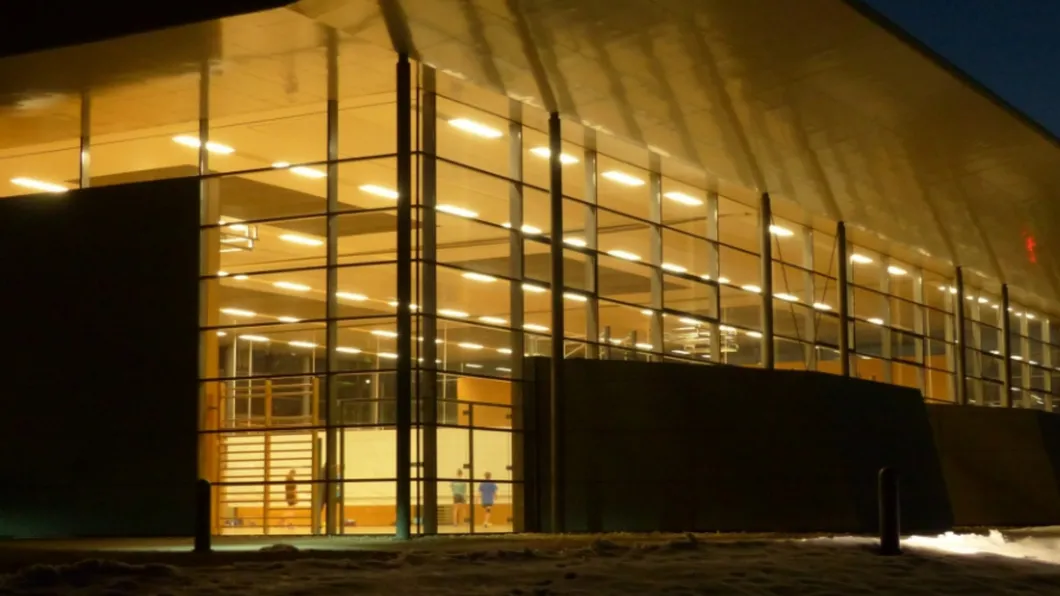

In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions. It is an excellent choice for environments such as parking lots, gymnasiums, workshops, clothing stores, supermarkets, and warehouse lighting.
| Parameter | Details |
|---|---|
| Input Voltage | AC100-277V 50/60Hz |
| Power Factor | PF > 0.9 |
| Efficiency | 160-170lm/w |
| Color Index | Ra > 83 |
| Operation Temp | -40°C ~ +50°C |
| Material | Aluminum + PC |
| CCT | 3000K - 6000K |
Lumens efficacy reaching up to 170 lm/w with 0-10V dimming standard.

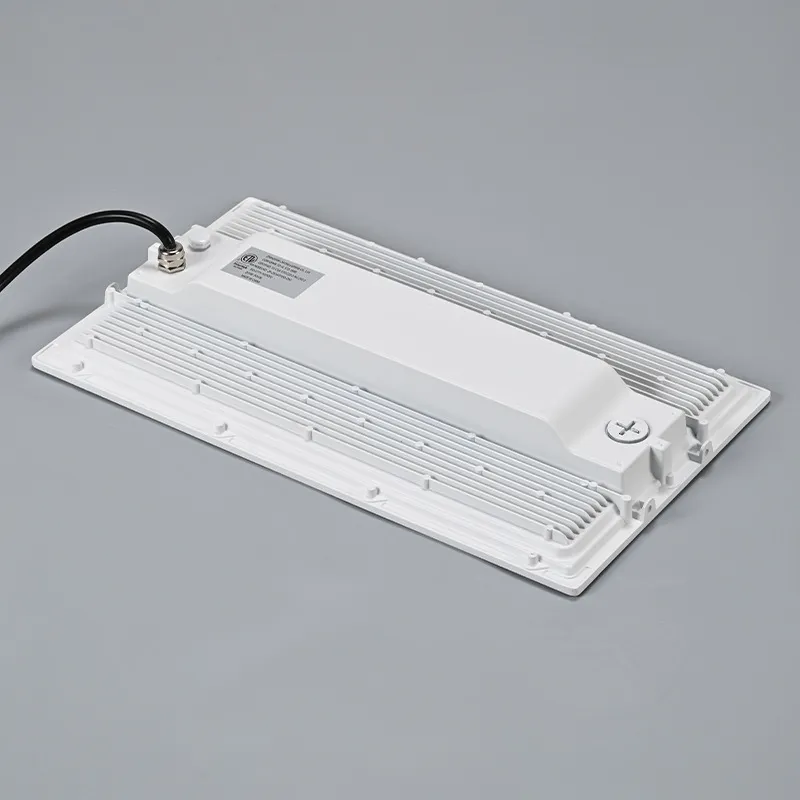

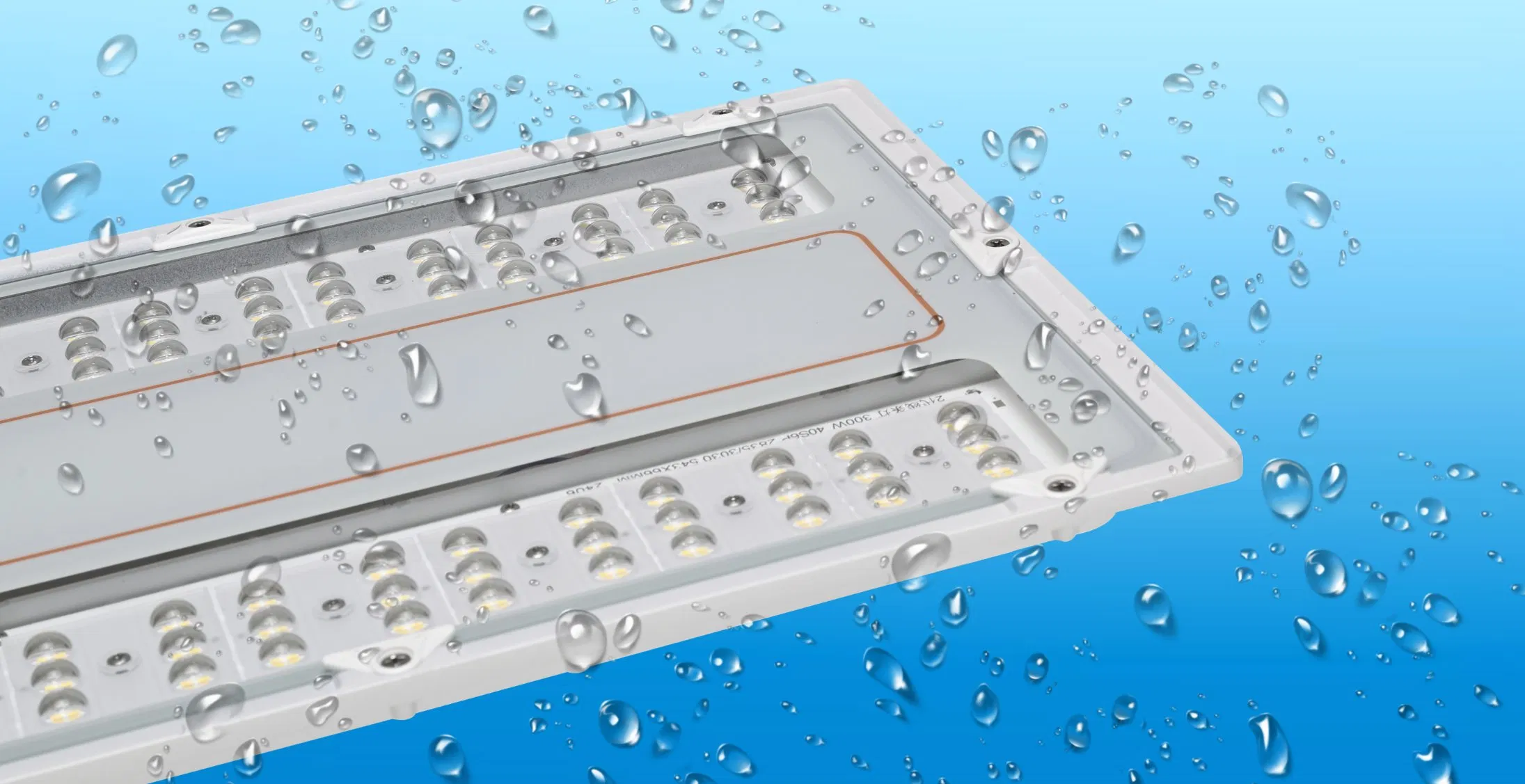

One-piece die-cast aluminum housing with IP65 protection grade.
Aerodynamic design effectively maintains lower temperatures for longer lifespan.
Supports both pendant installation and surface mounting with 304 stainless steel screws.
| Model | Length | Power | Led Type | Lumens (lm) | Package Size |
|---|---|---|---|---|---|
| JR-ZKHB03A038-100D | 1.0 FT | 100W | SMD3030 | 16000 | 43*34*17 (cm) |
| JR-ZKHB03A048-200D | 1.5 FT | 200W | SMD3030 | 32000 | 53*34*17 (cm) |
| JR-ZKHB03A059-260D | 2.0 FT | 260W | SMD3030 | 41600 | 63.5*35*18 (cm) |

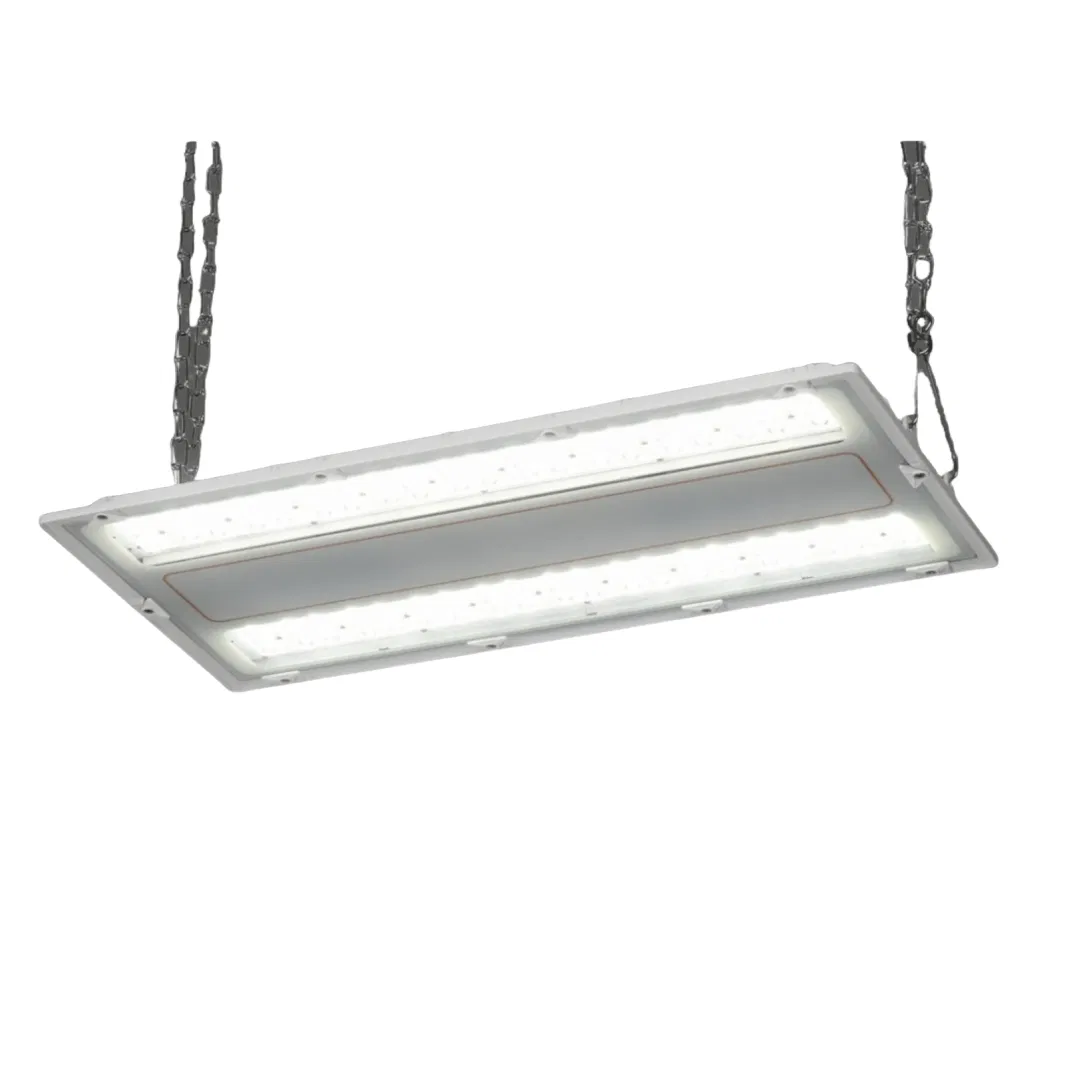

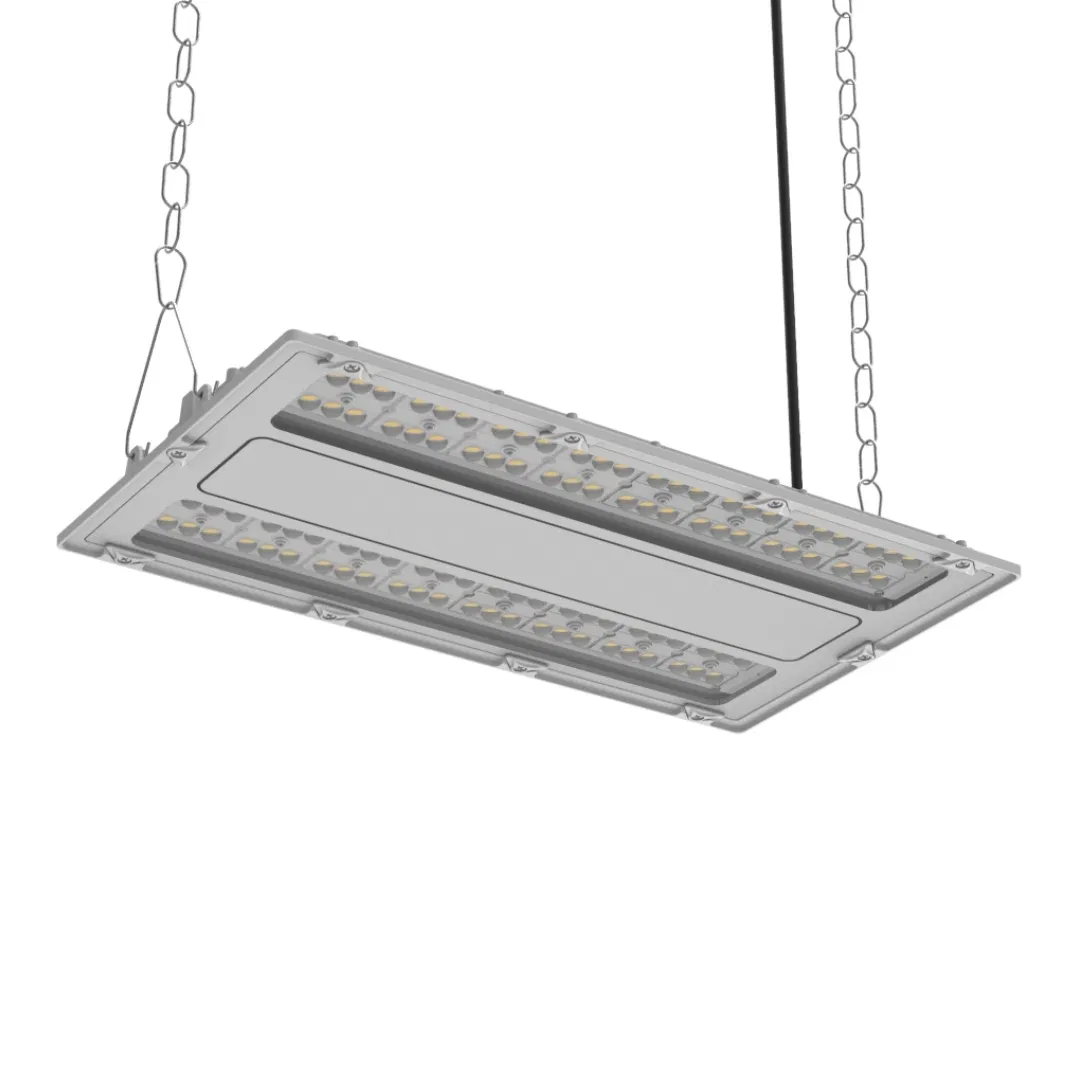

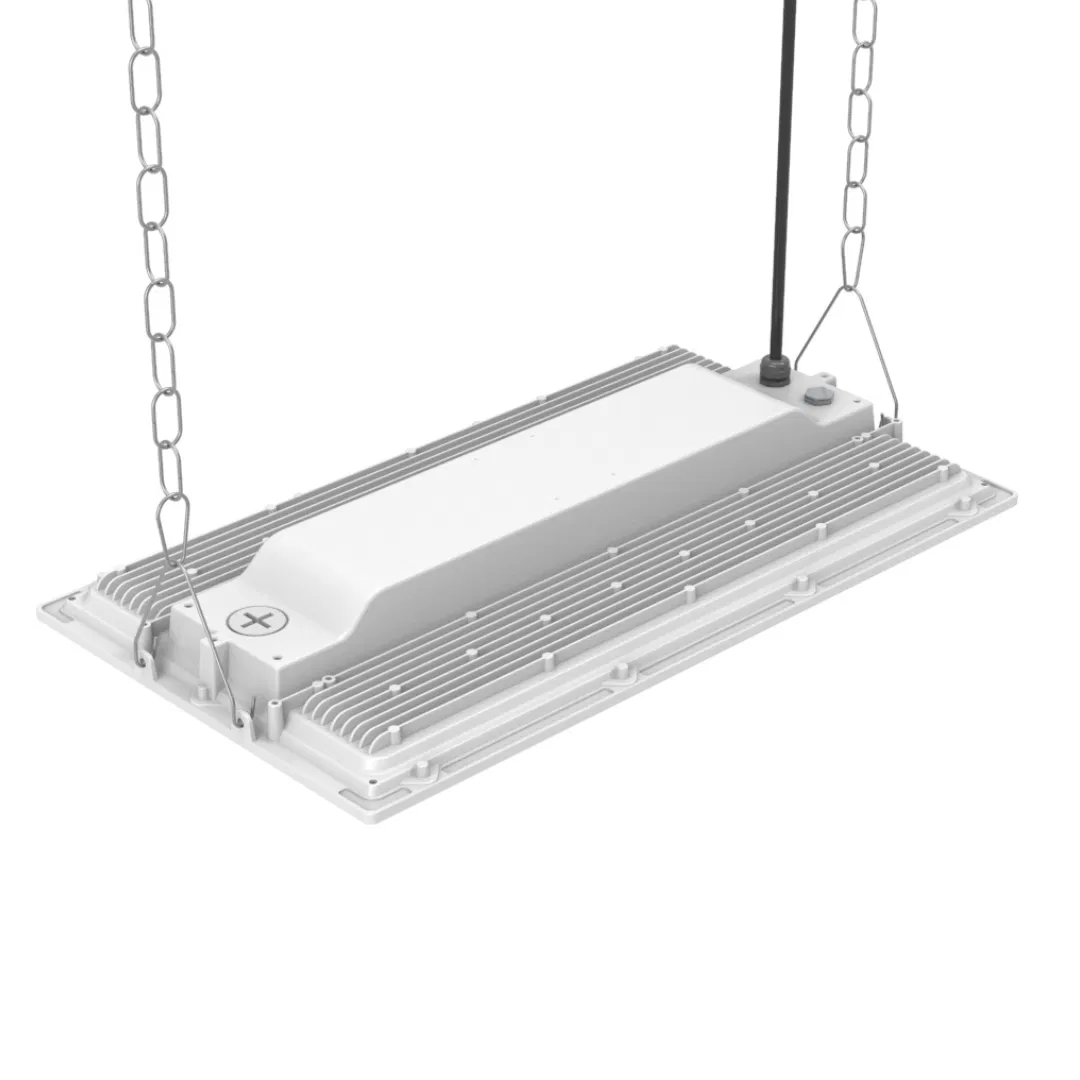

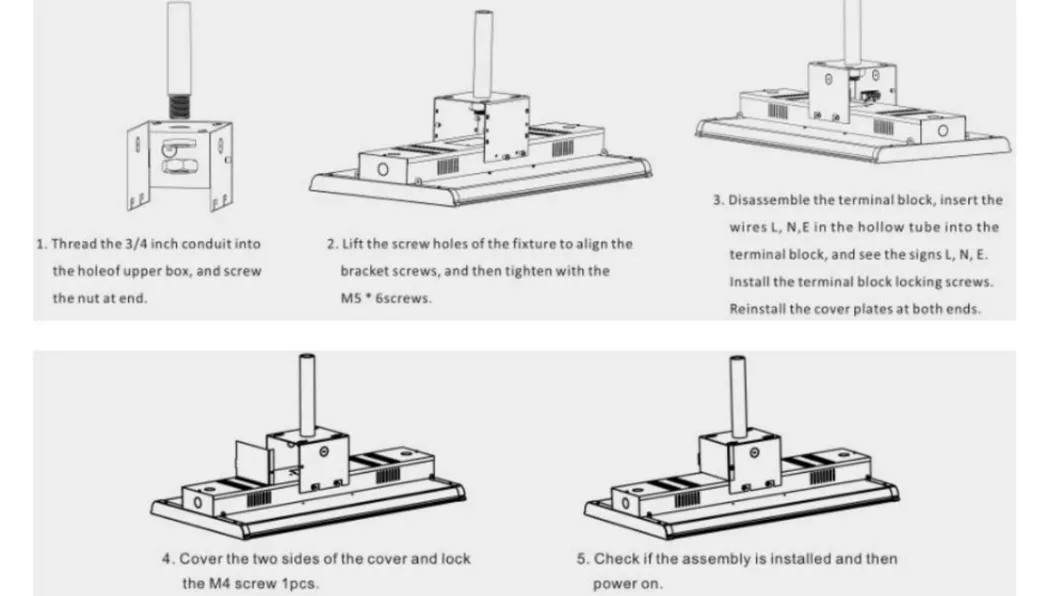

Option 1: Pendant

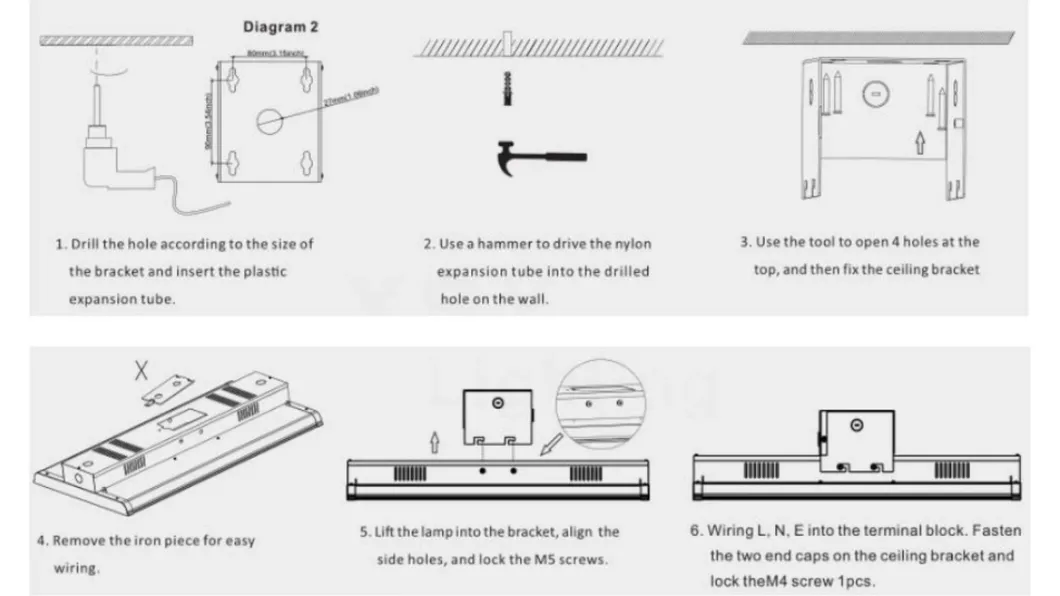

Option 2: Surface Mount
Extensive expertise is available in all aspects of lighting: power, control, lamps, and LEDs. Complete customization options allow for tailoring products to specific brand needs, covering engineering, manufacturing, power sources, optical lenses, and cutting-edge thermal management solutions.

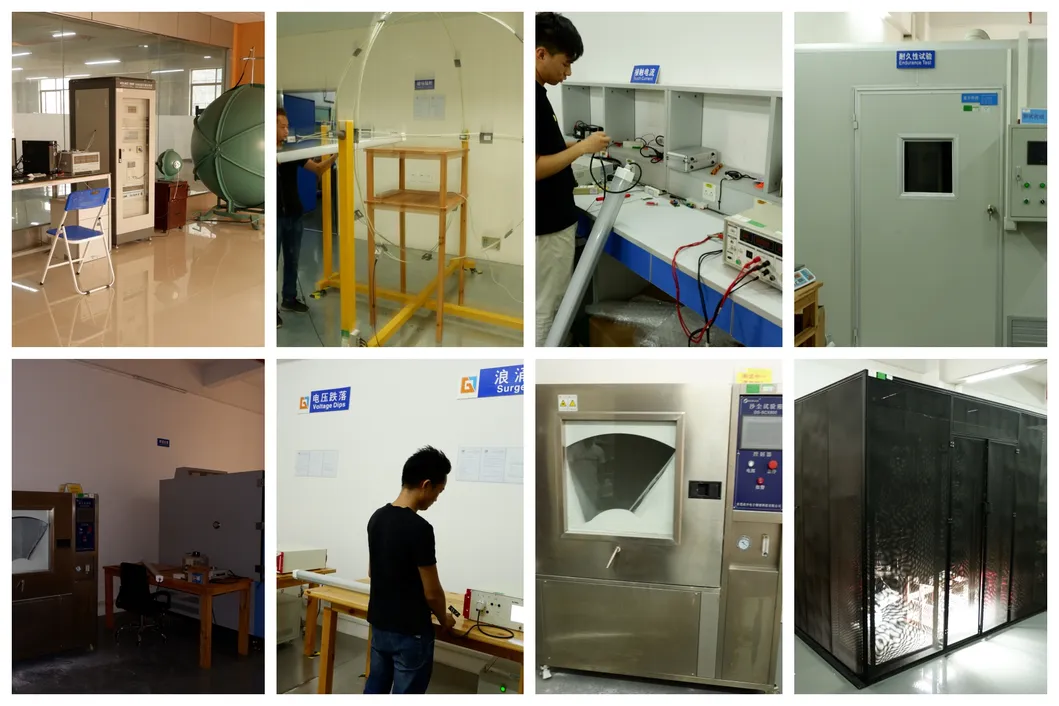

Product Testing

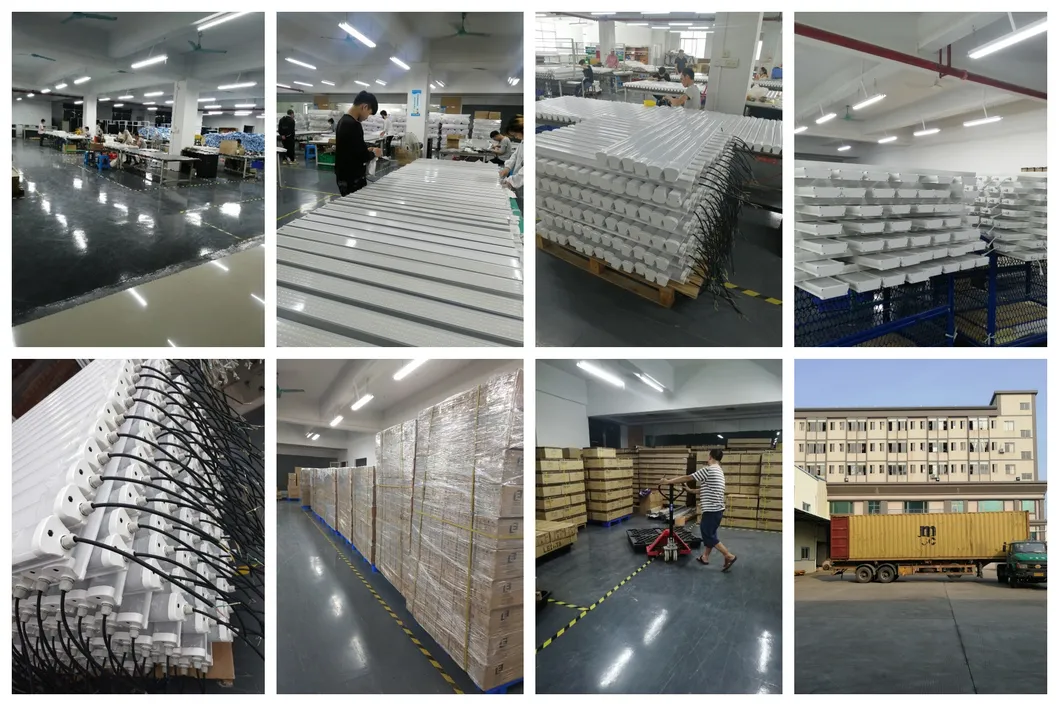

Packing & Loading
