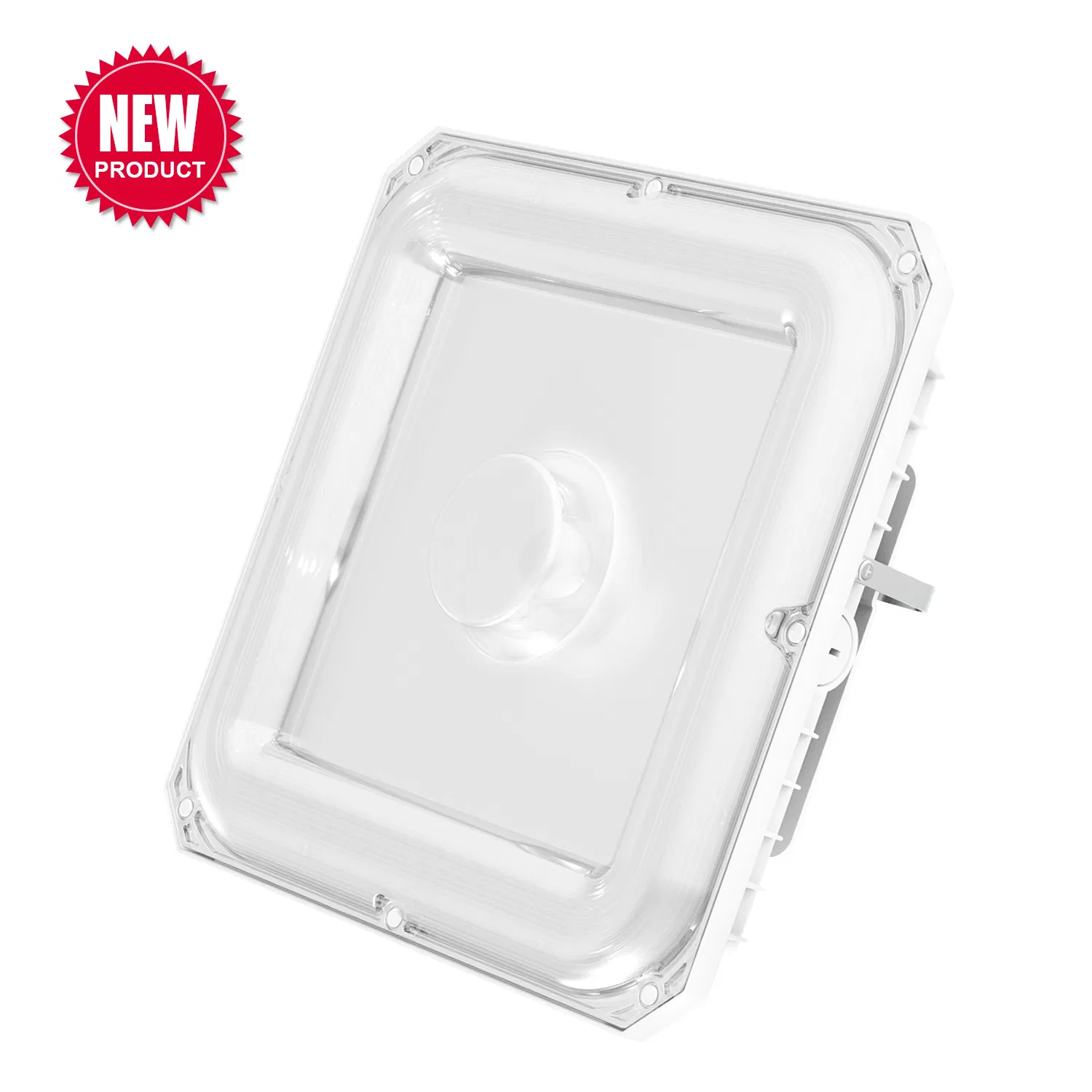

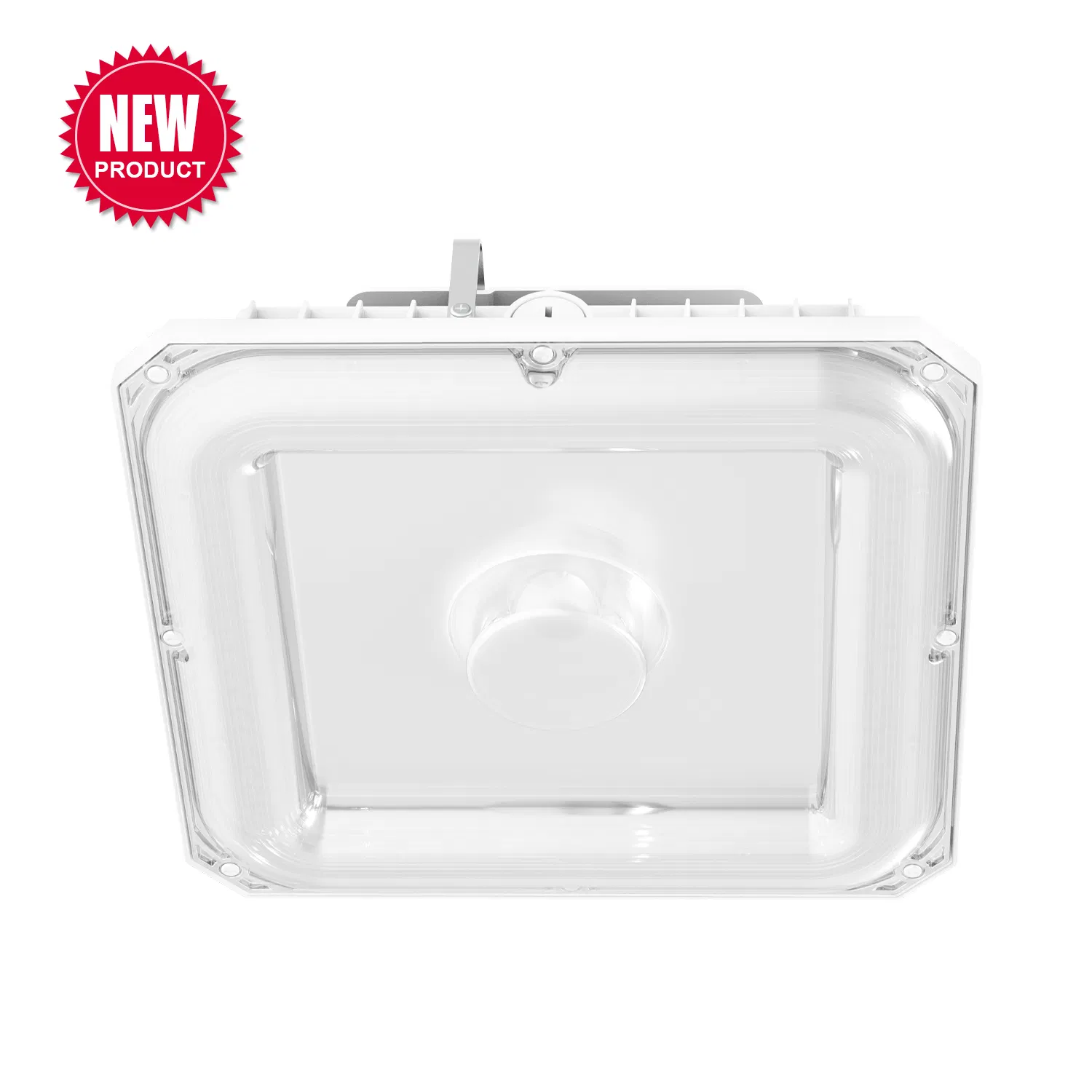

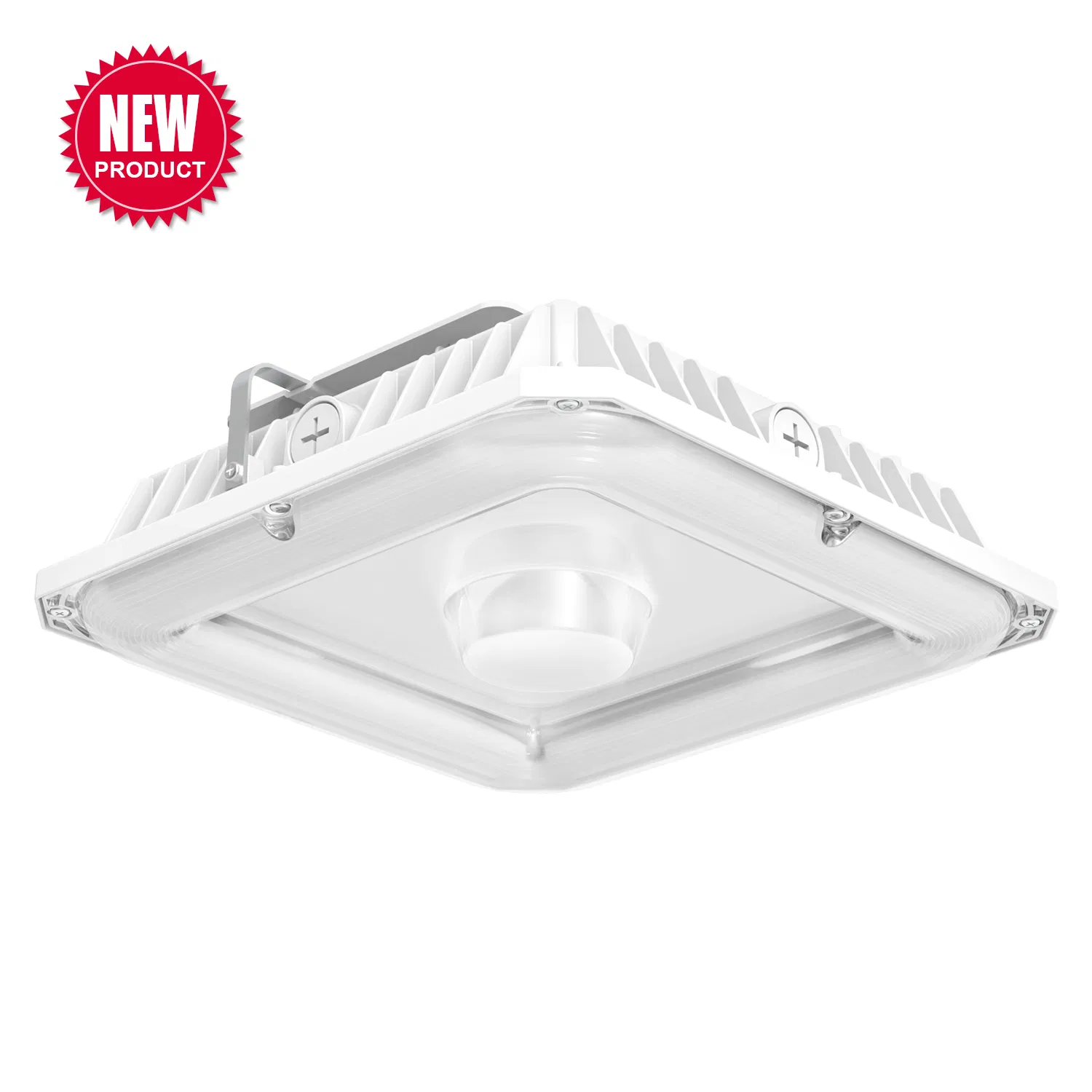

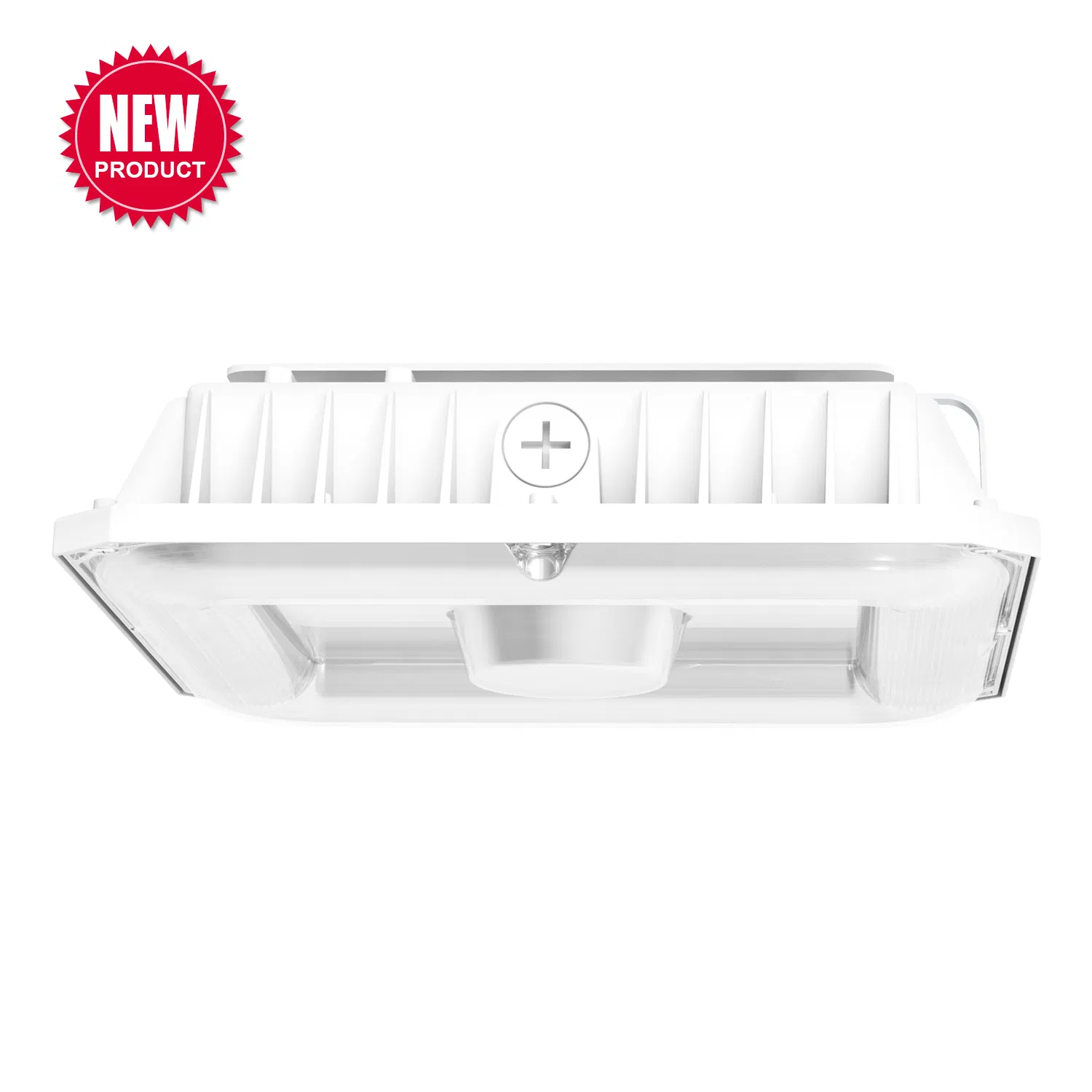

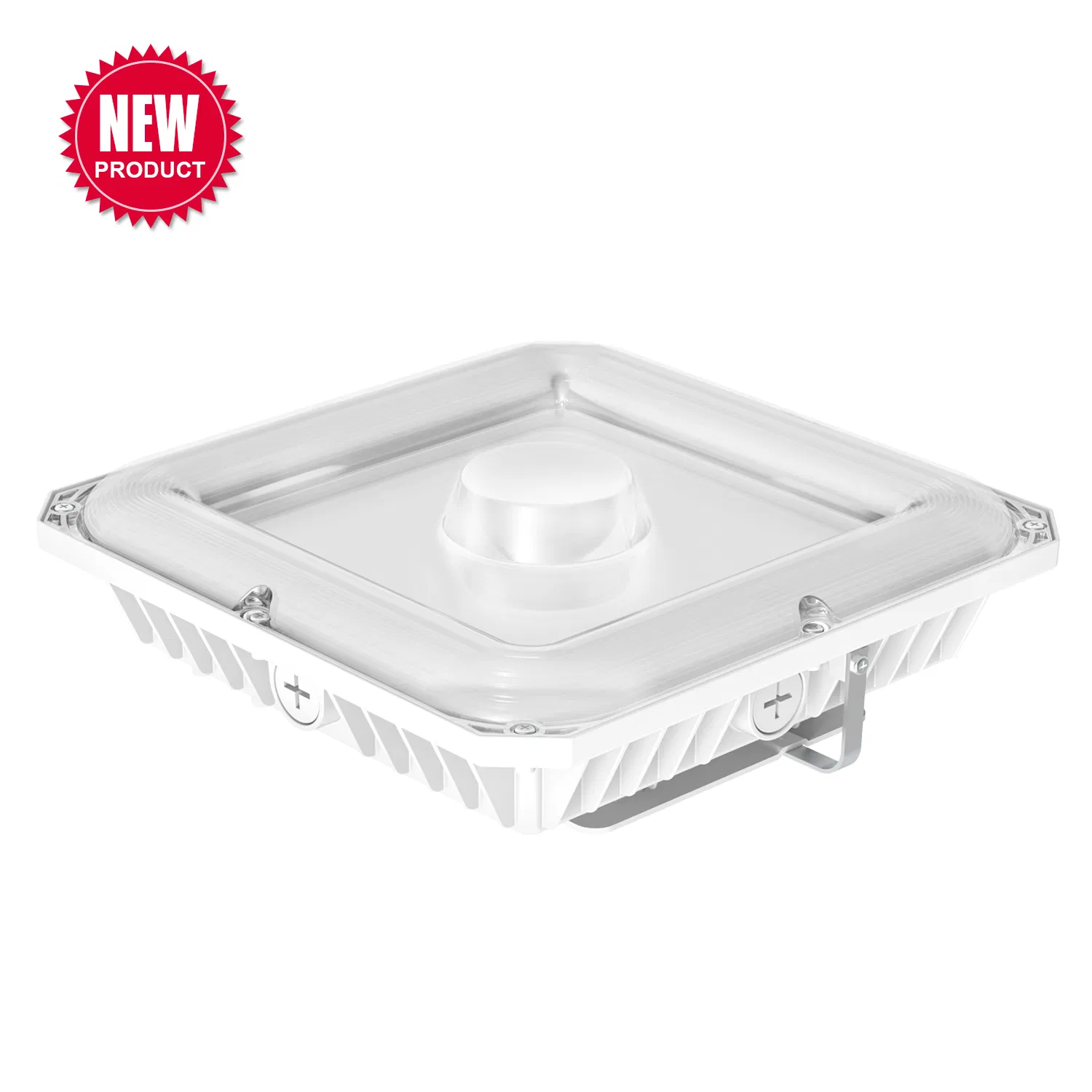

Robust 100W IP65 Waterproof LED Canopy Light for Gas Stations and Outdoor Garages Professional-Grade Outdoor Ceiling

Still deciding? Get samples of $ !
Request Sample

Product Description

  • Overview
  • Description
  • Dimension
  • Installation
  • Test Data
  • Application
  • Certifications
📋

Basic Information

Model NO.MF-CPG-100W Square
PowerTunable 60W 80W 100W
IP RatingIP65
CertificationCE, RoHS, SAA
LED Chips280PCS SMD3030
Input Voltage100~277V
Luminous Flux14000lm
Light Effi.140lm/W
CCTTunable 4500K 5000K 5700K
CRI≥80
Dimension255*255*77mm
OriginChina
💡

Product Description

High-Performance Outdoor LED Garage & Gas Station Canopy Light
Professional LED Canopy Light

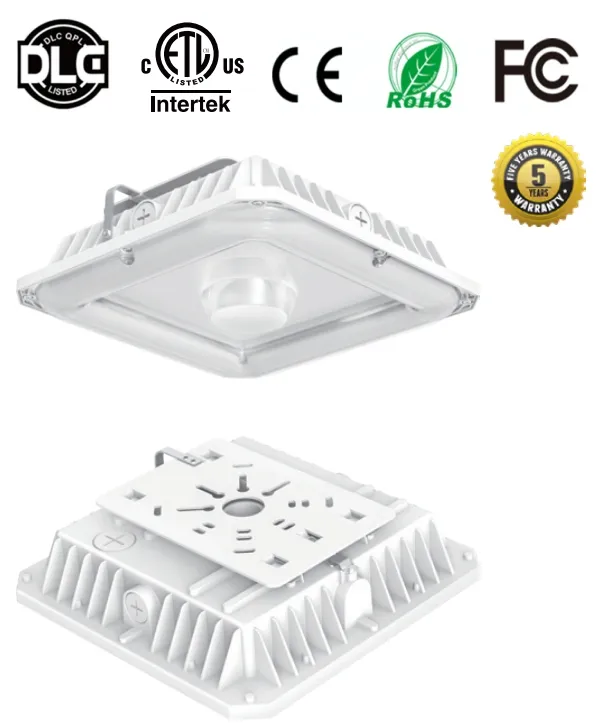

IP65 Waterproof Canopy Light

The 100W LED Canopy Light delivers superior illumination with a 13,500-14,000 lumens output, making it ideal for large commercial and industrial spaces. Featuring durable die-cast aluminum housing with an IP65 waterproof rating, it is built to withstand harsh weather conditions while resisting rust and corrosion.

This versatile fixture offers adjustable color temperatures (4500K/5000K/5700K) and tunable power settings (60%/80%/100%). Powered by high-efficiency SMD3030 chips, it ensures flicker-free, uniform light with a 120° beam angle and CRI≥80 for accurate color rendering.

Key Features

Photocell dusk to dawn sensor included.
Reflective lens design for maximum efficiency and minimum glare.
Slim, modern aesthetic design with cast aluminum thermal management.
Suitable for recessed or surface mounted installations.
High output 140LM/W with a 5-year warranty.
Instant start, no noise, and no flickering.
Adjustable CCT and Power settings for project flexibility.
📊

Specifications & Test Data

Parameter Details
Lumen Output14000 Lm (±10%)
Efficacy140 LM/W
Beam Angle120°
Voltage / FrequencyAC100-277V, 50/60Hz
Power Factor (PF)>0.9
Working Temp-40 ~ 40ºC
Color Rendering IndexCRI ≥80

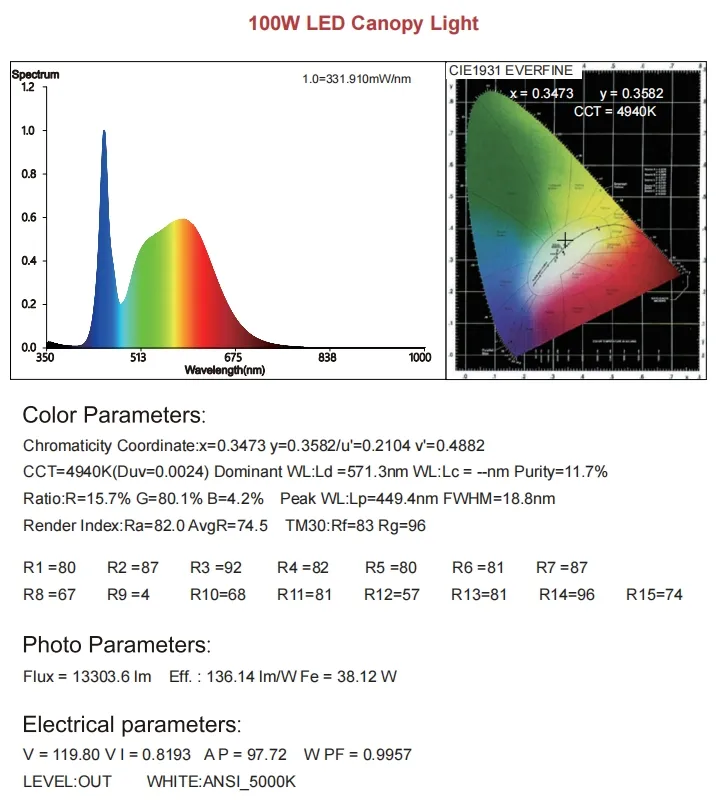

LED Test Data Graph
📐

Dimensions & Installation

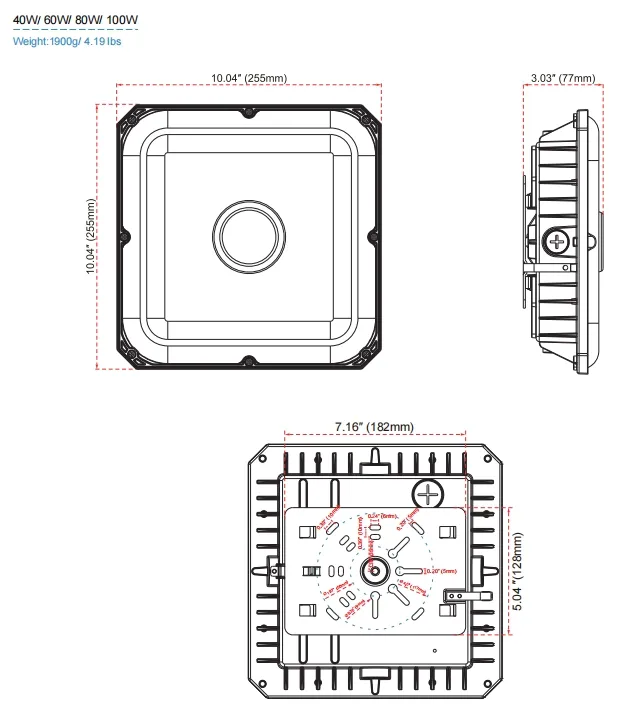

Product Dimensions

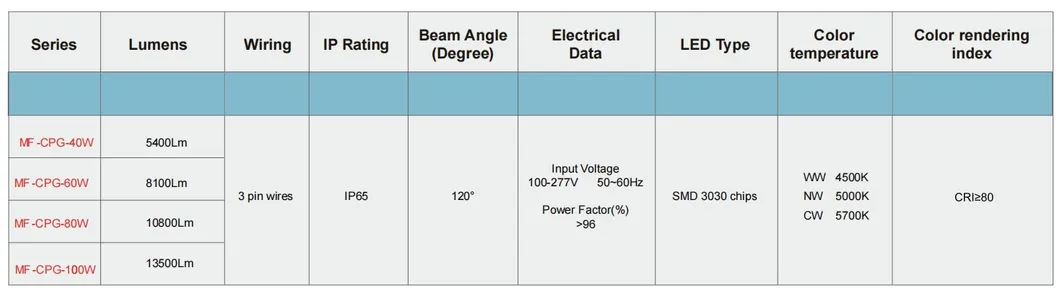

Dimension Details

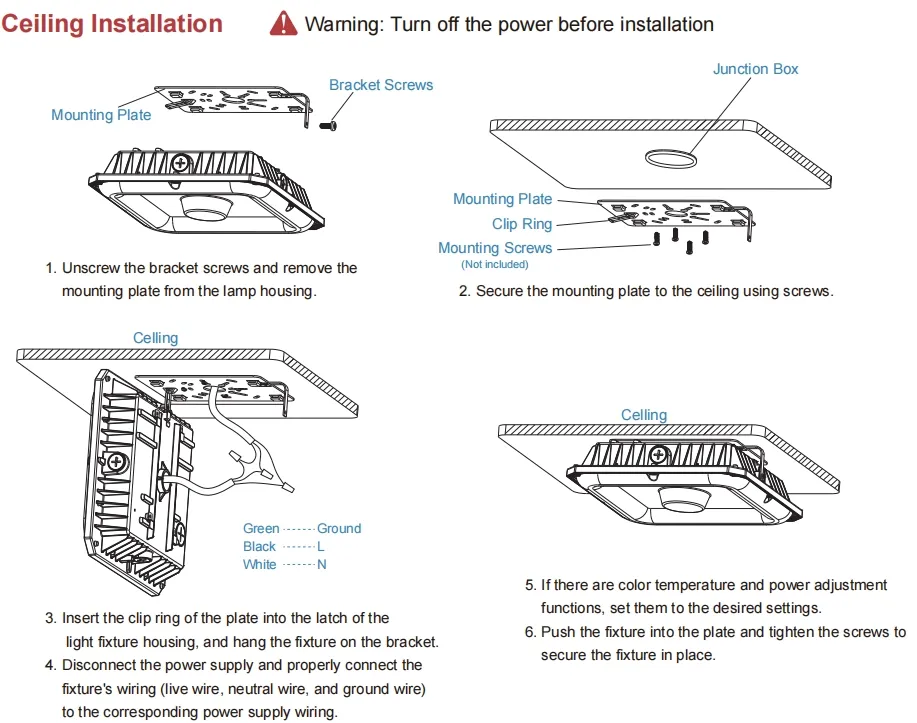

Installation Step 1

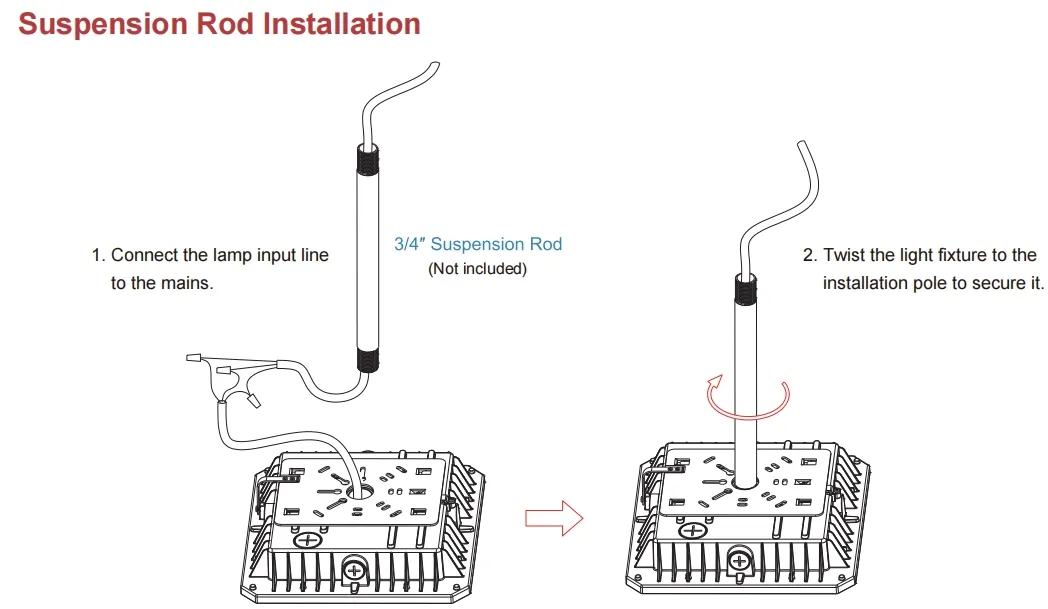

Installation Step 2
🏙️

Applications

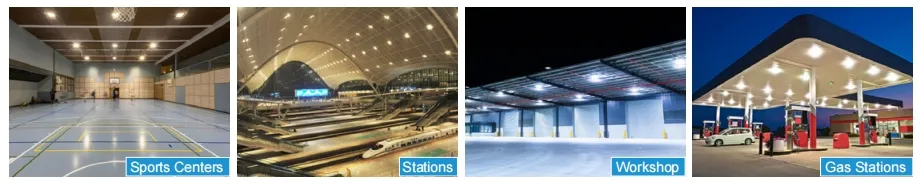

Application Scenarios
Gas Stations: IP65 rated and corrosion-resistant for bright, safe pump lighting.
Warehouses: High lumen output for safe loading docks and storage areas.
Parking Garages: Dusk-to-dawn operation provides 24/7 security and visibility.
Retail Centers: Tunable CCT to enhance product displays and customer experience.
Sports Complexes: Glare-free illumination for outdoor courts and recreational fields.
📦

Packaging & Certifications

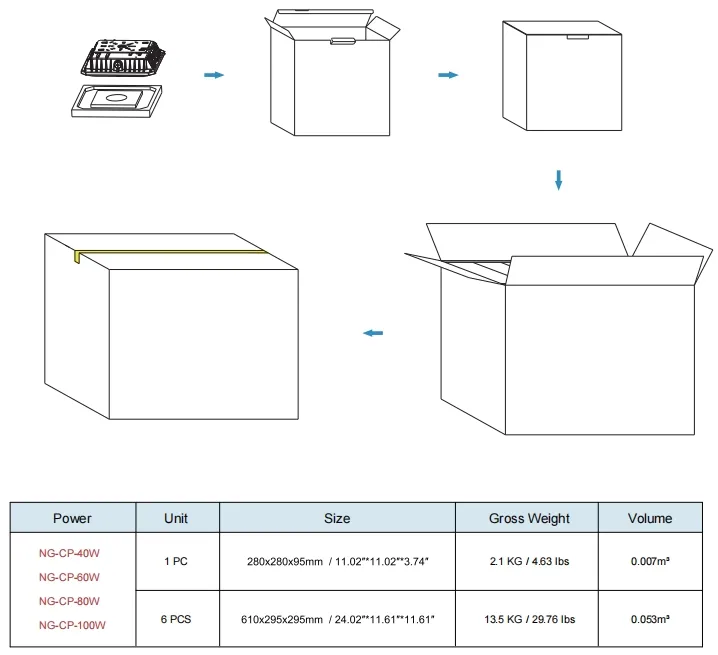

Packaging Info

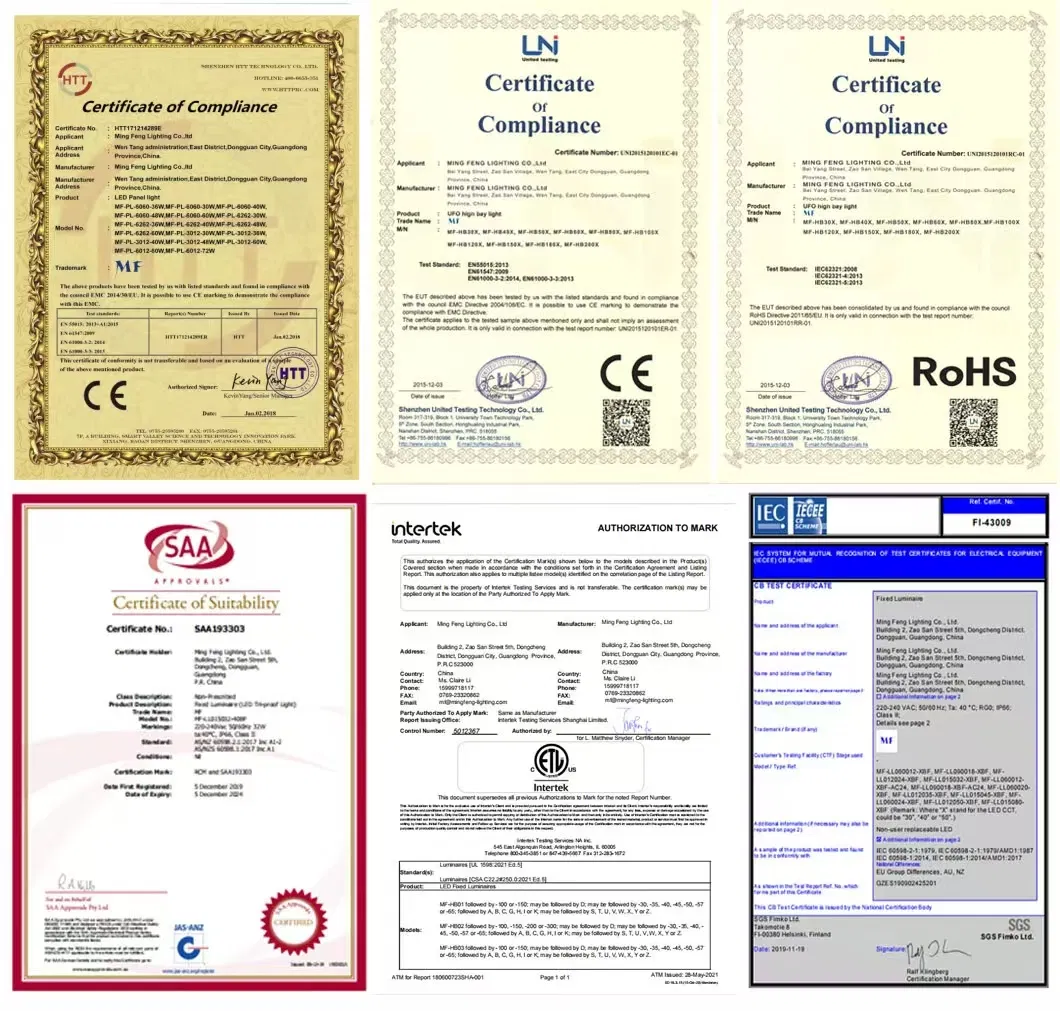

Product Certifications

Frequently Asked Questions

Q1: Are you a professional manufacturer of LED lighting?
Yes, we are an established manufacturer with over 14 years of research, development, and manufacturing experience. We operate under strict ISO quality management systems since 2009.
Q2: Can I order samples for quality testing?
Absolutely. We welcome sample orders to test and verify the quality of our products. Mixed samples are also available upon request.
Q3: What is the typical lead time for production?
For sample orders, the lead time is 3-7 days. For mass production orders, it typically takes 15-25 days depending on the total quantity and specific requirements.
Q4: What shipping methods do you offer?
We provide several shipping options including Sea Freight, Air Freight, and Express services (DHL, UPS, FedEx, TNT, etc.) to meet your delivery needs.
Q5: Is it possible to customize the lights with my own logo?
Yes, we provide comprehensive OEM services. We can help design and print labels and customized color boxes according to your brand requirements.
Q6: What is your warranty policy for defective items?
We offer a 5-year warranty. Our products have a defective rate of less than 0.2%. If a failure occurs during the warranty period, we will provide replacement lights upon receiving photographic or video evidence.
