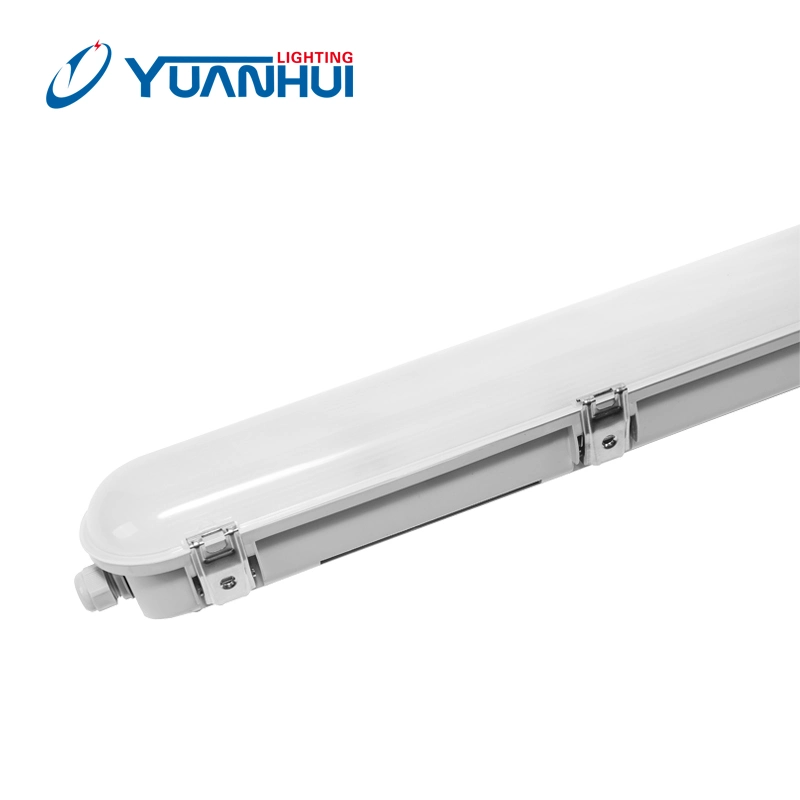

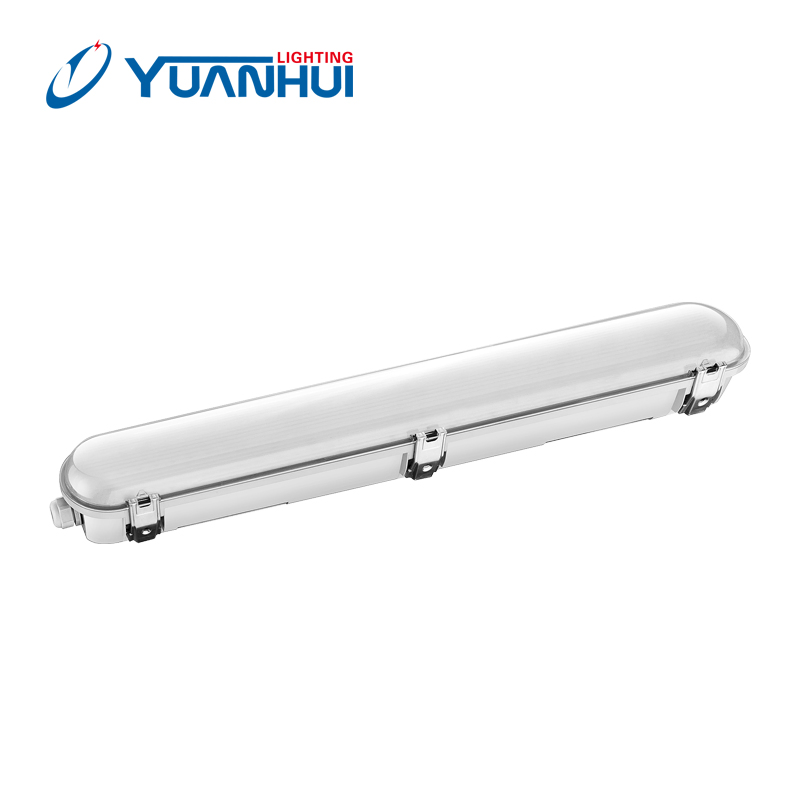

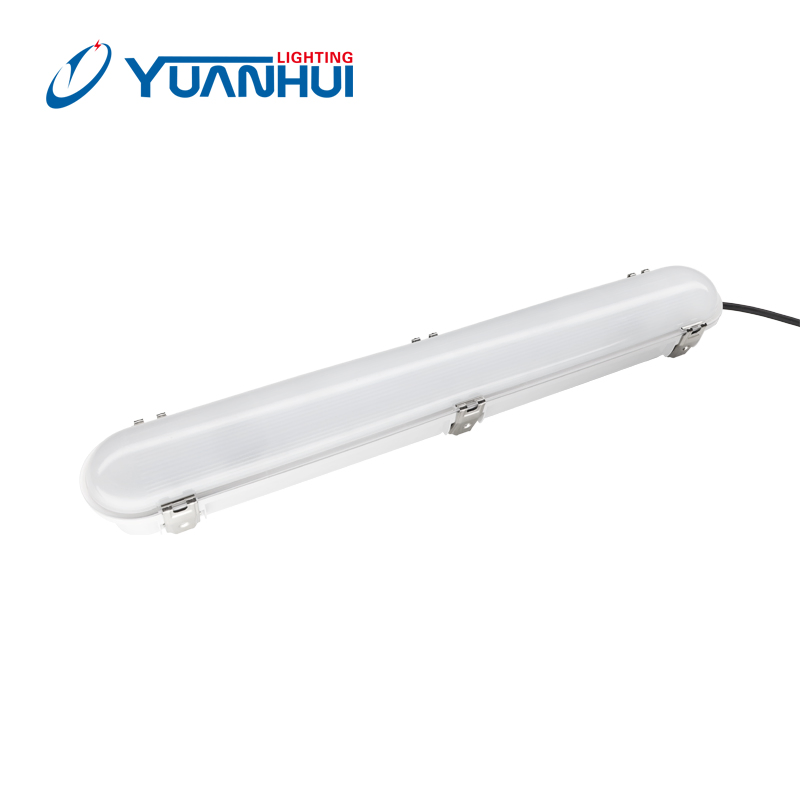

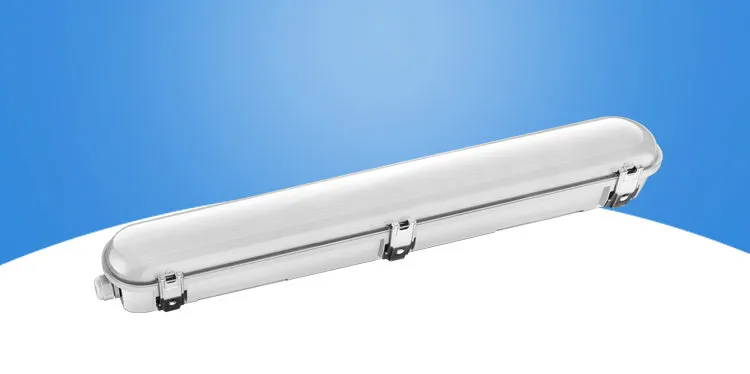

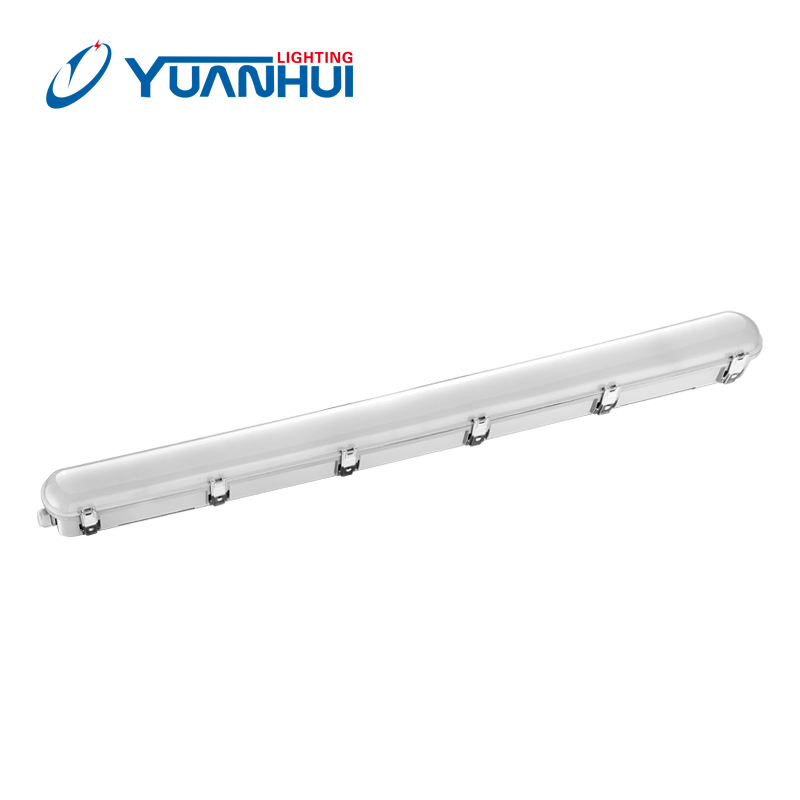

130lm/W IP65 Ik08 Linear Low Bay Tri-Proof LED Light, Waterproof Batten

1 / 5

130lm/W IP65 Ik08 Linear Low Bay Tri-Proof LED Light, Waterproof Batten

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

YL08

Feature

Anti-corrosion, Dust-Proof, Waterproof, Tri-Proof

Light Body Material

Plastic

Voltage

AC220-240V

Frequency

50/60Hz

Diffuser

Polycarbonate

Housing

Polycarbonate

Transport Package

Innerbox & Carton

Specification

GS SAA CCC UL EMC ROHS CE CUL etc

HS Code

9405409000

Production Capacity

10000PCS/Month

📋

Product Description

Model No.	Power (W)	Lumen (lm)	Colour Temperature	Voltage	Size (mm)
YL08-20W-650	20	2500	2700K-6500K	AC220-240V, 50/60Hz	670x97x82
YL08-20W-1220	20	2500	2700K-6500K	AC220-240V, 50/60Hz	1240x97x82
YL08-30W-1220	30	3750	2700K-6500K	AC220-240V, 50/60Hz	1240x97x82
YL08-36W-1220	36	4500	2700K-6500K	AC220-240V, 50/60Hz	1240x97x82
YL08-45W-1220	45	5600	2700K-6500K	AC220-240V, 50/60Hz	1240x97x82
YL08-36W-1560	36	4500	2700K-6500K	AC220-240V, 50/60Hz	1580x97x82
YL08-54W-1560	54	6750	2700K-6500K	AC220-240V, 50/60Hz	1580x97x82
YL08-65W-1560	65	8100	2700K-6500K	AC220-240V, 50/60Hz	1580x97x82

❓

Frequently Asked Questions

What are the main protective features of the YL08 model?

The YL08 is a Tri-proof LED light designed to be anti-corrosion, dust-proof, and waterproof (IP65 rated), making it ideal for harsh environments.

What materials are used for the housing and diffuser?

Both the housing and the diffuser are made of high-quality Polycarbonate (PC), which ensures durability and excellent light distribution.

What is the voltage range for this lighting series?

The lights operate on a standard voltage range of AC220-240V at a frequency of 50/60Hz.

Are there different size and power options available?

Yes, we offer multiple lengths ranging from 670mm to 1580mm, with power options from 20W up to 65W to suit different installation needs.

Which certifications does the YL08 series hold?

Our products meet several international standards including GS, SAA, CCC, UL, EMC, ROHS, CE, and CUL certifications.

What is the production capacity for bulk orders?

We have a stable production capacity of approximately 10,000 pieces per month to ensure timely delivery for large projects.
