IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square

1 / 5

IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

JYT11-400

Power

≥100W

Application

Park, Square, Factory, Garden, Port, Station

IP Rating

IP66

Certification

CCC, CE, CQC, RoHS

Operating Voltage

85-265V

Input Voltage

90-305V

LED Chips Brand

Bridgelux

Efficiency

>140 Lm/W

Luminous Flux

580000

Warranty

3 Years

Life

100000 H

HS Code

9405421000

Production Capacity

5000 PCS/Month

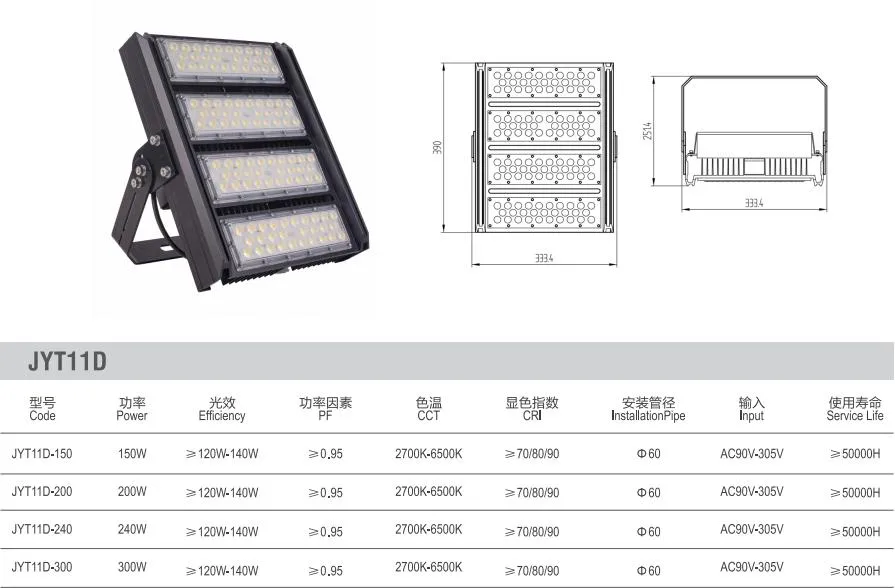

Product Parameters

No.	Parameters	Unit	Standard
Optical Parameters
1	Color temperature	K	5700 (optional)
2	CRI	/	≥ 70
3	Luminous flux	Lm	58000
4	Luminous efficiency	Lm/W	145
5	Beam angle	º	40 (optional)
6	Life	Hrs	50000
Electrical Parameters
7	Power	W	300 / 350 / 400
8	Input voltage	Vac	100-305
9	Max input current	A	4.0
10	Frequency	Hz	50/60
11	Output current	A	8.5
12	Power factor	/	≥ 0.95
13	Driver efficiency (Typ.)	%	> 90
14	High voltage test	Vac/1min	1500
Structural Parameters
15	Dimensions(LWH)	mm	335474123
16	Weight	Kg	10
17	IP	/	66
18	Color	/	Black
Comprehensive Parameters
19	Operating temperature	ºC	-40 ~ +50
20	Storage temperature	ºC	-40 ~ +70

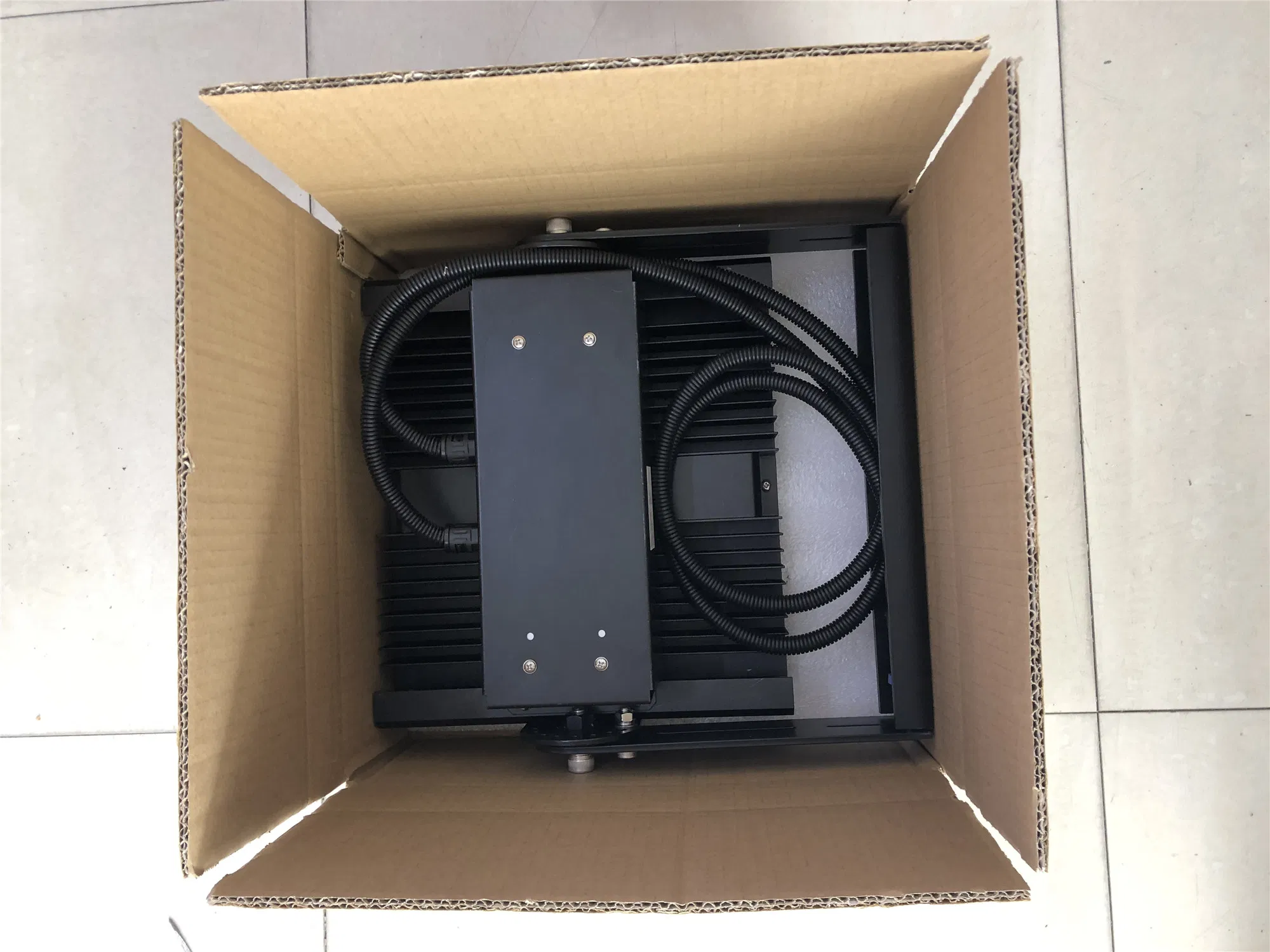

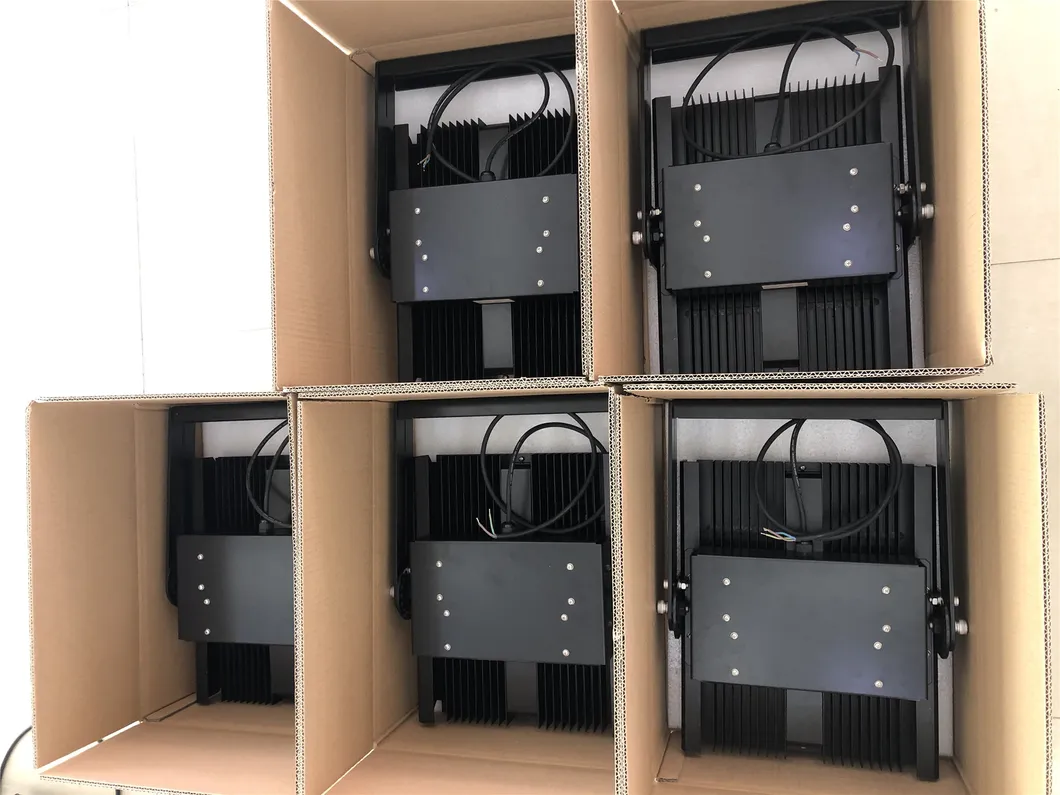

21	Packaging requirements	/	Carton
22	Environmental directives	/	RoHs

Product Features

💡

High Efficiency Replacement
Capable of replacing 700W metal halide lamps effectively.

🌡️

Thermal Management
Excellent junction temperature control and insulation for stability.

⚙️

Universal Power
Supports wide voltage input from 100~305Vac.

⏳

Long Lifespan
Rated for 50,000 to 100,000 hours of average life.

High output and excellent thermal performance
Light weight and attractive appearance design

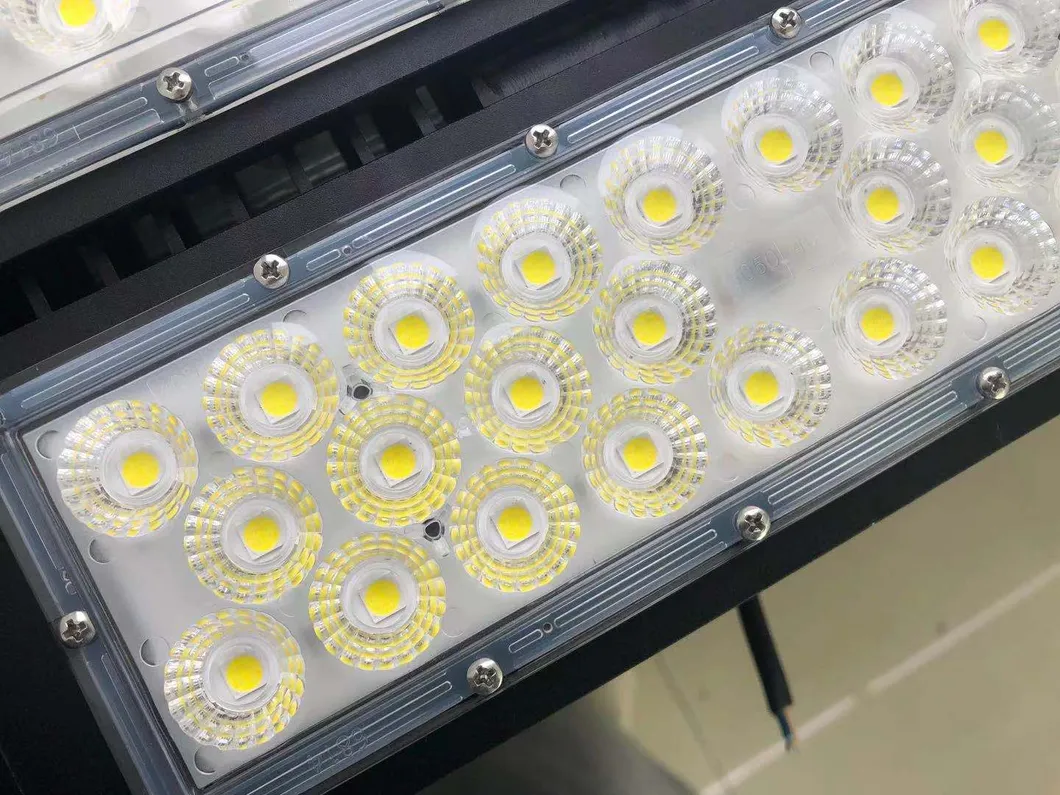

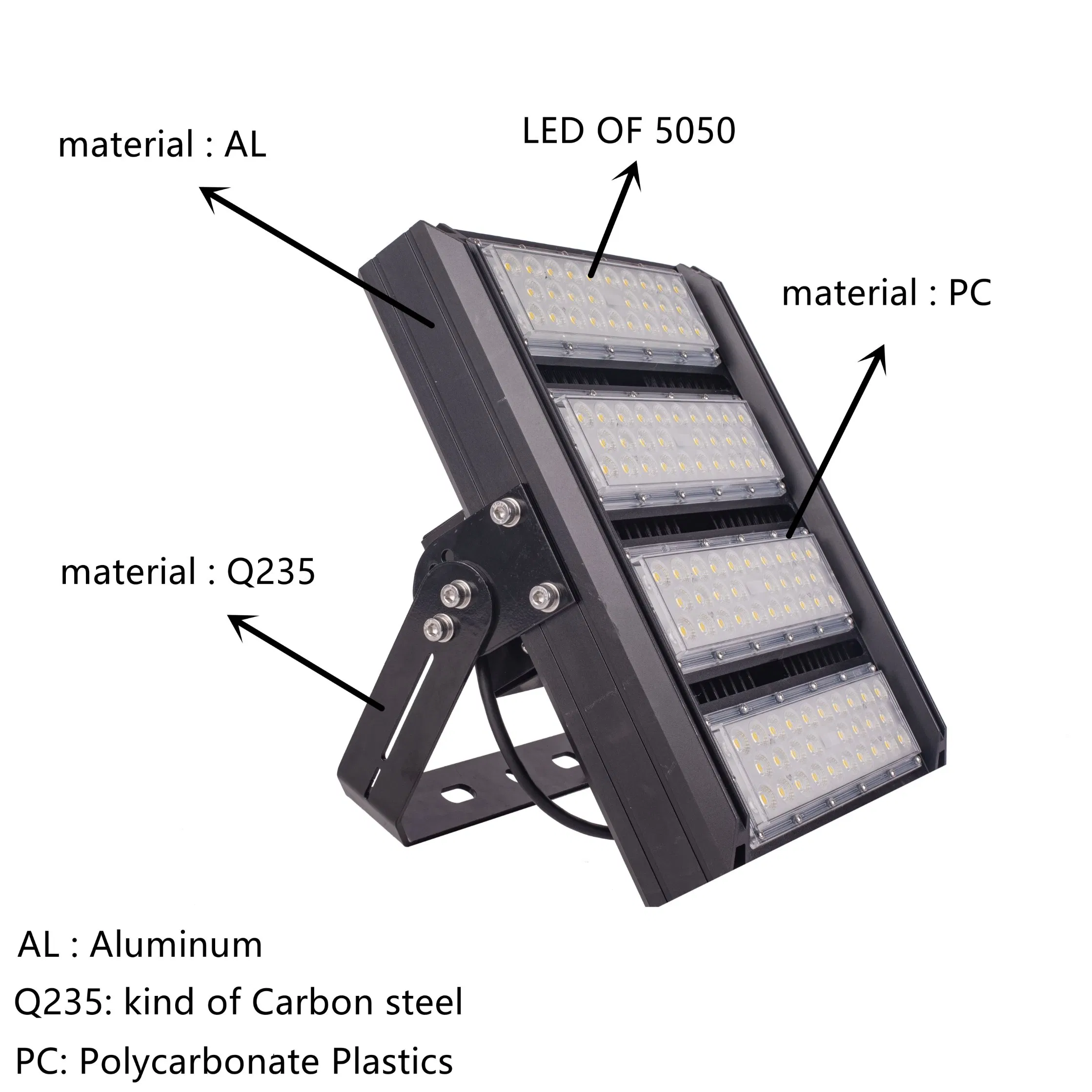

SMD led 5050 technology, achieving 145-160 lm/w

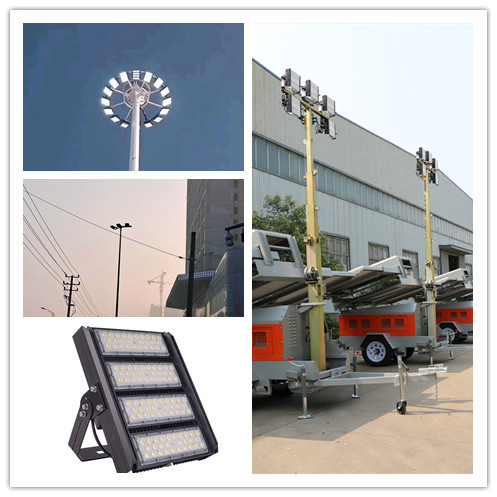

Applications

Designed for demanding environments requiring high-intensity illumination:

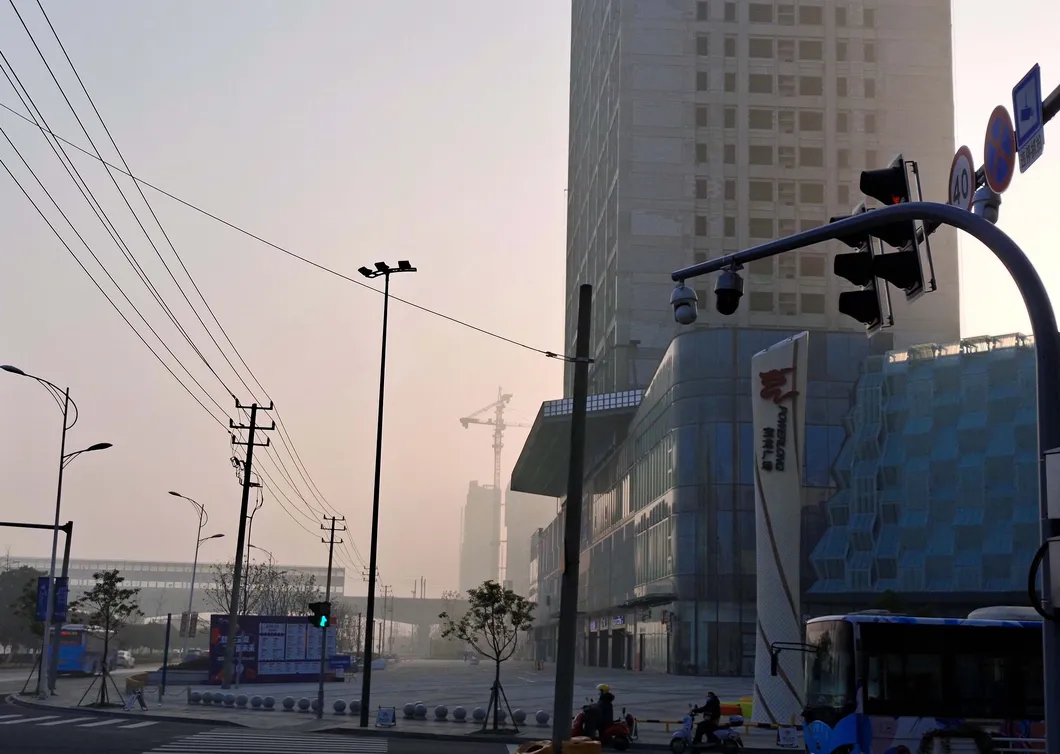

Area Lighting (Parks, Squares, Ports)
Architecture Lighting
Stadium and Sports Arena Lighting

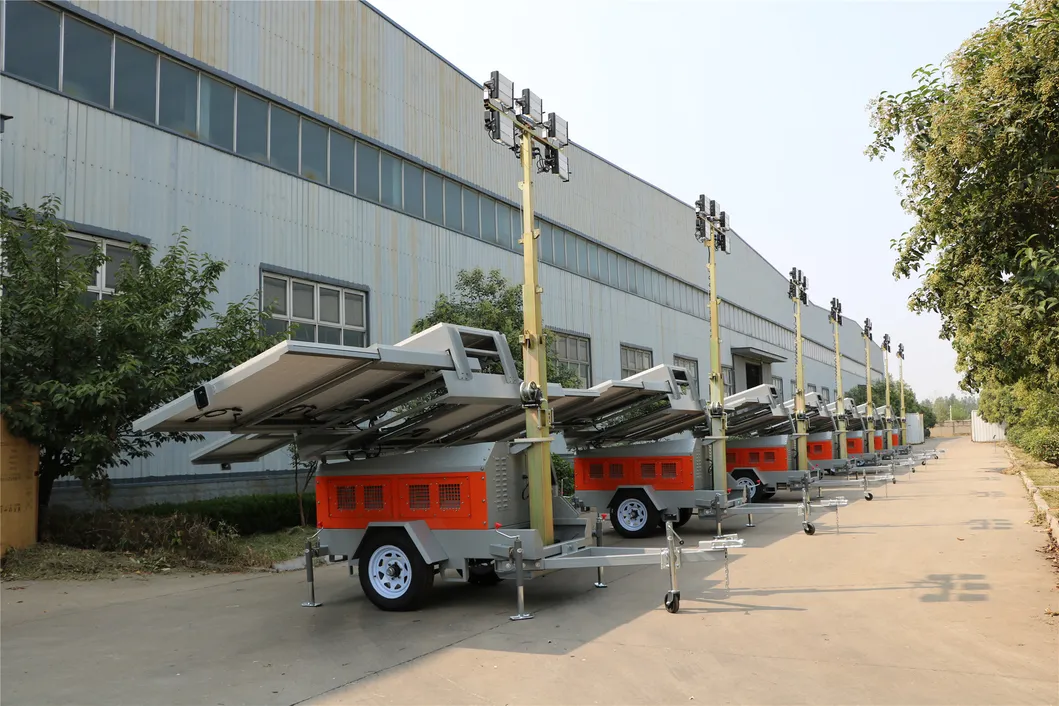

Light Tower Installations

Frequently Asked Questions

Q1: What is the IP rating of this flood light? A1: This product features an IP66 rating, making it completely dust-tight and protected against powerful water jets, suitable for outdoor use in harsh weather.

Q2: Can this LED light replace traditional metal halide lamps? A2: Yes, the 400W LED flood light is designed to efficiently replace traditional 700W metal halide lamps, providing significant energy savings.

Q3: What is the lifespan of the LED chips? A3: The unit uses high-quality Bridgelux LED chips with a rated life of 50,000 to 100,000 hours, depending on operating conditions.

Q4: What voltage range does the driver support? A4: It features a universal driver that supports an input voltage range of 100-305Vac, making it compatible with most global electrical grids.

Q5: What are the primary applications for this light? A5: It is ideal for large-scale areas such as stadiums, industrial factories, gardens, ports, stations, and architectural highlighting.

Q6: Does the product have international certifications? A6: Yes, it is certified by CCC, CE, CQC, and RoHS, ensuring it meets international safety and environmental standards.
