80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
1 / 5
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC
80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC

80m Znkj Carton + Foam LED Street Lamp Hybrid Stadium Lights with CQC

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
ZN-TGD-001
Pole Height
25-30m
Projection Distance
80m
Usage
Public Works
IP Rating
IP66
Certification
CCC, CE, CQC
Input Voltage
100-240V / 220V
LED Chips Brand
CREE / Puri
Transport Package
Carton + Foam
Origin
China
⚙️ Detailed Parameter Table
Parameter Specification Parameter Specification
Product Model 200W-1500W Series Power Brand Top Tier Drivers (100-240V)
Lighting Effect 130-170LM/W Intelligent System PLC / Mobile Control
Warranty 2-5 Years Power Efficiency > 0.97
Surge Protection 10KV Beam Angle 20° / 30° / 40° / 60° / 90°
Operating Temp -40ºC ~ +70ºC Color Temperature 3000K - 6500K
Lifespan > 50,000 Hours CRI > 80

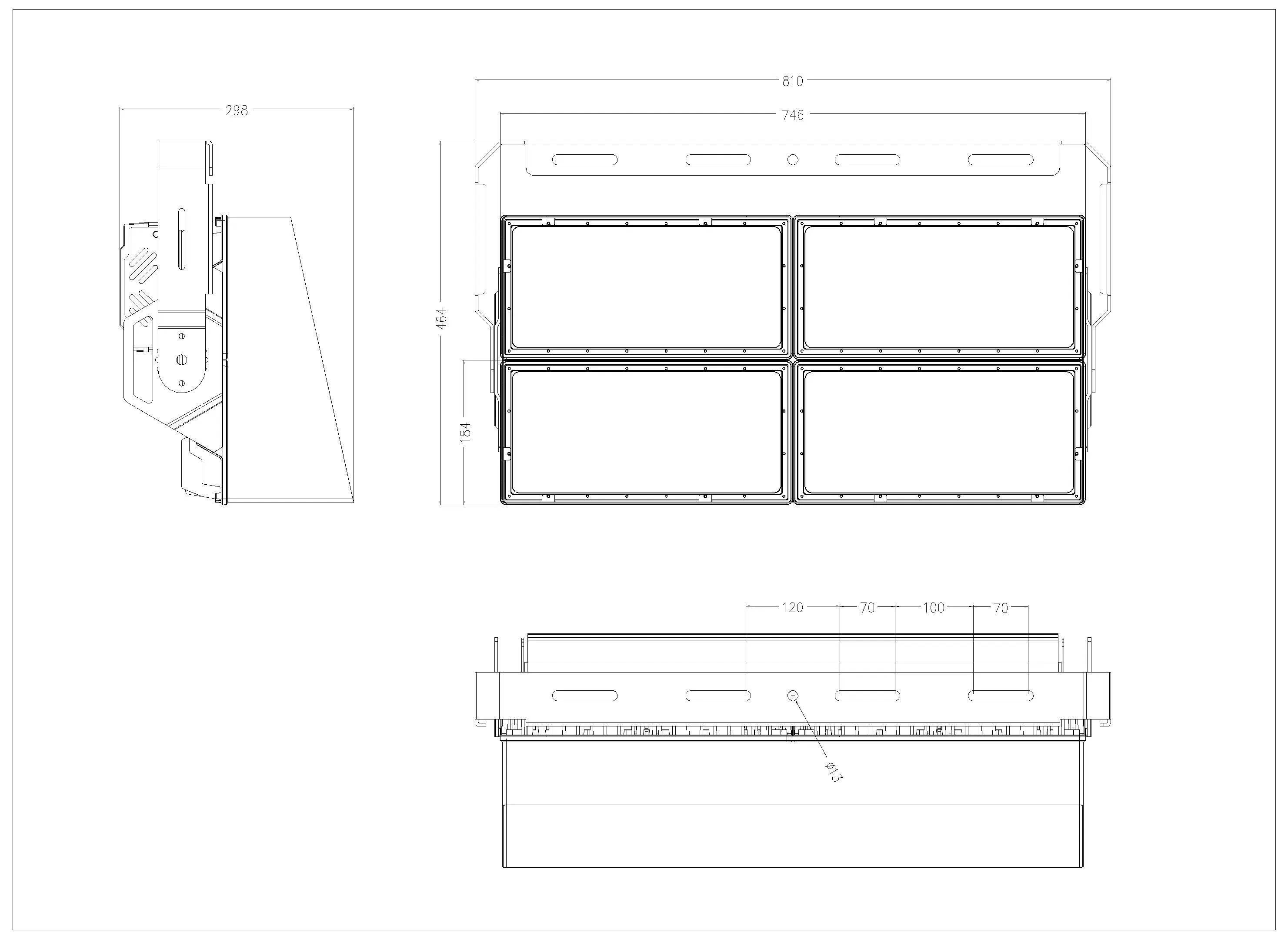

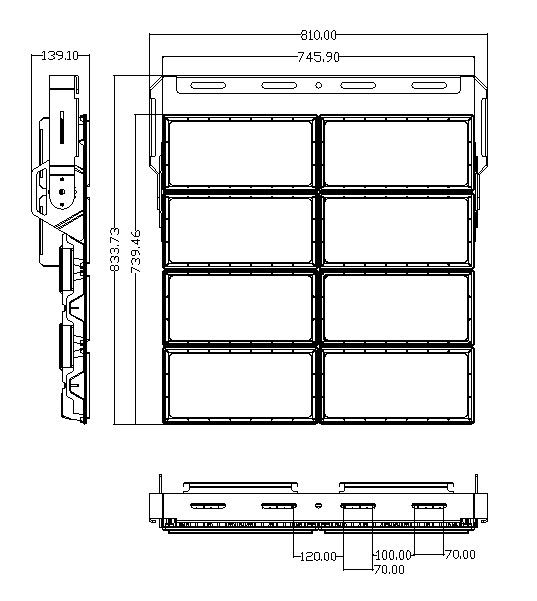

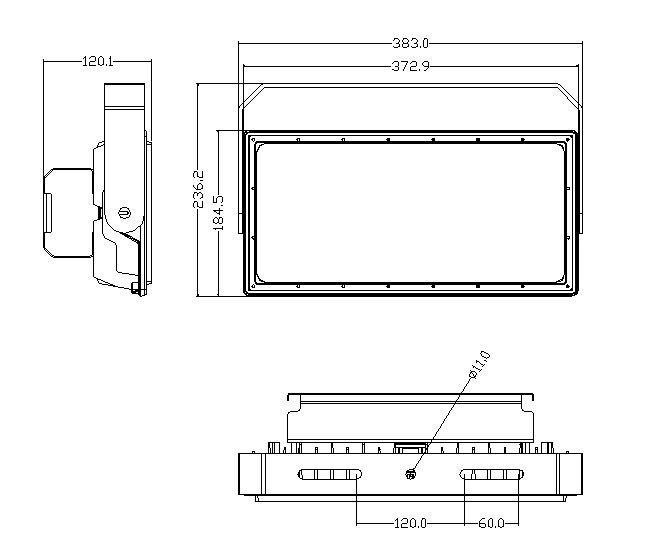

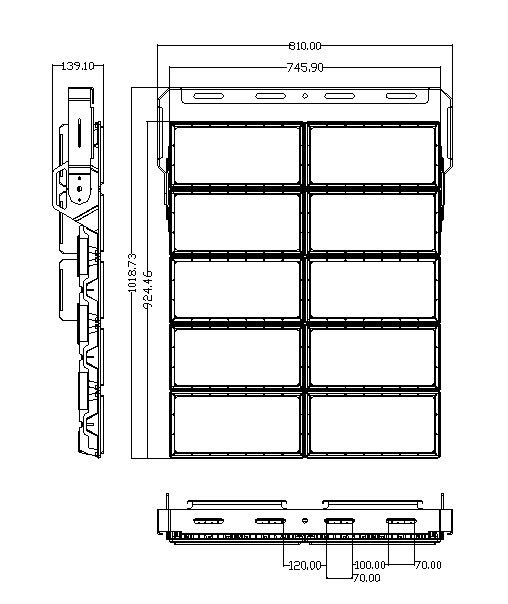

📏 Product and Packaging Dimensions
Power Product Size LED Qty Net Weight Gross Weight Package Size
200W 584*121*146 252 Units 4kg 5.1kg 630*170*315
400W 584*246*146 504 Units 6.5kg 7.6kg 610*345*200
600W 584*371*146 756 Units 8.5kg 10.3kg 610*470*200
800W 584*496*146 1008 Units 11.5kg 13.1kg 610*560*200
1000W 584*621*146 1260 Units 14kg 15.6kg 610*720*200
🖼️ Product Description

High-performance intelligent dimming lights suitable for stadium, square, and industrial lighting. Available in power ranges from 200W up to 1500W.

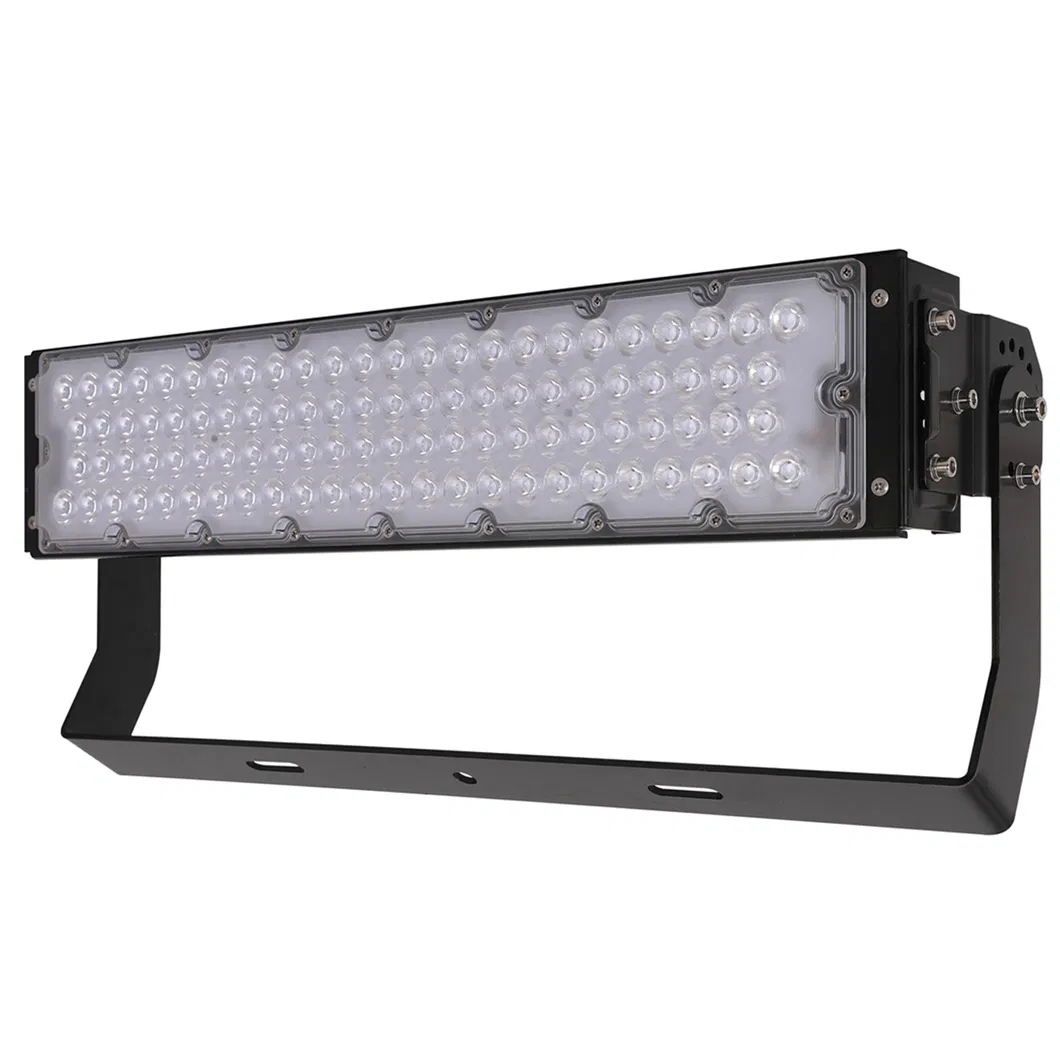

Stadium Light 1

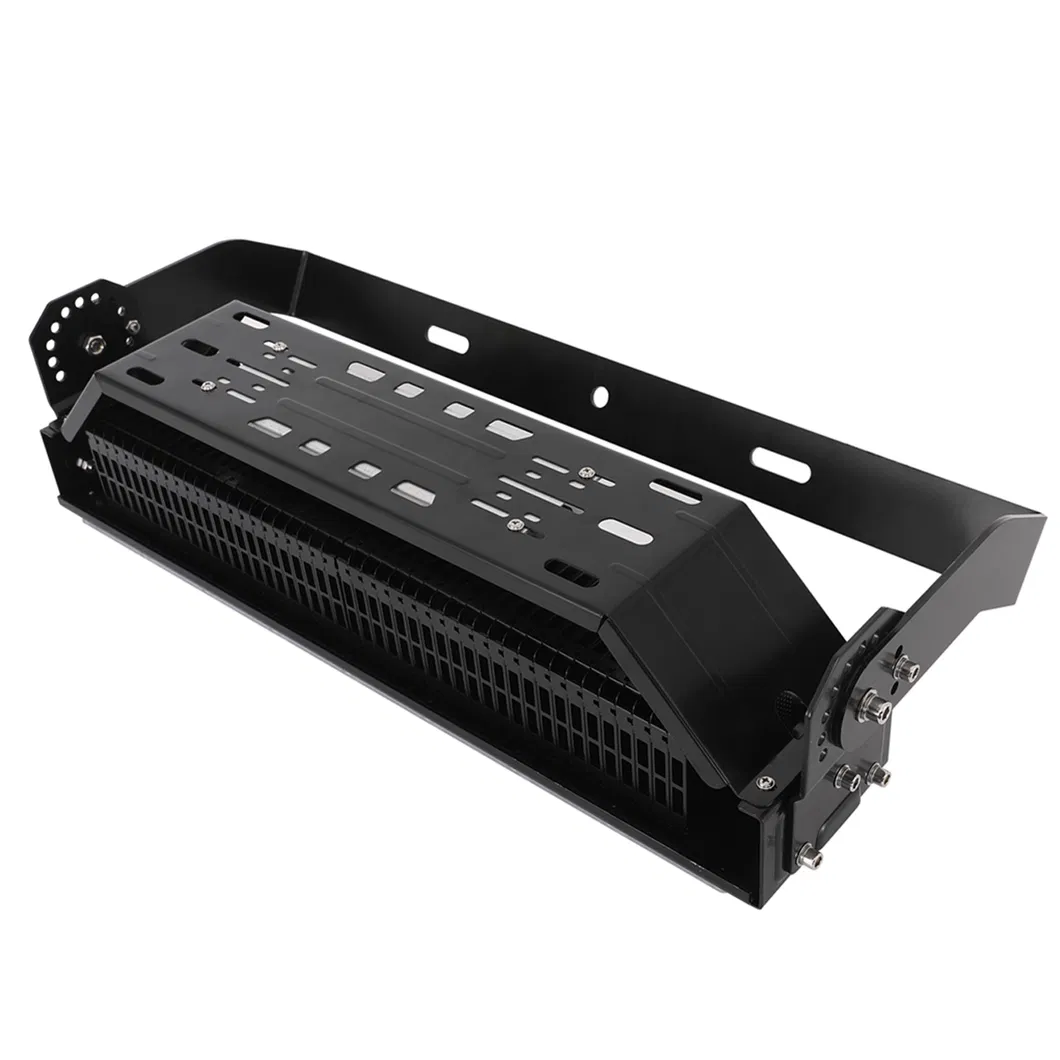

Stadium Light 2

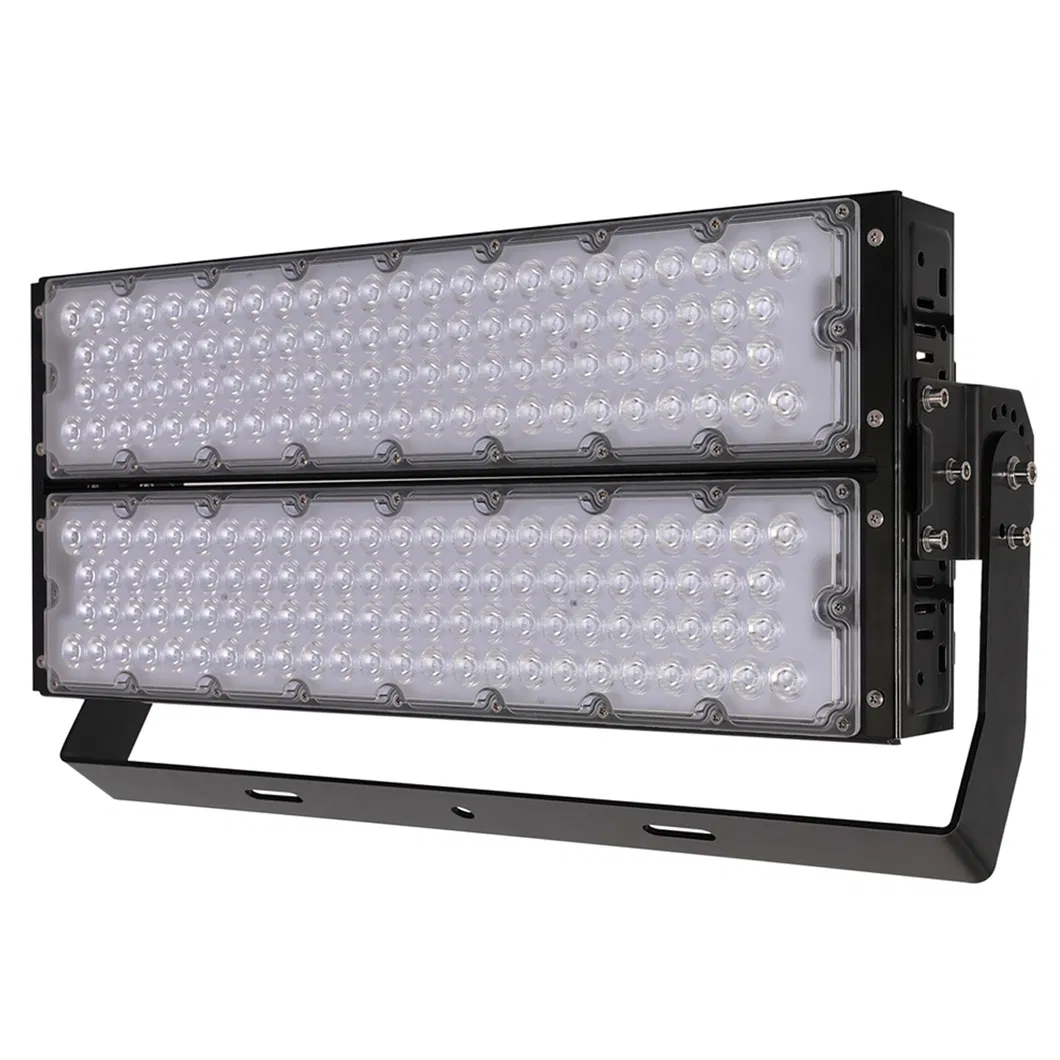

Stadium Light 3

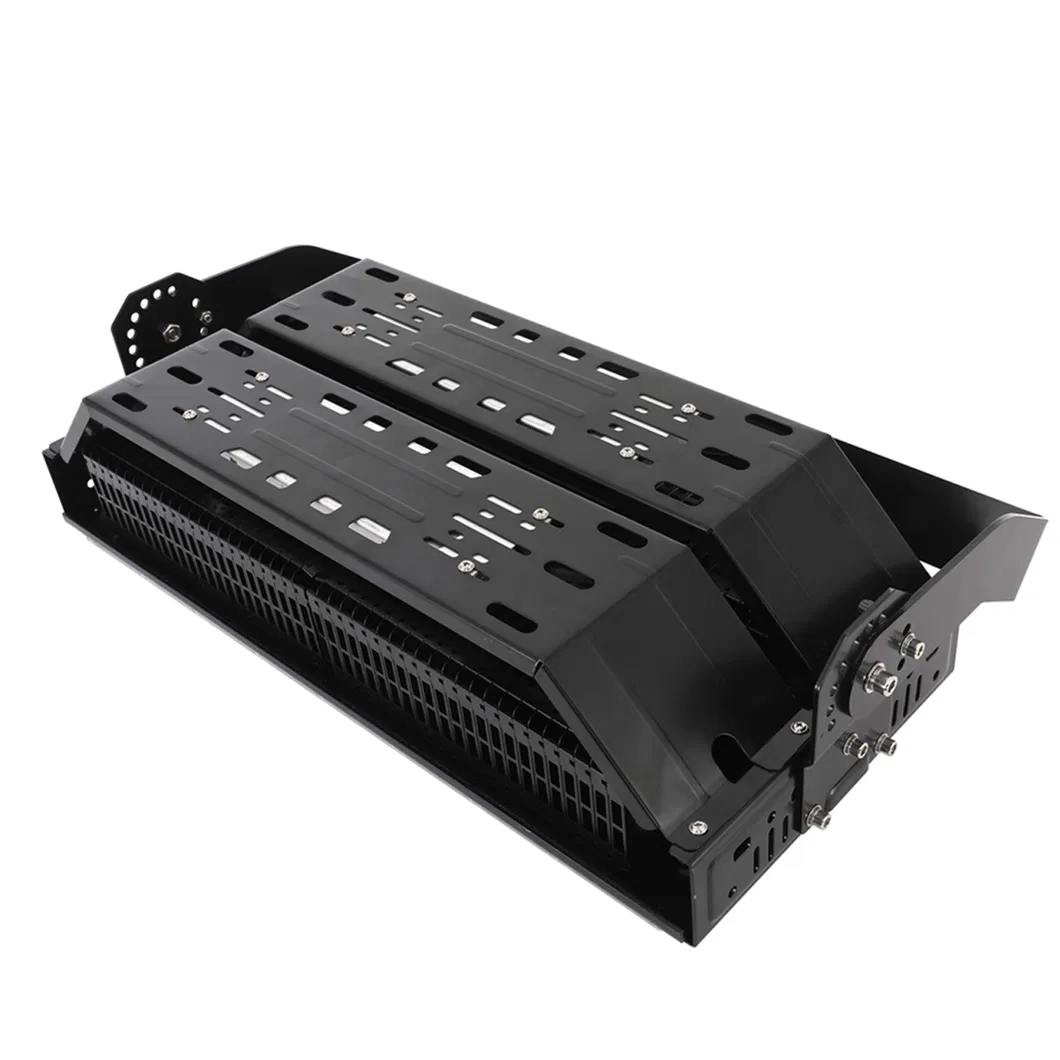

Stadium Light 4

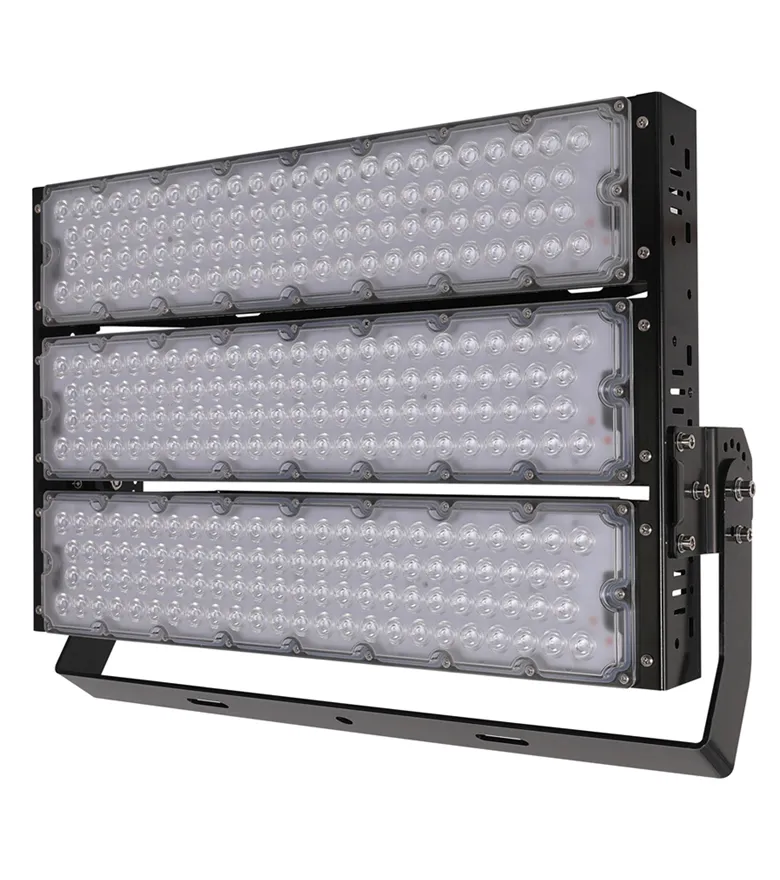

Stadium Light 5

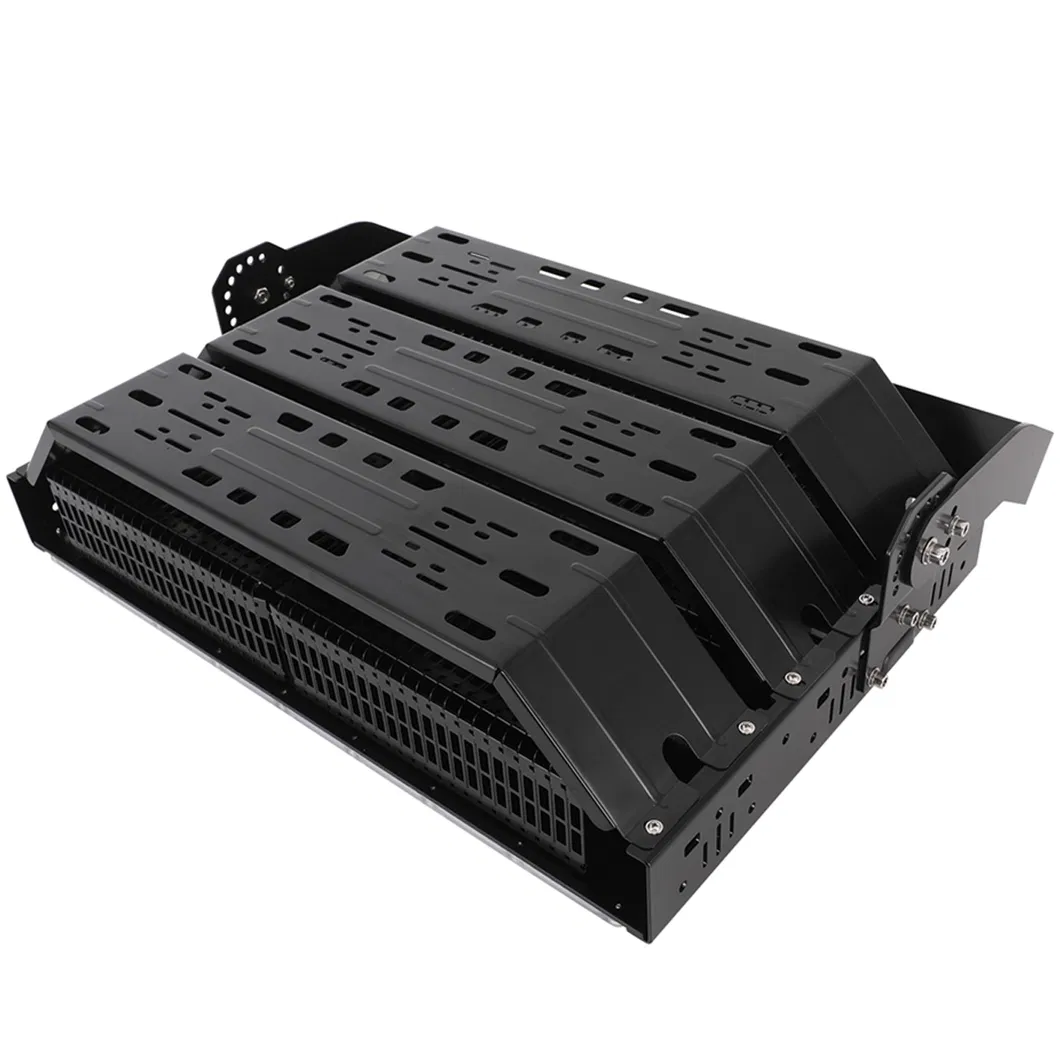

Stadium Light 6

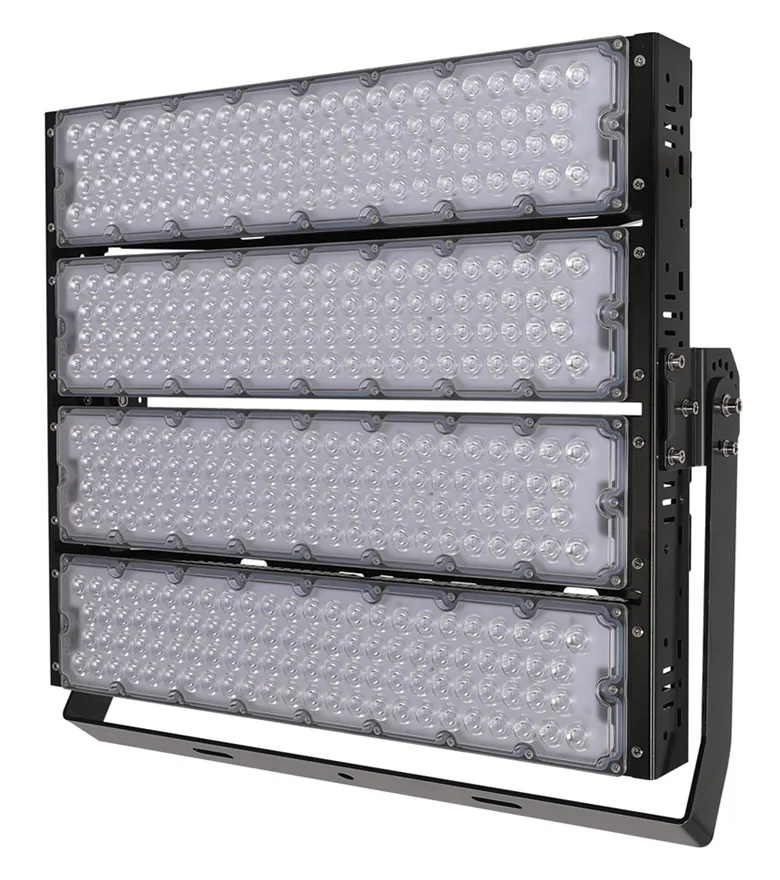

Stadium Light 7

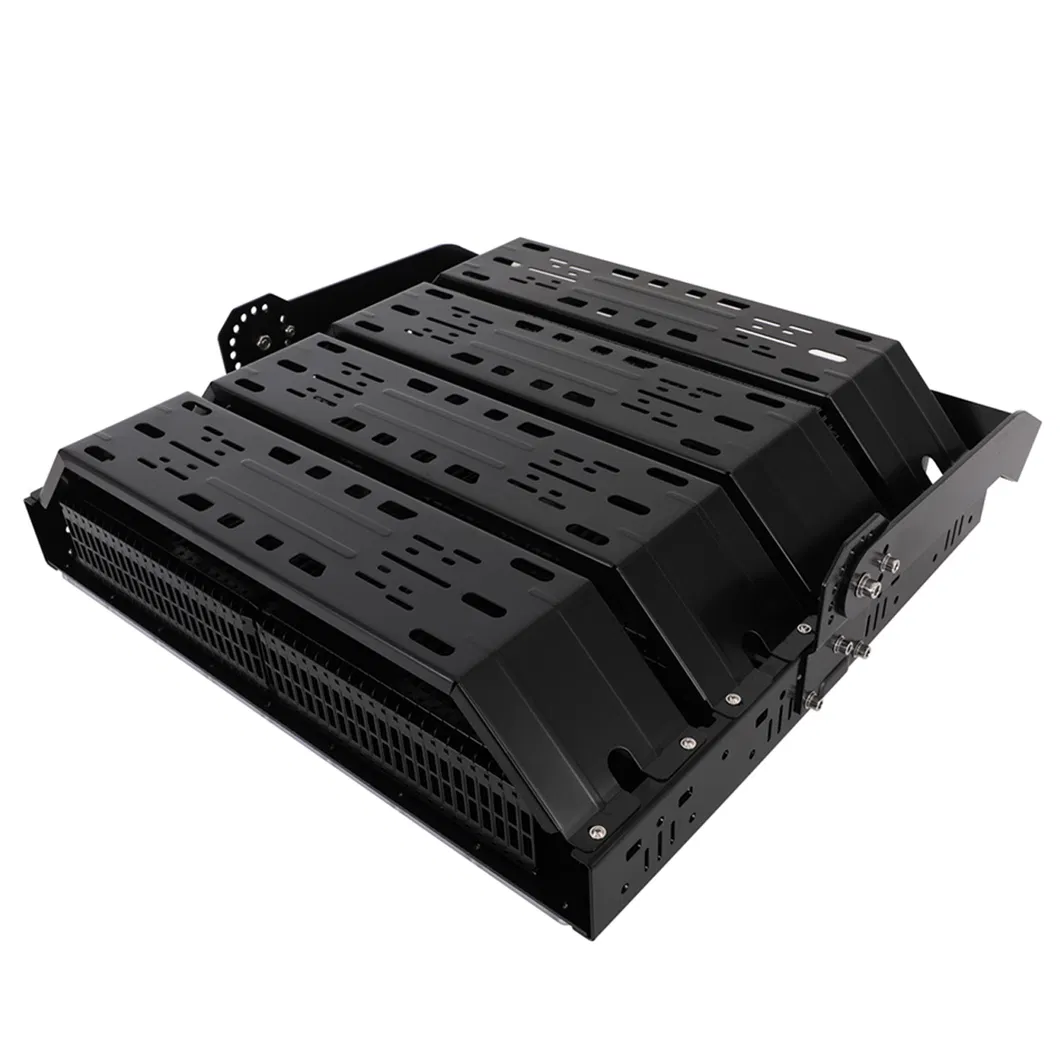

Stadium Light 8

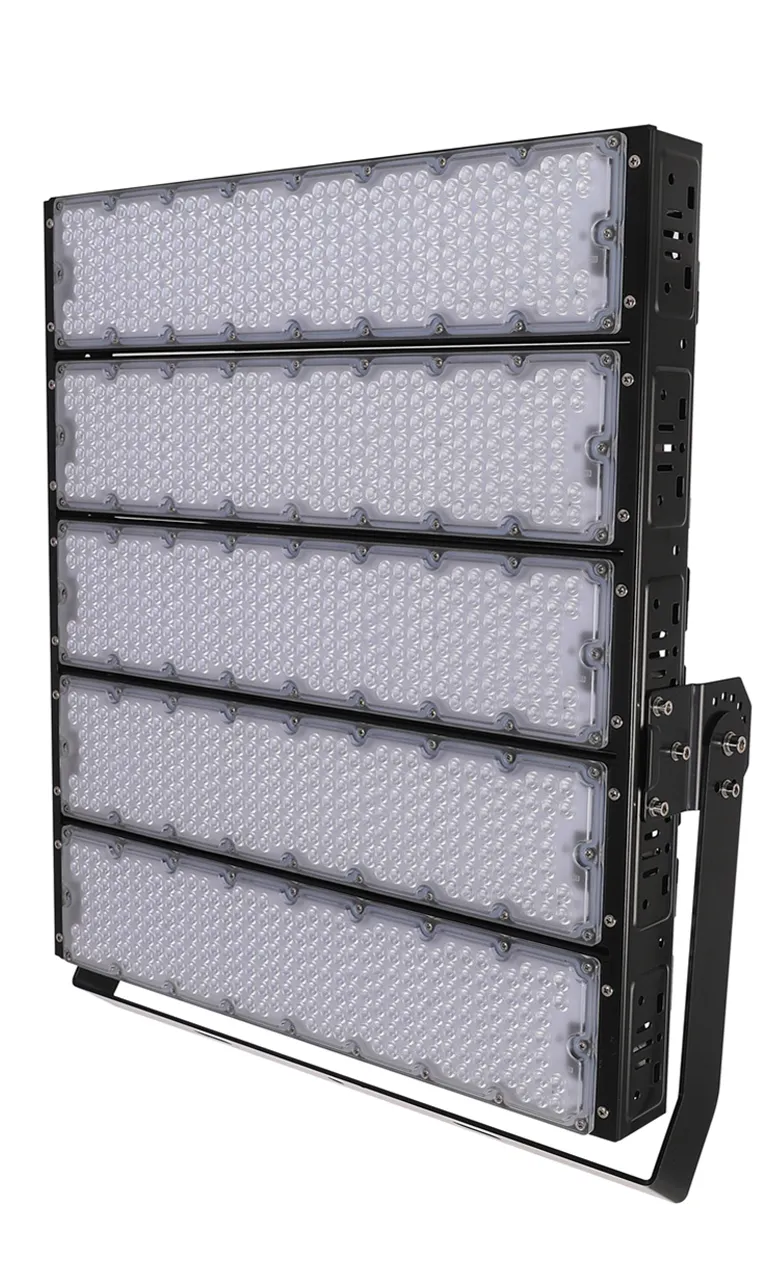

Stadium Light 9

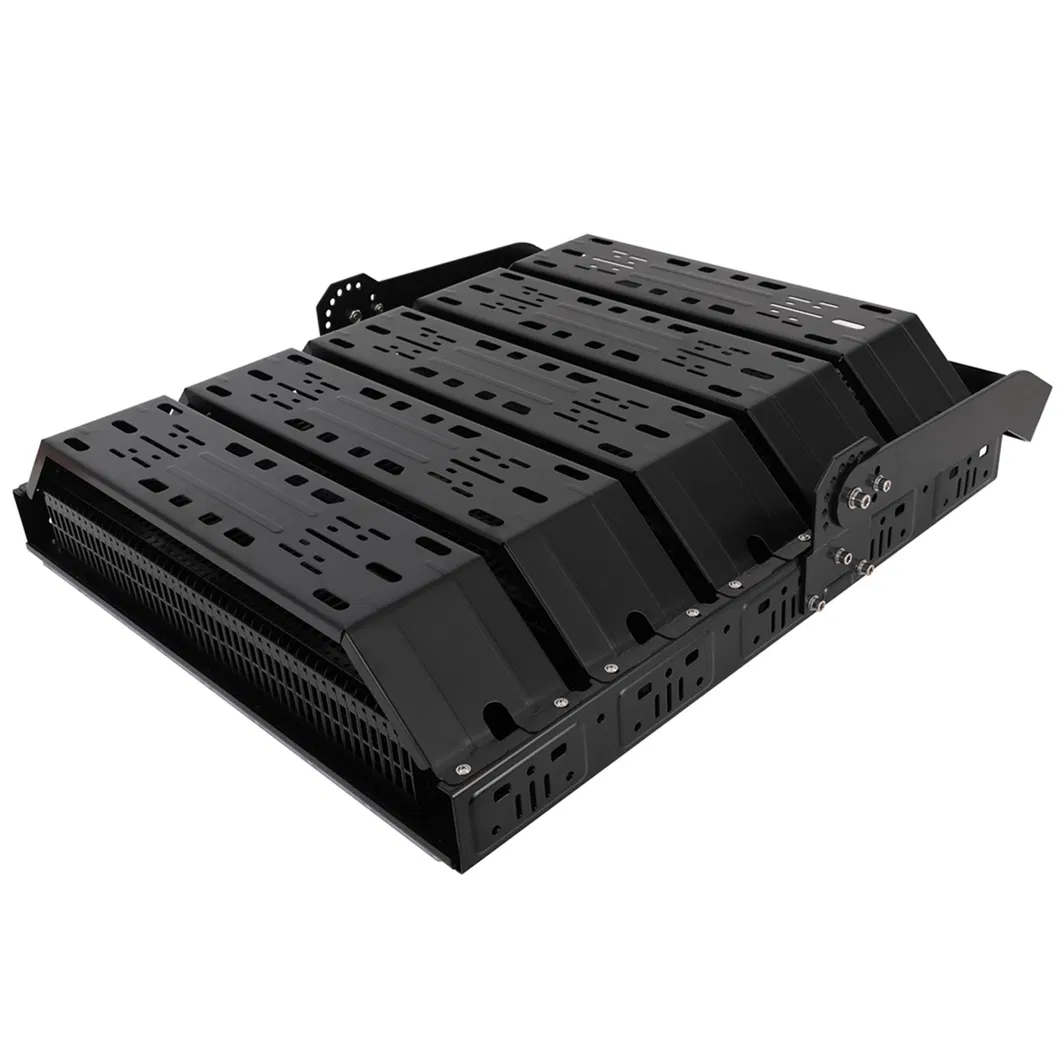

Stadium Light 10
✅ Features and Advantages
01
Adaptive design for lamp poles of different heights. The lamp body is constructed from high-quality aluminum for efficient heat dissipation.
02
Multiple models available with a wide power range from 200W to 1000W+ to meet diverse lighting requirements.
03
Utilizes high-brightness 3030 SMD chips with an efficiency of 120-170 LM/W, ensuring superior visibility.
04
IP66 waterproof rating with CE and RoHs certification, offering a lifespan of over 50,000 hours.
🎯 Scope of Application
Airport Football Field Gymnasium Parking Lot Public Square Stadium
❓ Frequently Asked Questions
What is the waterproof rating for these stadium lights?
The lights feature an IP66 protection level, making them fully resistant to dust and heavy rain, ideal for outdoor public works.
How long is the warranty period?
Depending on the specific configuration and driver brand chosen, we provide a warranty range of 2 to 5 years.
Do these lights support smart control systems?
Yes, they are compatible with intelligent dimming systems including PLC and mobile phone app controls.
What is the expected lifespan of the LED chips?
Our stadium lights use high-quality CREE/Puri LED chips, rated for a working life of over 50,000 hours.
Can these be used for high-pole lighting at airports?
Absolutely. These lights are designed for pole heights of 25-30m and have a projection distance of up to 80m.
What beam angles are available for different stadium sizes?
We offer multiple beam angles (20°, 30°, 40°, 60°, 90°) to ensure precise light distribution for any facility size.
