Good Quality Aluminum Waterproof IP66 Outdoor 30W-240W LED Street Light 120W

Customization: Available
Power Supply: Inventronics/Meanwell Driver
Color Temperature: 2700-6500K

Product Description

Basic Information
Model NO.
PL-LD-061
Lamp Body
Aluminium + Tempered Glass
Power
60W
IP Rating
IP66
Voltage
AC100-305V
LED Brand
Lumileds 3030SMD
HS Code
9405429000
Capacity
500,000 pieces/Year
Product Features

High-Quality Aluminum Waterproof IP66 Outdoor 60W LED Street Light

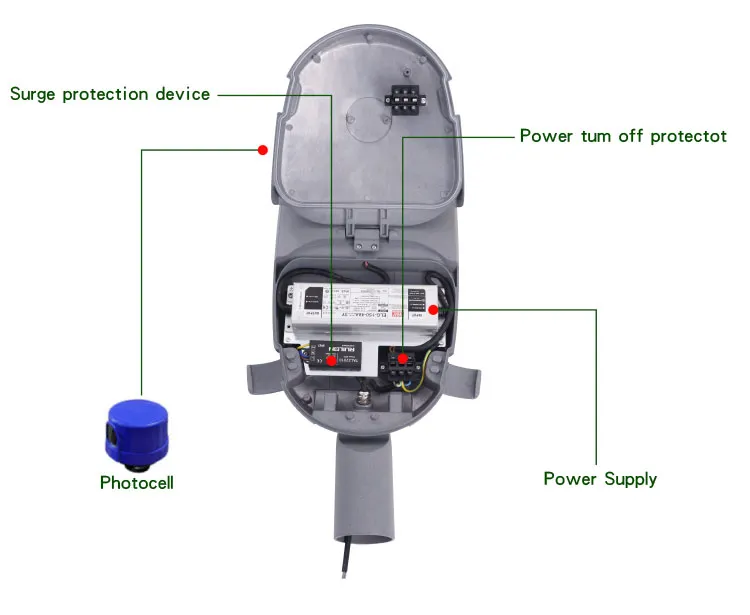

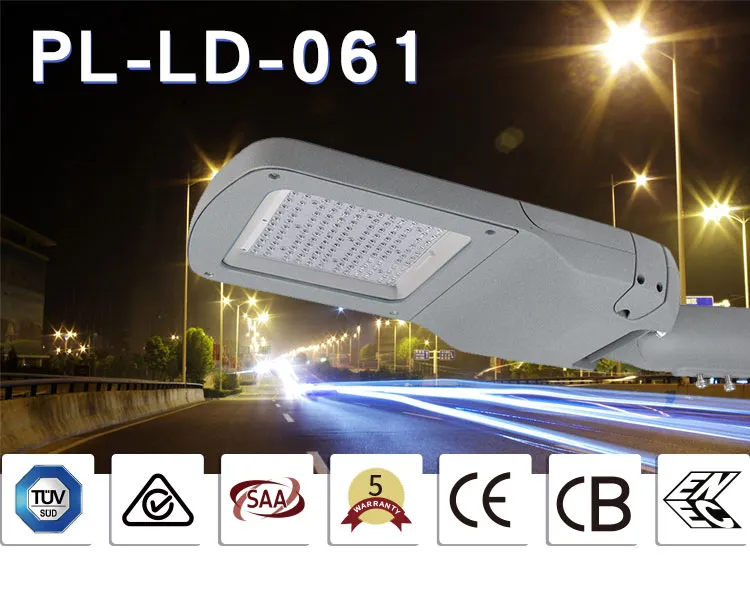

LED Street Light Main View
  • Light Source: Adopting imported Lumileds 3030SMD chips. Energy-saving, environment protecting and long life.
  • Premium Glass: 5mm toughened transparent glass, high temperature resisting, easy for light penetration, transmittance up to 92%.
  • Heat Dissipation: Radiator adopts Aluminium alloy with high thermal coefficient; surface treatment ensures corrosion resistance.
  • Stability: Constant current supply for high security and performance stability.
  • Efficiency: Energy saving up to 80% compared to traditional lighting.

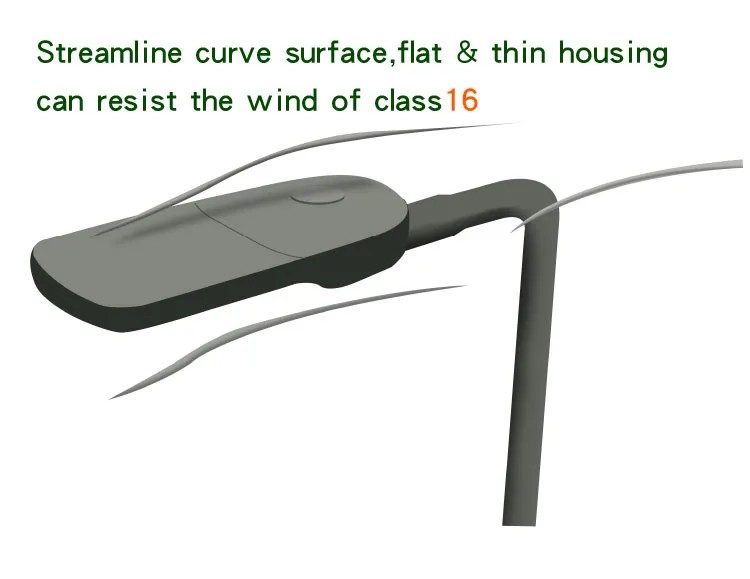

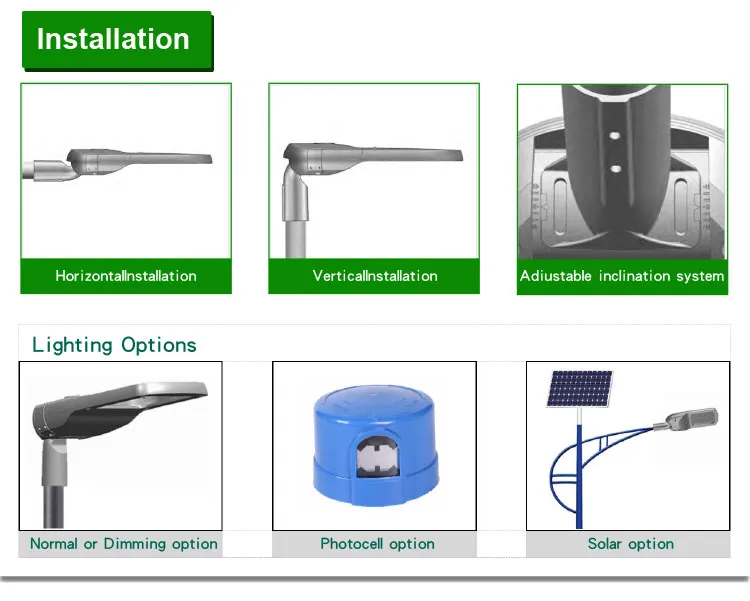

  • Design: Elegant appearance with easy installation mechanics.

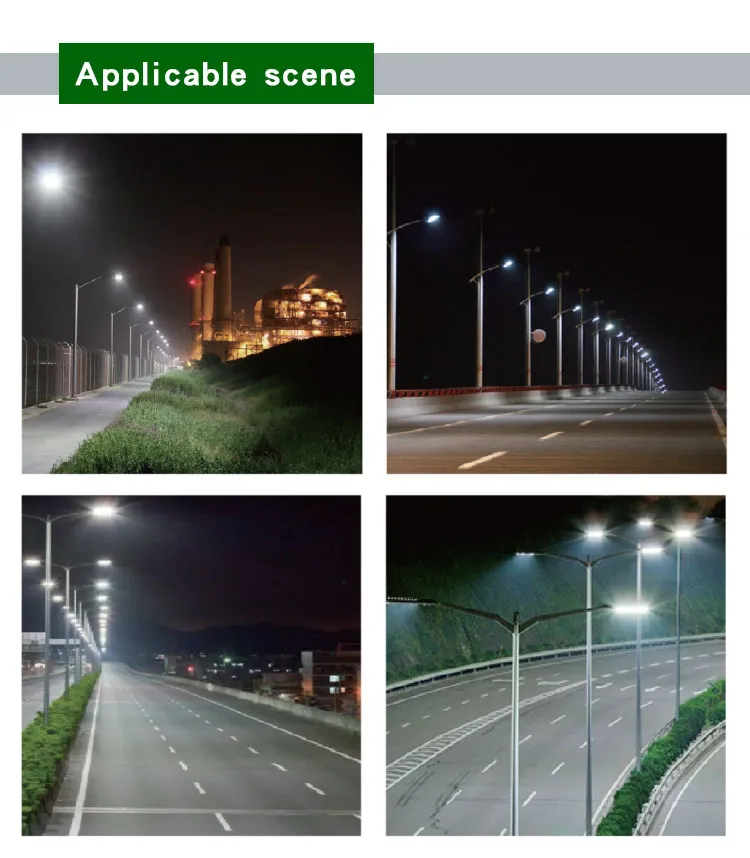

  • Versatile Use: Ideal for expressways, downtown roads, bridges, ports, and industrial factories.
  • Durable Housing: Die-cast aluminum housing with professional painting coating for outdoor durability.

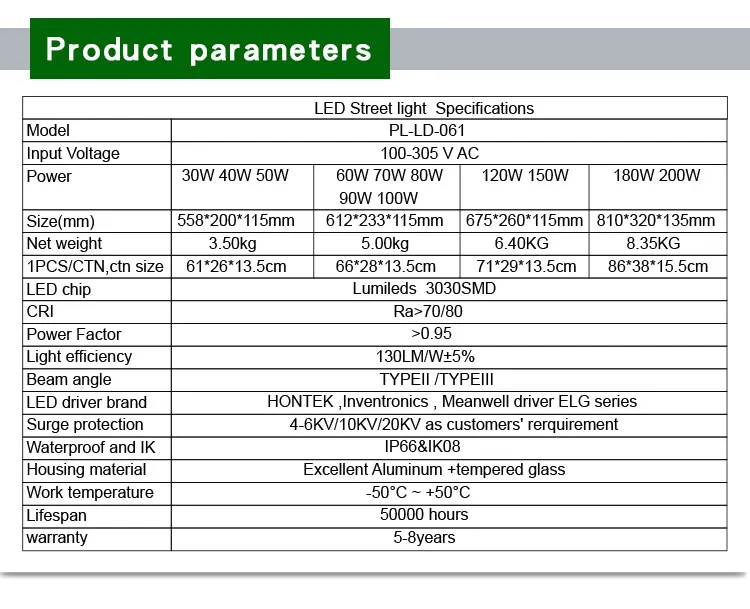

Technical Specifications
Parameter Specifications
Model PL-LD-061
Input Voltage DC12V/24V, 100-305V AC
Power Options 30W - 60W 70W - 100W 120W - 150W 180W - 200W
Dimensions (mm) 558*200*115 612*233*115 675*260*115 775*320*120
Light Efficiency 150LM/W ± 5%
CRI Ra > 70 / 80
Protection IP66 & IK09
Lifespan Up to 100,000 hours (L80B10)
Certificates CE, ROHS, SAA, CB, ENEC, IK09, IP66

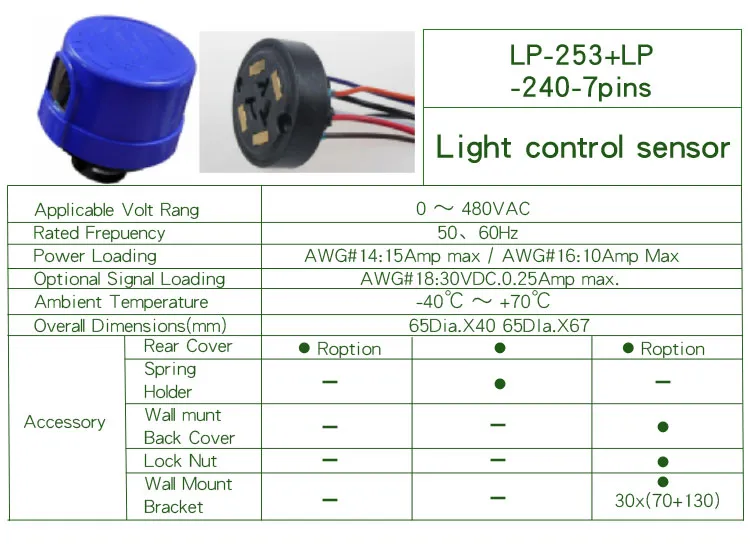

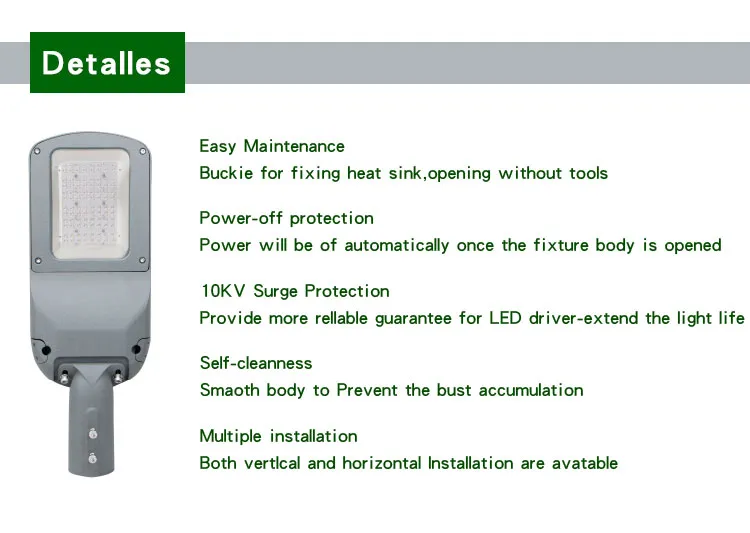

Detailed Gallery
Frequently Asked Questions
Do LED lights really have a 50,000-hour lifespan?
While 50,000 hours is the theoretical lab-tested lifespan, actual usage usually reaches around 30,000 hours depending on the environment. High-quality materials can extend this significantly.
Why do different suppliers have different brightness for the same power?
Brightness depends on the quality and version of the LED chips used. Even with the same chip, different brightness tiers exist. It's also important to distinguish between raw LED lumens and total fixture lumens.
What is Color Temperature?
Measured in Kelvin (K), it defines the color of the light. Lower temperatures provide a warmer, relaxing glow, while higher temperatures provide a cooler, concentrated light ideal for offices or industrial safety.
What is CRI?
Color Rendering Index (CRI) measures how accurately a light source reveals the true colors of objects. A higher CRI provides better visual clarity but usually involves higher costs.
What are PF and Efficiency?
Power Factor (PF) and Efficiency measure the electrical performance of the LED driver. Higher ratings indicate less power waste and better long-term reliability.
Can these lights withstand extreme weather?
Yes, with an IP66 waterproof rating and IK09 impact resistance, these lights are designed to perform reliably in harsh outdoor environments, from heavy rain to dust storms.
