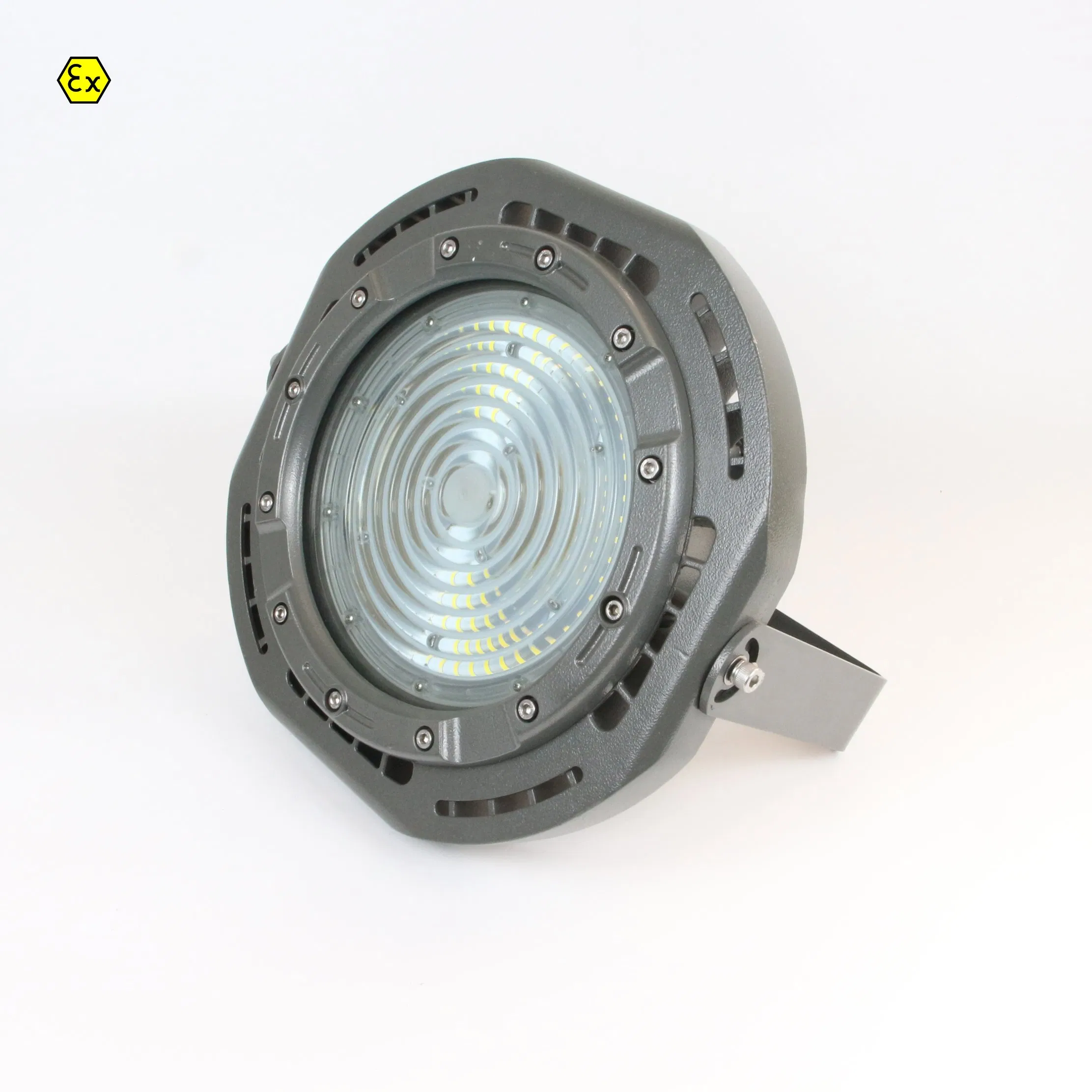

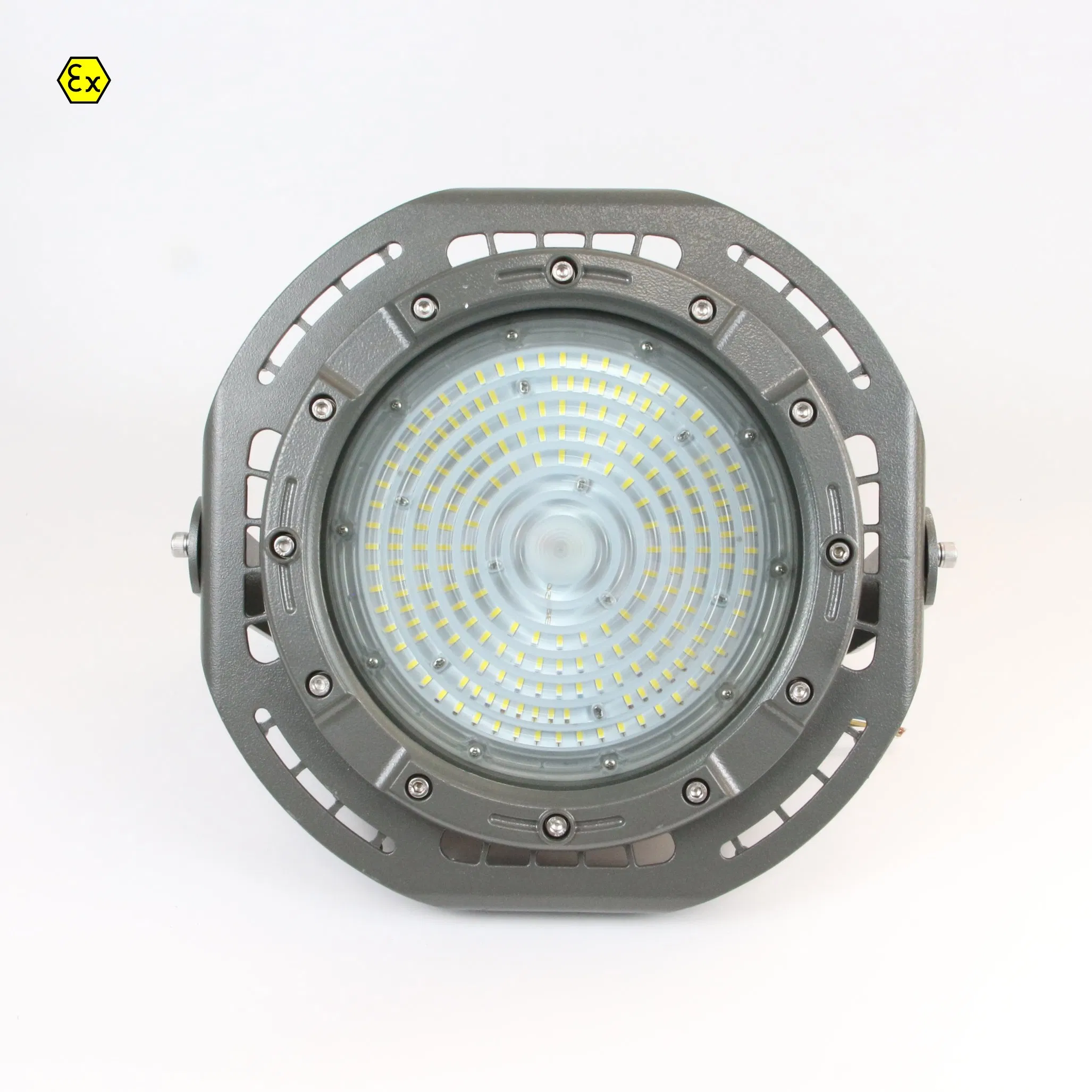

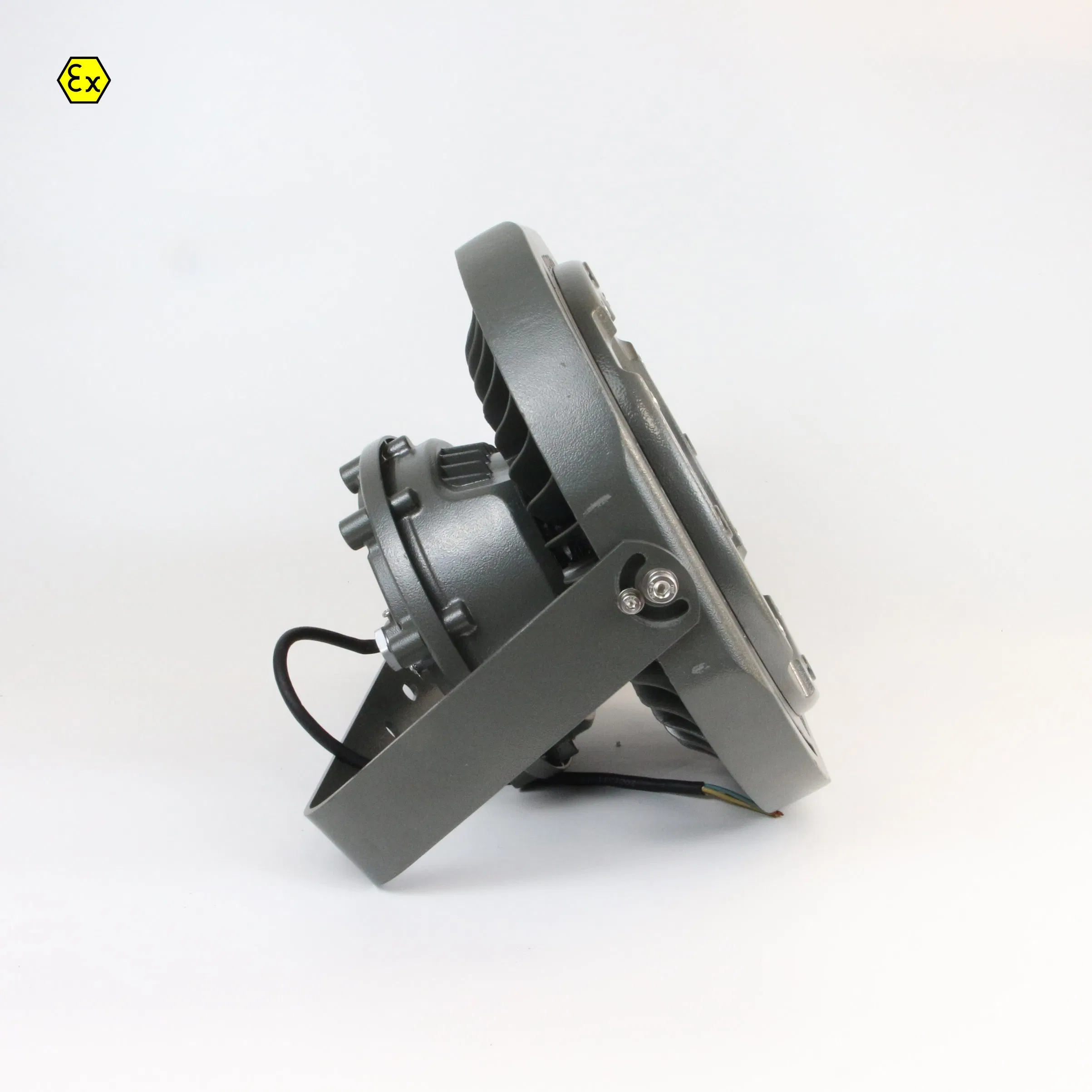

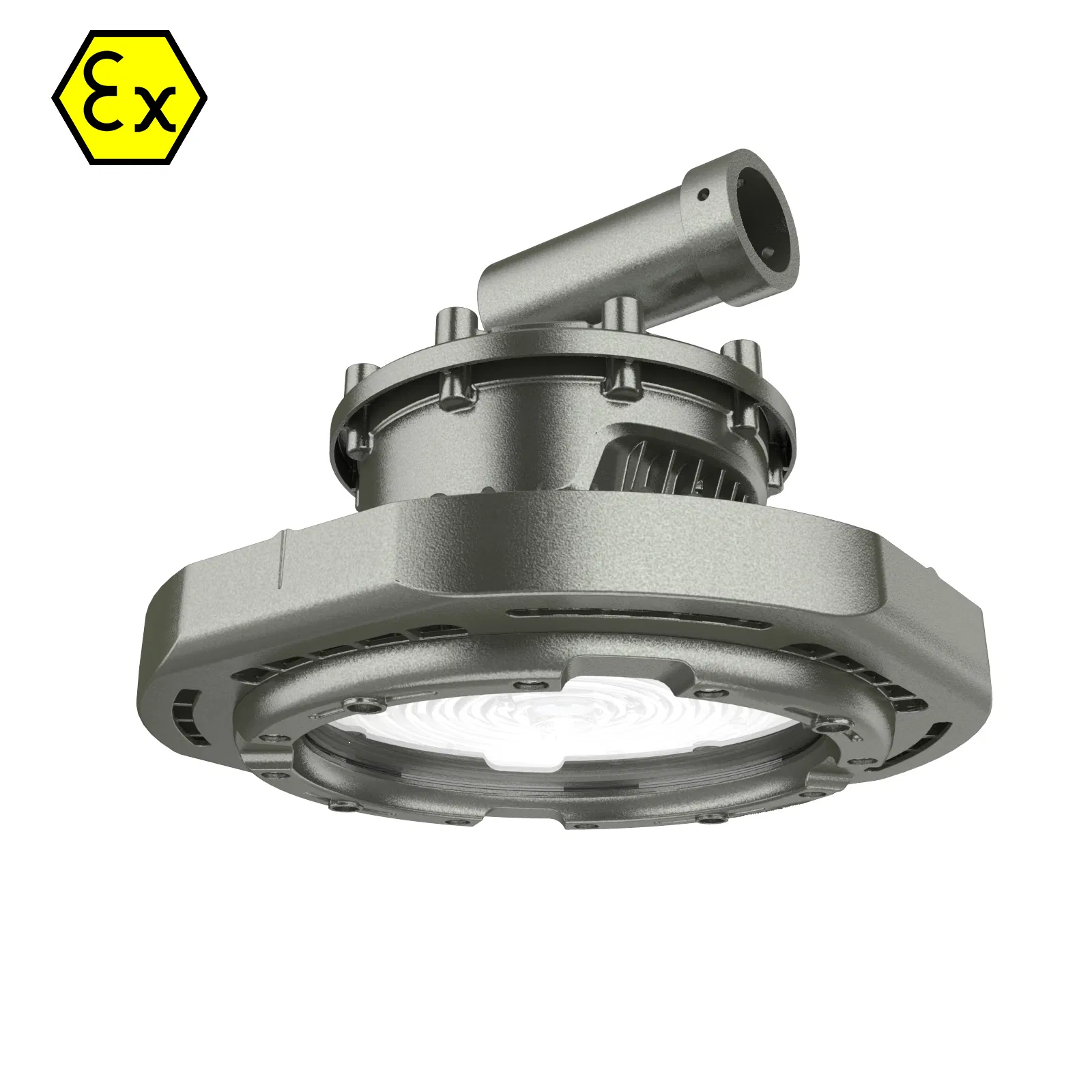

An explosion proof high bay or low bay light is an industrial-grade light fixture designed for use in hazardous locations where atmospheres may be exposed to the release of flammable gases or vapors, combustible dusts or ignitable fibers or flyings in explosive concentrations.

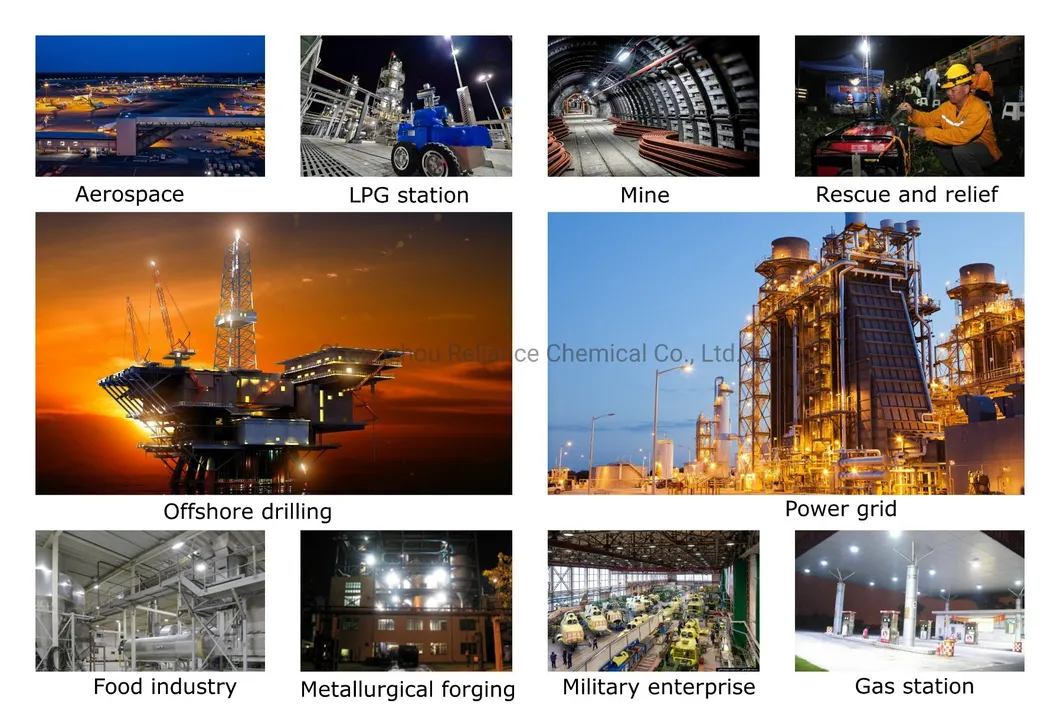

Typical hazardous environments include oil and gas processing facilities, petroleum refineries, chemical plants, solvent extraction plants, powdering and lacquering facilities, saw mills, pulp and paper mills, and aircraft hangers.

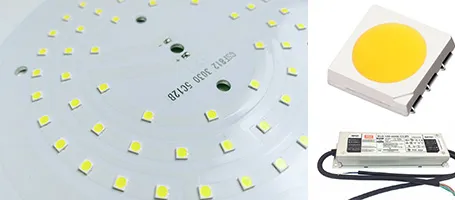

The light source adopts the first-line brand CREE LED light-emitting chip, with ultra-high light efficiency and an average service life of up to 100,000 hours.

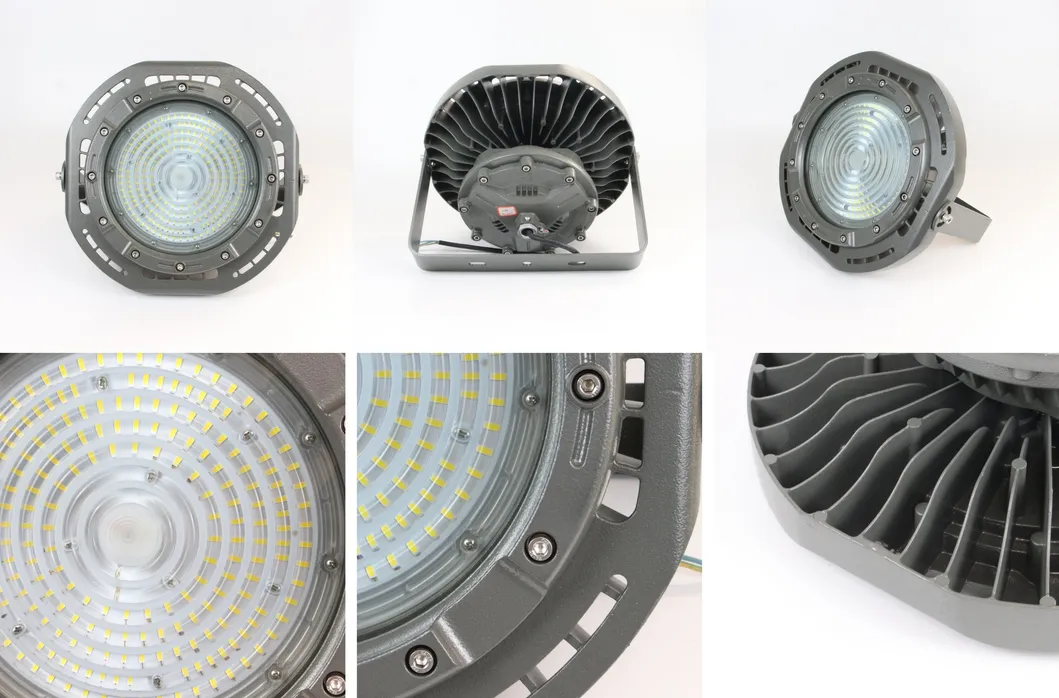

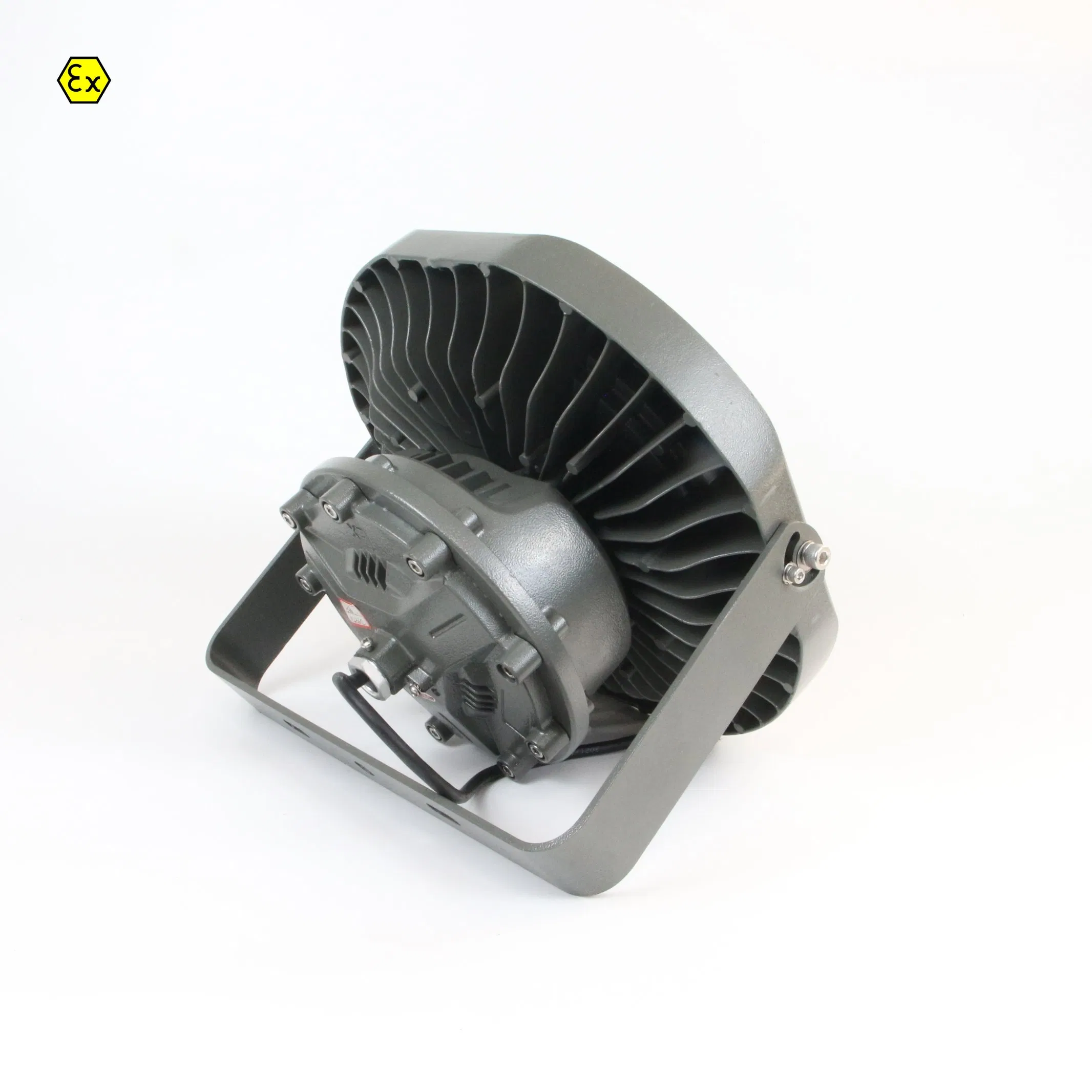

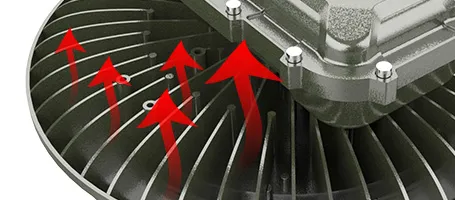

The radiator is made of one-piece die-casting molding. The structure is firm and has excellent thermal conductivity and heat dissipation performance to ensure long lamp life.

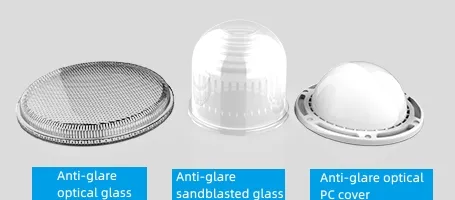

Made of high-strength optical-grade materials, corrosion-resistant and impact-resistant. Light transmittance can reach 95%~98% with uniform, soft, and anti-glare design.

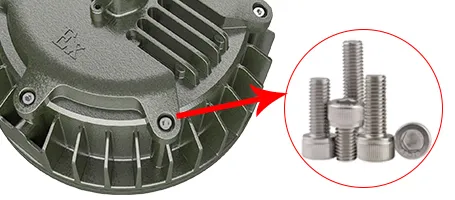

Surface treated with high-voltage electrostatic spraying and stainless steel screw fasteners. High resistance to corrosion, rust, and water, ideal for acid and alkali environments.
| Rated power | 150-200W | Power factor | >0.95 |
| Rated voltage | AC 220V 50/60Hz | Ambient temperature | -20~40ºC |
| Degree of protection | IP66 | Type of light source | LED |

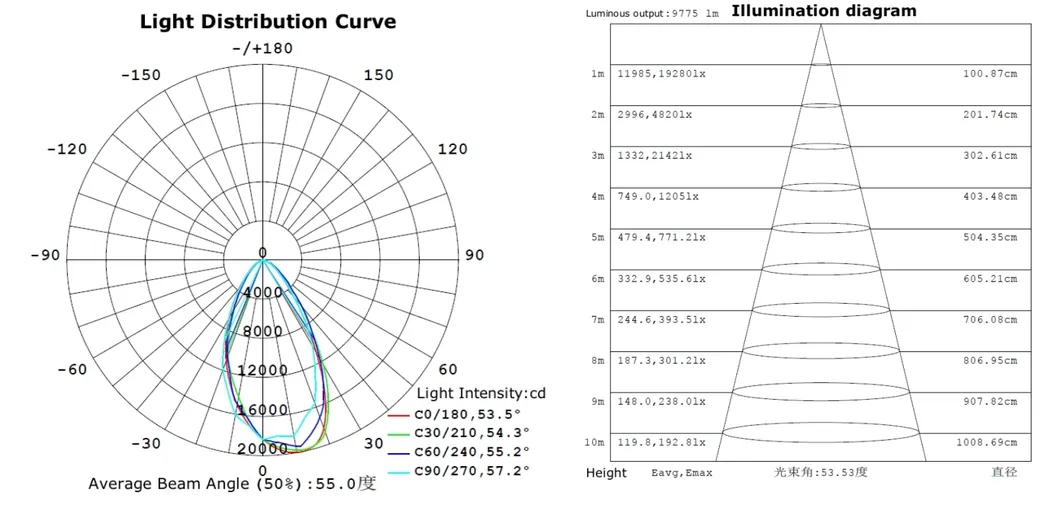

| Beam angle | 90° (optional 60°) | Color temperature | 3000-6500K |
| Light Specification | CREE3030 | Light source life | >100,000h |
| Anti-corrosion | WF2 | Explosion-proof | Exd IIC T6 Gb |

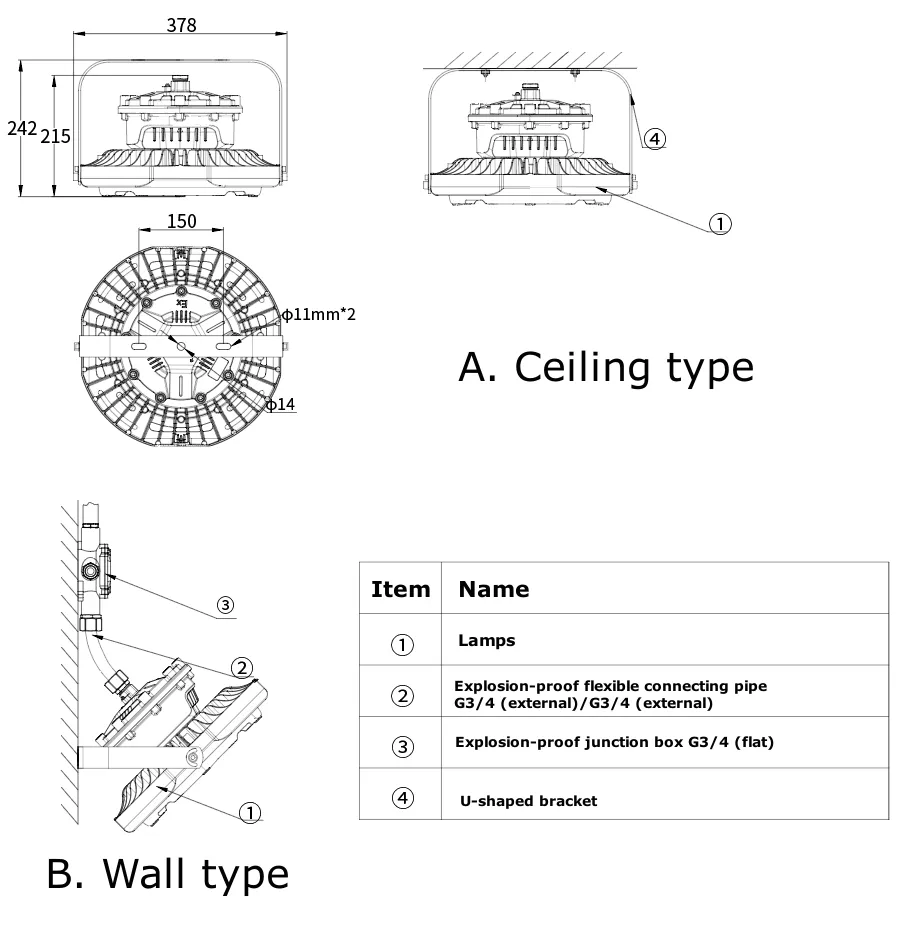

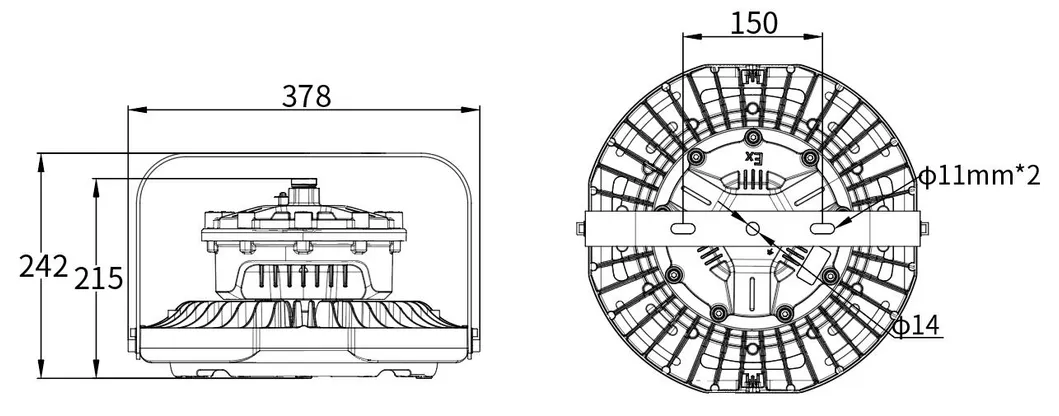

| Product Size | Φ378×215mm | Product weight | 9.5kg |
1. Use provided foam shock absorption during transport.
2. Surface temperature rise during use is a normal phenomenon.
3. Ensure voltage is within rated range to prevent damage.
4. The luminaire must be reliably grounded.
Potentially explosive areas require specialized lighting solutions. These ATEX certified LED lights provide powerful illumination and extreme durability for:
