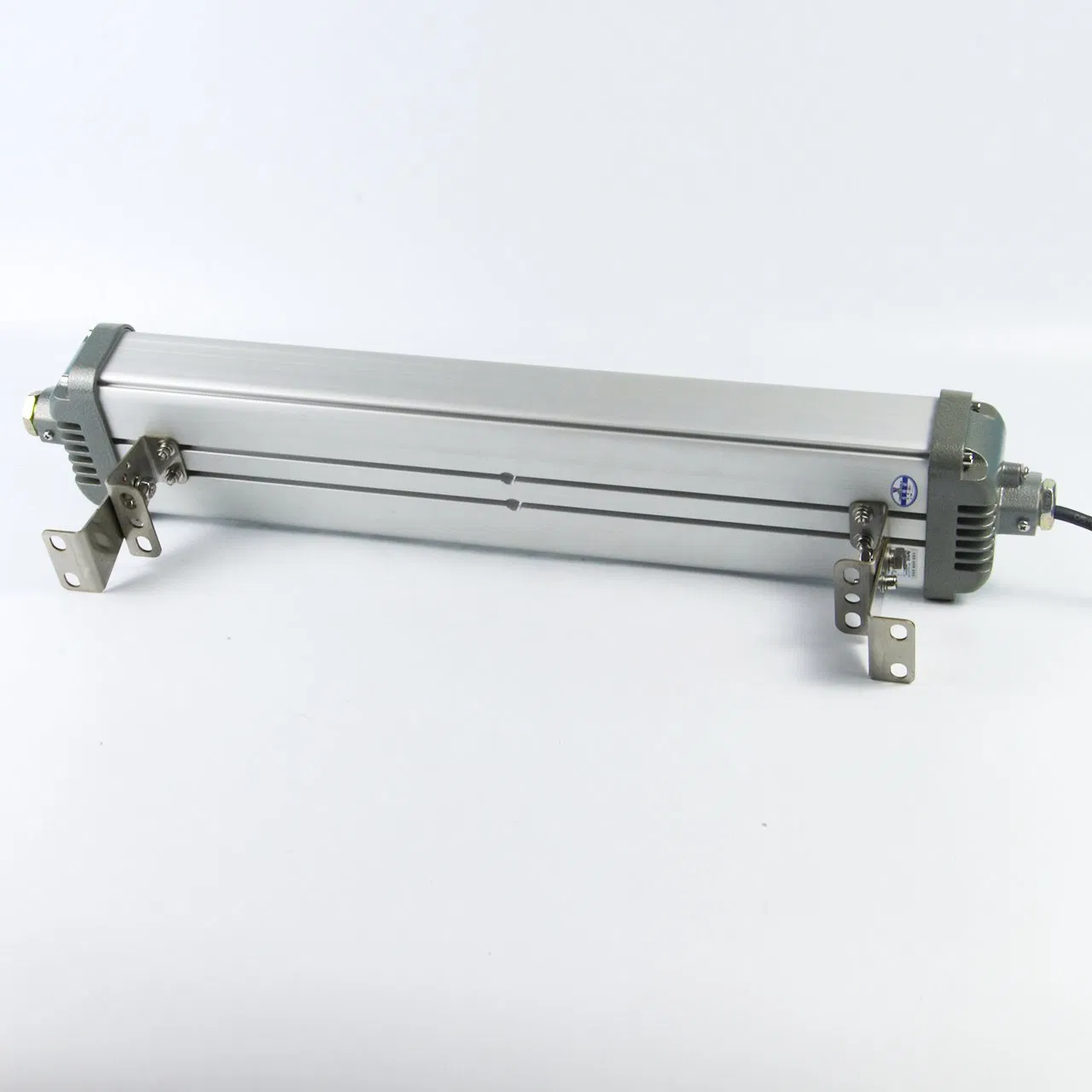

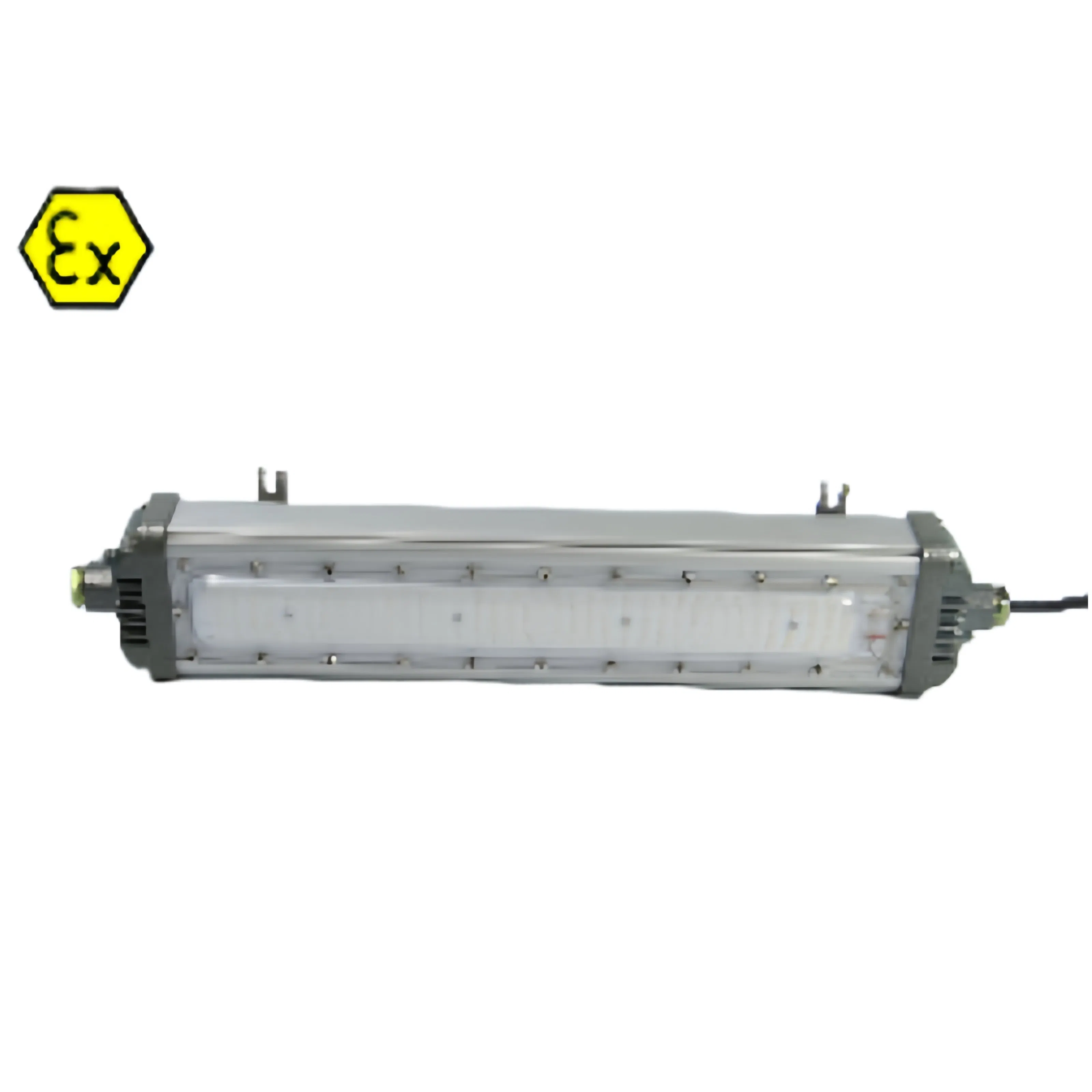

Lume Light
1 / 5
| Model NO. | MXEL-8192 | Irradiated Area | ≥30m² |
|---|---|---|---|
| Input Voltage | 220v | Color Temperature | Warm White |
| Emitting Color | White | Certification | CCC, CE, RoHS, ATEX |

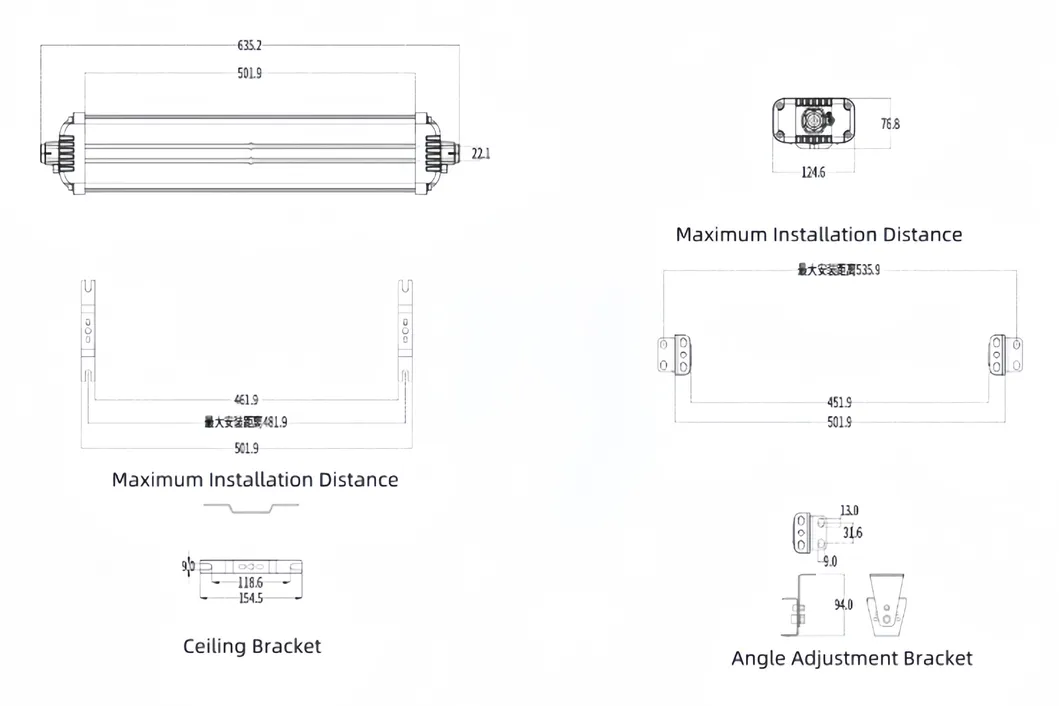

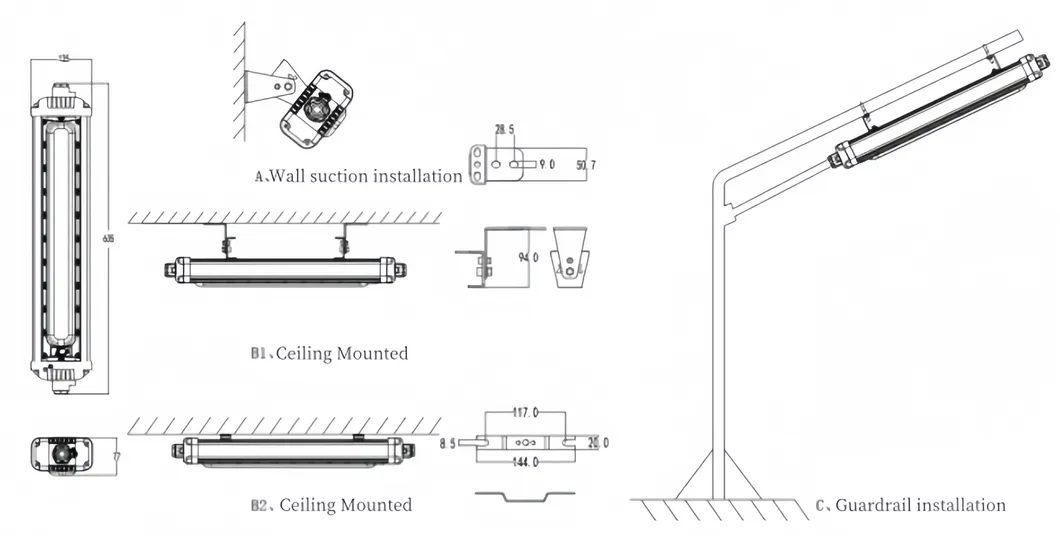

| Size | 635*125*77mm | Weight | 3.2kg |
| Explosion Proof Grade | ExnRIICT6Gb | IP Rating | IP66 |
| IK Grade | IK10 | Warranty | 5 Years |
| MODEL | RATED POWER | LED Qty | SIZE | WEIGHT |
|---|---|---|---|---|

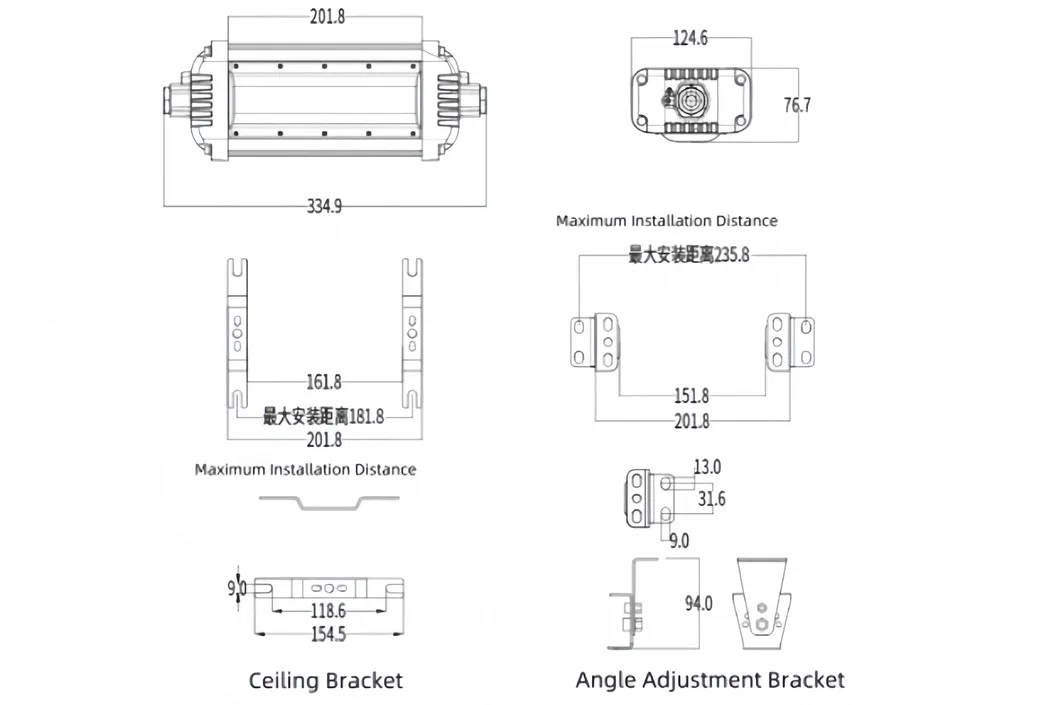

| MXEL-8192-300 | 20-30W | 70pcs | 335x125x77mm | 1.7Kg |
| MXEL-8192-600 | 40-60W | 120pcs | 635x125x77mm | 3.2Kg |
| MXEL-8192-1200 | 70-120W | 240pcs | 1143x125x77mm | 6.2Kg |
| COMMON PARAMETERS | PERFORMANCE DETAILS | ||
|---|---|---|---|
| Efficiency | 120Lm/W | Power Factor | > 0.95 |

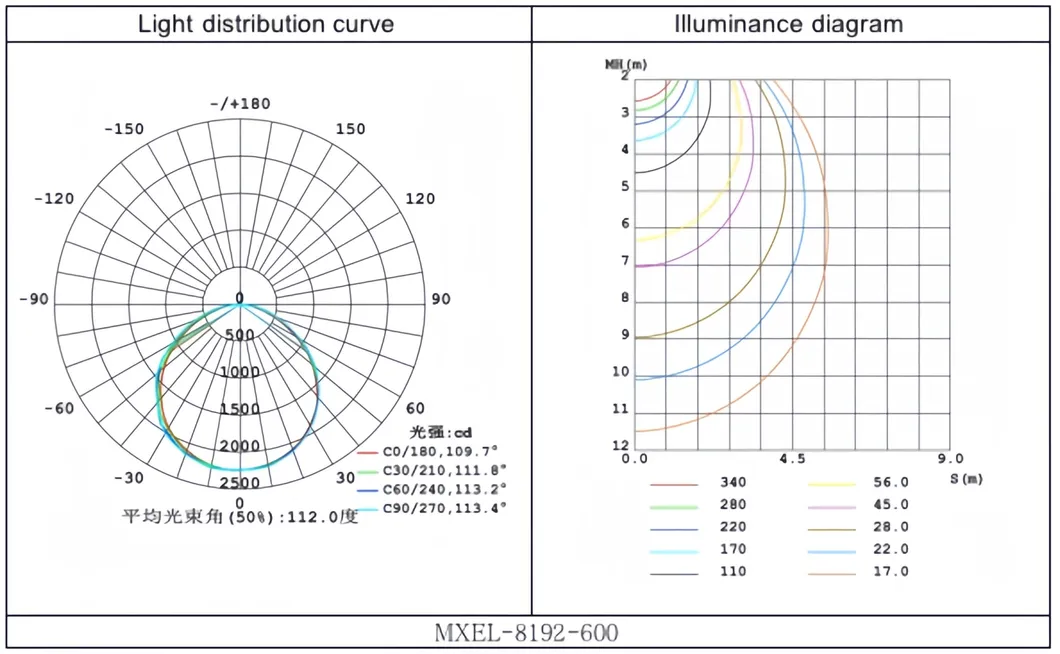

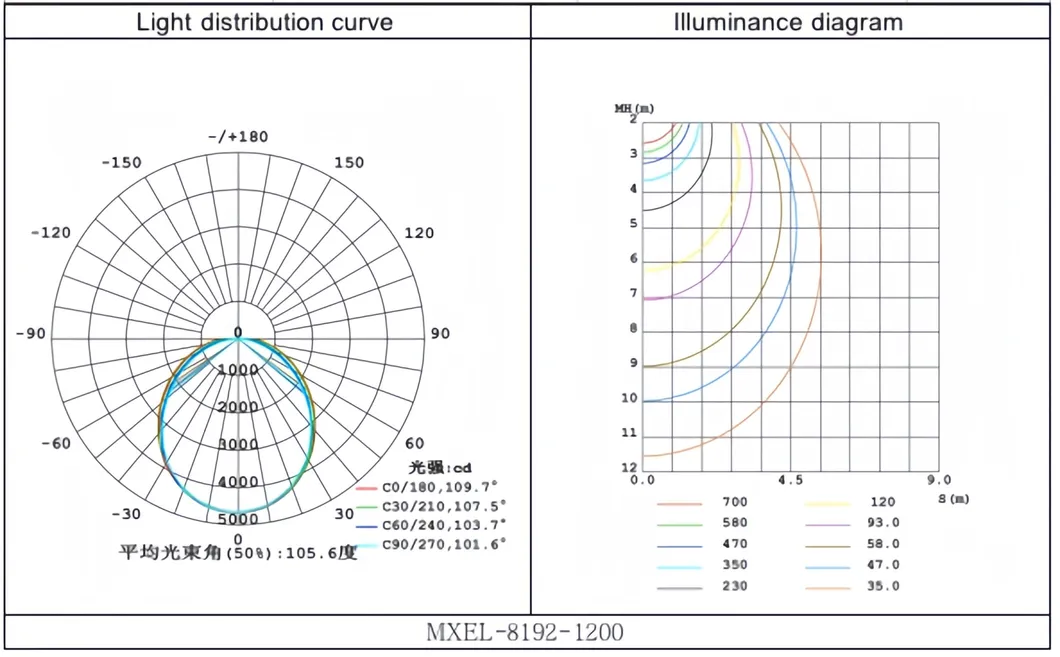

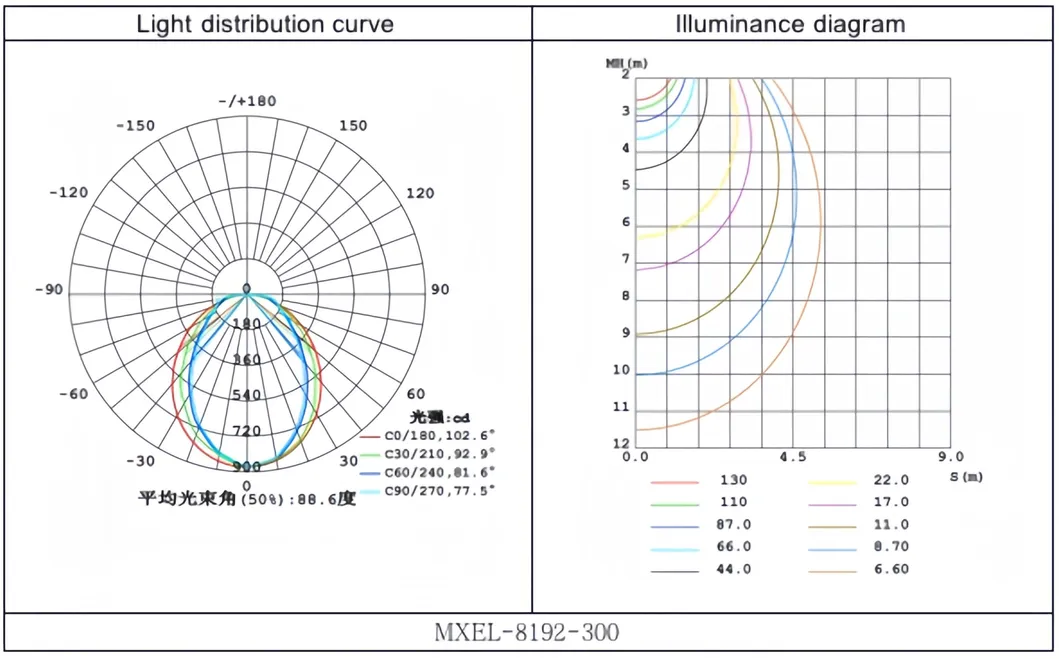

| Beam Angle | 120° | Work Temp | -20~40°C |
| Material | Die Cast Aluminum | Lifespan | > 100,000h |
| Corrosion Resistance | WF2 | Start-up Time | ≤0.2s |

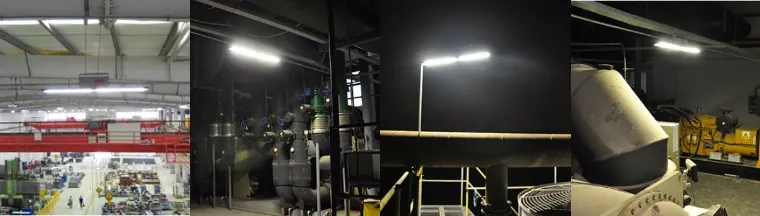

Explosion-proof lamps are critical in hazardous environments containing flammable gases, vapors, or dust (such as chemical workshops and oil depots). These specialized fixtures prevent internal arcs or sparks from igniting the surrounding atmosphere, ensuring personnel safety and protecting valuable facility assets.

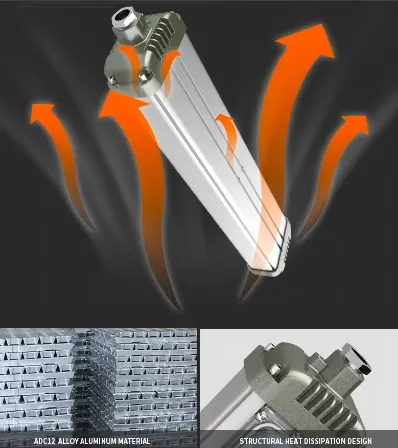

Designed with an air diversion and heat dissipation structure. The radiator utilizes ADC12 alloy aluminum formed by high-pressure die casting, offering high strength and rapid thermal management via 3.0 thermal conductivity silicone grease.

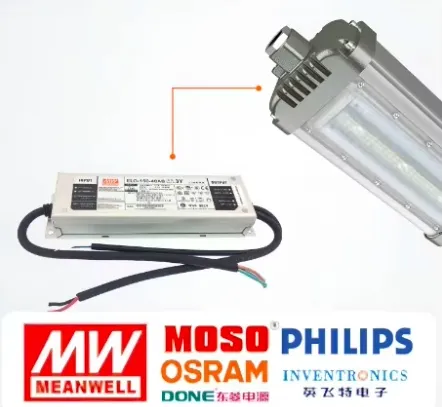

Equipped with top-tier brand power supplies featuring constant current output, surge protection, and short circuit protection. The power factor reaches 0.99, ensuring long-term operational stability.

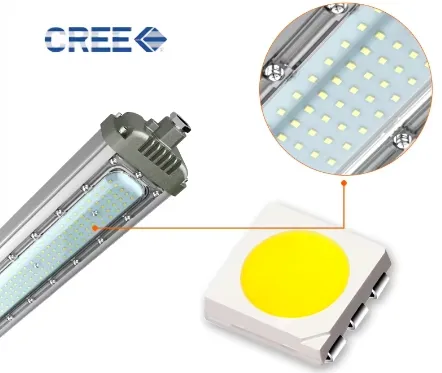

Utilizing high-performance LED chips with efficiency >120 lm/W. SMT array patch technology ensures low light attenuation and an average service life of up to 100,000 hours.
