Basic Information
Usage
Factory, Garden, Square, Tunnels, Football Field.
Certification
CE, EMC, LVD, RoHS
Beam Angle
40° / 60° / 90° / 120°
Item Name

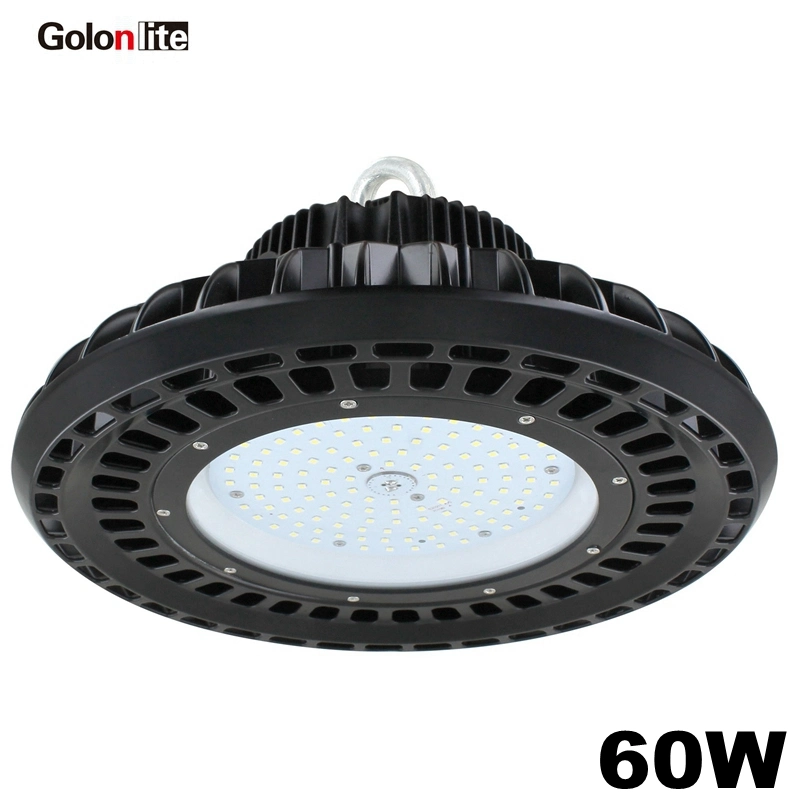

60W LED Low Bay Light
Warranty
5 Years UFO Interior LED Low Bay Light
Material
Die Casting Aluminum Body
Driver
Meanwell / Sosen LED Driver
Dimming
Three in One Dimming

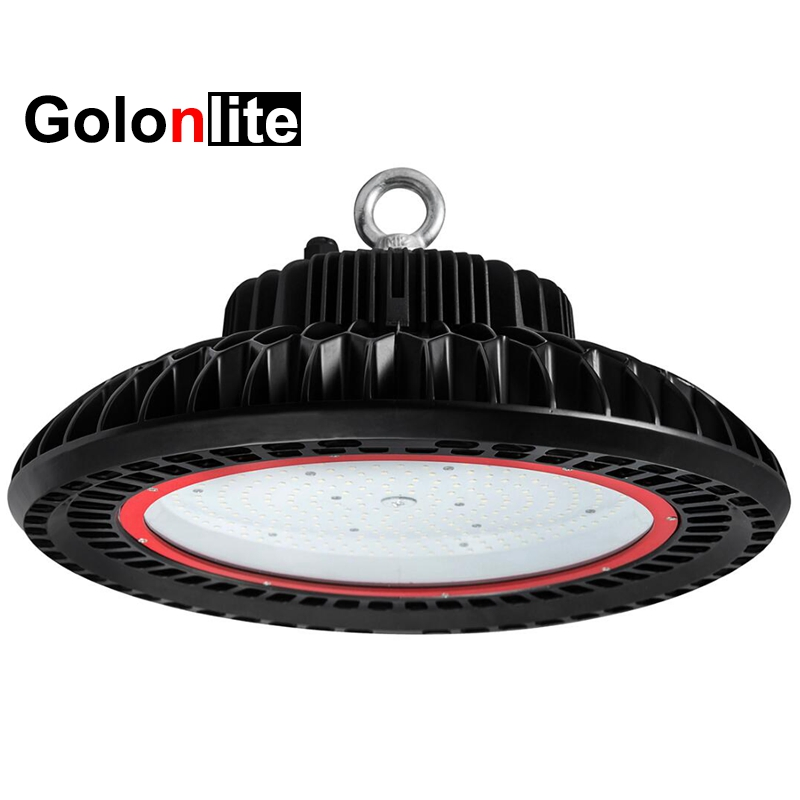

Product Description

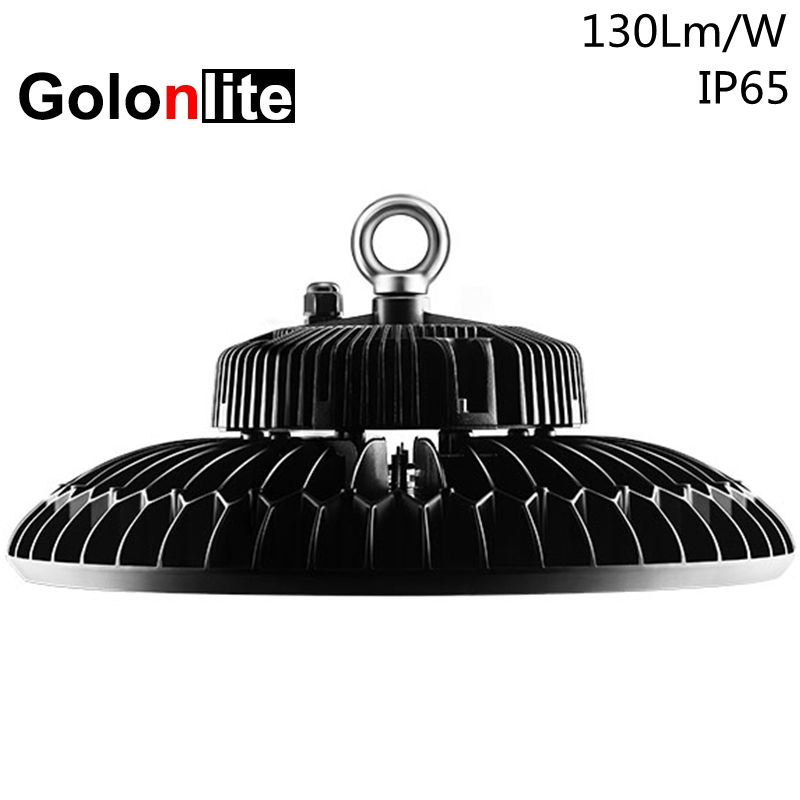

100-277V 5 Years Warranty Indoor Interior Lighting LED Low Bay Light 60W-240W
| LED Low Bay Light Specifications |
| Light Source |

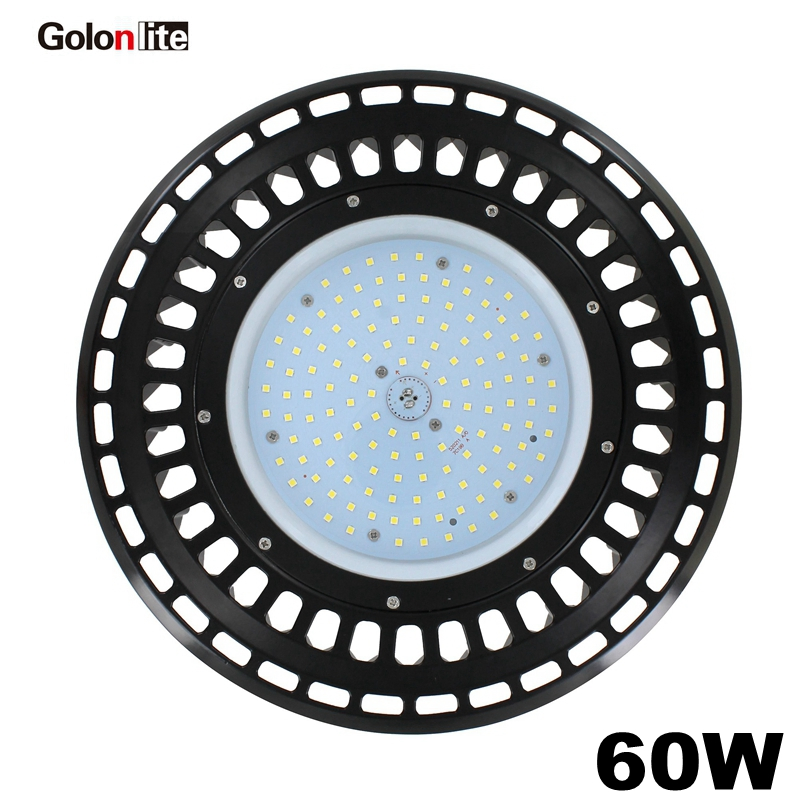

Refond SMD3030 (130Lm/W) |
| CCT (K) |
3000K / 4000K / 5000K / 5700K / 6500K |
| Input Voltage |
100-277VAC 50/60Hz |
| Dimming Function |
Three in one (1-10V, PWM, Resistance) |
| Sensor Control |
Motion / Photocell sensor option |
| Beam Angle |
60° / 90° (anti glare) / 120° clear cover |
| Protection Grade |
IP65 Waterproof |

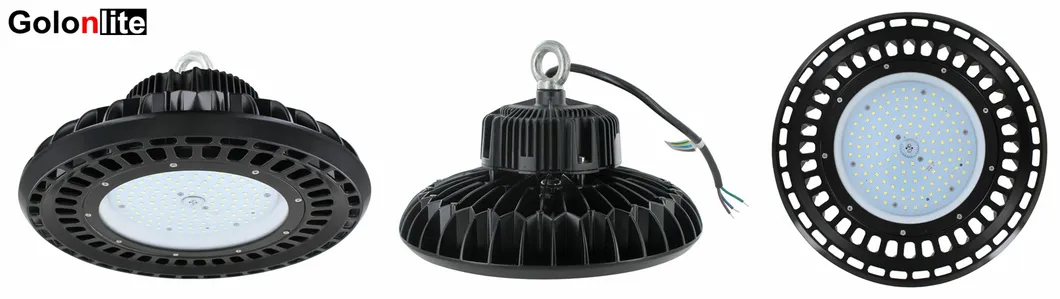

Key Features:
- Three-in-one dimming function: Supports 1~10Vdc, PWM signal, or resistance.
- Advanced Sensors: Microwave sensor / Day light / Photocell sensor options.
- Efficient Thermal Management: Black Fin aluminum housing, compact heat sink for easier installation.
- High Performance: 130Lm/W efficiency using SMD3030 LEDs with >Ra80.
- Robust Reliability: External Meanwell/Sosen driver with 5 years warranty.
| Model |
Power |
Lumens |
Lamp Size (mm) |
Replacement |
| GL-UHB-01D | 240W | 31200Lm | Φ400*196mm | 800-1000W HID |
| GL-UHB-02D | 200W | 26000Lm | Φ400*196mm | 600-800W HID |
| GL-UHB-03D | 160W | 20800Lm | Φ340*187mm | 500-600W HID |
| GL-UHB-04D | 100W | 13000Lm | Φ280*185mm | 400-500W HID |
| GL-UHB-05D | 60W | 7800Lm | Φ280*185mm | 250-300W HID |

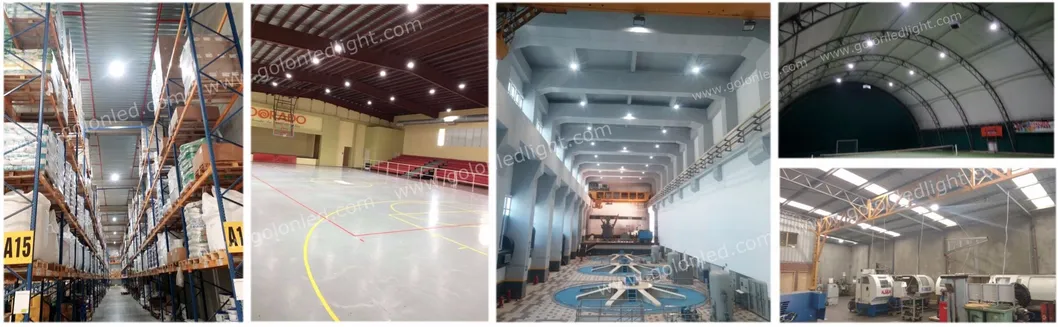

Applications
Widely used in shopping malls, exhibition halls, parking lots, playgrounds, gymnasiums, billboards, parks, sculptures, building facades, and public corridors. Suitable for both indoor and outdoor lighting environments.
Our Services
- Rapid response to all inquiries within 24 hours.
- Experienced staff to provide professional technical explanations.
- Comprehensive after-sales support managed within 24 hours.
- OEM and ODM services available for unique design requirements.
- Free lighting design services including IES files and Dialux studies.
- Standard 5-year warranty on all products.
Frequently Asked Questions (FAQ)
What is the lifespan of these LED low bay lights?
The lights are designed for high durability with a lifespan of ≥50,000 hours, ensuring long-term maintenance-free operation.
Are these lights suitable for outdoor use?
Yes, these lights have an IP65 waterproof rating, making them ideal for both indoor and outdoor applications such as gardens, squares, and tunnels.
Does the product support dimming?
Yes, our LED low bay lights feature a three-in-one dimming function compatible with 1-10Vdc, PWM signals, and resistance dimming.
What certifications do these lights hold?
Our products are fully certified with CE, EMC, LVD, and RoHS standards, meeting international safety and quality requirements.
Can I get a lighting simulation before purchasing?
Absolutely. We provide Dialux lighting studies and IES files for free to help you plan your lighting solution effectively.

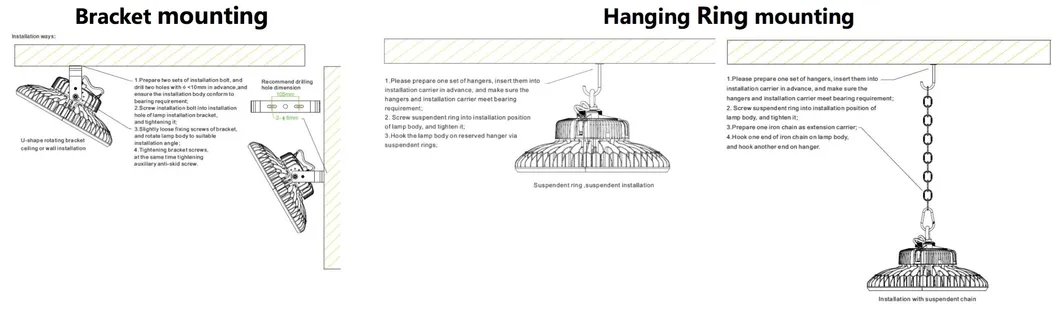

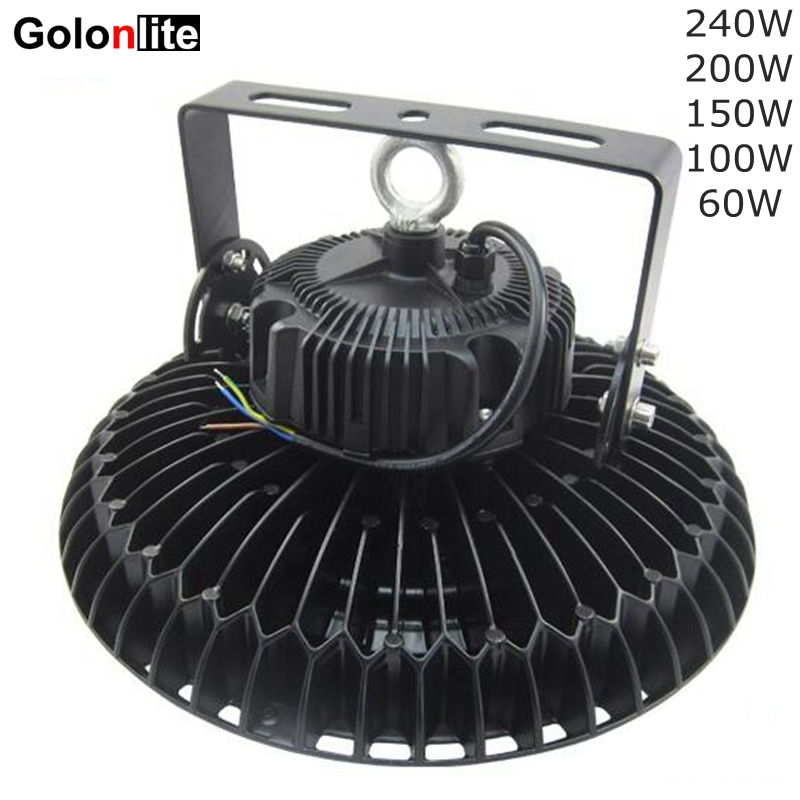

What mounting options are available?
The lights support multiple installation methods, including ring/hook ceiling hanging and adjustable bracket mounting to suit different structural needs.
