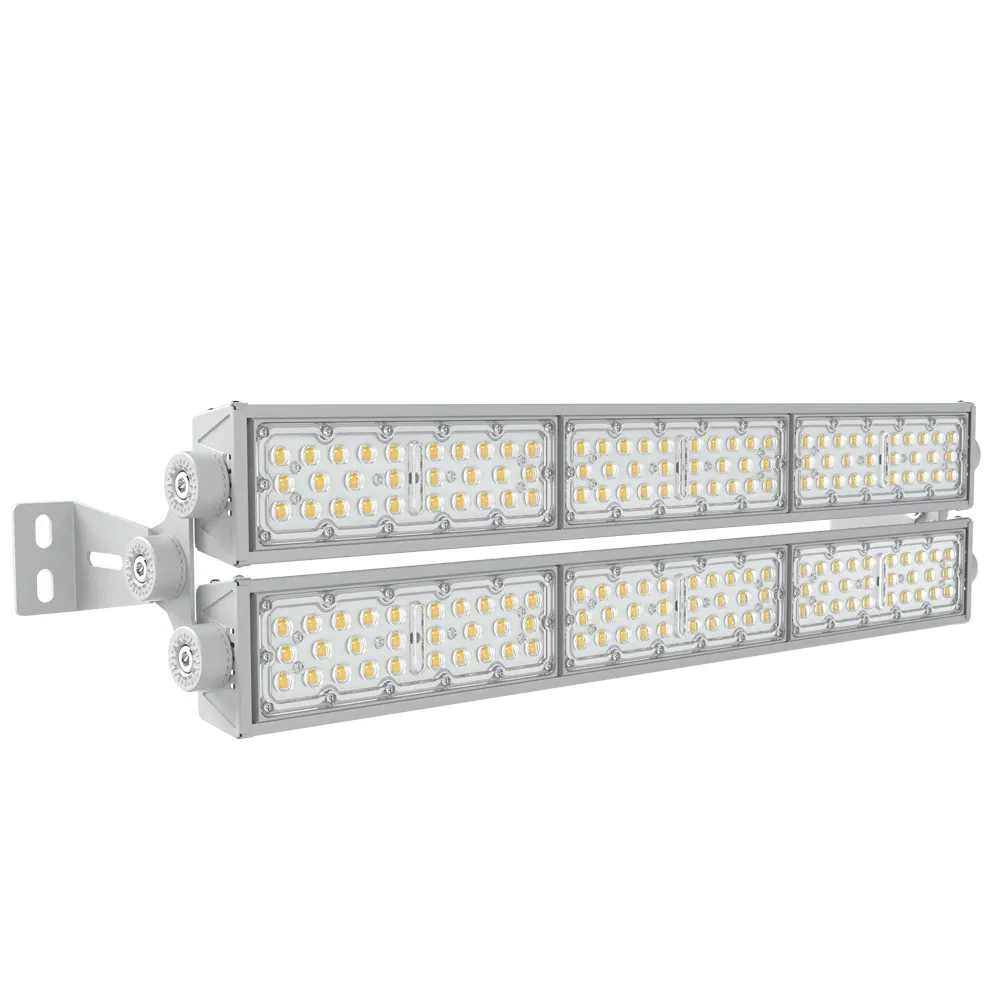

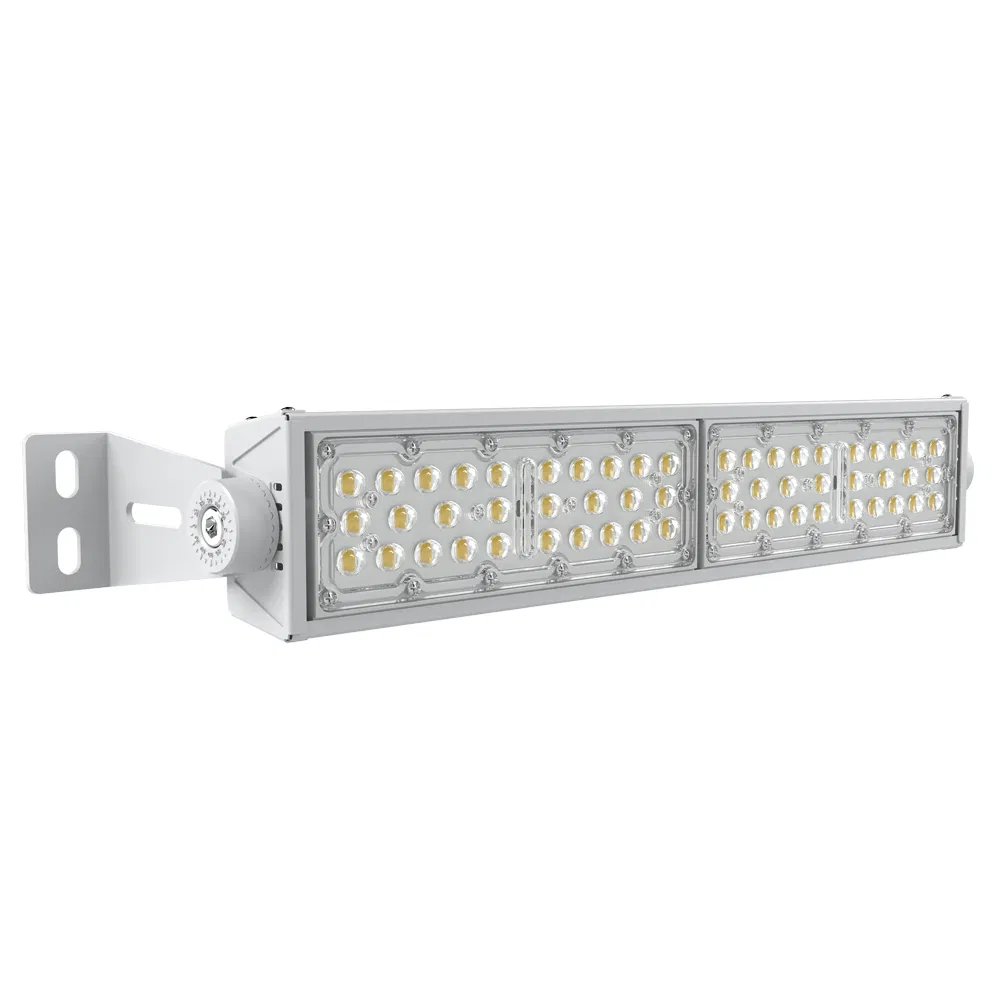

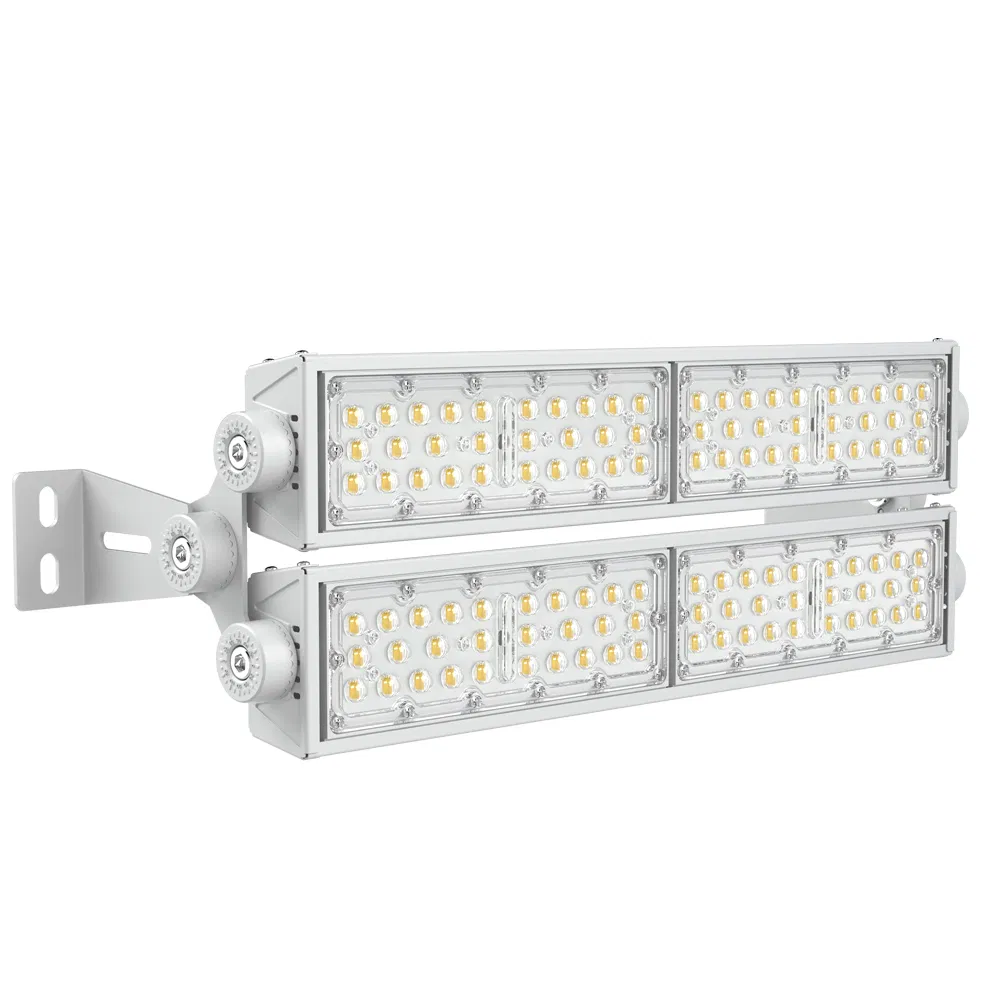

IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
1 / 5
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light

IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

1

Technical Specifications

Model
QH-FTLB-200W
Power
200W
IP Rating
IP65
Luminous Flux
28000-30000lm
Efficiency
140-150lm/W
Beam Angle
60° / 90° / 70*140°
Voltage
AC90-305V / 480V Optional
Lifespan
>50,000 hours
Warranty
5 Years
CCT
3000K-6500K (Max 20000K)
CRI
Typical 80, Max 95
Material
Die-Casting Aluminum
2

Product Presentation

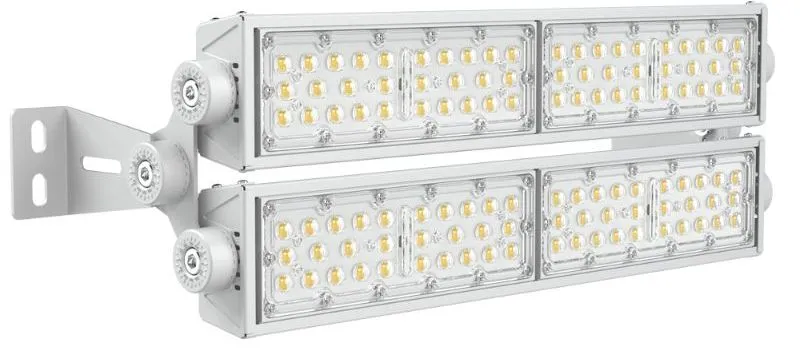

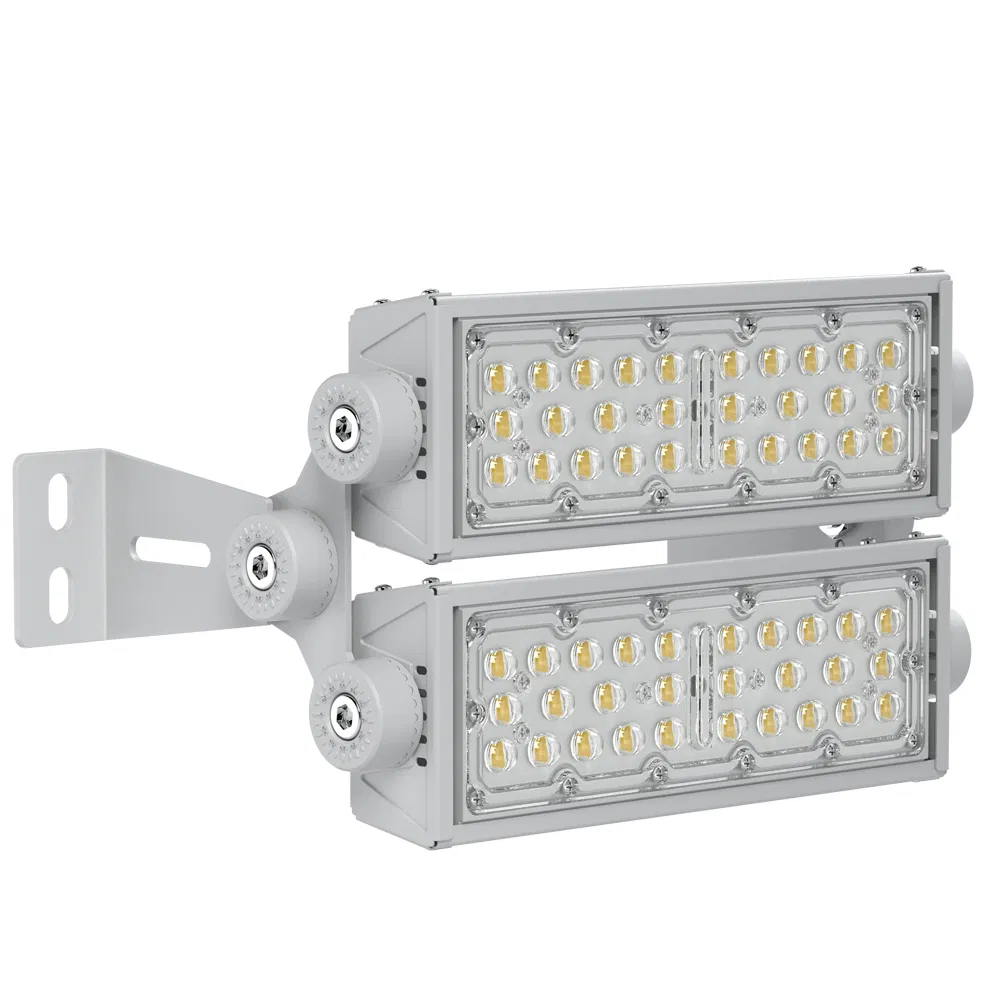

LED Tunnel Light Overview

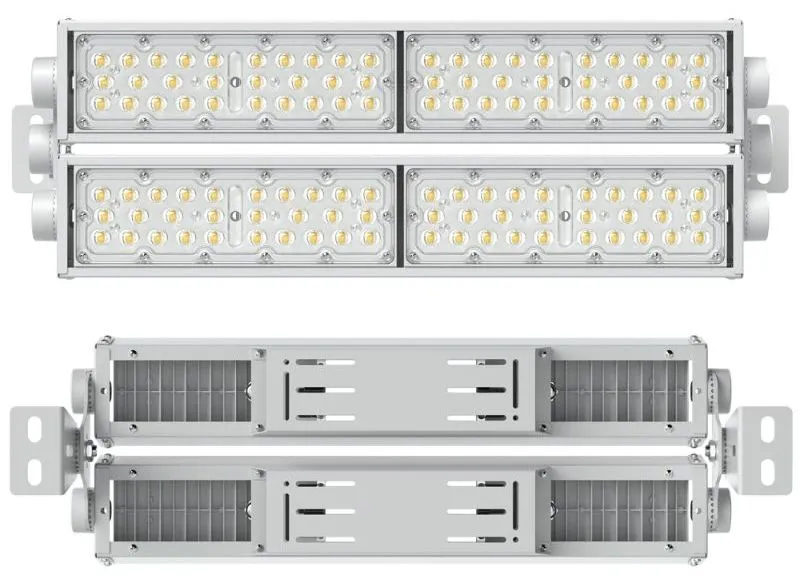

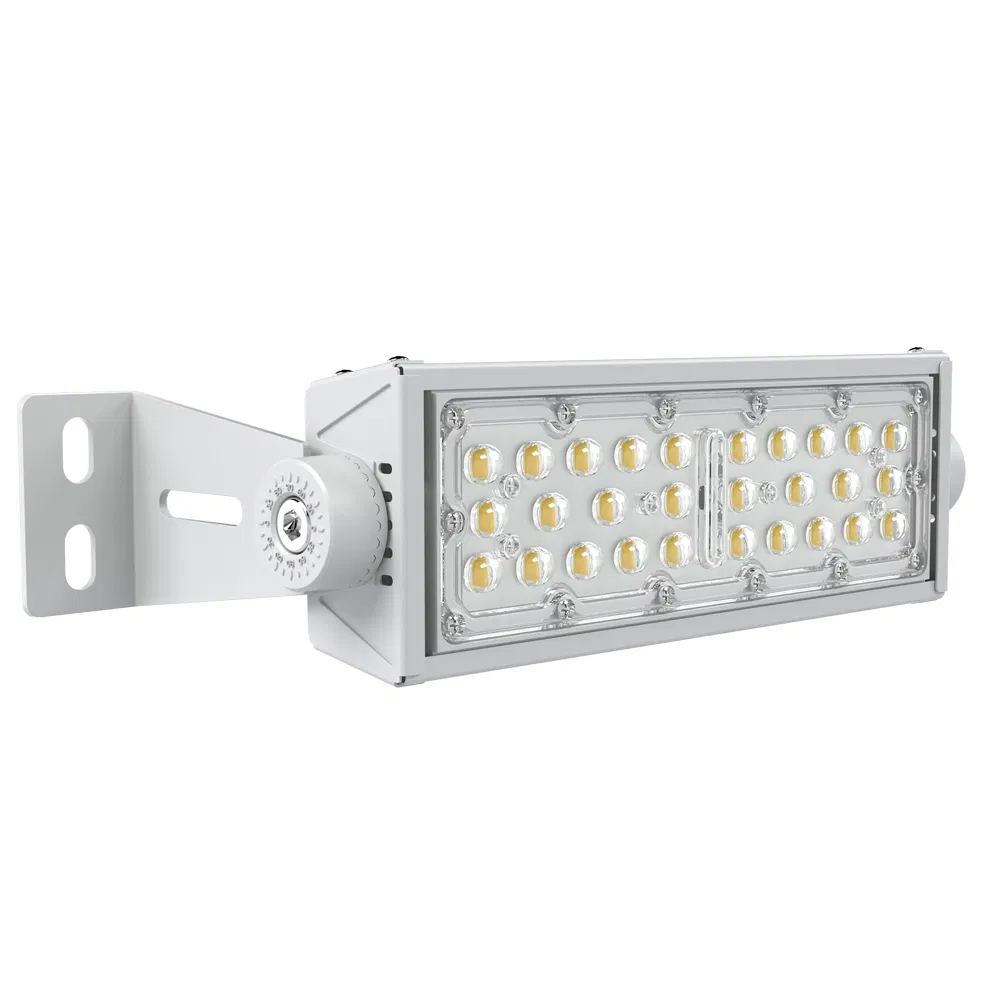

LED Tunnel Light Side View

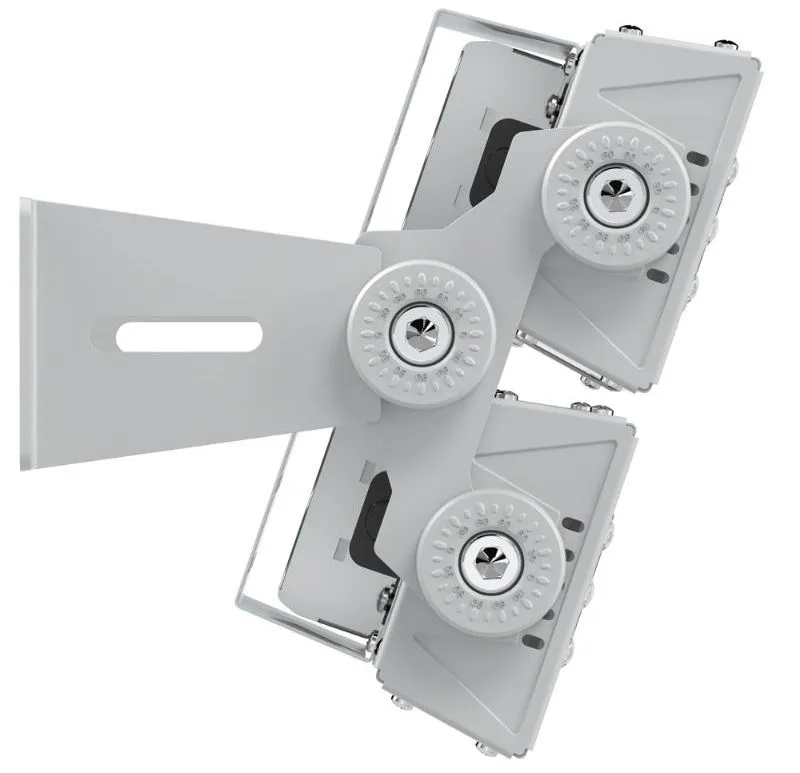

LED Tunnel Light Details
Professional Optics
Adjustable Bracket
3

Key Features

Modular Design: Smart modular structure from 50-400W with high-efficiency cooling system.
Premium Components: High brightness 3030 SMD chips paired with Meanwell or Inventronics drivers.
Flexible Installation: 216° adjustable bracket suitable for various complex lighting environments.
Intelligent Control: Supports DALI, DMX, PLC, and 0-10V dimming for smart group management.
High Durability: IP65 rated waterproof housing with CE, RoHS, and FCC certifications.
Energy Efficient: Saves over 70% energy compared to traditional sodium lamps.
4

Series Datasheet

Model QH-FTL-50W QH-FTL-100W QH-FTL-150W QH-FTL-200W
Power 50W 100W 150W 200W
Luminous Flux 140-150LM/Watt
LED Qty 64pcs 128pcs 192pcs 256pcs
Gross Weight 5.8Kg/2pcs 3.6Kg 5.1Kg 6.3Kg
Packing Size 33*21*22cm 34*26*18cm 34*32*18cm 40*36*18cm
5

Applications

Perfectly suited for all types of tunnels, floodlighting, and high-mast industrial lighting requirements.

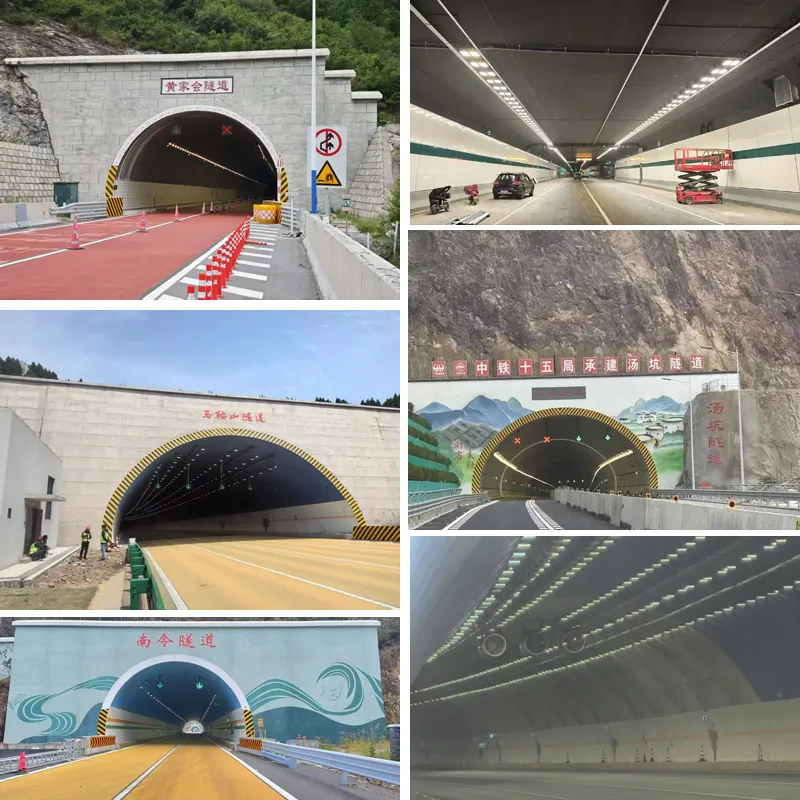

Tunnel Lighting Application

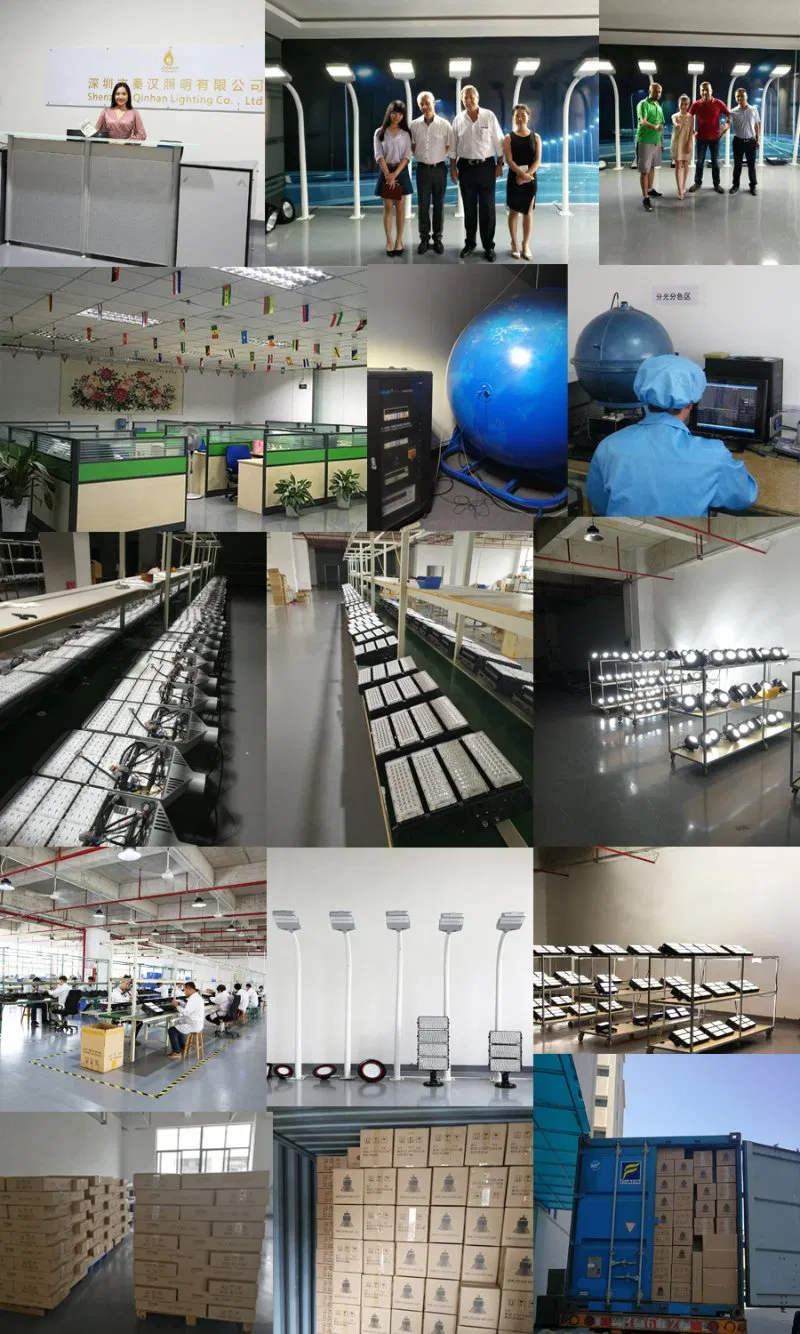

Factory Production
?

Frequently Asked Questions

Q1: What dimming protocols are supported for the tunnel light?
The 200W LED Tunnel Light supports multiple intelligent control systems including DALI, DMX, PLC, and 0-10V dimming options.
Q2: Is the light suitable for high-voltage environments?
Yes, we offer wide input voltage ranges including AC90-305V and specialized versions for 347V and 480V industrial power systems.
Q3: How do you ensure the quality of the LEDs?
We use high-grade 3030 SMD LED sources and top-tier drivers like Meanwell or Inventronics, ensuring a lifespan of over 50,000 hours with a 5-year warranty.
Q4: Can the beam angle be customized?
We provide several optical lens options including 60°, 90°, and a specialized asymmetric 70*140° beam angle to meet different tunnel lighting standards.
Q5: What is the protection rating for outdoor use?
This series is IP65 rated, providing excellent protection against dust and water, making it ideal for harsh tunnel and outdoor environments.
Q6: What certifications does this product hold?

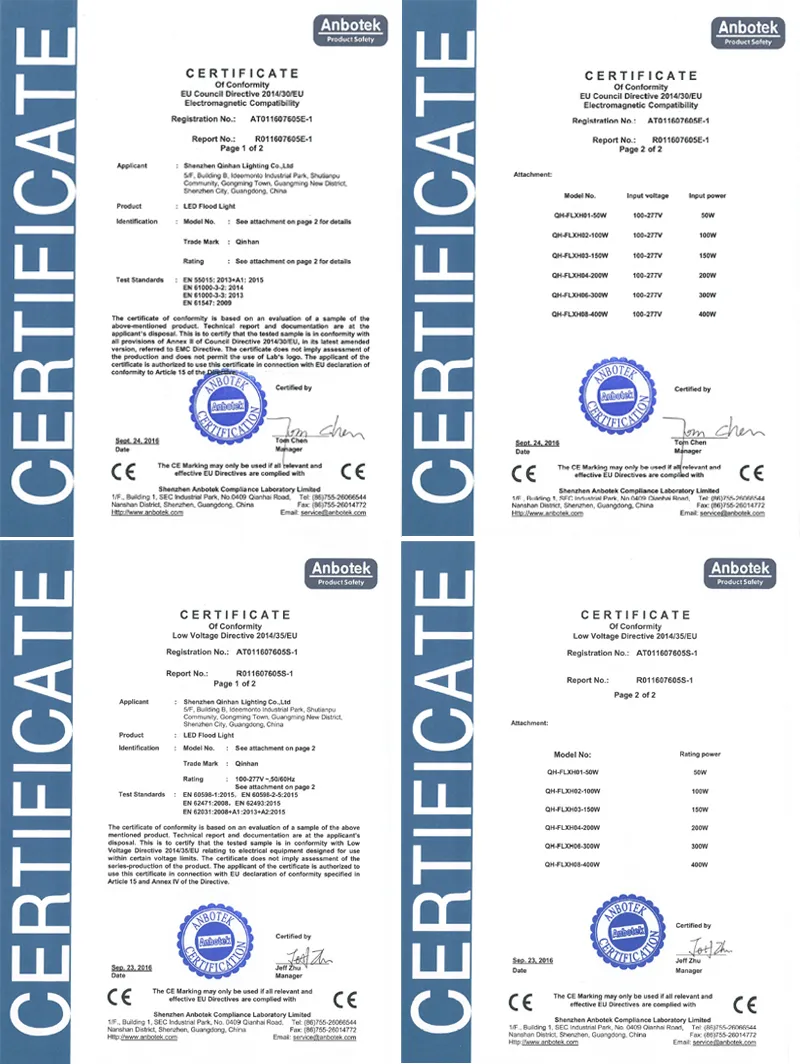

The product has gained CE, EMC, FCC, LVD, RoHS, and VDE certifications, complying with international safety and quality standards.
