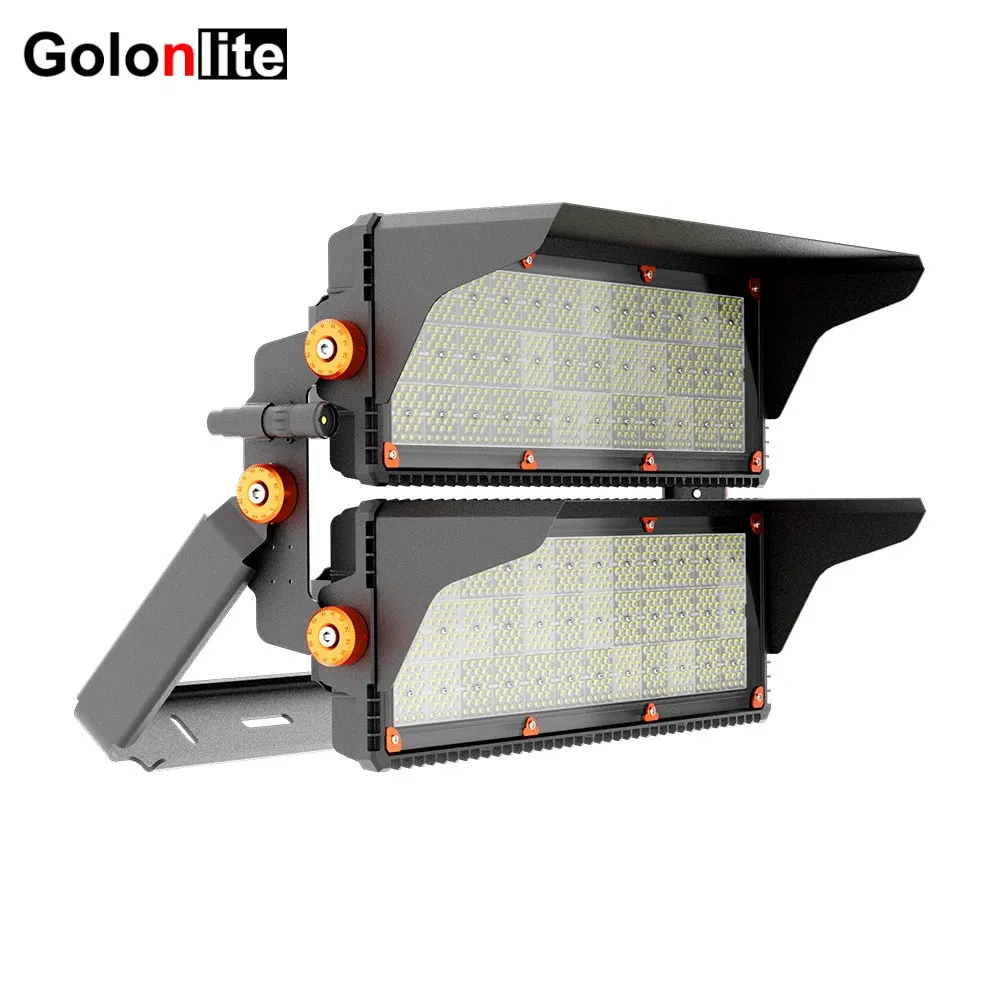

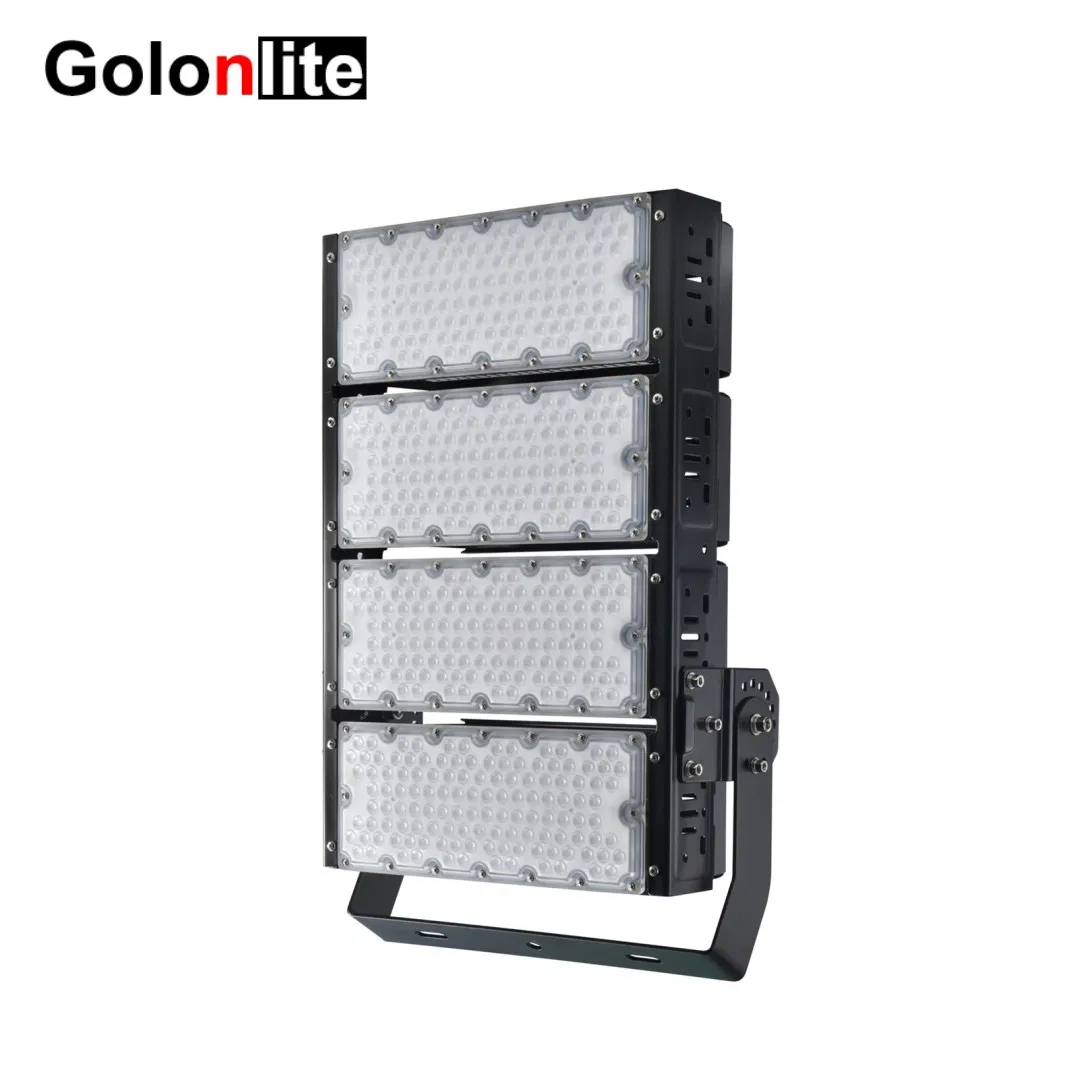

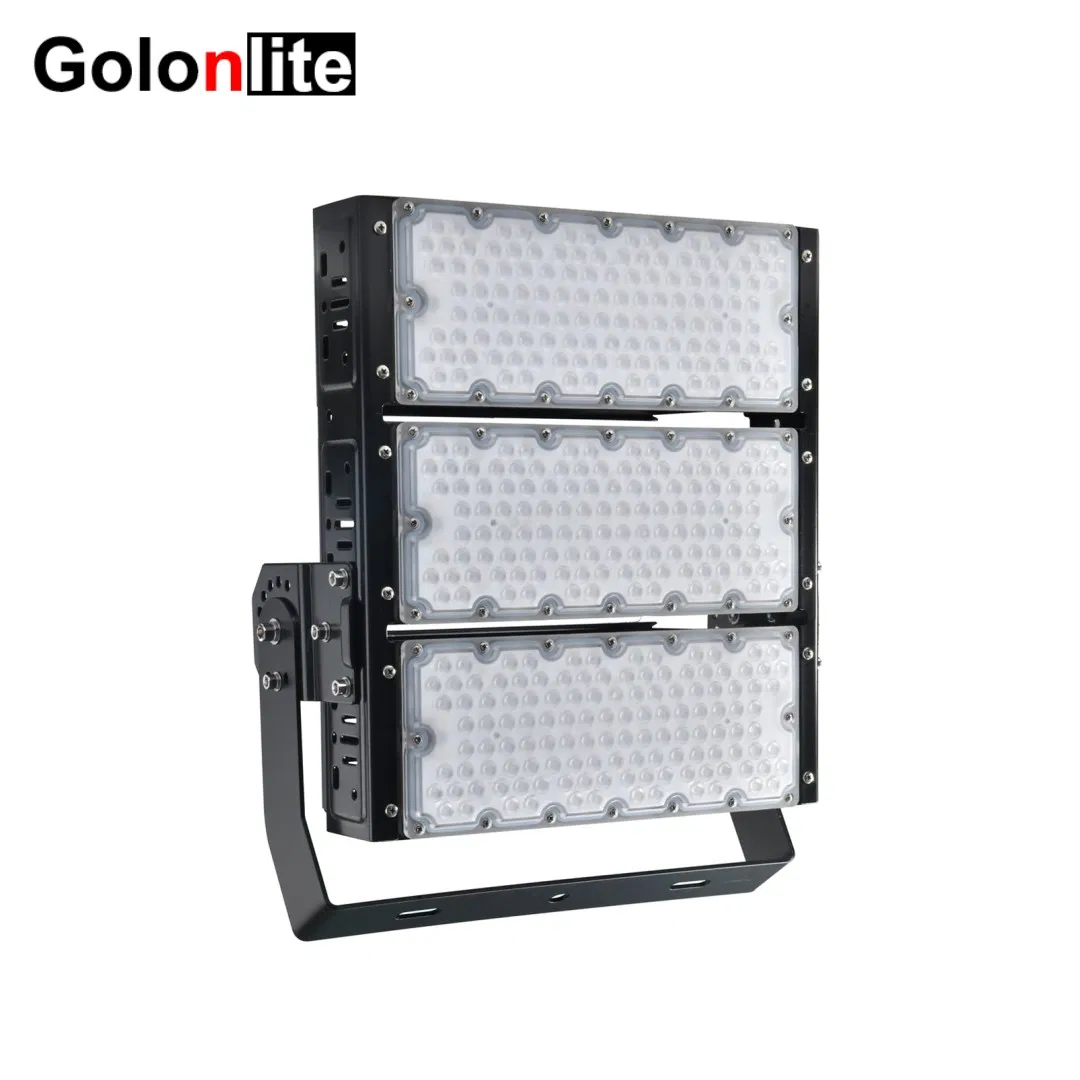

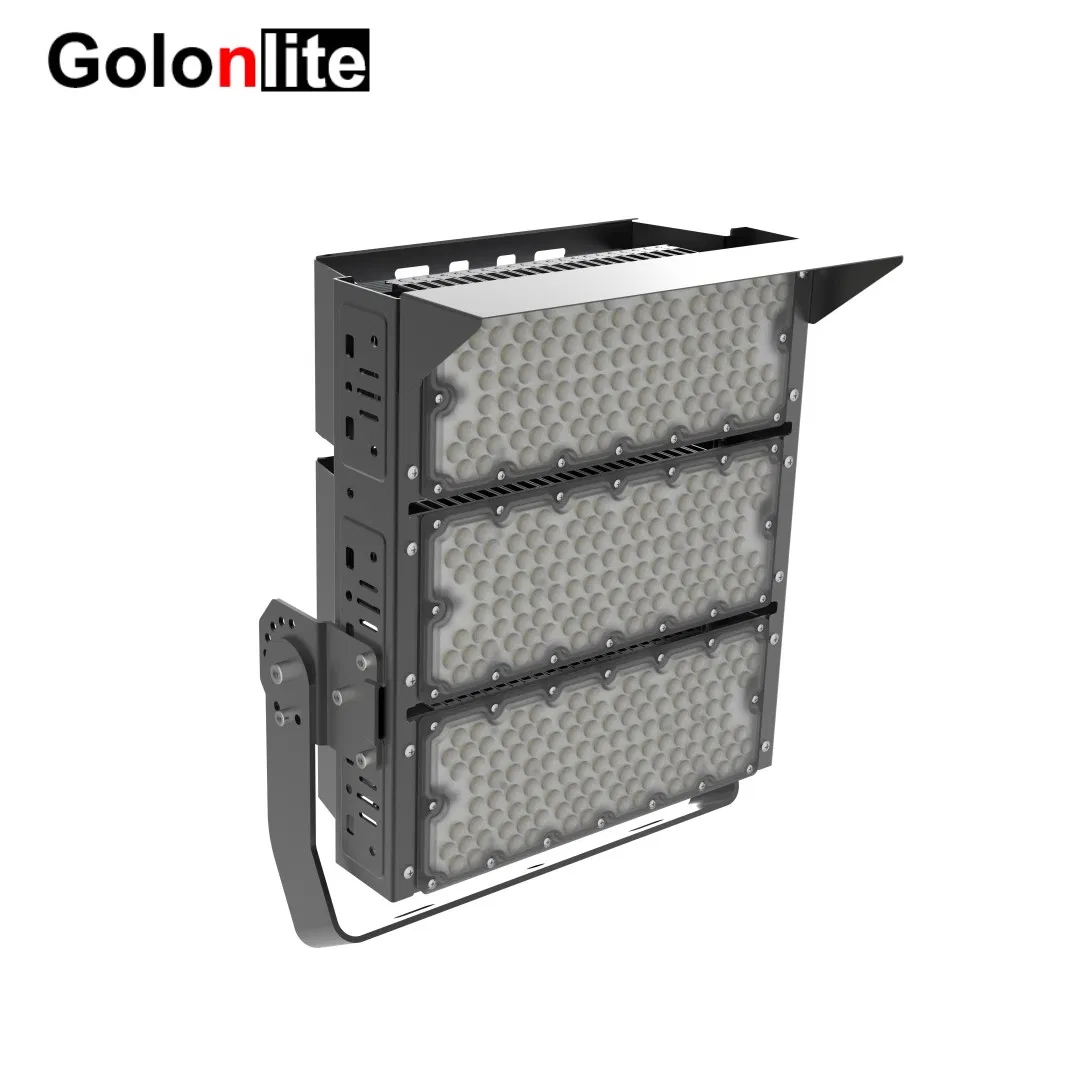

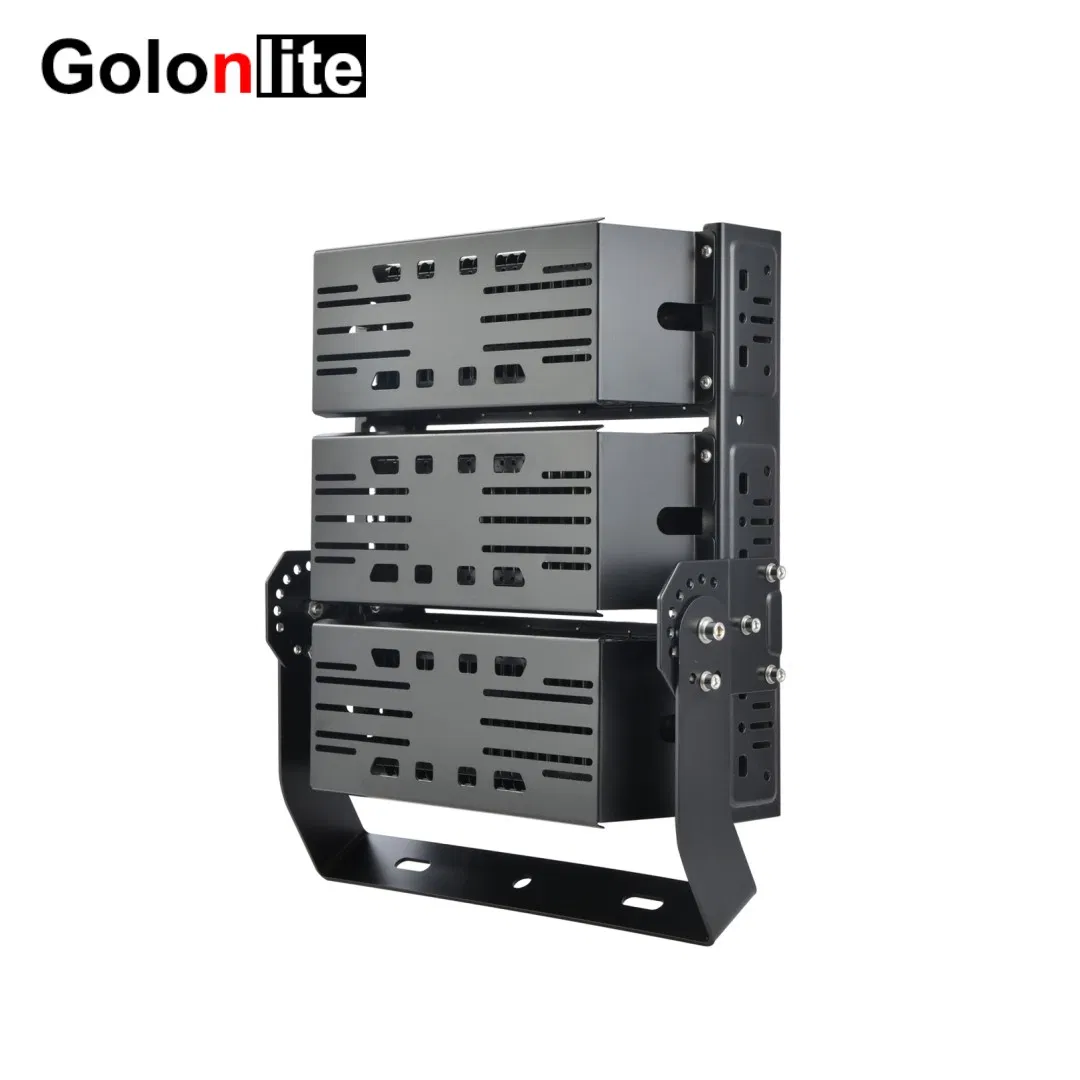

Factory Price IP66 Outdoor Stadium Sports Football Field High Mast Basketball Tennis Court Tunnel Lights LED Flood Light 100W 150W 200W 250W 300W 400W 500W 600W

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
GL-TL-500WC
Power Range
100W - 600W
IP Rating
IP66
Lumens
150lm/W
LED Chips
SMD5050 / SMD3030
Voltage
100-277VAC / 200-580VAC
Material
Fin Aluminum Heat Sink
Certification
CE, EMC, LVD, RoHS

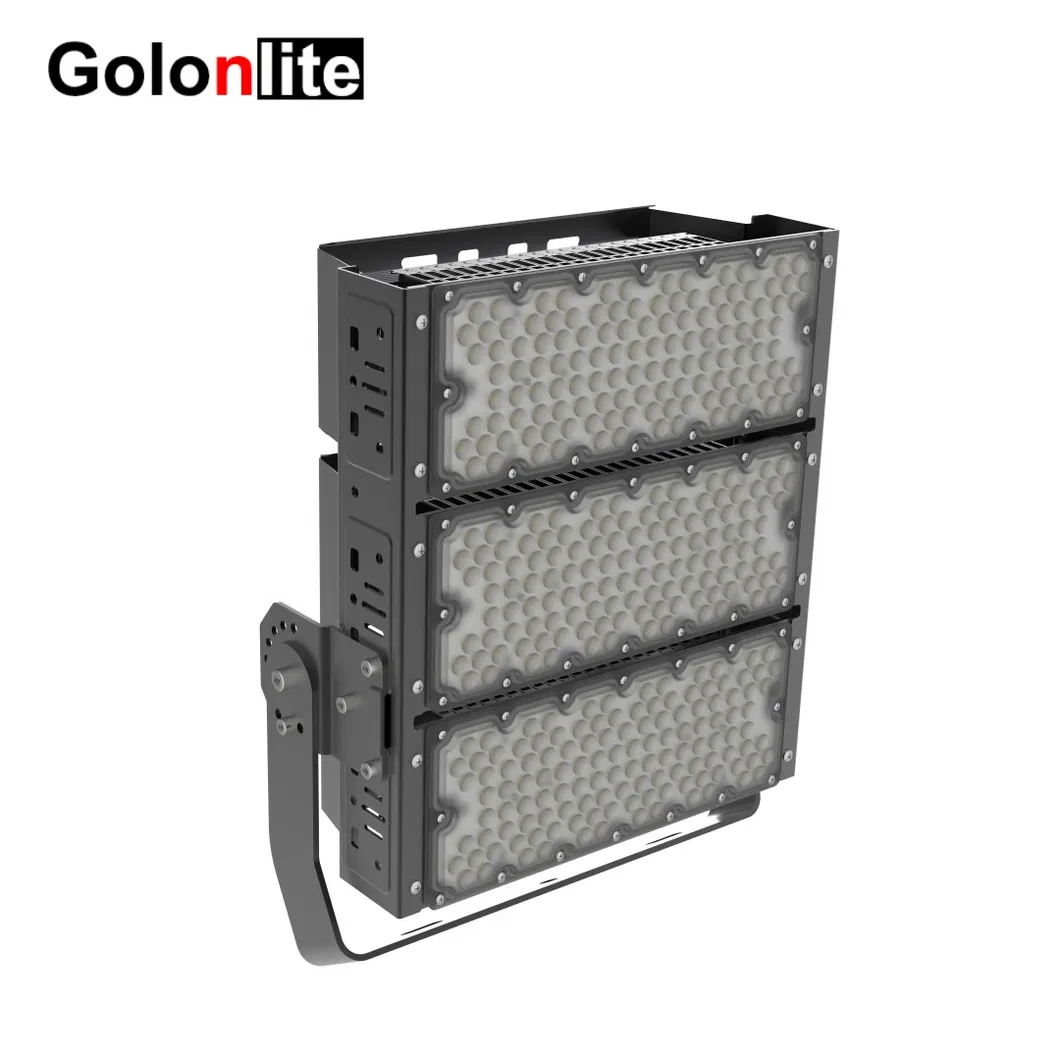

High Mast LED Flood Light

Professional outdoor lighting solution for stadium sports football fields, high mast installations, basketball and tennis courts, and tunnel lighting. Features high efficiency and robust durability.

High Efficiency: Reaches up to 150Lm/W-190Lm/W.
Lighting Study: Free Dialux lighting study & IES files available.
Heat Dissipation: Fin Aluminum design for 20% lighter weight.
Control Options: 0-10V, PWM, Dali, DMX, Zigbee dimmable.
Durability: IP66 waterproof and IK10 protection grade.
Beam Angles: 20° / 40° / 60° / 90° / 120° / P50 Asymmetric.
Model Power Lumens Efficiency Beam Angle Replacement
GL-TL-600WC600W140-150Lm/W20/40/60/90/120°2000W MHL
GL-TL-500WC500W140-150Lm/W20/40/60/90/120°1000W-2000W MHL
GL-TL-400WC400W140-150Lm/W20/40/60/90/120°1000W MHL
GL-TL-300WC300W140-150Lm/W20/40/60/90/120°1000W MHL
GL-TL-200WC200W140-150Lm/W20/40/60/90/120°500W-1000W MHL
GL-TL-100WC100W140-150Lm/W20/40/60/90/120°250W-500W MHL

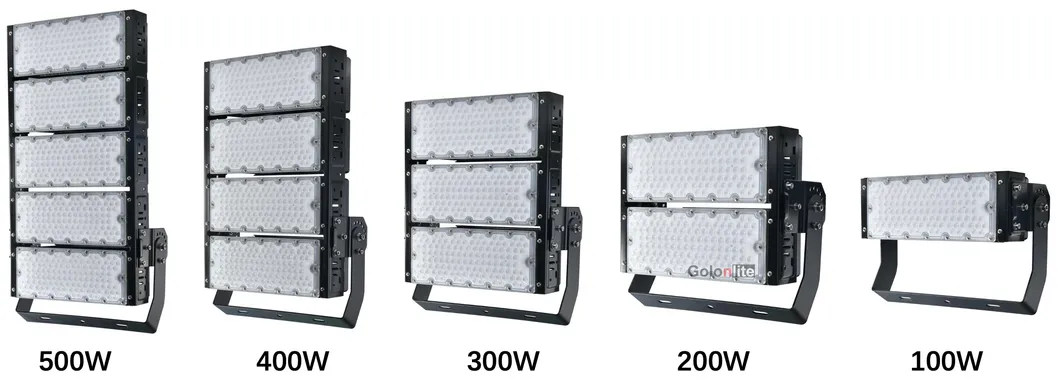

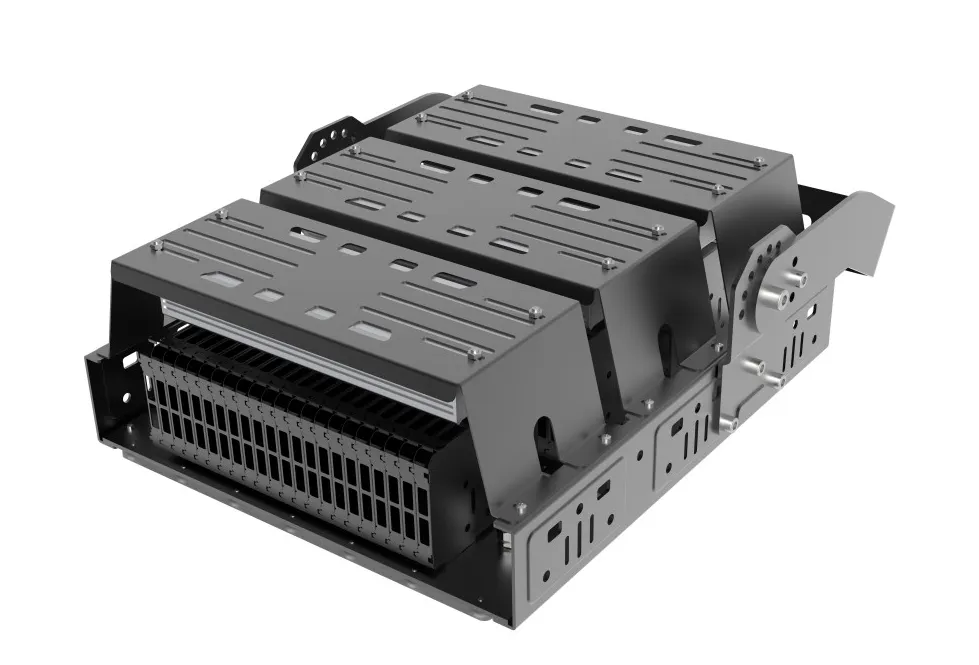

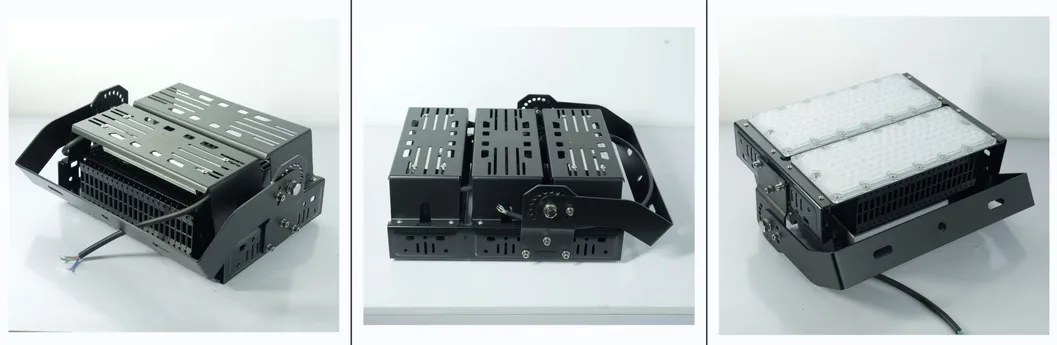

Flood Light Structure Feature Overview

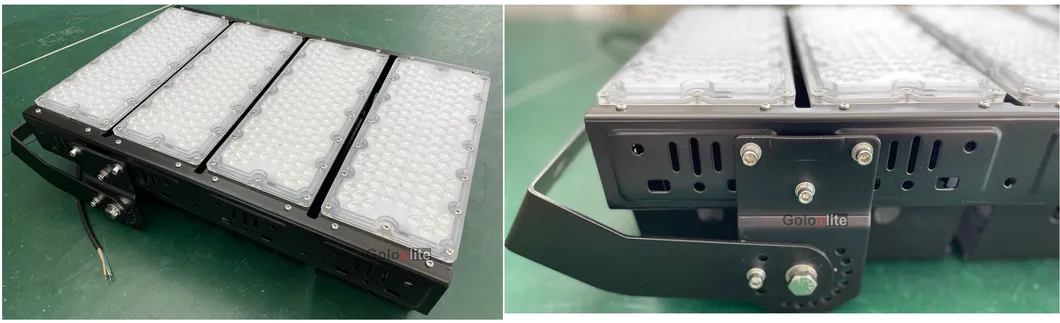

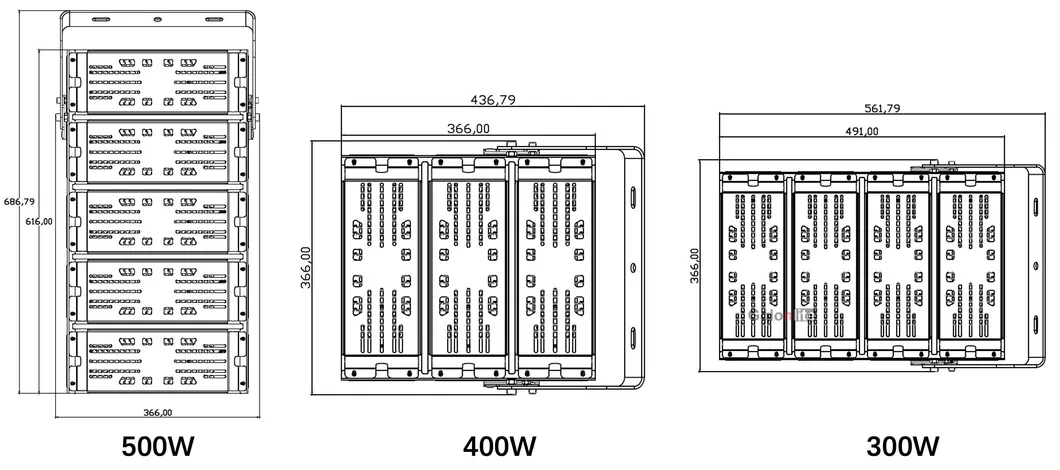

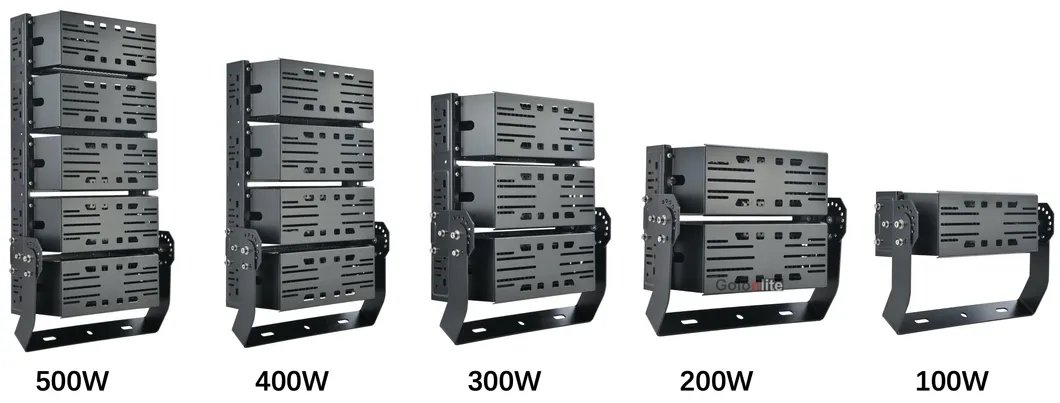

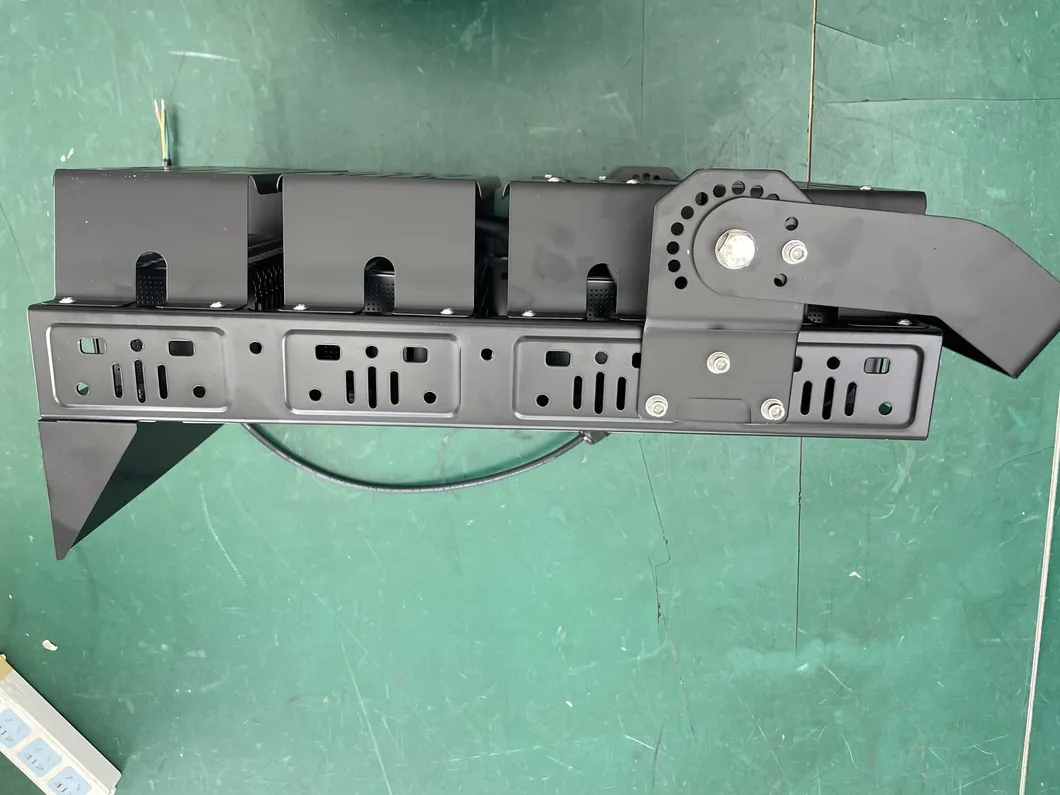

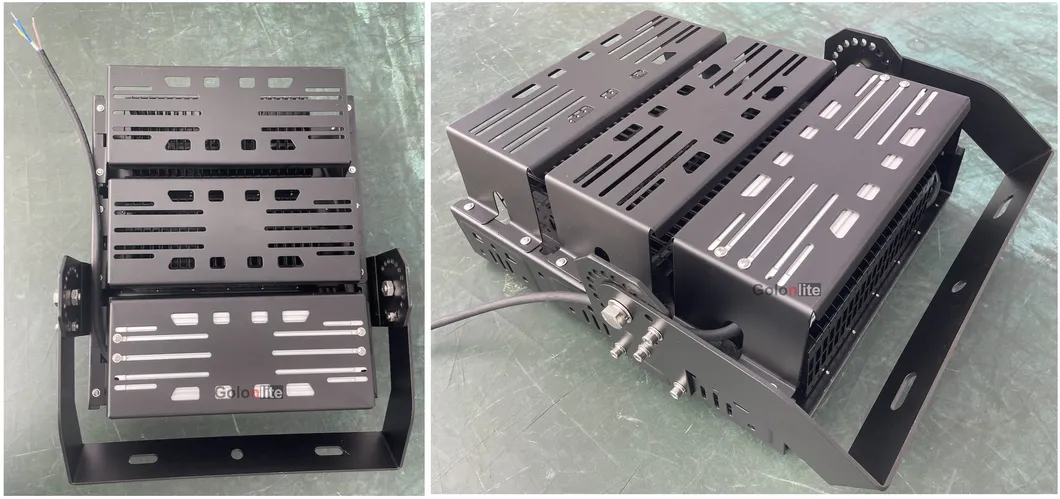

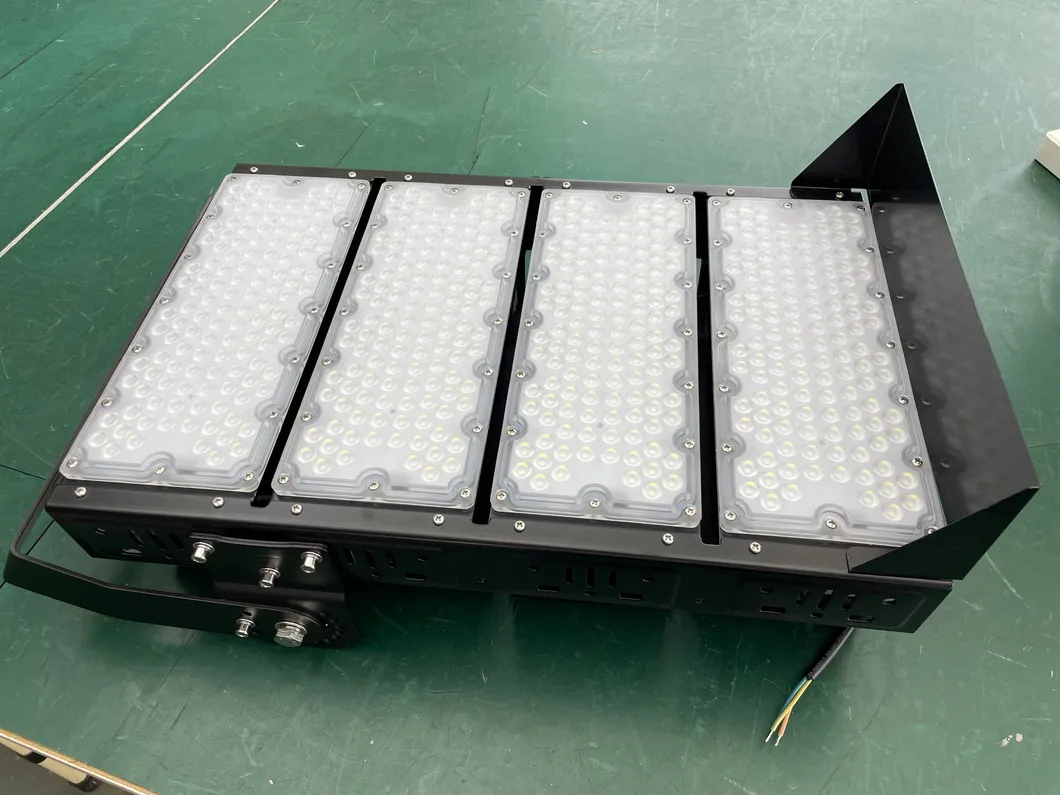

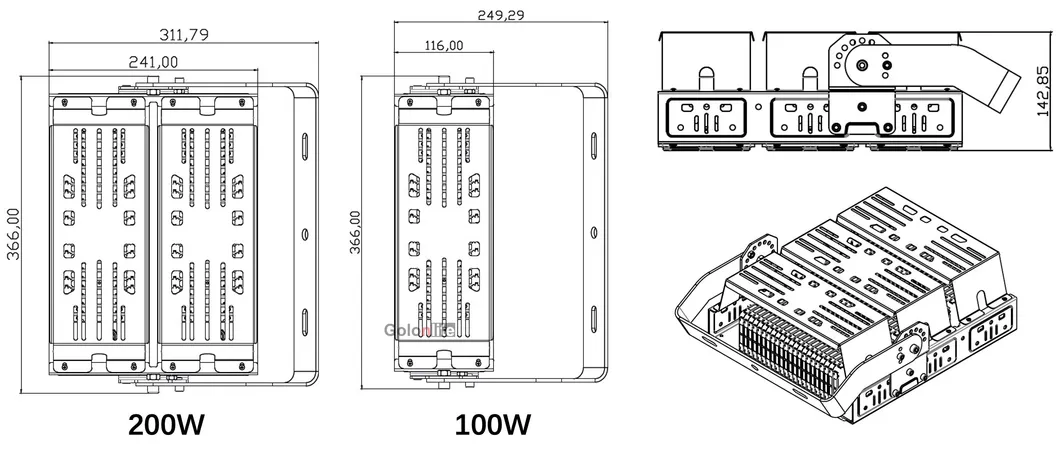

Dimensions & Real Images

Application Scenarios

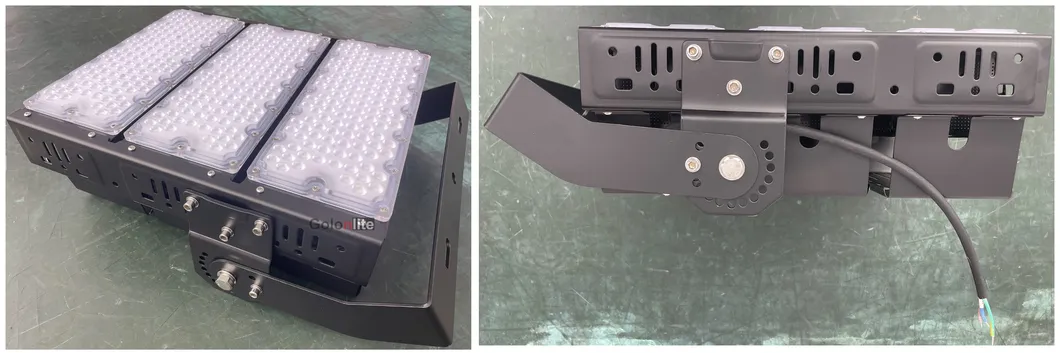

Application 1 Application 2 Application 3

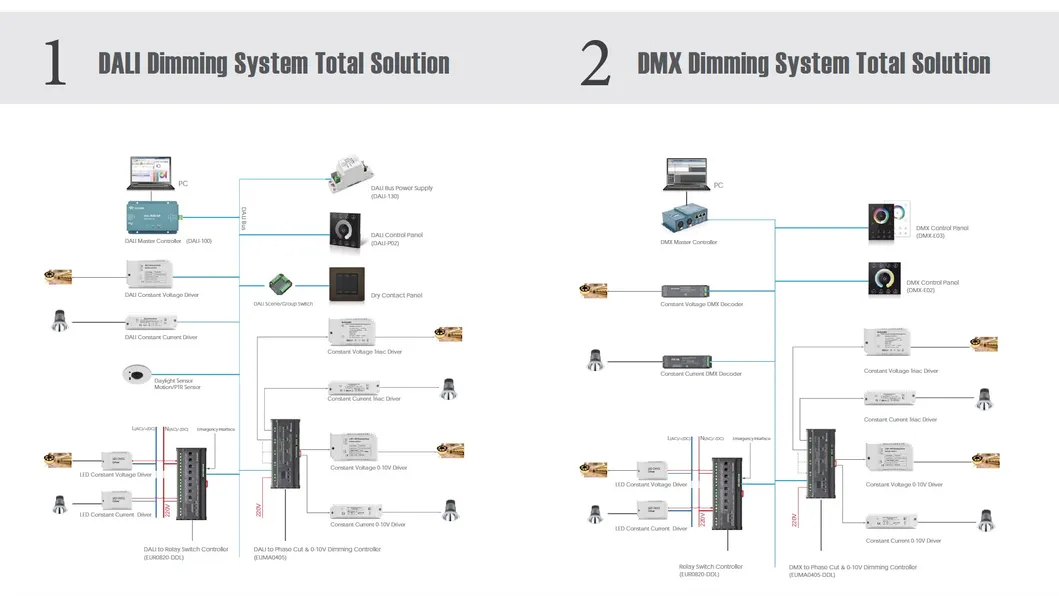

Advanced Control Options

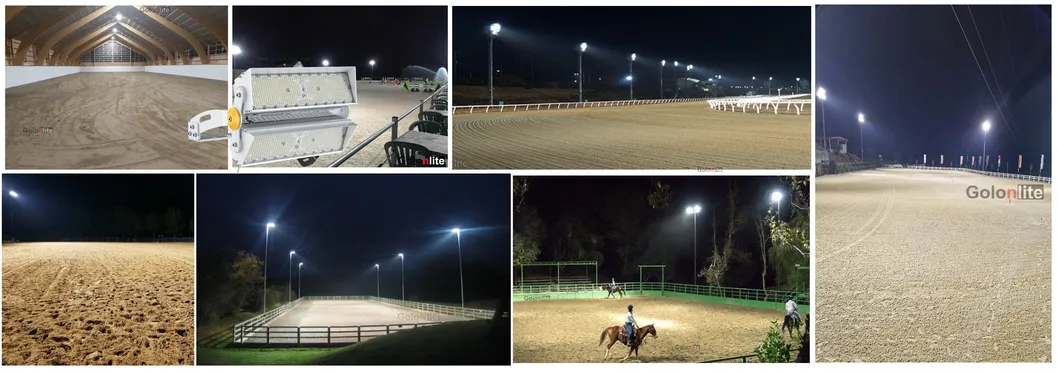

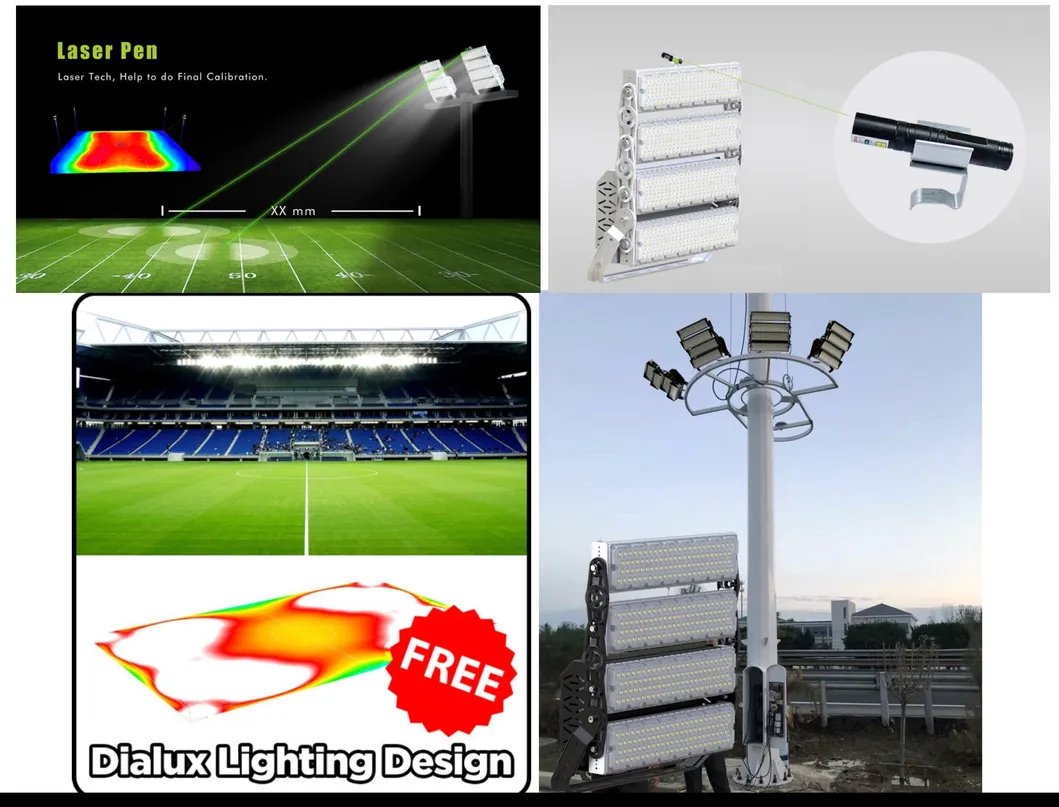

Lighting Projects & Quality

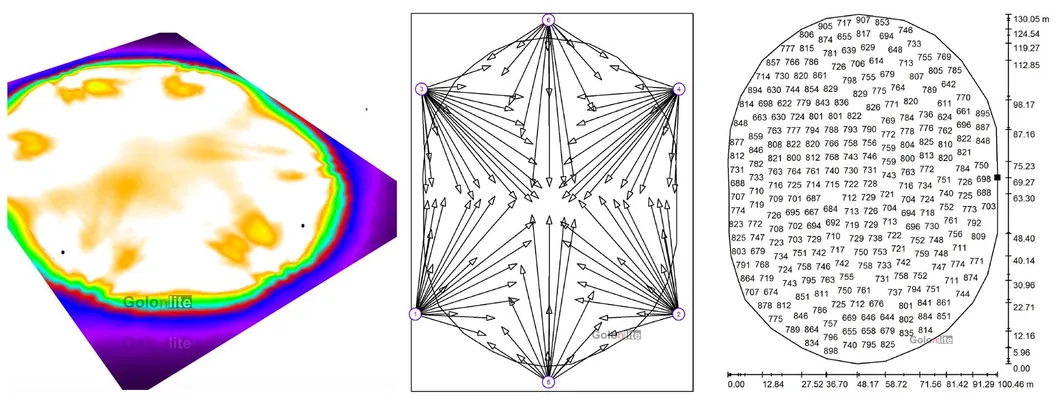

Simulation Manufacturing Testing

Frequently Asked Questions

What is the lifespan of these LED flood lights?
The lights have a long lifespan of over 50,000 hours, ensuring durable performance for industrial and sports applications.
Is the light waterproof for outdoor stadium use?
Yes, it features an IP66 waterproof rating and IK10 protection, making it ideal for stadiums, squares, and high mast outdoor lighting.
Can I request a professional lighting simulation for my project?
Absolutely. We provide free Dialux lighting studies and IES files to help you design the most efficient lighting solution for your field.
What dimming options are available?
We support 0-10V, PWM, Resistance, and DALI dimmable systems. Zigbee and DMX control options are also available for advanced needs.
What kind of drivers and chips are used in the product?
The product uses world-famous driver brands like Meanwell, Sosen, or Inventronics, combined with high-performance SMD5050 or SMD3030 LED chips.
What is the warranty period?
We offer a standard 5-year warranty for all our LED flood light models.
