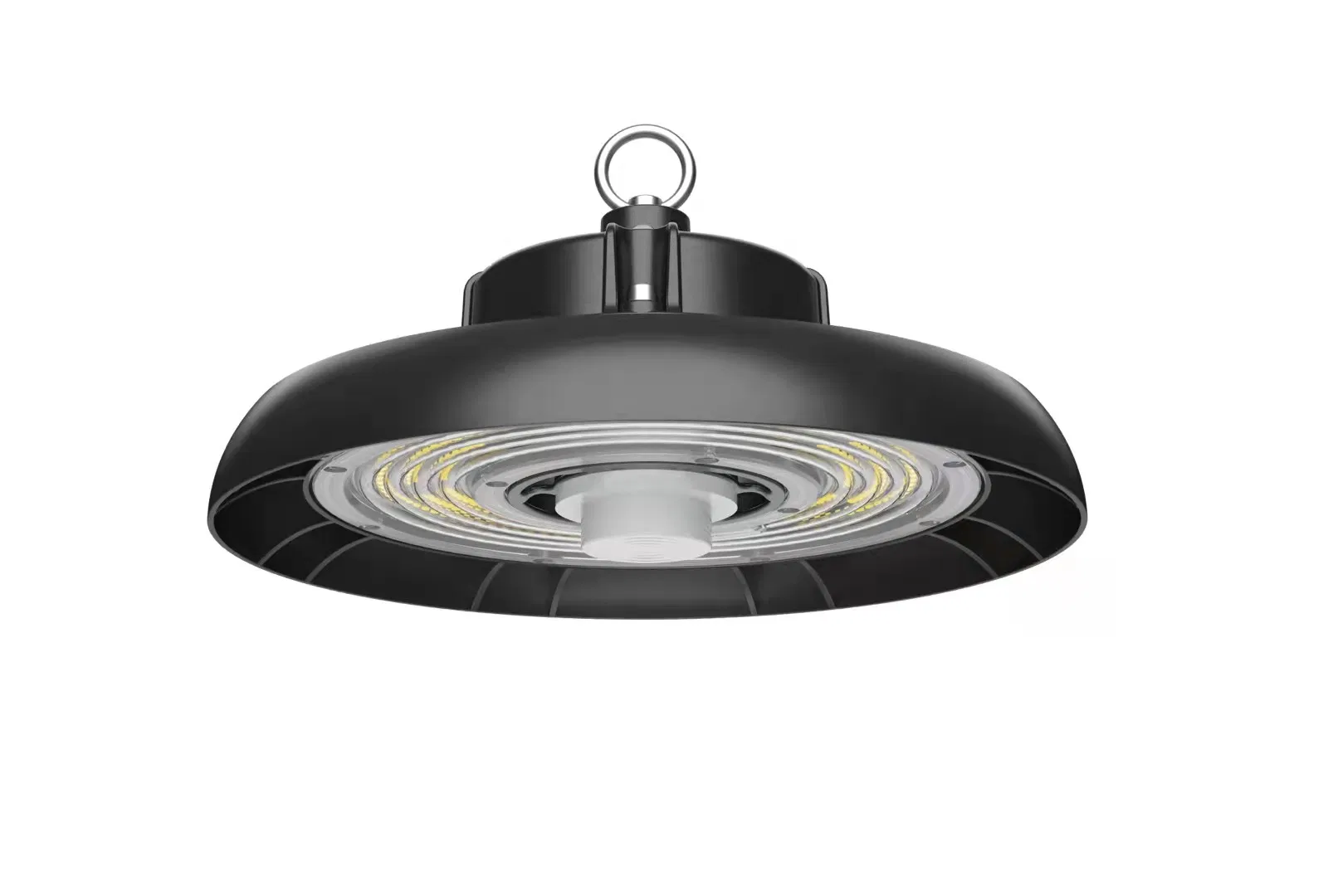

Bright LED High Bay Lighting Solution for Warehouses and Factories

Customization: Available
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy

Product Description

Basic Information
Product Name
UFO LED High Bay Light
Power
150W (100W-240W Optional)
Lifespan
≥50000H
IP Rating
IP65 / IP67 / IP68
LED Chips
Nichia / SMD 3030 / SMD 2835
Luminous Eff.
150LM/W - 190LM/W
Beam Angle
60° / 90° / 120°
LED Driver
Meanwell HBG Series / CE UL Driver
Certification
CE, UL, DLC, SAA, PSE, RoHS, FCC
Material
Die-Cast Aluminum, PC Lens
Product Advantages
  • High Efficiency: 2835 SMD LED reaching up to 150LM/W.
  • Premium Driver: Options for Meanwell or CE/UL drivers (100-277VAC).
  • UFO Design: Lighter and smaller shape saves significantly on freight costs.
  • Heat Dissipation: Wide aluminium plate and large diameter PCB for even cooling.
  • Smart Functions: Optional 1-10V dimming, daylight, and motion sensors.
  • Durable Build: Anodized housing with stainless screws for long-term durability.
  • Flexible Installation: Supports suspending ring, chain, rod, hook, or 180° adjustable bracket.
  • Weather Resistance: One-piece PC lens and silicone ring for excellent airtight effect.

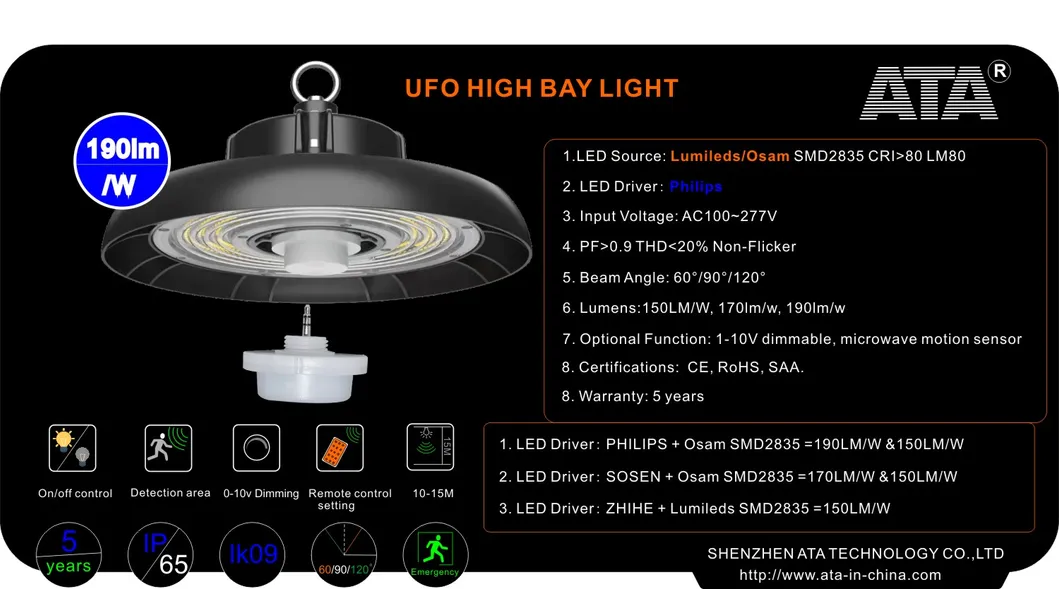

Bright LED High Bay Lighting Solution

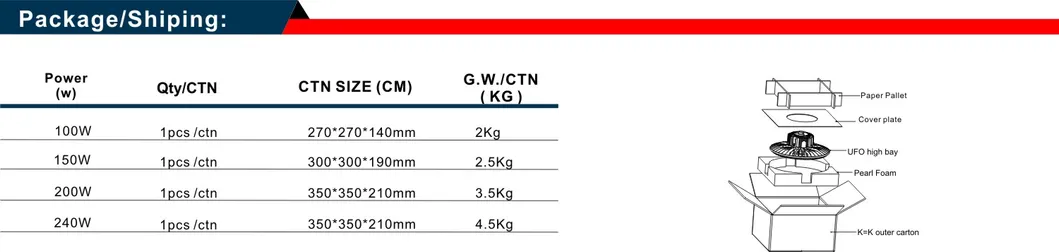

LED High Bay Detail
Technical Specifications
Color Temperature3000K, 4000K, 5000K, 6000K, 6500K
CRI / PFCRI > 80 / PF > 0.95
IK / Surge GradeIK10 / Surge Protection 10KV
Working Temp-40ºC ~ +50ºC
Mounting HeightIdeal for 8 - 15 meters
DimensionsD230*H155 to D395*H165 MM (Various models)
Applications
Industrial: Factories, Workshops, Warehouses, Mines
Sports: Gymnasiums, Stadiums, Golf Courses
Commercial: Shopping Malls, Exhibition Halls, Supermarkets
Transport: Airports, Subways, Shipyards, Train Stations

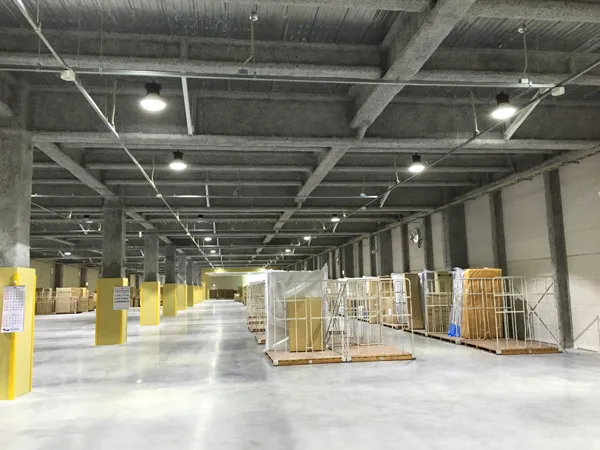

Application Scenario 1

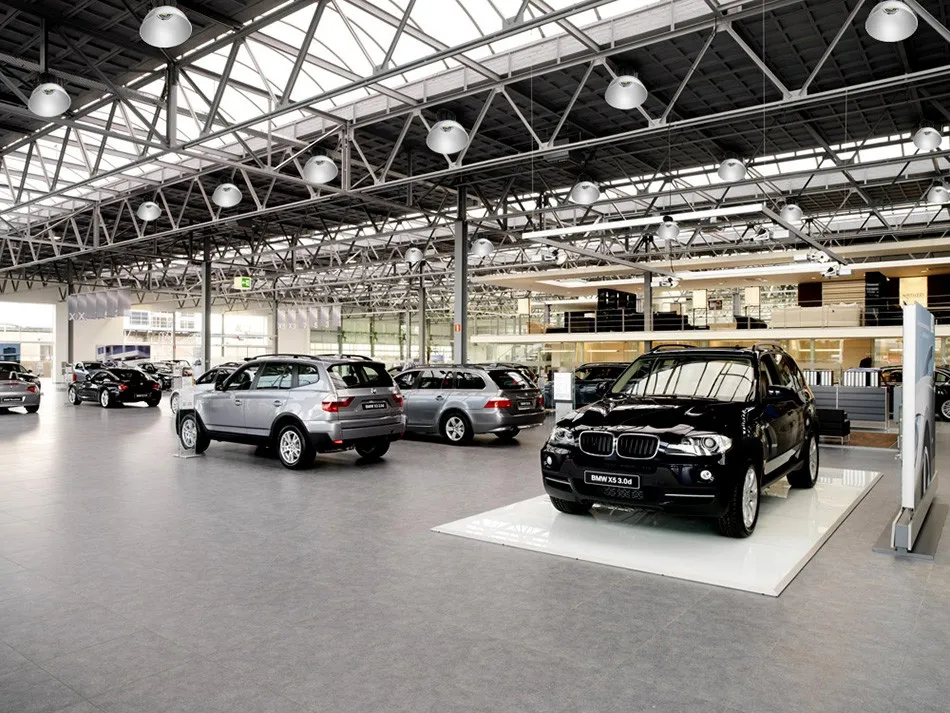

Application Scenario 2
Quality & Installation
Quality Control: 48-hour aging tests for 100% of lamps, lighting tests before packing, and drop tests for packaging protection.

User Manual: Ensure power is switched off before installation. Mounting must be on a stable background and performed by a qualified electrical expert.
Frequently Asked Questions
What is the lifespan and warranty for this High Bay Light?
The product features a lifespan of ≥50,000 hours. We offer a 5-year warranty for Meanwell driver models and a 3-year warranty for standard UL/CE driver models.
Is the UFO LED High Bay Light waterproof?
Yes, it has an IP65 rating (with IP67/IP68 options), making it suitable for wet locations, tunnels, and areas prone to heavy rain or dust.
Which beam angle should I choose?
We offer 60°, 90°, and 120° beam angles. Generally, narrower angles (60°) are used for higher ceilings, while 120° is ideal for standard wide-area illumination.
Can these lights be dimmed?
Standard models are non-dimmable, but we provide optional 1-10V dimmable functions, as well as daylight and motion sensor integration.
What makes the UFO design better than traditional high bays?
The UFO design is more compact and lighter, eliminating the need for a bulky reflector. This results in better heat dissipation and significantly lower shipping costs.
Are these lights certified for international markets?
Yes, our UFO LED High Bay lights are fully certified with SAA, PSE, UL, DLC, CE, and RoHS, ensuring compliance with global safety and quality standards.
