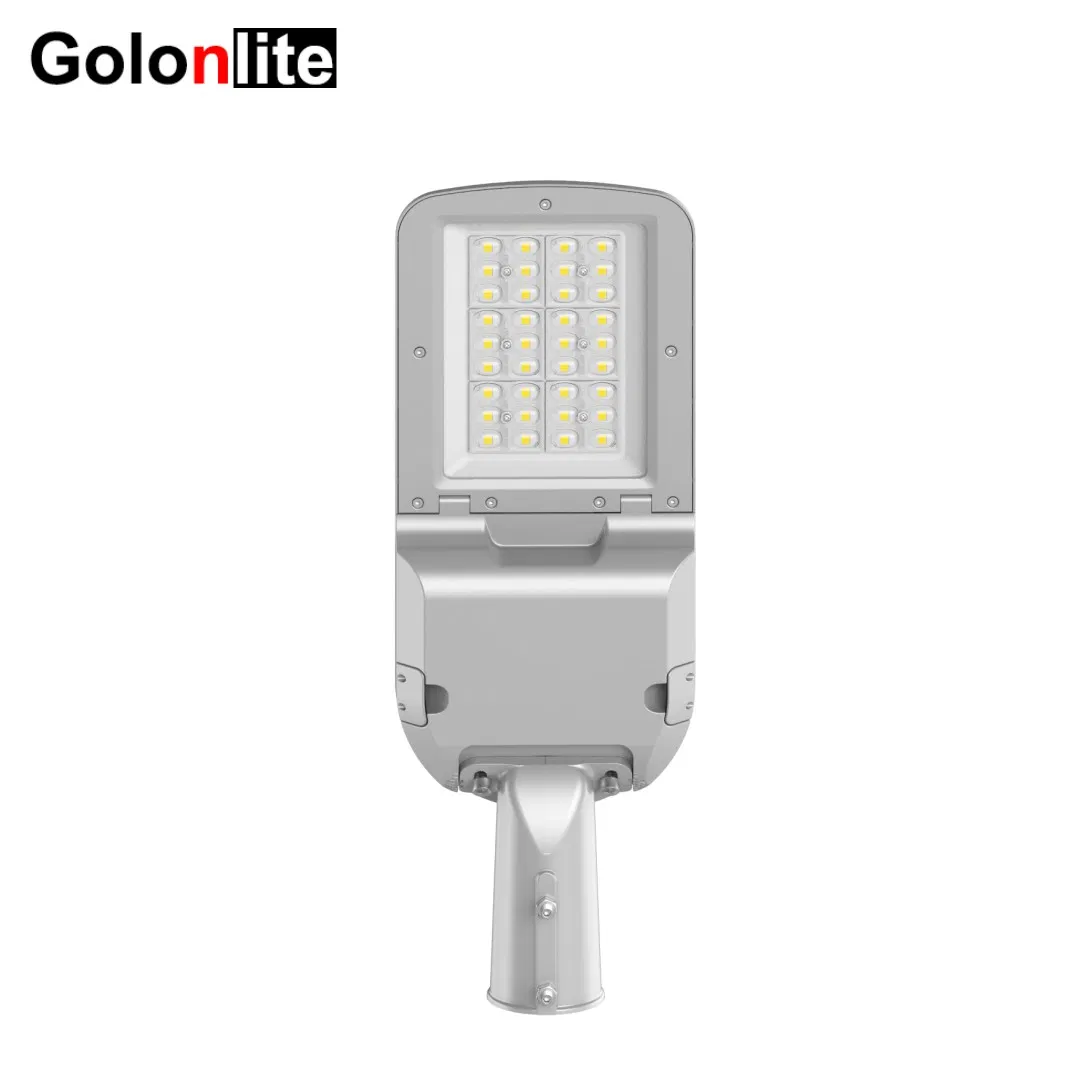

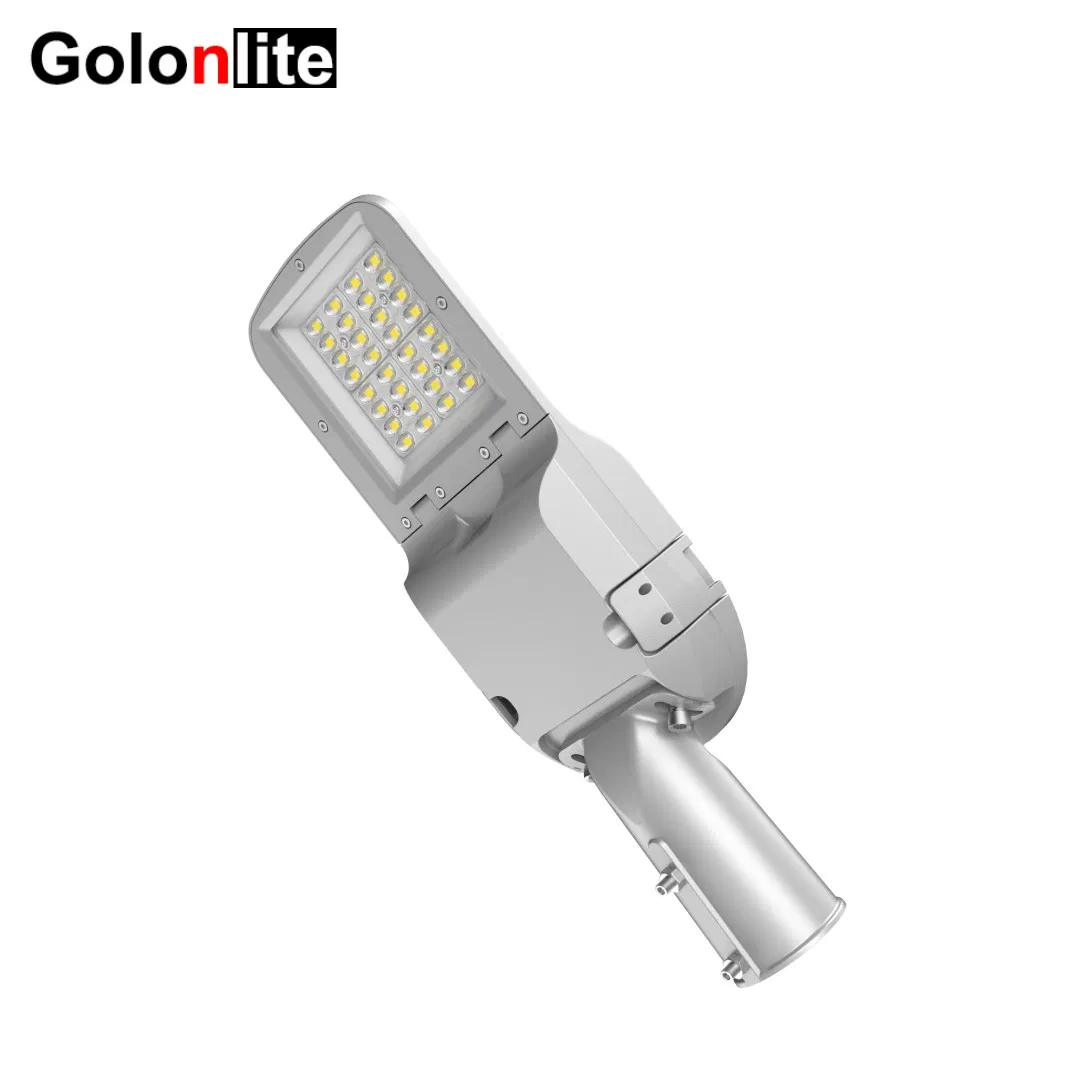

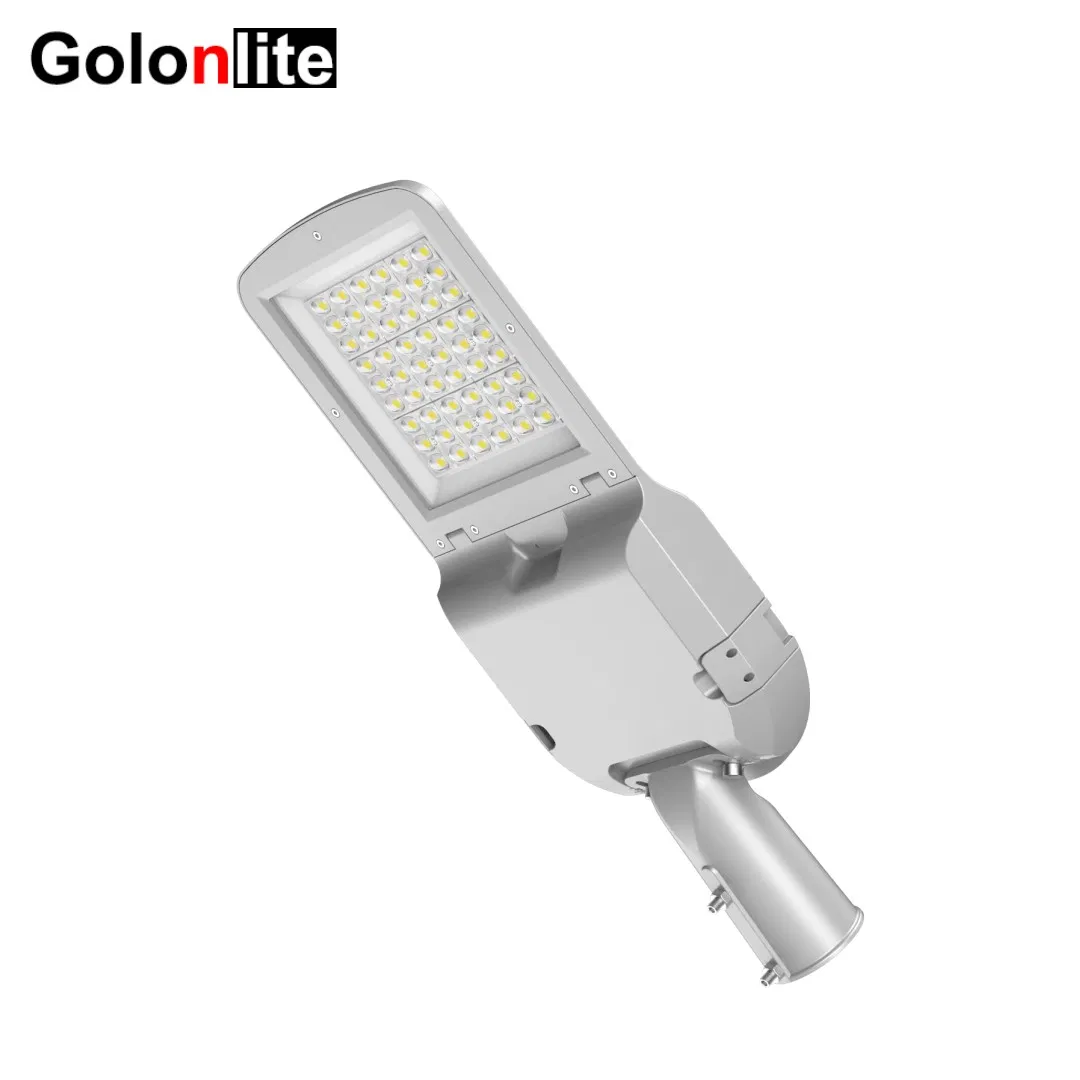

180lm/W IP66 Ik08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting 30W 40W 50W 60W 75W 90W 100W 120W 150W 200W 240W 300W LED Street Light

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Lamp Body
Die Casting Aluminum + PC Lens + Tempered Glass
Power Range
30W to 300W Options
Application
Highway, Garden, Street, Parking Lot, Park
IP/IK Rating
IP66 / IK08
Certification
CE, EMC, LVD, RoHS
Efficiency
Up to 180lm/W
Voltage
100-277VAC 50/60Hz (347V/480V Optional)
Warranty
5 / 7 / 10 Years
💡 Product Description

180Lm/W IP66 IK08 Photocell Post Top Public Area LED Street Light

High-efficiency outdoor lighting solution ranging from 30W to 300W, designed for superior energy saving and long-term durability in various public and industrial environments.

Technical Specifications
LED TypeSMD3030 / SMD5050
Luminous Efficiency140Lm/W - 170Lm/W (Max 180Lm/W)
CCT (K)1700K / 2200K / 3000K / 4000K / 5000K / 5700K / 6500K
CRI> Ra80/70
Power SupplyHigh-quality Drivers (Meanwell / Inventronics / Sosen / Moso)
Beam AngleT2M / T3M / T4M / P50
Smart Control3/5/7 pins NEMA / Photocell / LoRaWan / Zigbee / NB-Iot
Surge Protection6KV / 10KV / 20KV SPD
🌟 Key Features
  • Super Bright: 180Lm/W efficiency for maximum energy saving
  • Die-casting aluminum housing with tempered glass
  • Multiple optical lens options for different road types
  • Tool-free opening design for easy maintenance
  • IP66 Waterproof and IK08 impact resistance

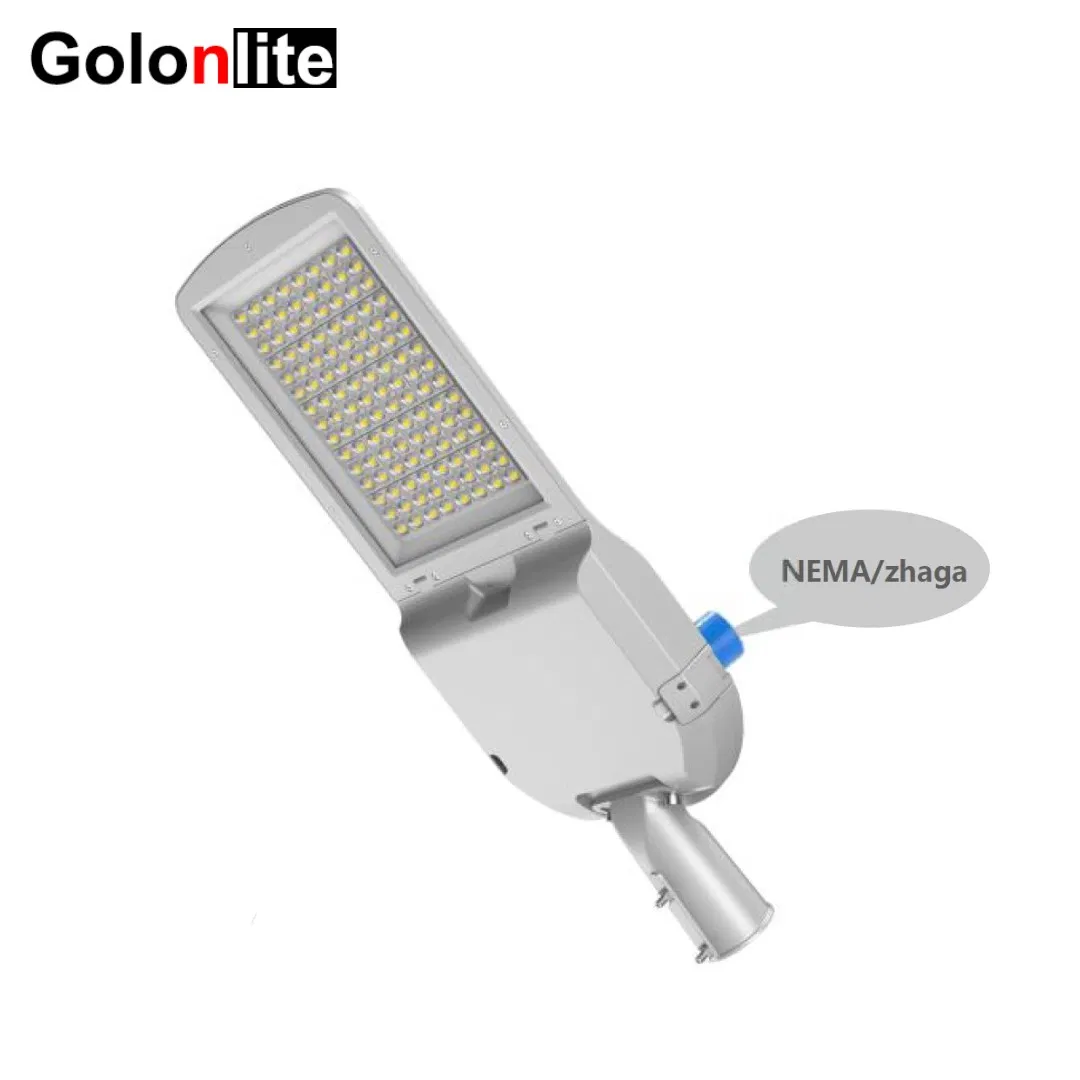

  • Compatible with smart control systems (NEMA/Zhaga)
  • Free Dialux lighting simulation available
  • Fast delivery and factory-direct competitive pricing
🖼️ Gallery & Details

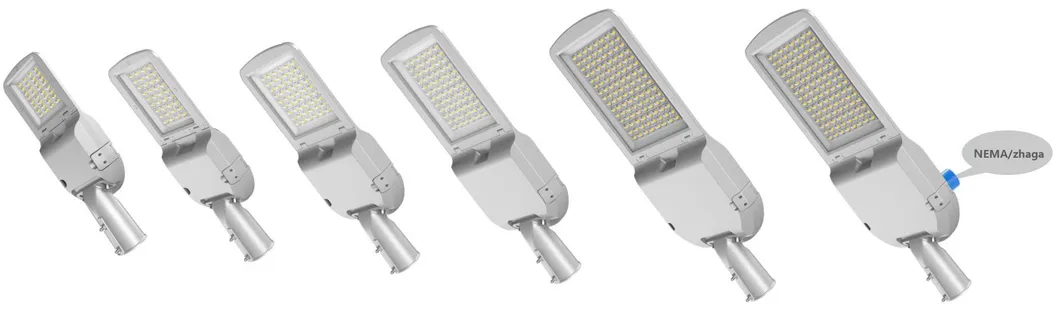

High Efficiency LED Street Light

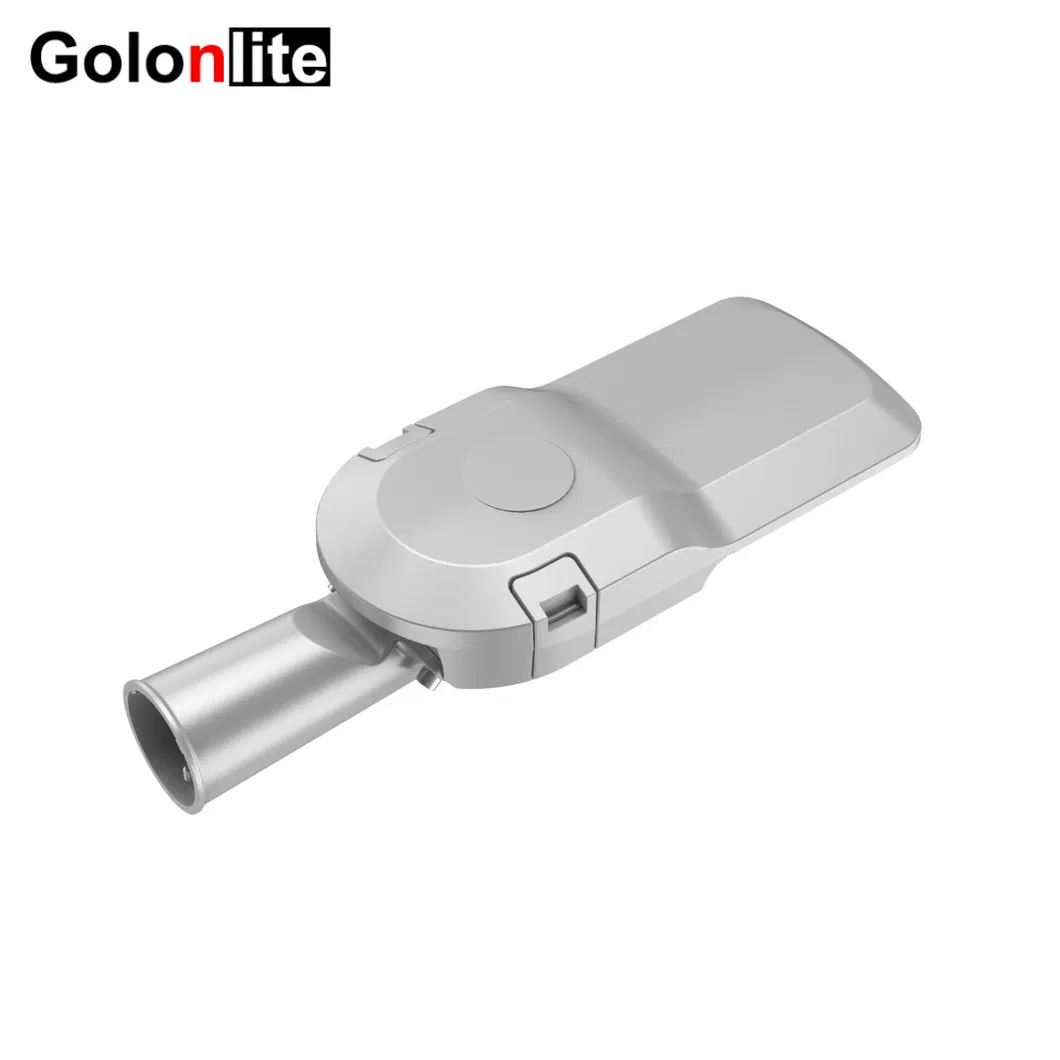

LED Street Light Side View LED Street Light Front View

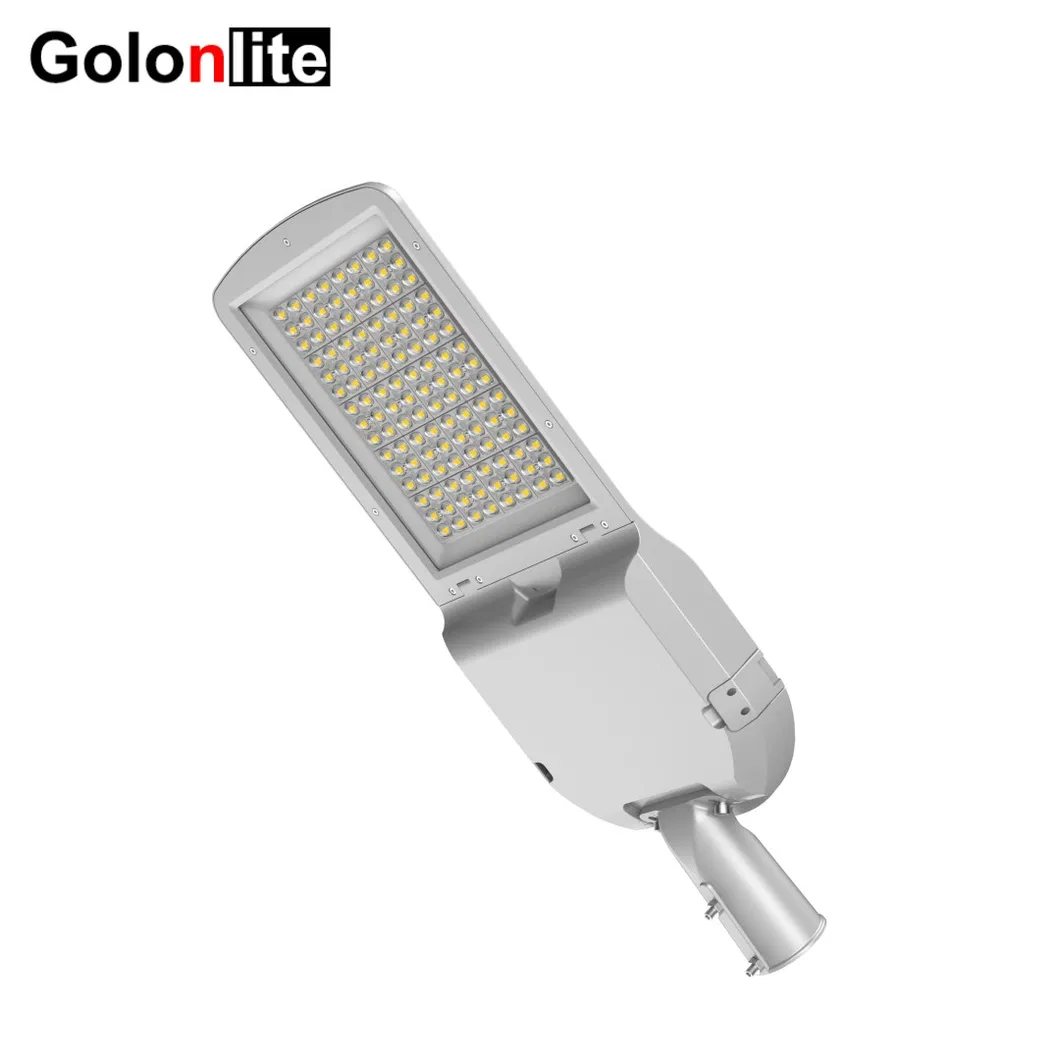

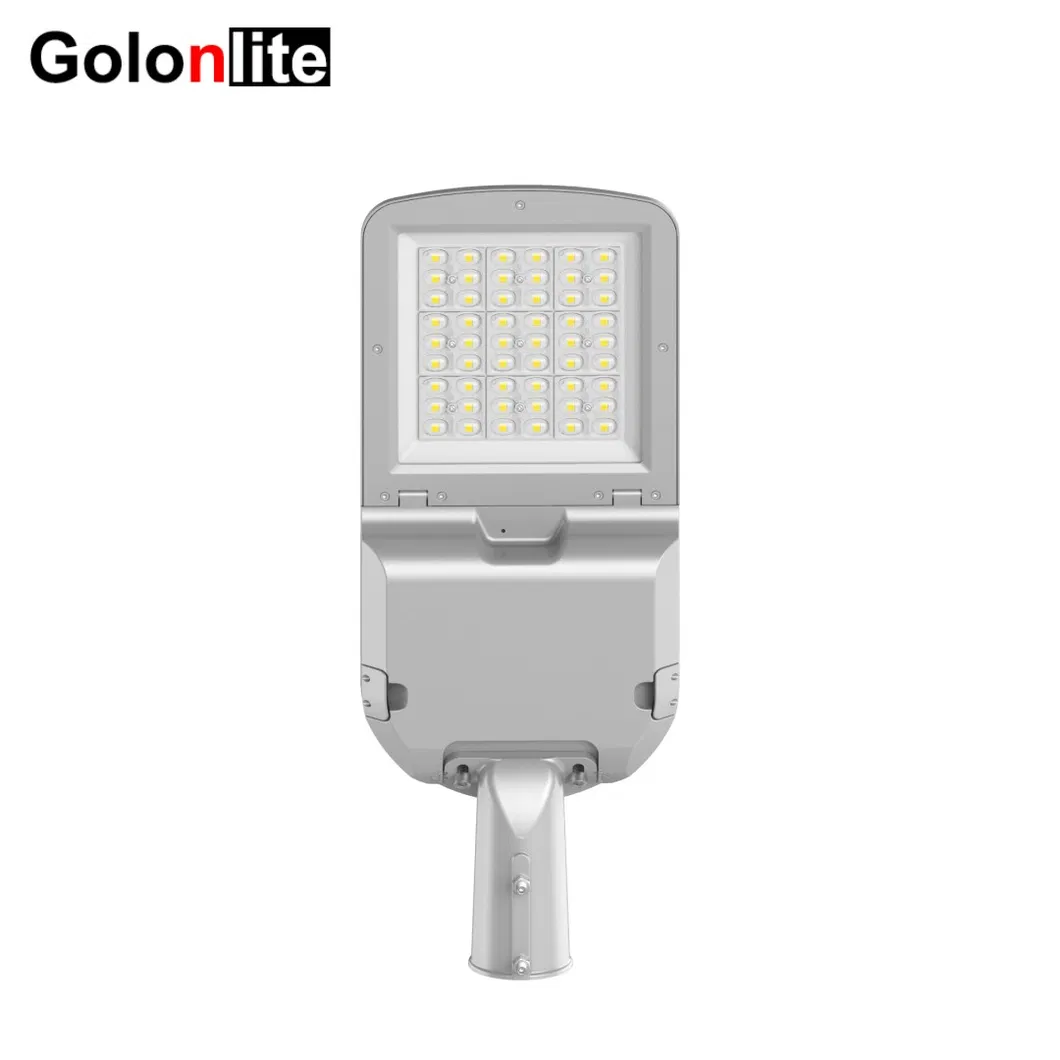

LED Street Light Internal Components LED Street Light Mounting

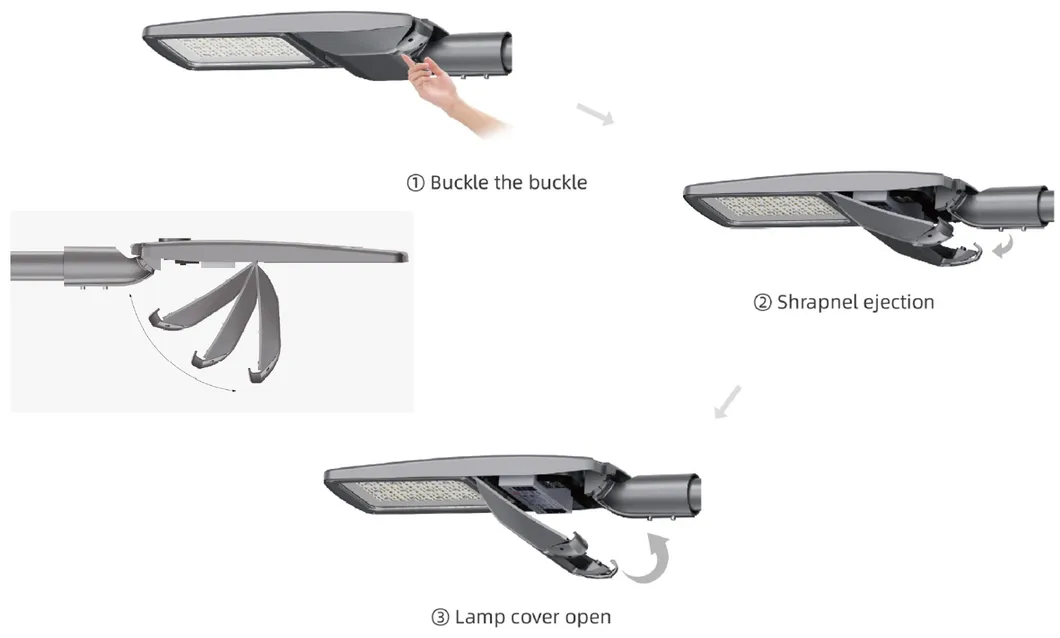

Tool-Free Maintenance Design

Maintenance design
🔧 Installation & Smart Control

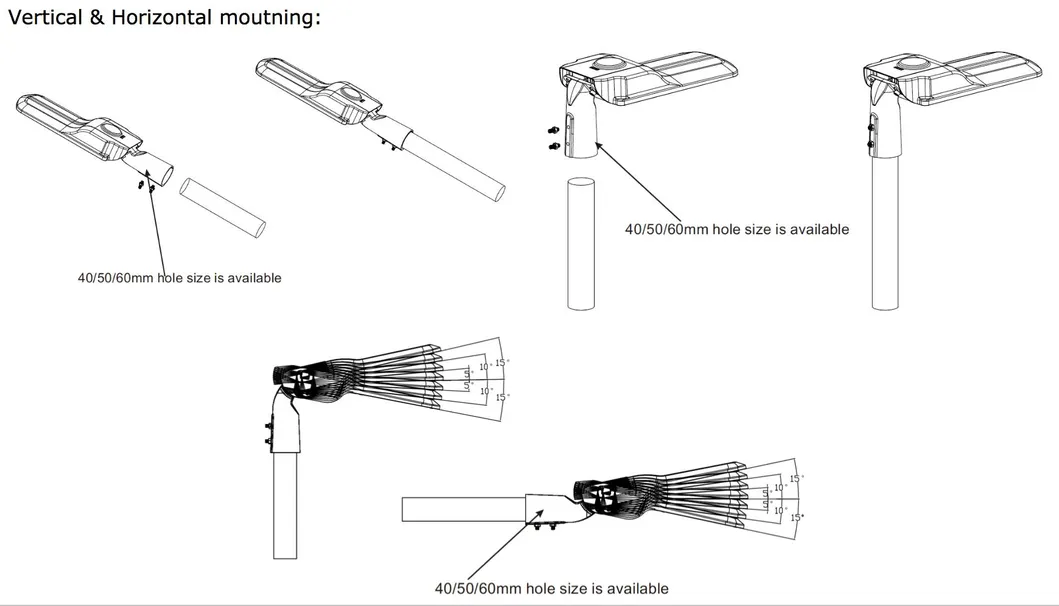

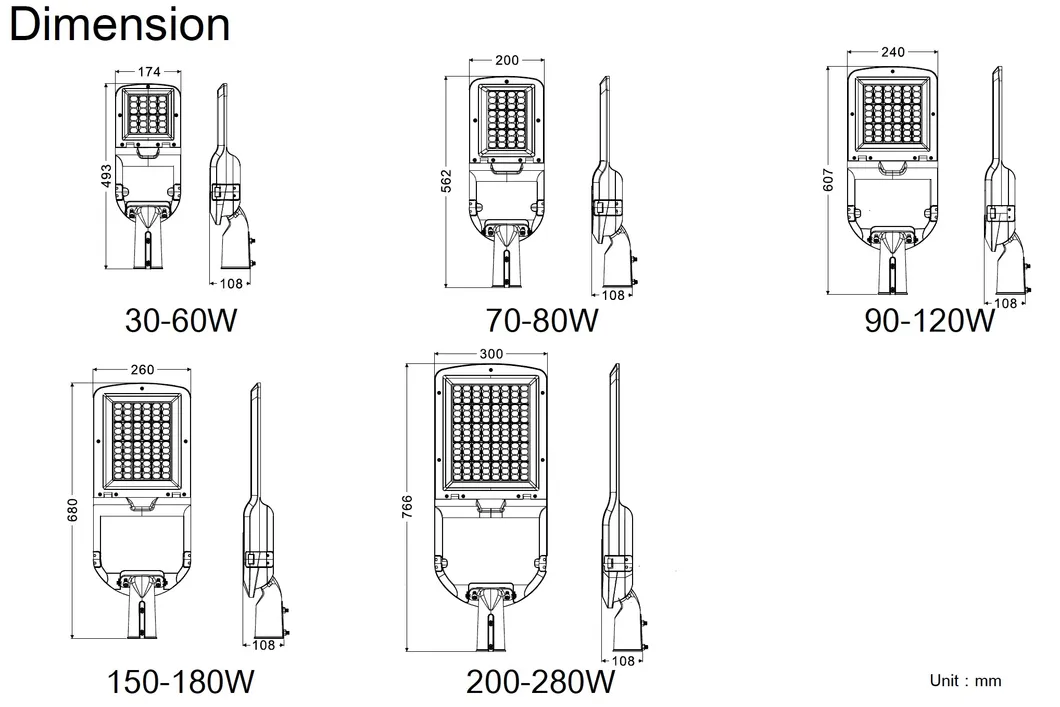

Installation Guide Pole installation

Smart Control Systems (LoRaWAN / Zigbee / NEMA)

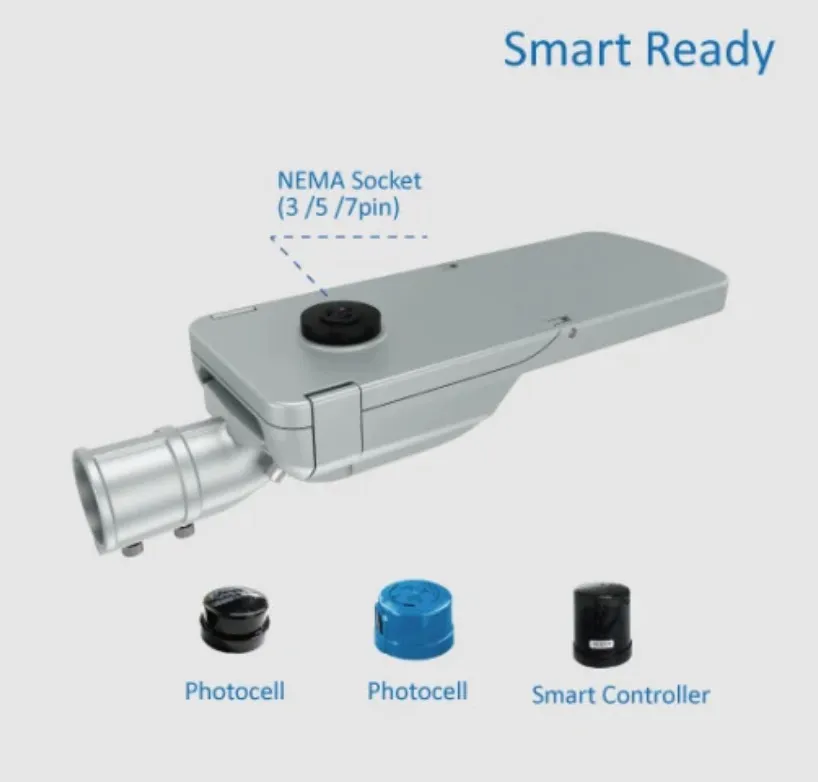

Smart Sensor Photocell Control

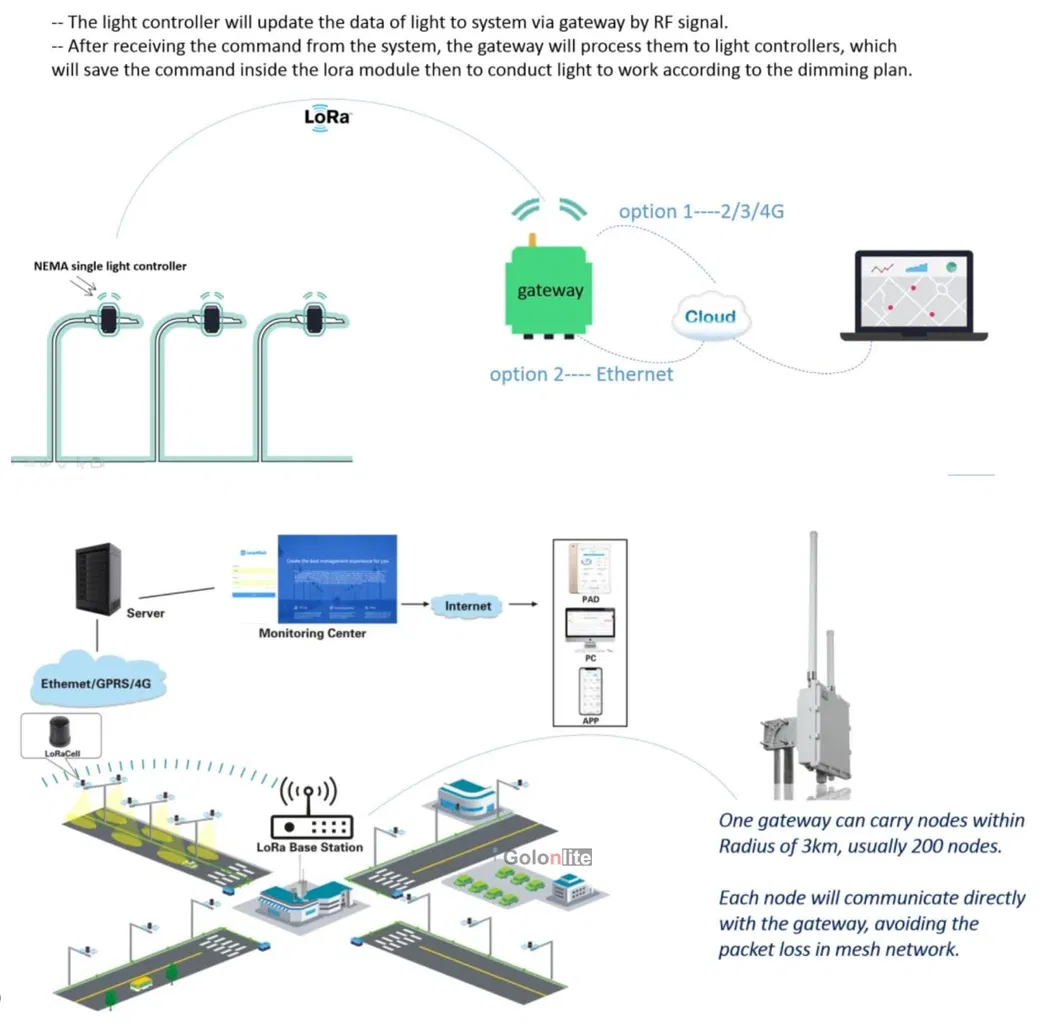

Smart management system

What can the smart system do?

  • Remote switch on/off, dimming, and group controlling
  • Real-time electricity consumption and saving reports
  • Fault alarm and status monitoring
  • Electricity bill checking and power rate settings
📐 Photometric & Applications

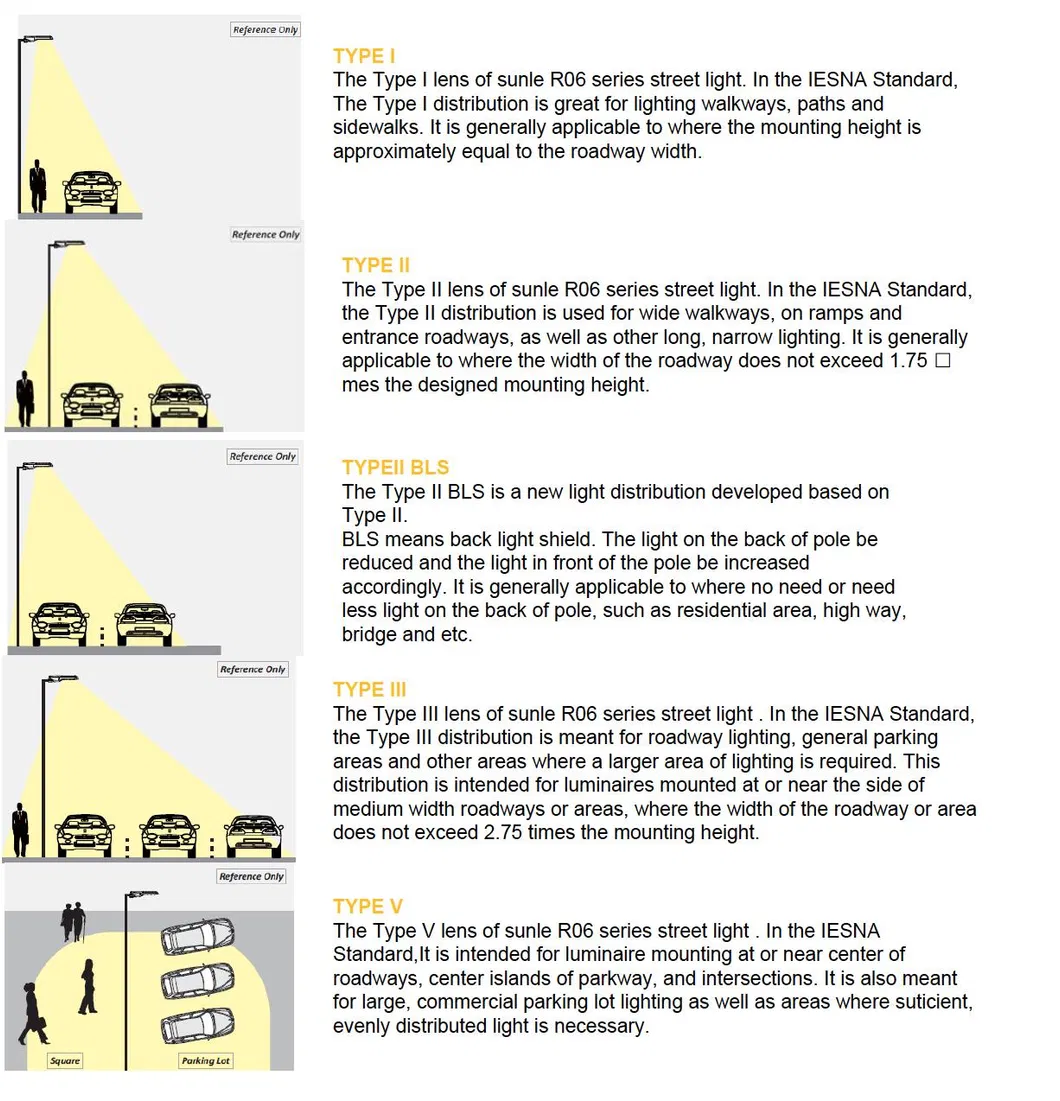

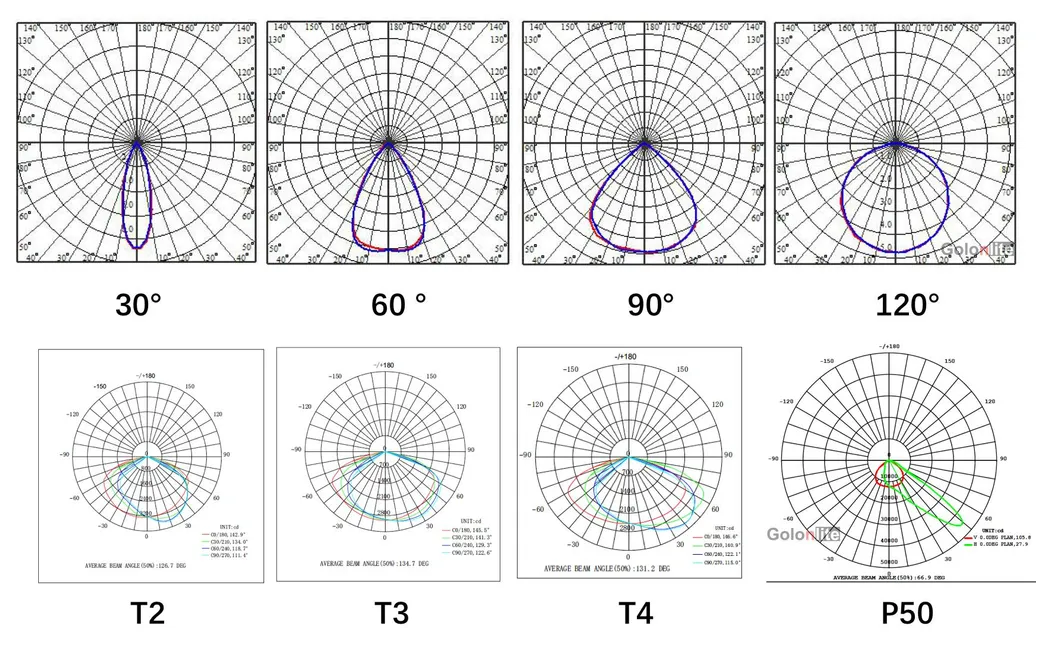

Beam angles Lighting distribution

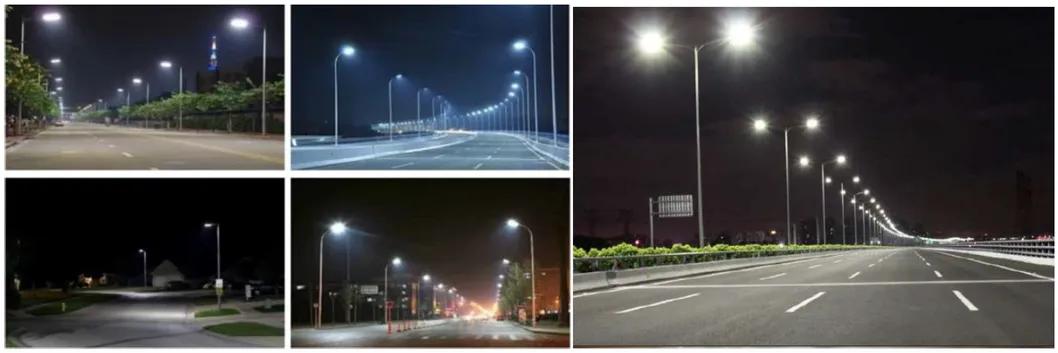

Application scenarios
Frequently Asked Questions
What is the maximum luminous efficiency of these LED street lights?
These street lights reach a high efficiency of up to 180Lm/W, providing exceptional brightness while maximizing energy savings.
Are these lights durable enough for harsh outdoor conditions?
Yes, they feature an IP66 waterproof rating and IK08 impact resistance. The housing is made of die-casting aluminum with tempered glass for maximum durability.
Do you offer smart control options?
Absolutely. We support 3/5/7 pins NEMA sockets, Zhaga sockets, and smart controls via LoRaWAN, Zigbee, and NB-IoT for remote monitoring and dimming.
What is the standard warranty period?
We provide flexible warranty options of 5, 7, or 10 years depending on your project requirements and component selection.
Can you help with lighting design?
Yes, we provide free Dialux lighting simulations and IES files to help you plan the perfect lighting solution for your specific application.
Is maintenance difficult for these fixtures?
No, the fixtures are designed with a tool-free opening mechanism, allowing for easy access and maintenance without specialized equipment.
