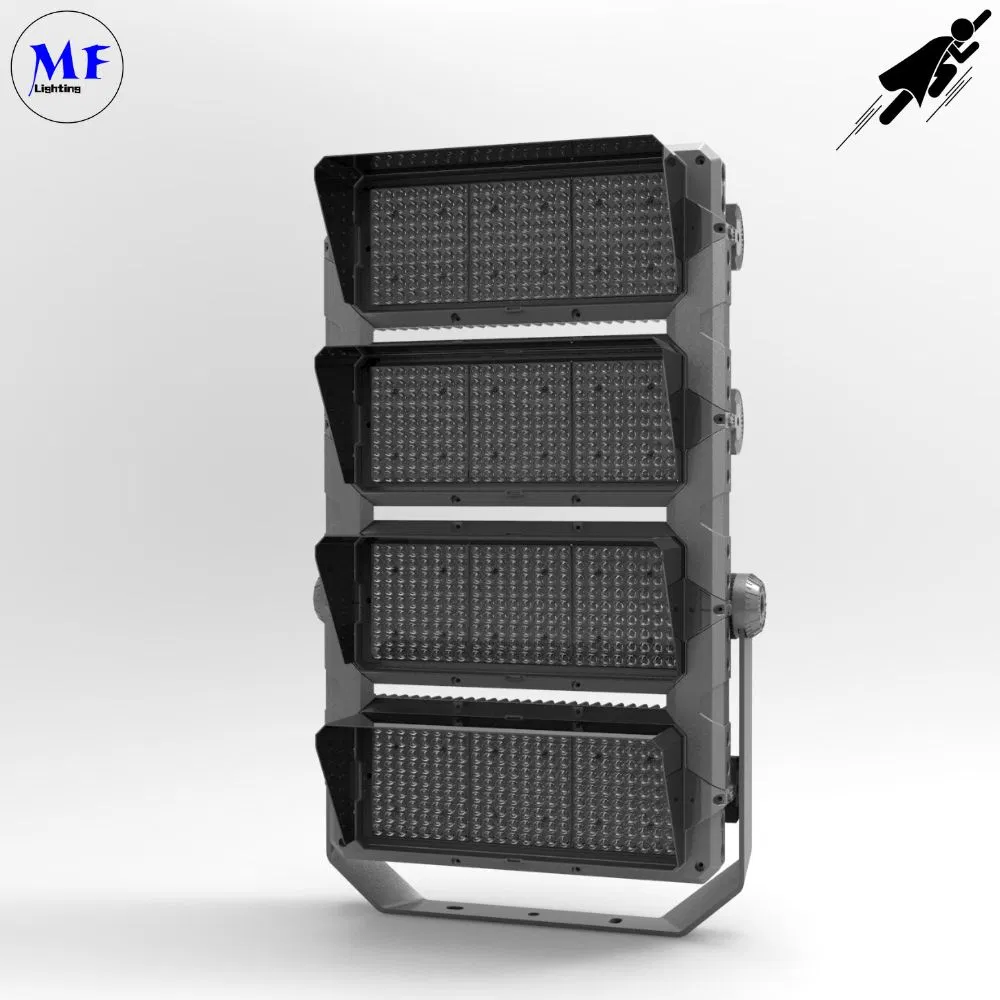

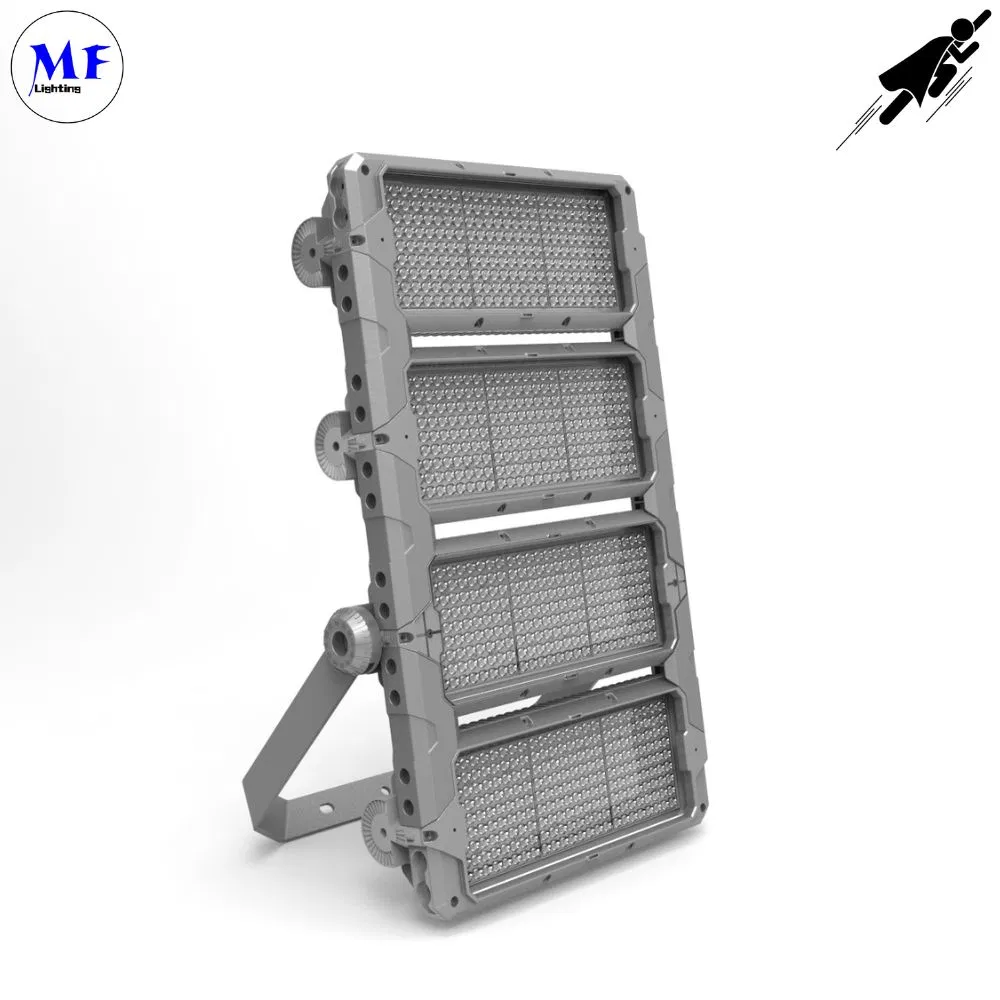

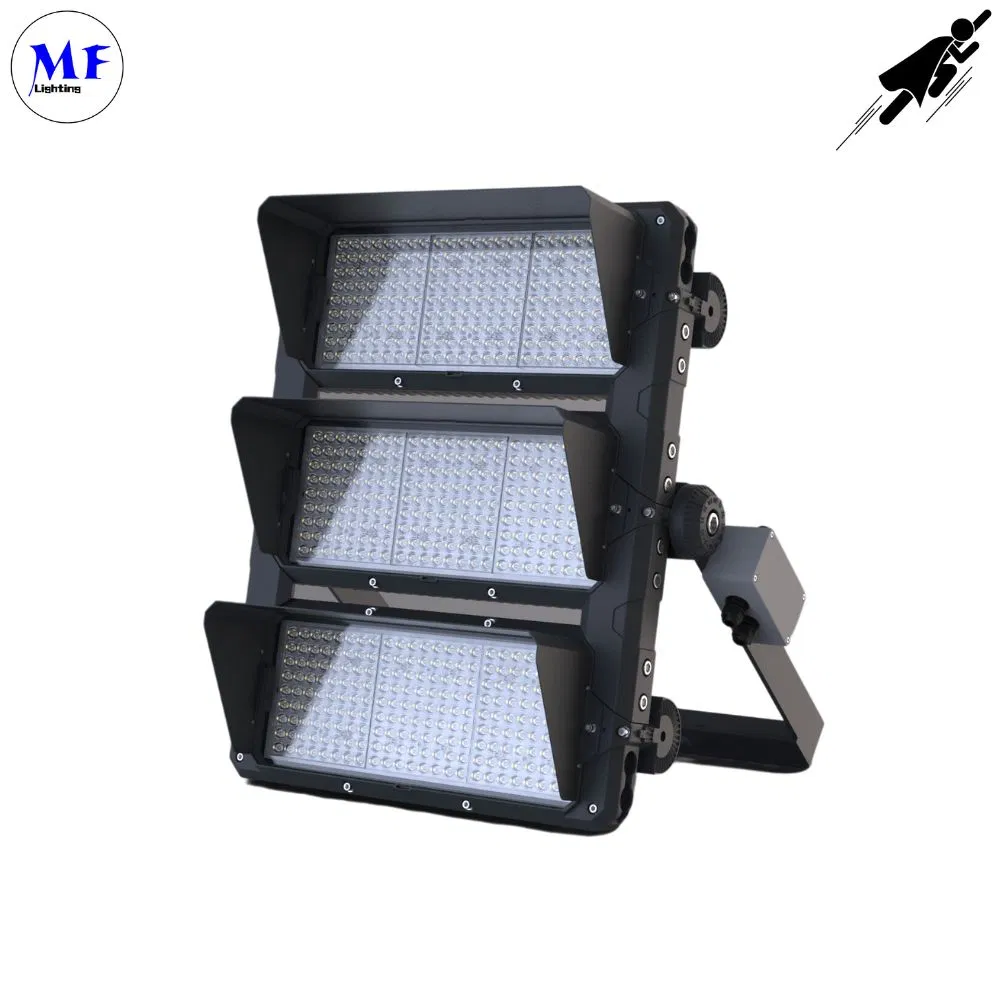

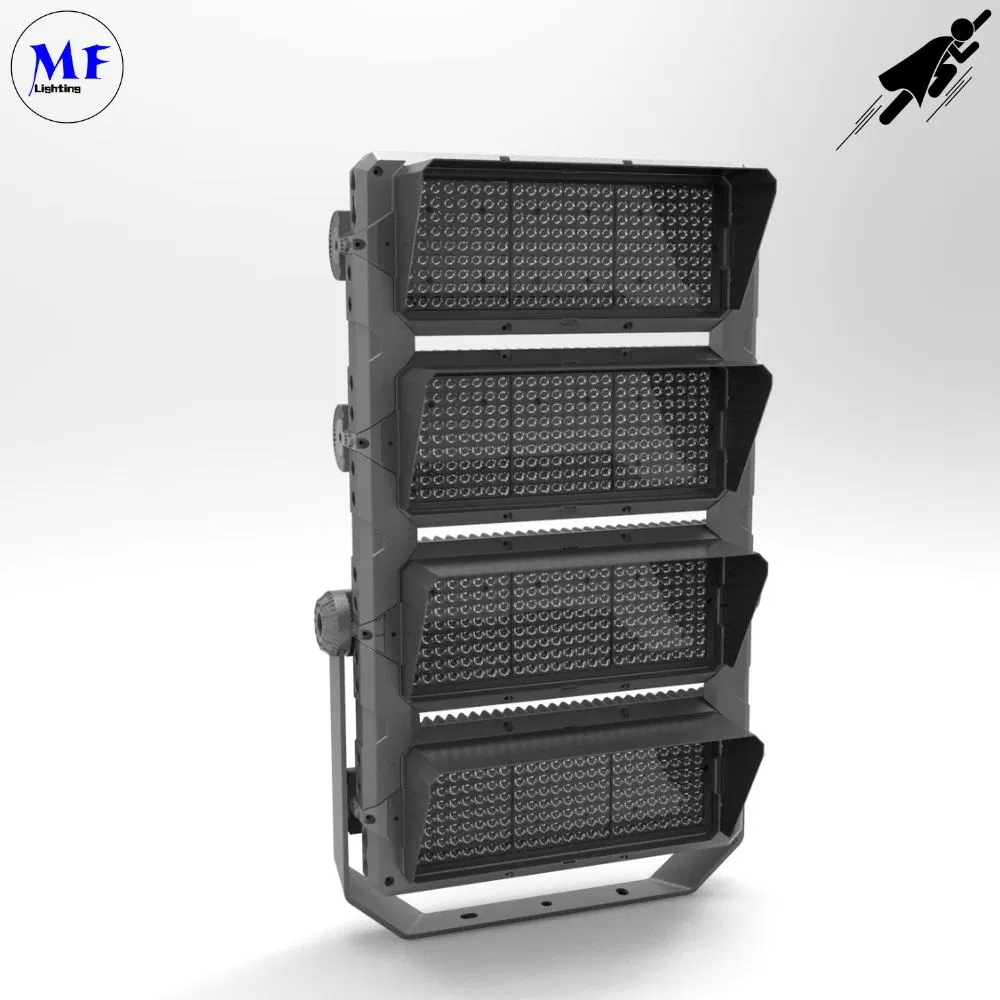

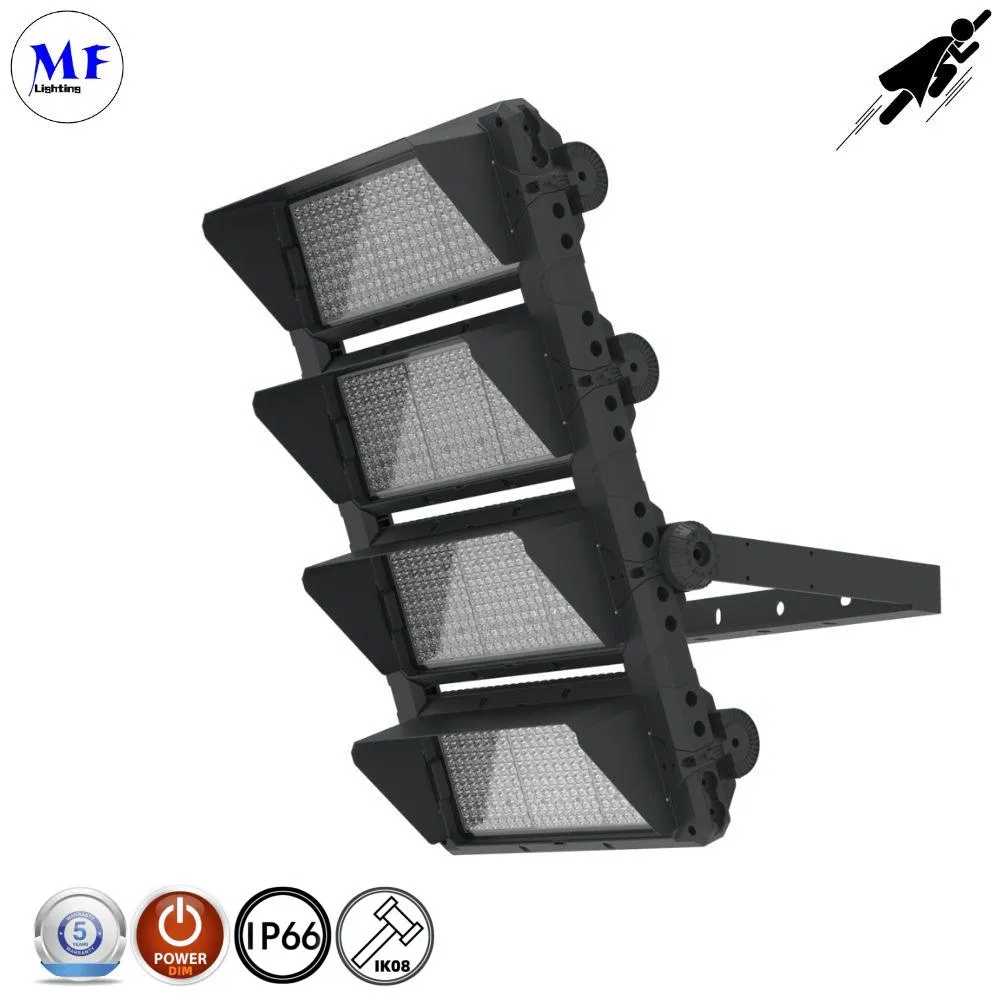

Factory Price 960W IP66 Ik08 High Power Floodlight Parking Lot Light LED Flood Light LED Stadium LED Sport LED High Mast Light for Sport Field and Tennis Courts

1 / 5

Factory Price 960W IP66 Ik08 High Power Floodlight Parking Lot Light LED Flood Light LED Stadium LED Sport LED High Mast Light for Sport Field and Tennis Courts

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

High Power IP66 IK08 LED Stadium & Sport Field Lighting High Power Floodlight

Basic Info.

Pole Height

25-30m

Power

240W - 960W

IP Rating

IP67

Input Voltage

AC100-277V 50/60Hz

Luminous Efficacy

≥135 Lm/W

Warranty

5 Years

Lifespan

50000hrs

IK Rating

IK09

CRI

≥70

Surge Protection

12kv

Product Features

Modular design with independent power supply for easy maintenance and power adjustments.
ADC12 die-casting aluminum construction for superior resistance against salt spray and corrosion.
Professional light distribution optimized for high pole applications with high uniformity.

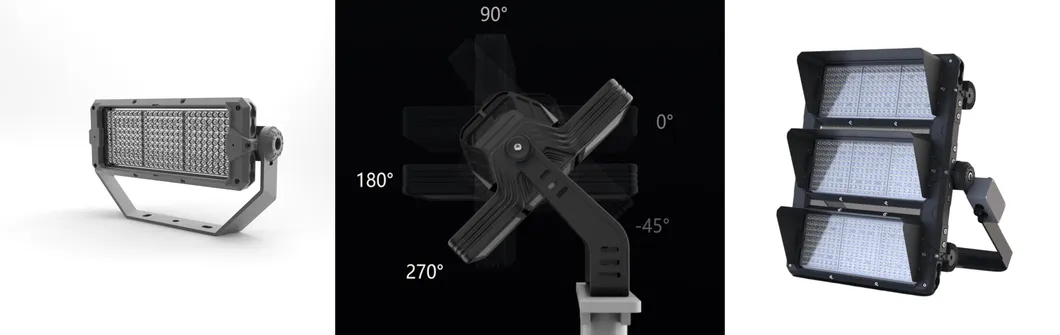

Patented scratch-free angle adjustment design for precise light targeting.
External floating driver design with reinforced heat dissipation for extended component life.

Technical Specifications

Power	240W	360W	480W	720W	960W
Luminous Flux (±5%)	32,400 lm	48,600 lm	64,800 lm	97,200 lm	129,600 lm
LED Quantity	216 pcs	288 pcs	432 pcs	648 pcs	864 pcs
Beam Angle	20° / 15° / 45° / 60° / 90° / 120° / Asymmetric 105°x55°
Main Materials	PC, Aluminum Alloy, Tempered Glass

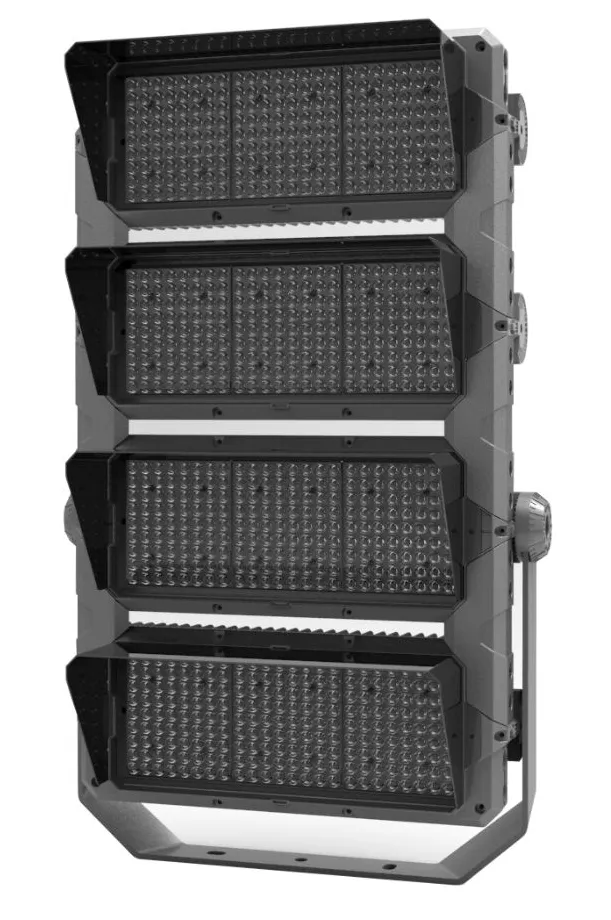

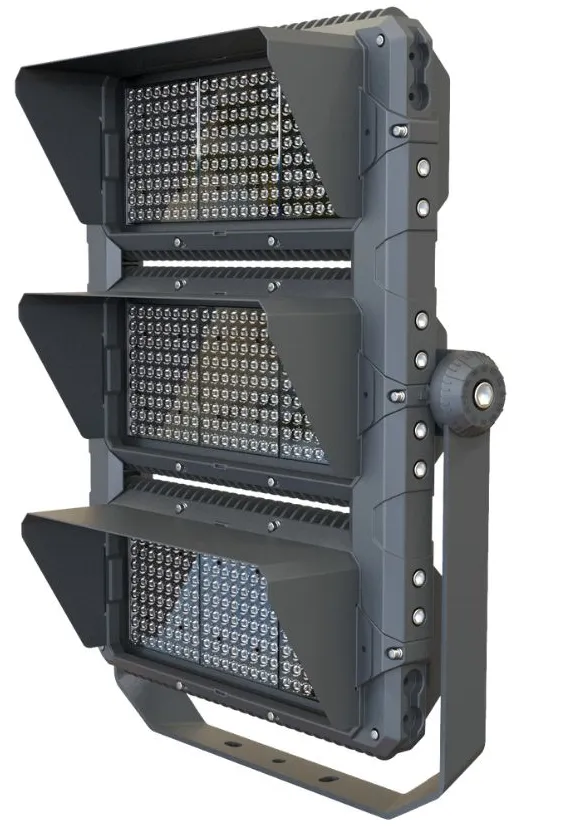

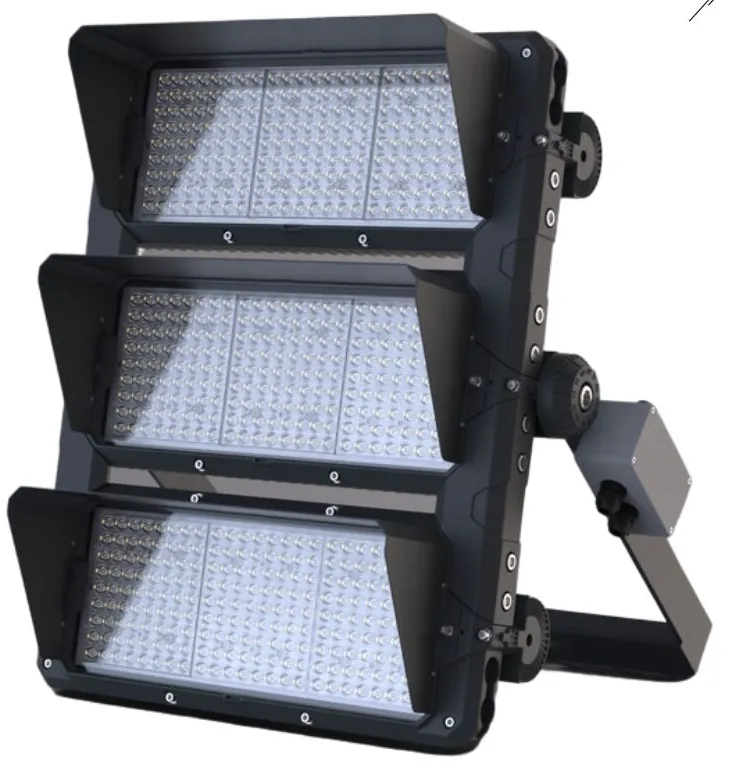

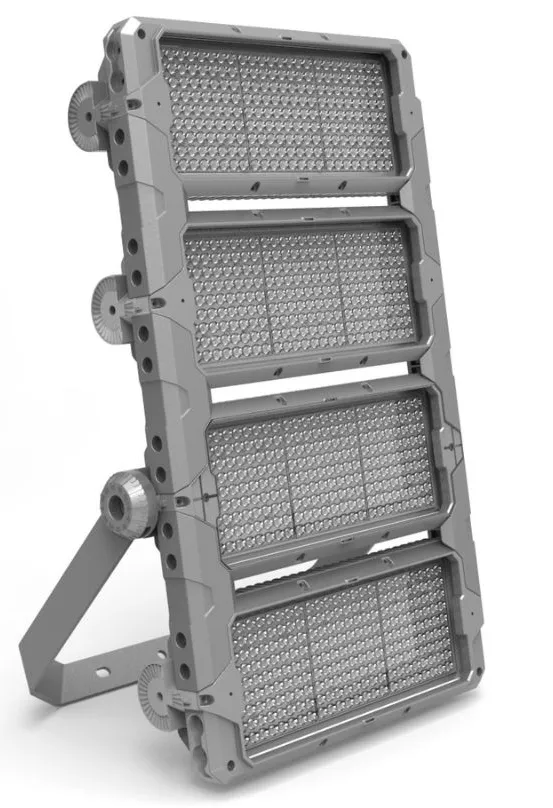

Detailed Photos

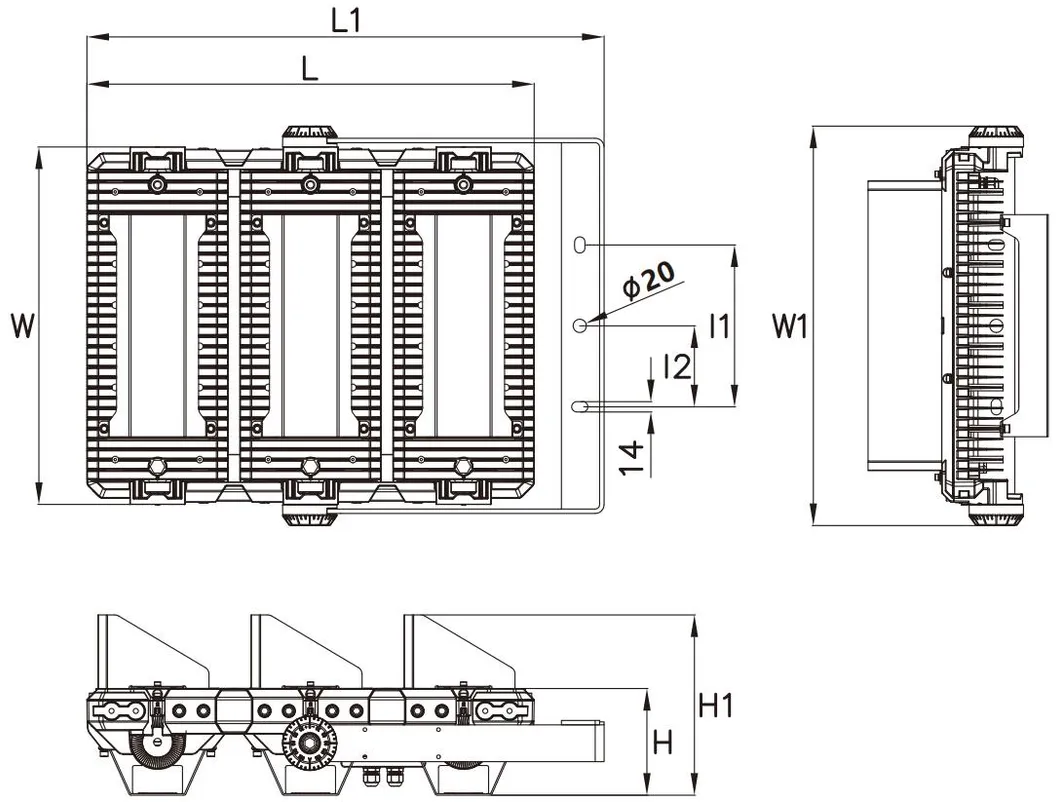

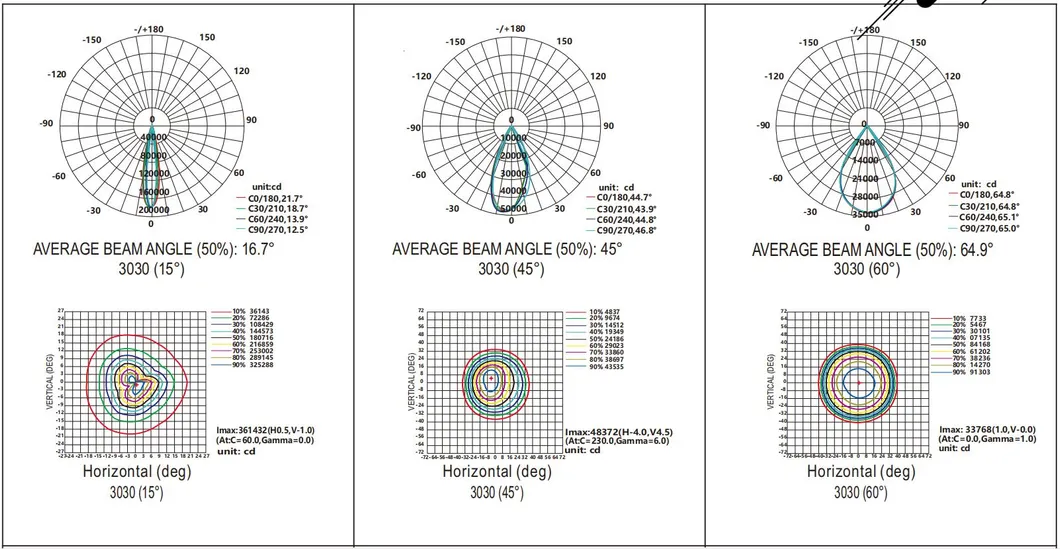

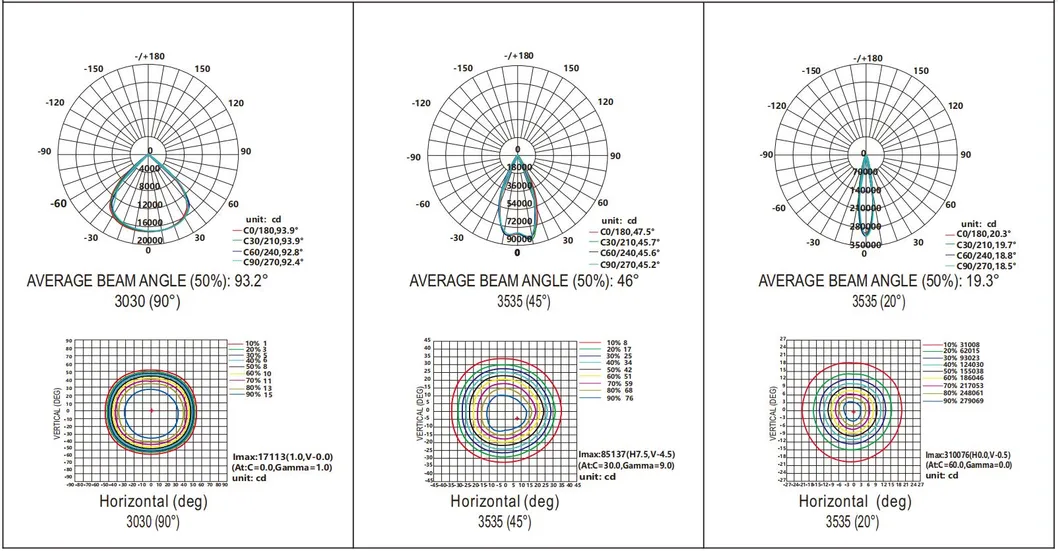

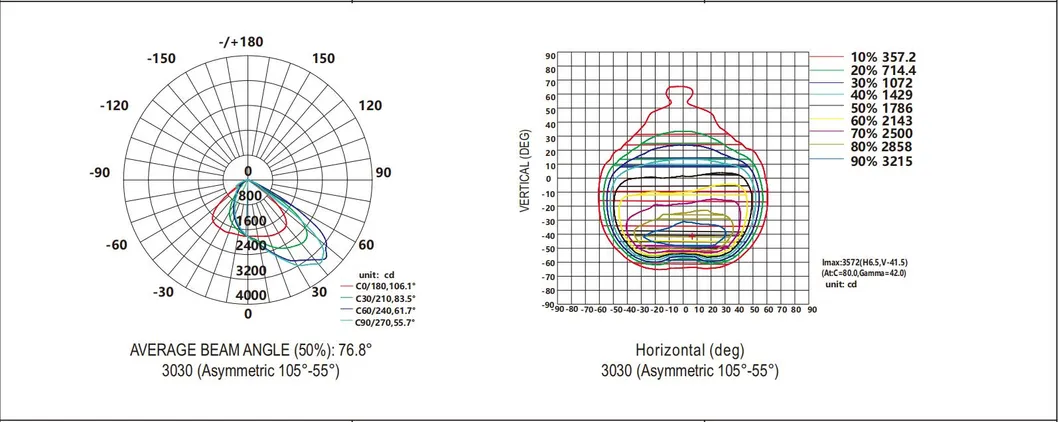

Photometry & Dimension

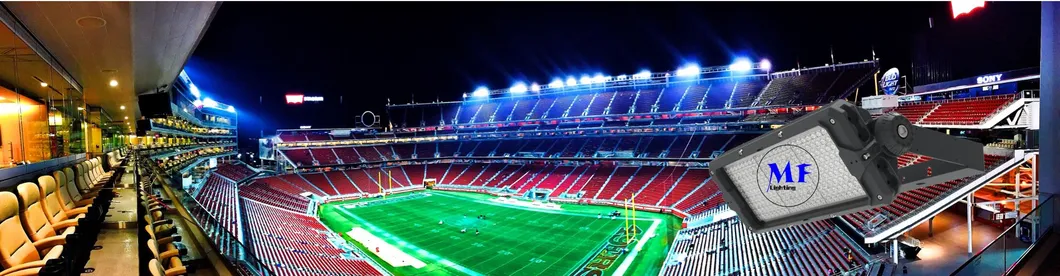

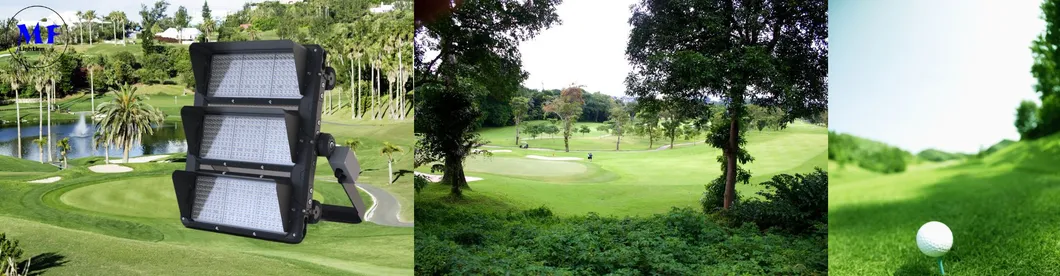

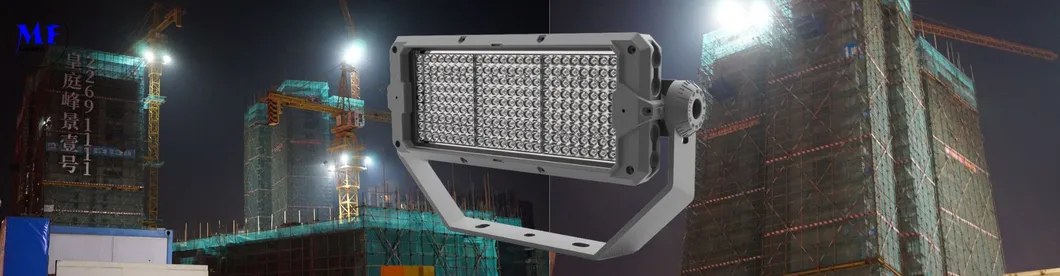

Applications

Suitable for: Roads and Highways / Parking Lots / Sports Stadiums / Railroad Yards / Shipyards / Warehouses / Outdoor Recreation Areas

Frequently Asked Questions

Q1: What is the standard warranty for these LED high mast lights?

A: We provide a 5-year warranty period for all our high-power floodlight models.

Q2: Can these lights withstand harsh outdoor environments?

A: Yes, they are IP67 rated for water and dust resistance and feature IK09 impact protection, making them ideal for stadiums and shipyards.

Q3: What dimming options are available?

A: The lights support 1-10V and Dali 2.0 dimming protocols for advanced lighting control.

Q4: What is the expected lifespan of the LED chips?

A: The high-quality LED chips have a calculated lifespan of over 50,000 to 100,000 hours depending on the configuration.

Q5: Are there different beam angles for specific sports requirements?

A: Yes, we offer a wide range of beam angles including 10°, 25°, 45°, 60°, 90°, and asymmetric 60° to meet various lighting design needs.

Q6: What surge protection is included?

A: Each unit is equipped with 12kv surge protection to protect against electrical spikes and lightning.
