Basic Information
Power
1000W 800W 600W 500W 400W 300W
Luminous Eff.
150lm/W - 190lm/W
Certification
CE, EMC, LVD, RoHS, ETL
Material
Die Casting Aluminum Body

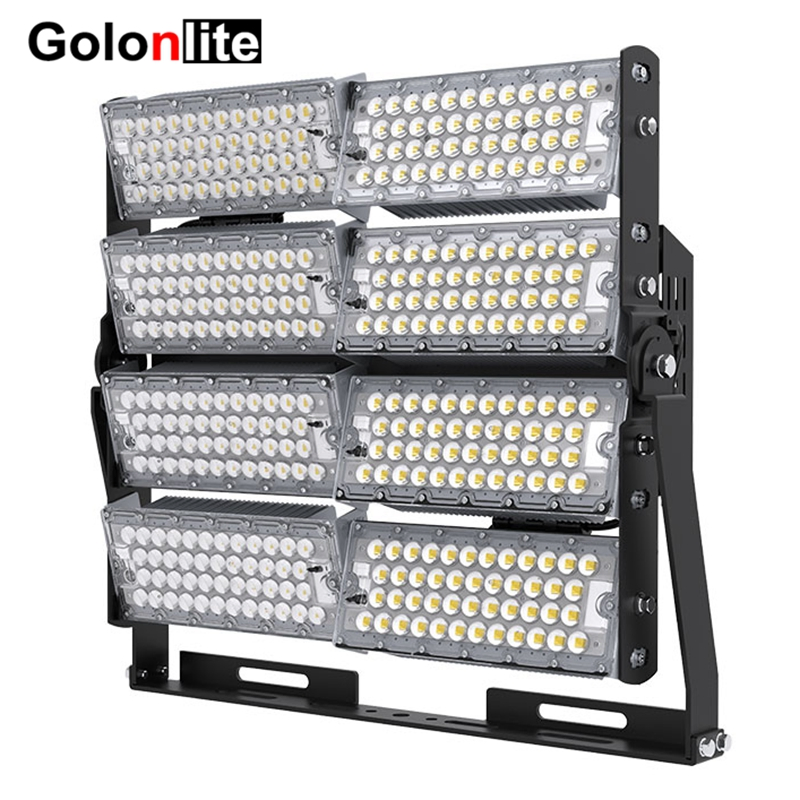

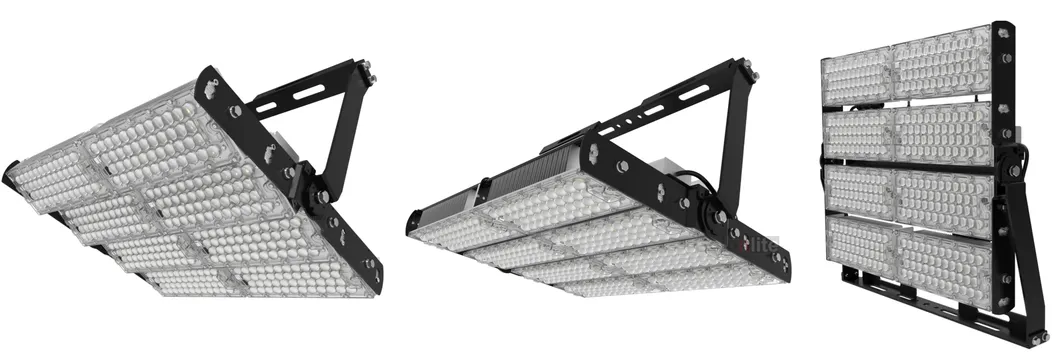

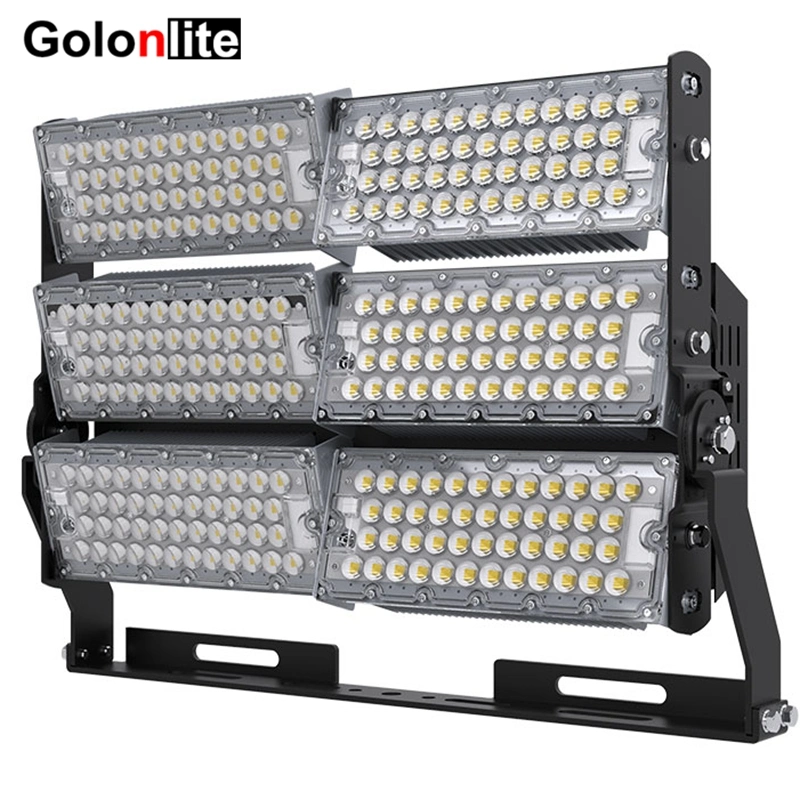

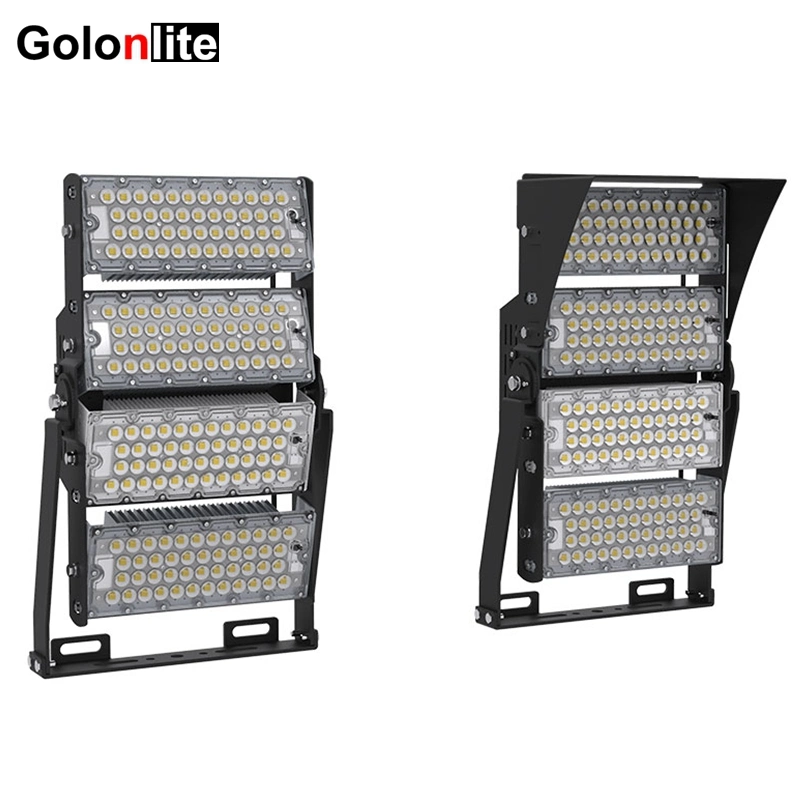

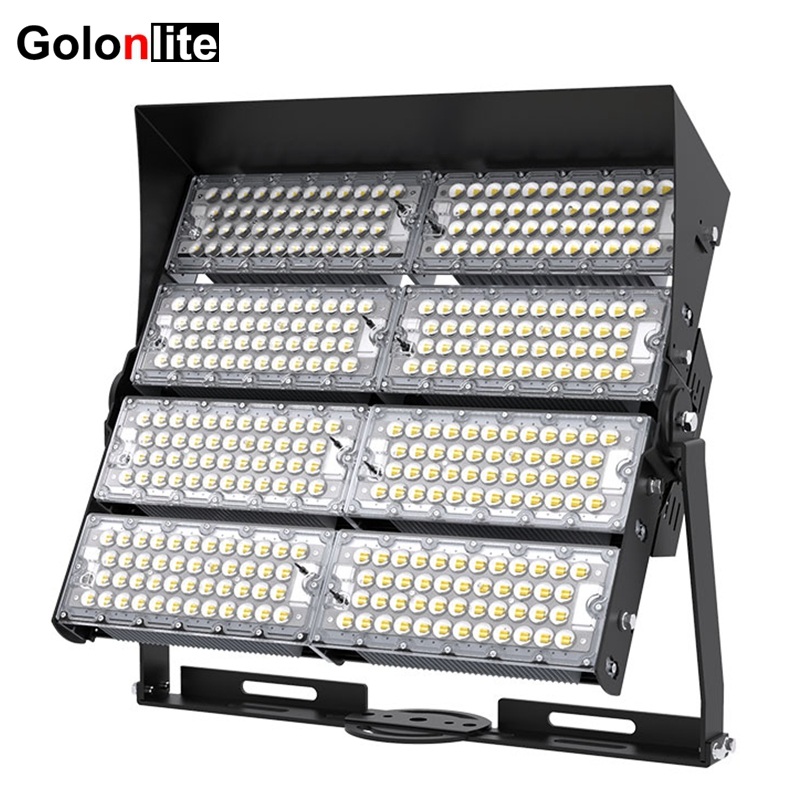

High Efficiency 190Lm/W LED Flood Light
Adjustable P50 20° 40° 60° 90° 120° degrees SMD5050 for Football Stadiums and Sport Courts.
Technical Specifications
| Category |
Parameters |
Details |
| Light Performance |
LED Type |
SMD5050 |
| Luminous Efficiency |
150Lm/W; 170Lm/W; 190Lm/W |
| CCT(K) |
3000K / 4000K / 5000K / 5700K / 6500K |
| Beam Angle |
20° / 40° / 60° / 90° / 120° / 100*140° |
| Electrical Data |
Input Voltage |
100-277VAC / 347V / 480V 50/60Hz |
| Dimming |
1-10V, PWM, Resistance, Dali dimmable |
| Power Factor |
> PF0.95 |
| Construction |
Materials |
Fin Aluminum housing + optical lens |
| Protection |
IP66/IP67 waterproof |
Key Features
- Adopted with world-famous Meanwell/Sosen drivers and SMD5050 LEDs.
- Super bright performance reaching up to 190Lm/W high efficiency.

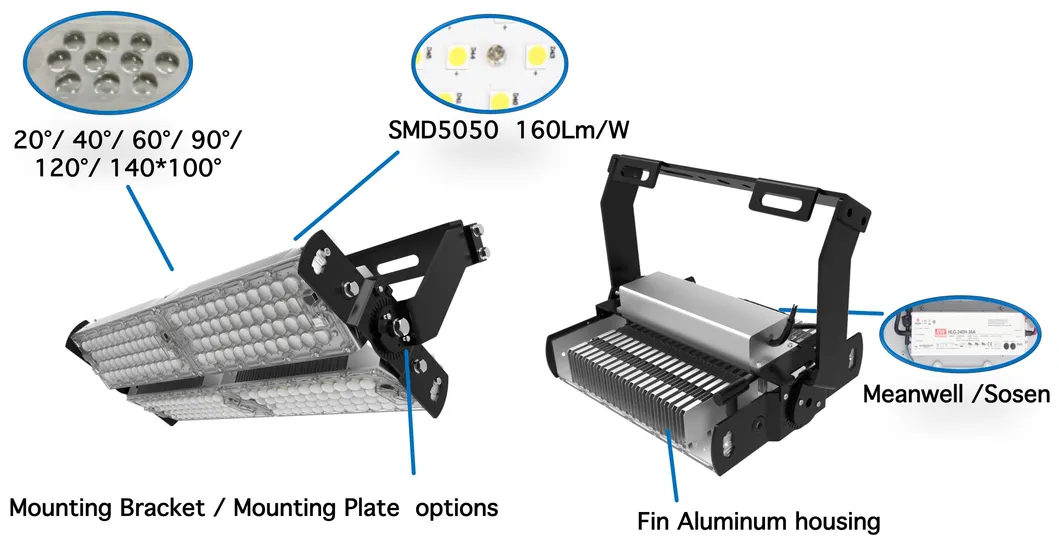

- Fin Aluminum housing design for optimal heat dissipation, 20% lighter than competitors.
- Anti-dust design, compatible with flushable cleaning processes.

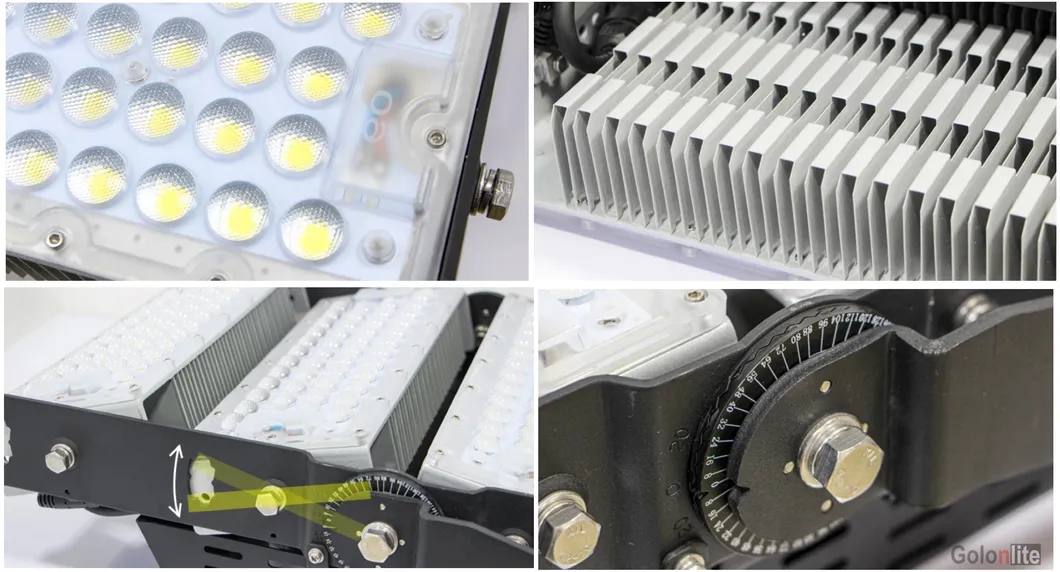

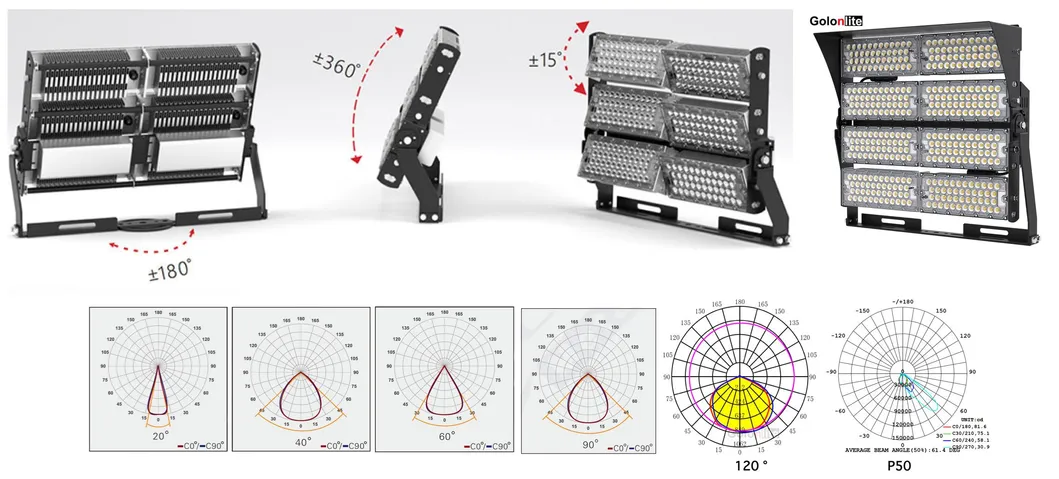

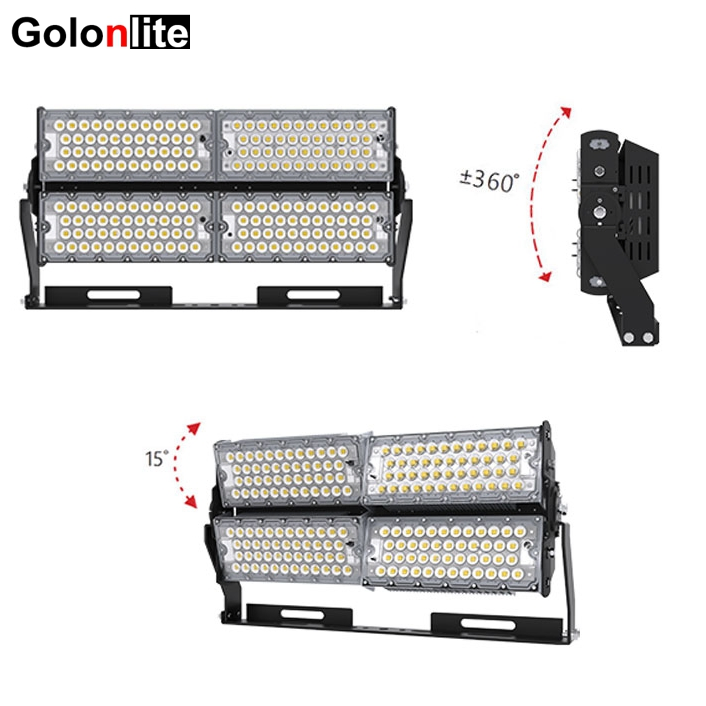

- Protractor scale for easy aiming; 15° single LED module adjustable and 360° rotatable panels.
- Salt spray and corrosive resistant treatments for harsh environments.
Adjustability & Mounting
Applications

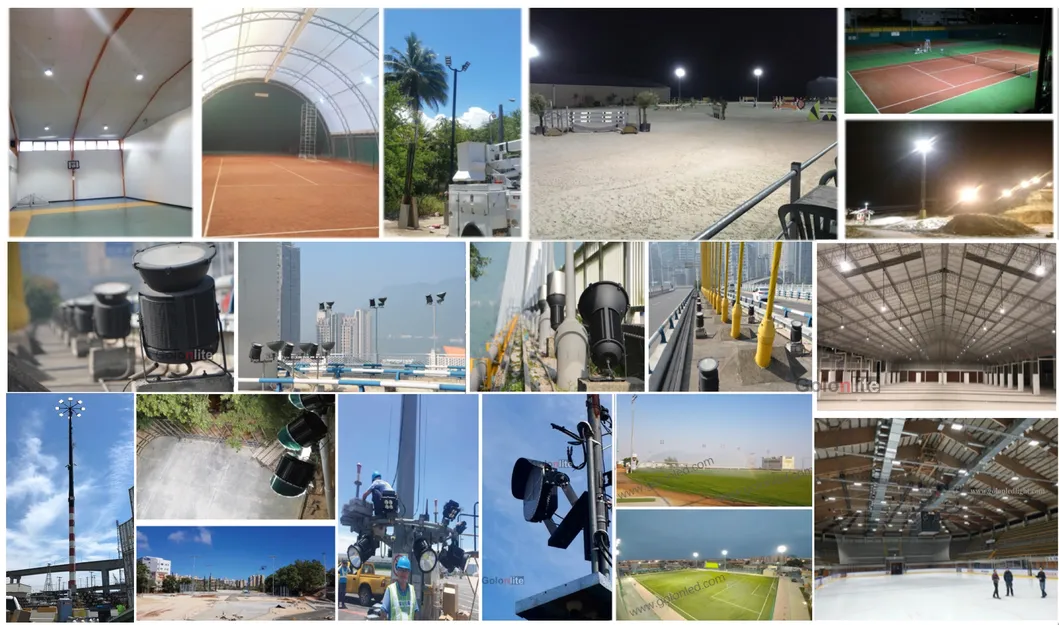

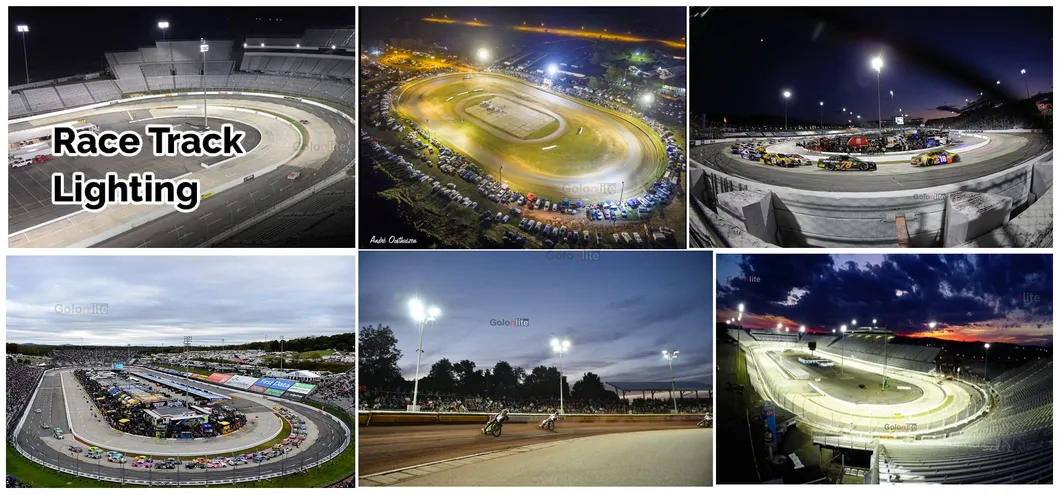

High efficiency LED flood lights are ideal for high mast lighting in stadiums, football courts, seaports, airports, wharfs, and large industrial buildings.

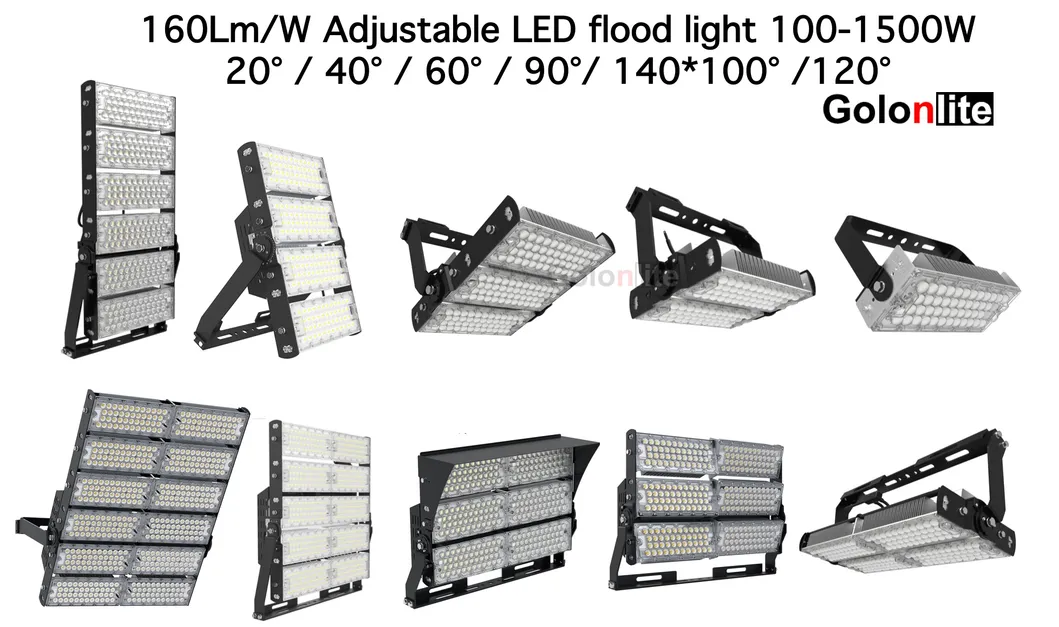

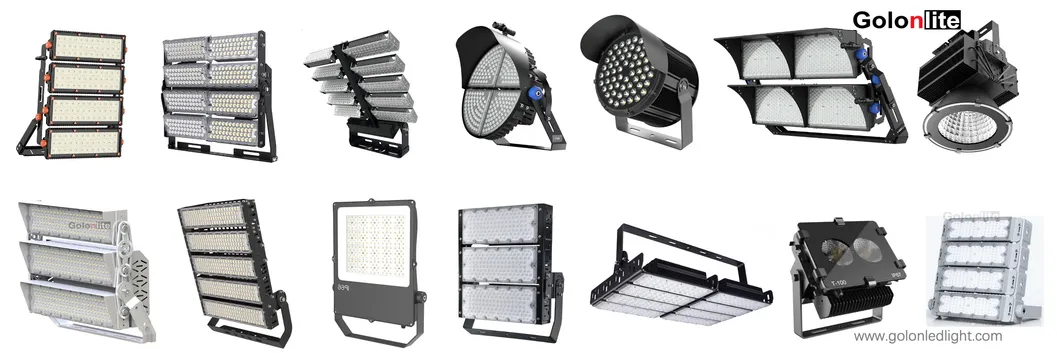

Product Series Overview
| Model |
Power |
Replacement (Halide) |
Efficiency |
| GL-ST-1440W | 1440W | 2000-2500W | 150-190Lm/W |
| GL-ST-1200W | 1200W | 2000-2500W |
| GL-ST-960W | 960W | 2000W |
| GL-ST-600W | 600W | 1000-2000W |
| GL-ST-400W | 400W | 1000-1500W |
| GL-ST-200W | 200W | 500-1000W |
Frequently Asked Questions
What is the maximum luminous efficiency of these LED lights?
Our LED flood lights utilize high-performance SMD5050 chips, achieving an efficiency range of 150Lm/W, 170Lm/W, and up to a maximum of 190Lm/W.
Can the beam angle be customized for specific stadium requirements?
Yes, we offer multiple beam angle options including 20°, 40°, 60°, 90°, and 120°. Additionally, the LED modules are 15° adjustable and the panels can be rotated 360° for precise aiming.
Are these fixtures durable enough for coastal or high-salt environments?
Absolutely. The fixtures undergo dedicated treatments on the heat sink and components to ensure they are salt spray and corrosive resistant, making them suitable for seaports and coastal wharfs.
What dimming protocols are compatible with the drivers?
The lights support various professional dimming functions, including 1-10V, PWM, Resistance, and DALI dimming systems.
What is the standard warranty and certification for these lights?
We provide a 5-year warranty on our stadium lights. They are fully certified with CE, RoHS, ETL, and have passed LM79 and LM80 testing.

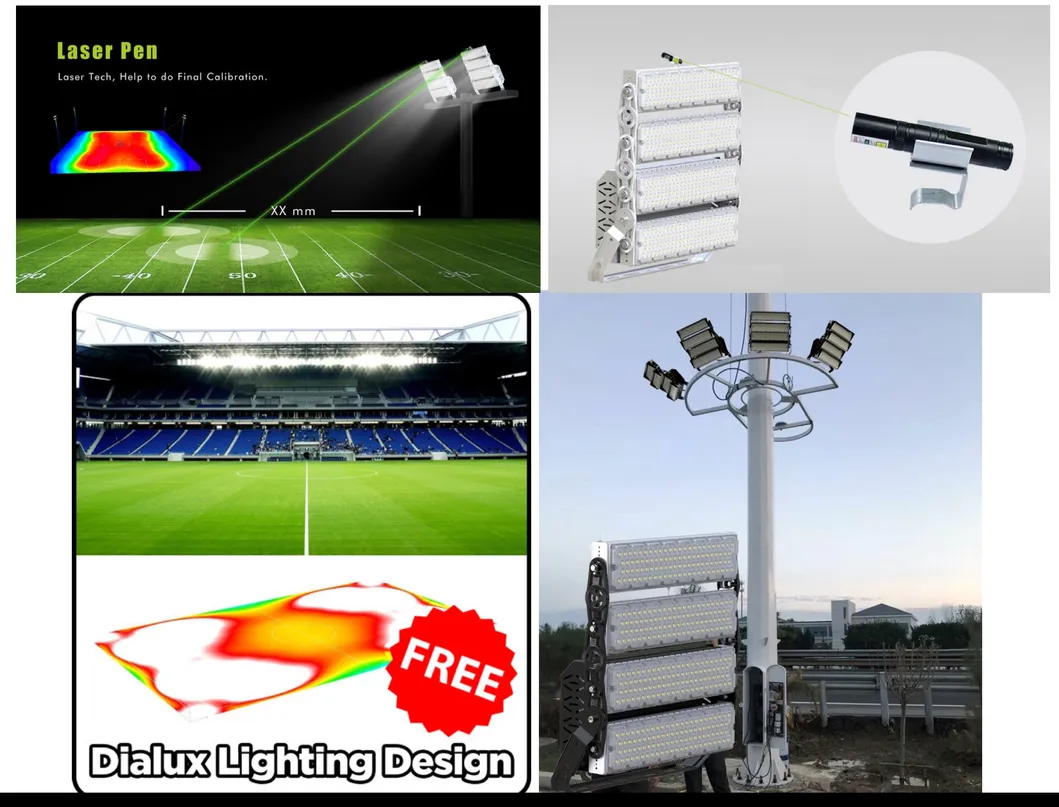

Is it possible to get a professional lighting simulation before purchasing?
Yes, we provide free Dialux lighting studies and simulation reports (IES files included) to help you determine the optimal layout and power required for your project.
