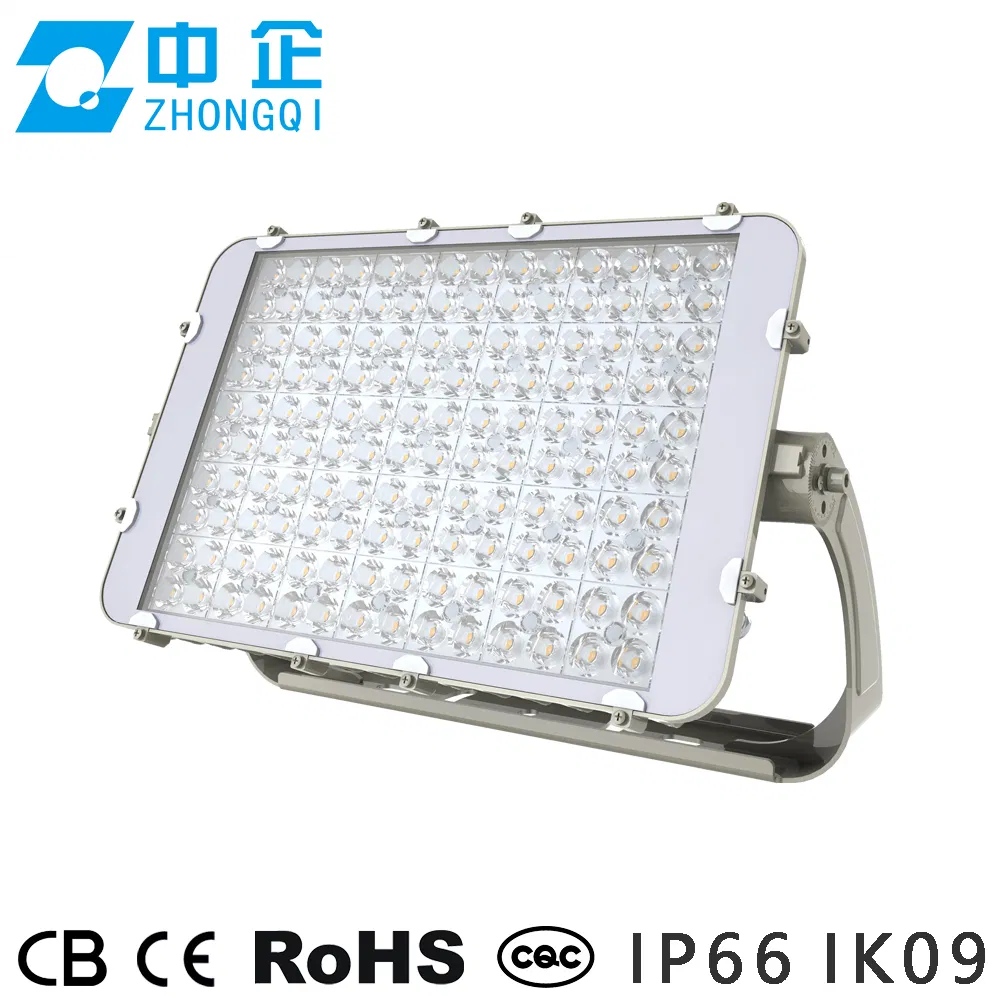

Professional High Lumen LED Floodlight 300W SS316 Stainless Body IP66 Ik09 Marine Offshore Light

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
TYZQ-FD019L
Power
50-400W
Projection Distance
>35m
IP Rating
IP66
Operating Voltage
100-240V
LED Chips Brand
Epistar
Beam Angle
8 15 25 30 40 60 90 120 Degree Asymmetric
Luminous Efficacy
120lm/W - 200lm/W
Material
Tempered Glass, PC Lens, Aluminum
Anti-Vibration
3G / 5G Vibration Rating
💡 Product Features
FD019 series floodlight born for harsh environments with high vibration and salt fog.

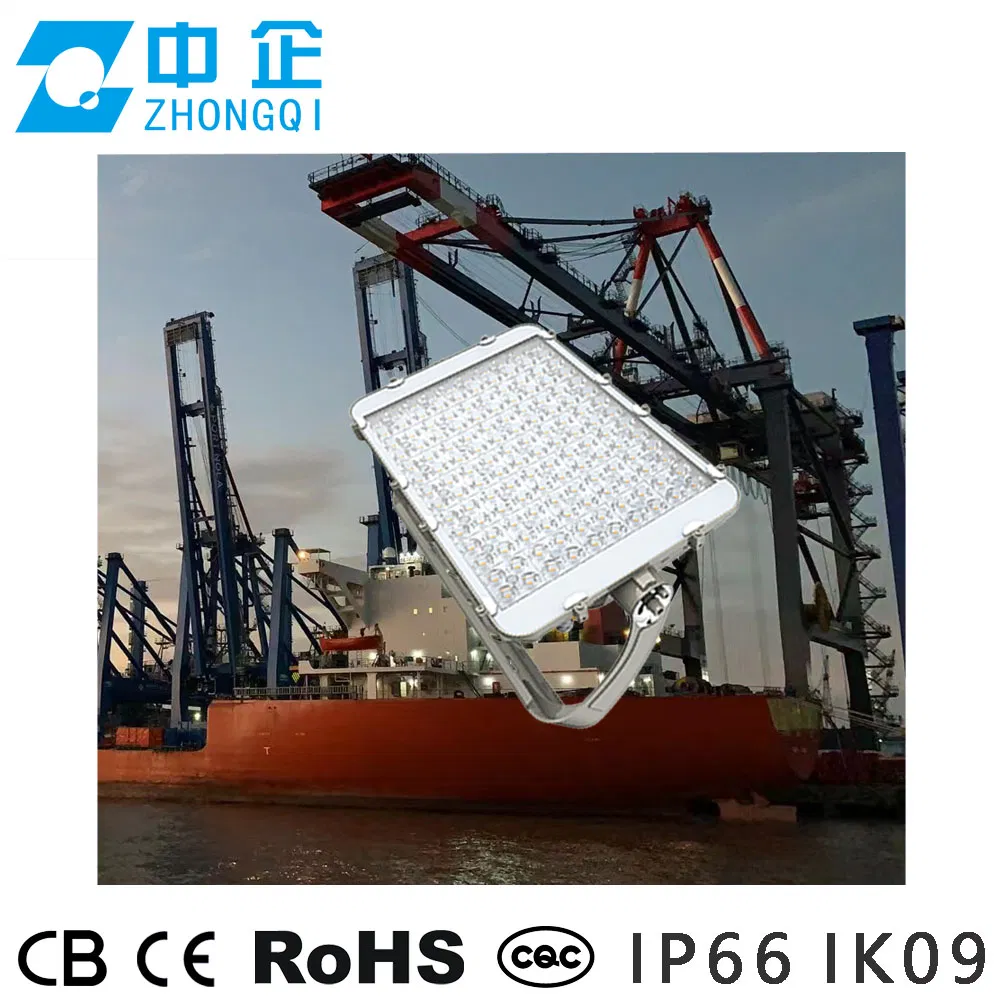

Ideal for cranes, harbors, and seaport applications.
5G vibration test approved under American standard ANSI C136.31 and Japanese standard JIS C 60068-2-64.
1000 hours salt spray resistance, IP66 waterproof, and IK09 impact rating.
Die-casting housing with power range options from 100W up to 1200W.
Professional optic lens: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric beam angles.
Tempered glass protection for PC lens against UV, moisture, dust, and salt fog.

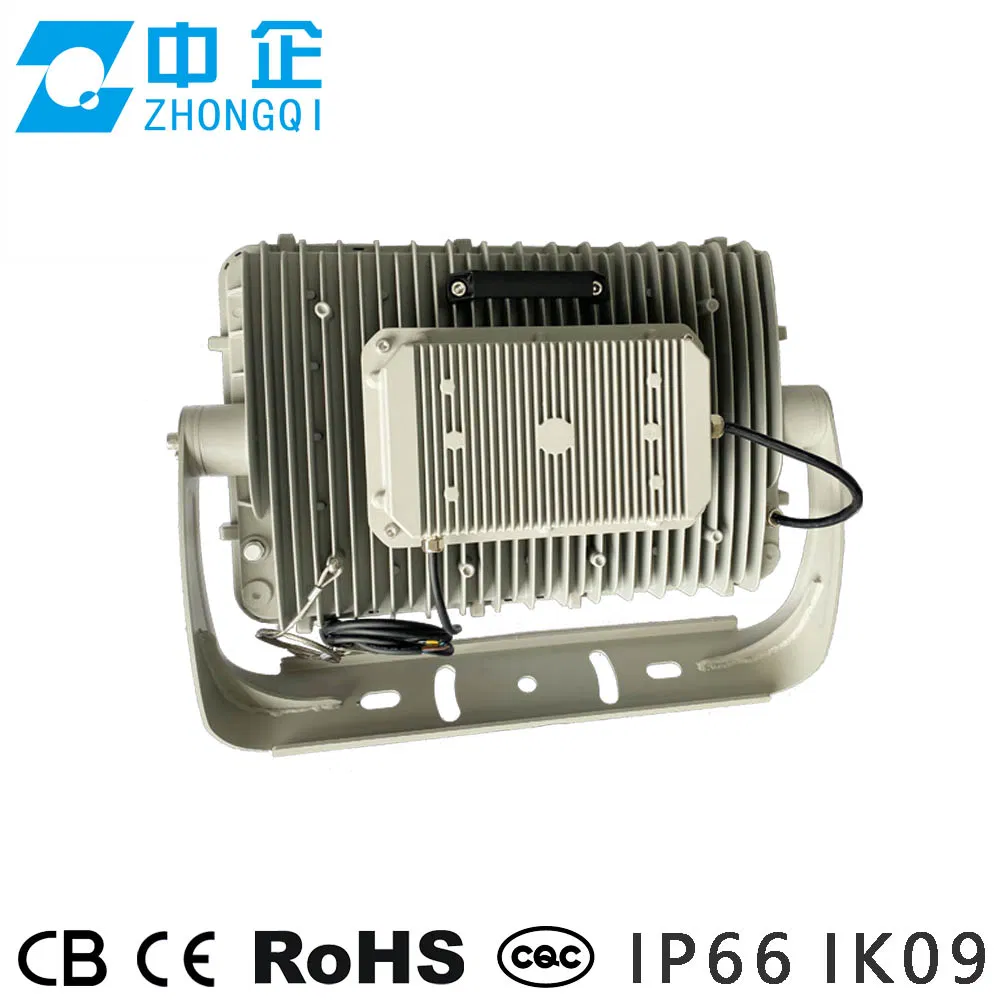

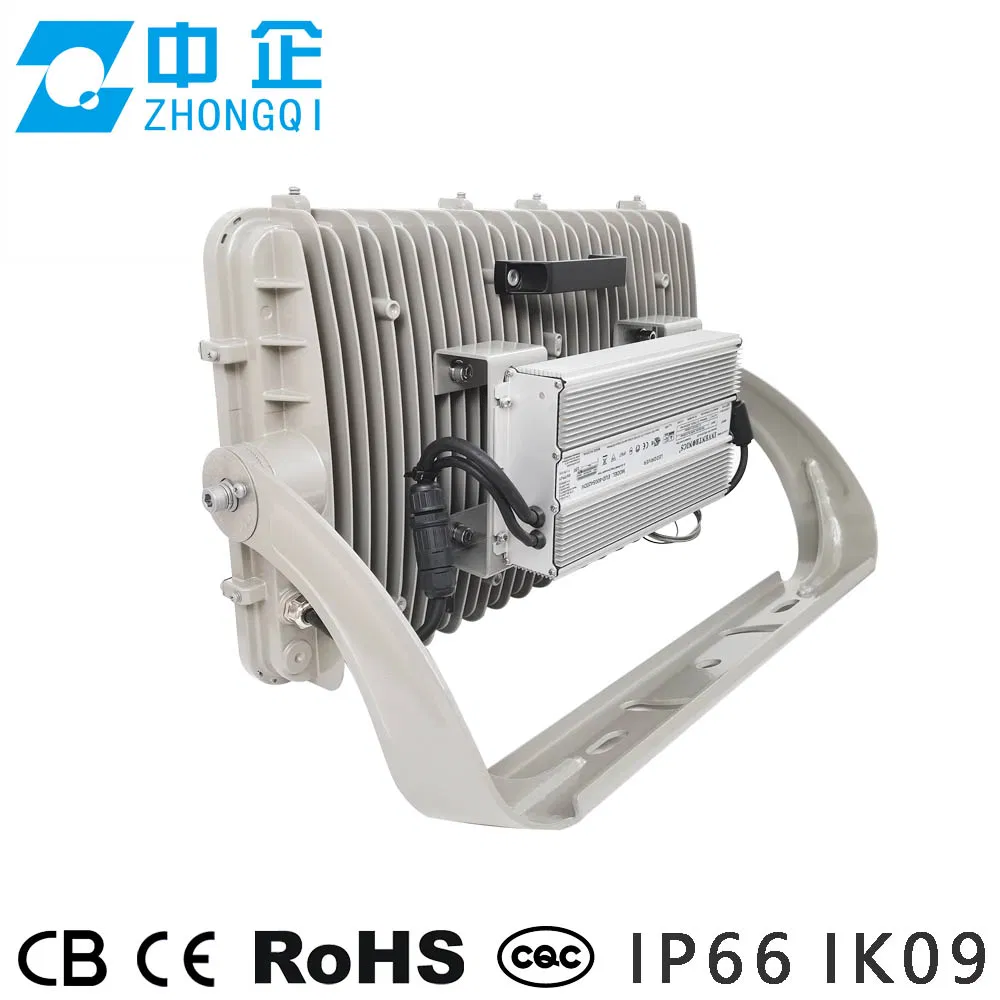

Separate IP66 driver chamber for superior heat dissipation and longer lifespan.
Standard 1-10V dimming; optional PWM, 3-Timer-Modes, and DALI.
📊 Technical Parameters
Input Voltage Frequency Power Factor CRI CCT Lifetime Operating Ta
AC90-305V 50/60HZ 0.95 >70 2200-6500K >50,000H -25ºC ~ 55ºC
Product Model Power(W) Premium LPW Standard LPW N.W.(kg) Product Size(mm)
TYZQ-FD019-100100W150 lm/W130 lm/W7.10346*370*152
TYZQ-FD019-150150W150 lm/W130 lm/W7.10346*370*152
TYZQ-FD019-200200W150 lm/W130 lm/W7.30346*370*152
TYZQ-FD019-300300W150 lm/W130 lm/W17.30605*408*204
TYZQ-FD019-400400W150 lm/W130 lm/W17.40605*408*204
TYZQ-FD019-600600W150 lm/W130 lm/W14.3 + 7.2605*408*204
TYZQ-FD019-12001200W150 lm/W130 lm/W30 + 10.2790*653*263
🏗️ Product Applications
Application 1

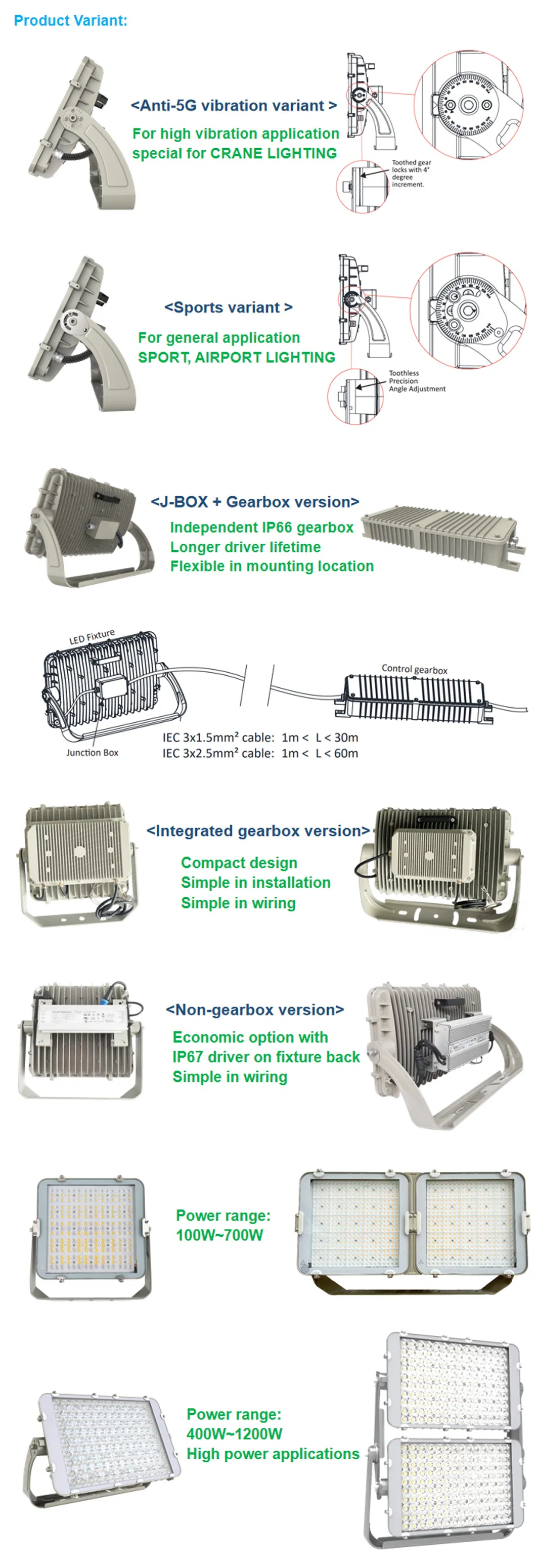

Application 2

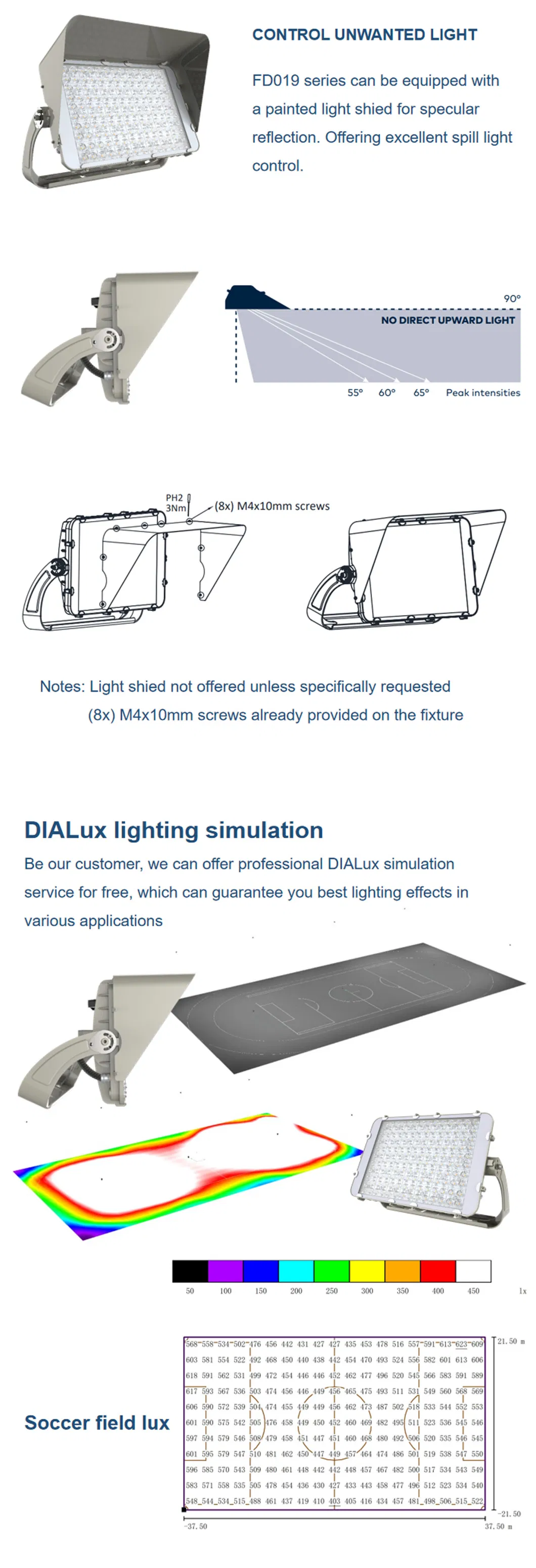

Application 3

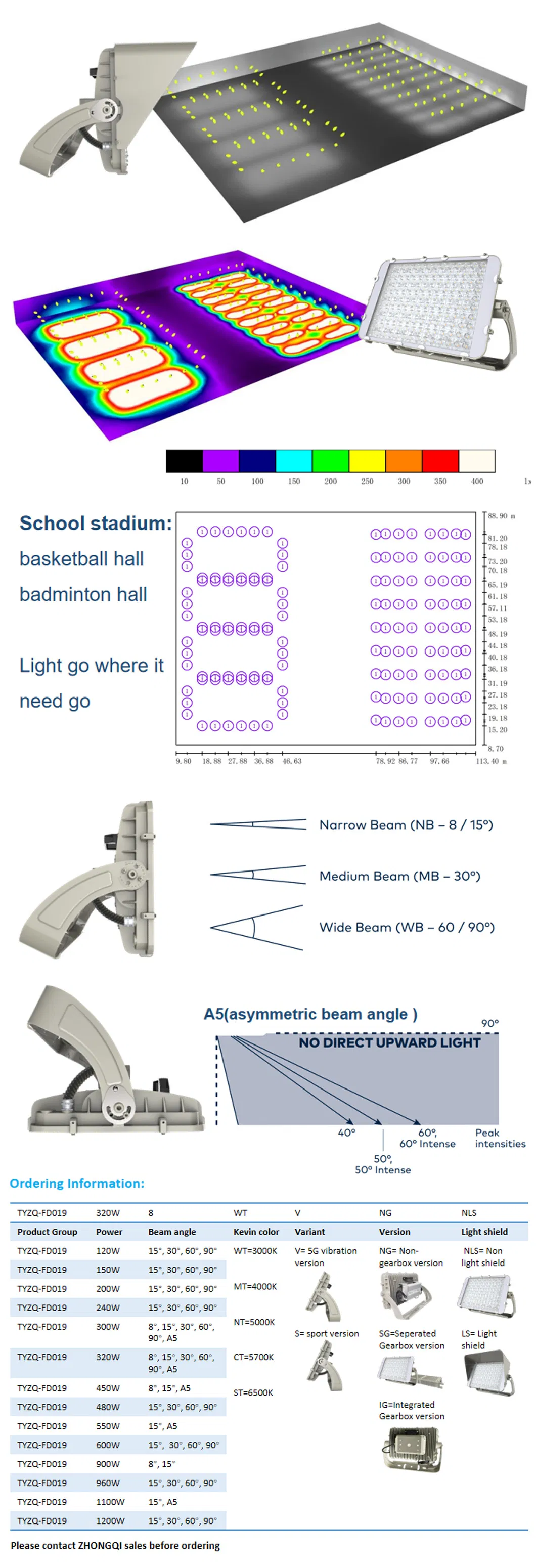

Application 4
Application Detail

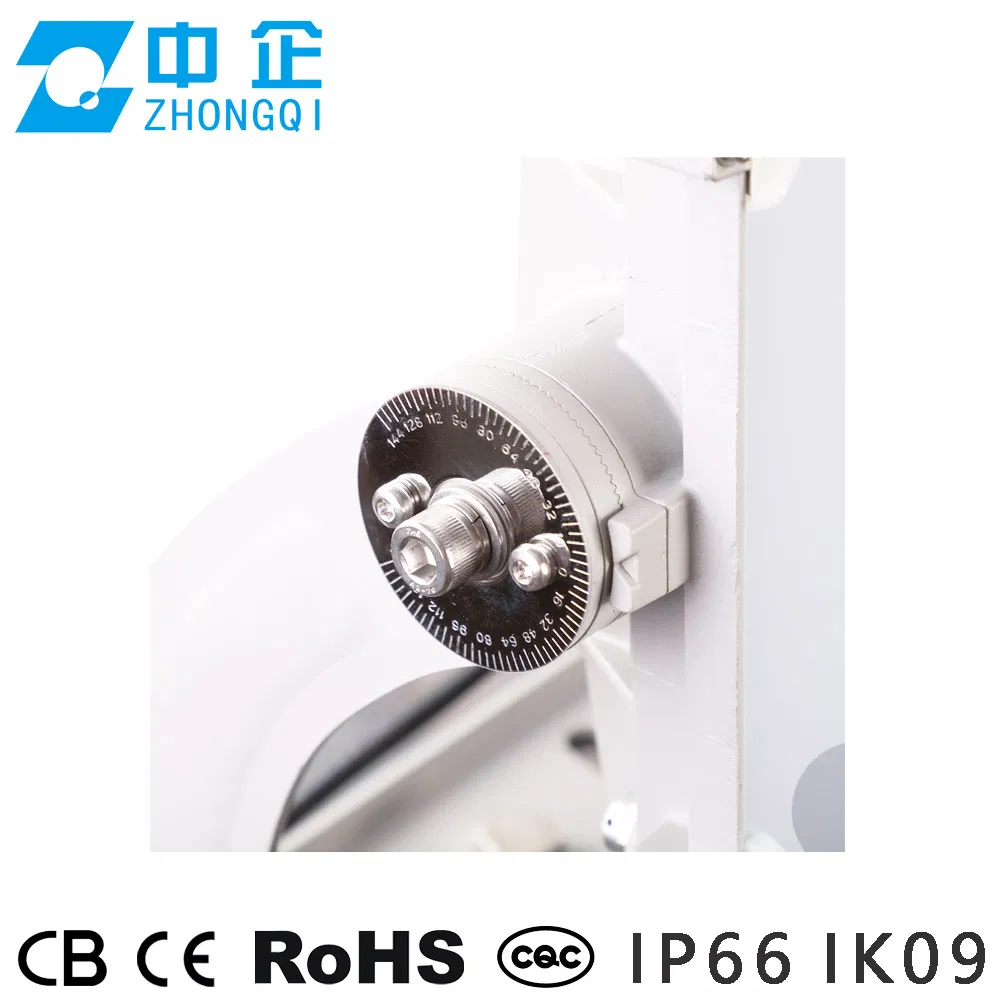

🔍 Product Details

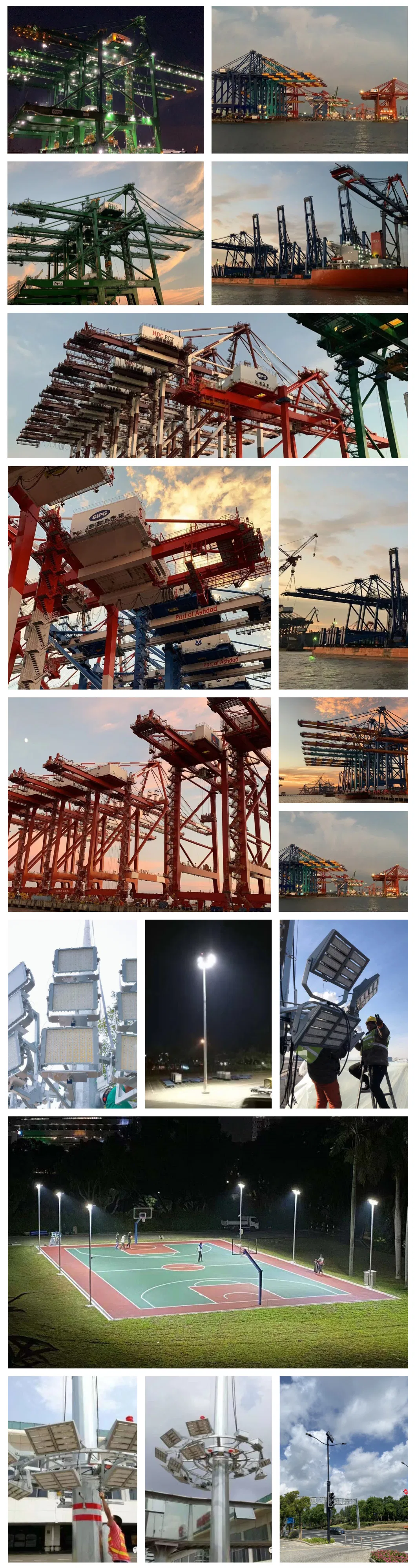

Product Details View
🏭 Production & Quality
Production Process
📦 Packaging & Shipping
Packaging Info
Frequently Asked Questions
Can I have a sample before quantity orders?
Yes, we welcome sample orders for testing and quality approval.
What about the lead time for delivery?
Samples typically take 3-5 days, while quantity orders usually require 25-30 days.
Is ODM or OEM service available?
Yes, we provide professional ODM and OEM services to meet your specific requirements.
How long is the warranty period for your products?
We offer a 2-5 year warranty on our products depending on the specific model and configuration.
What are the accepted payment terms?
Our standard terms are a 30% TT deposit, with the remaining 70% due before shipment.
Do you provide lighting simulations?
Yes, we offer Dialux light simulation services to help you plan your project lighting effectively.
