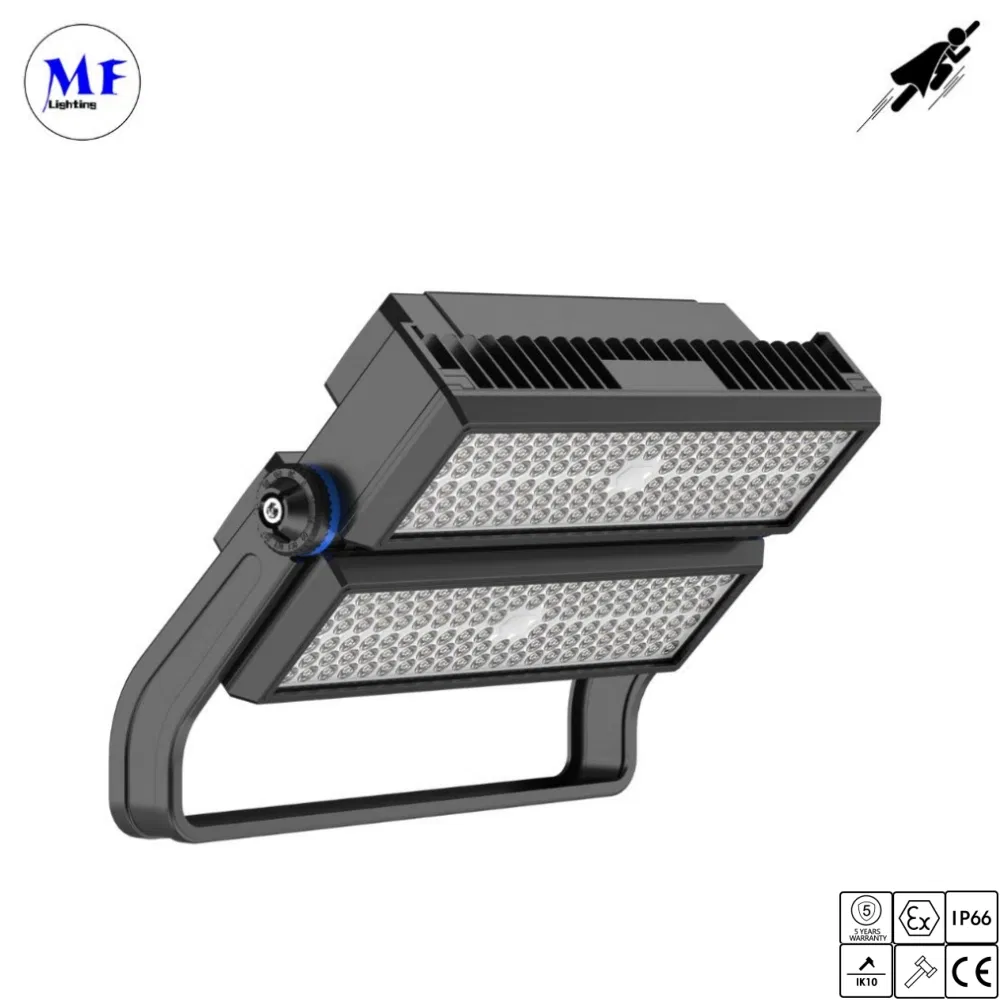

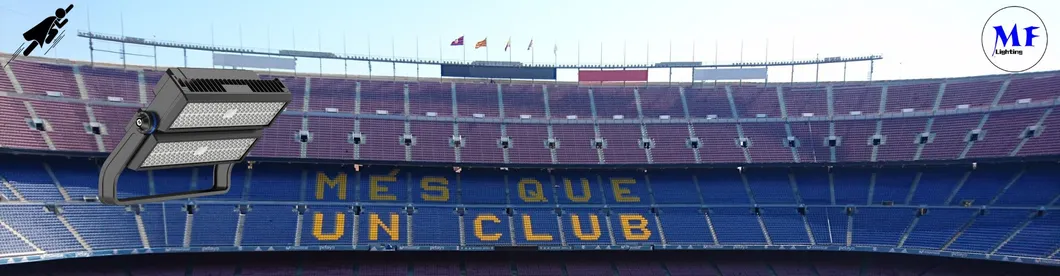

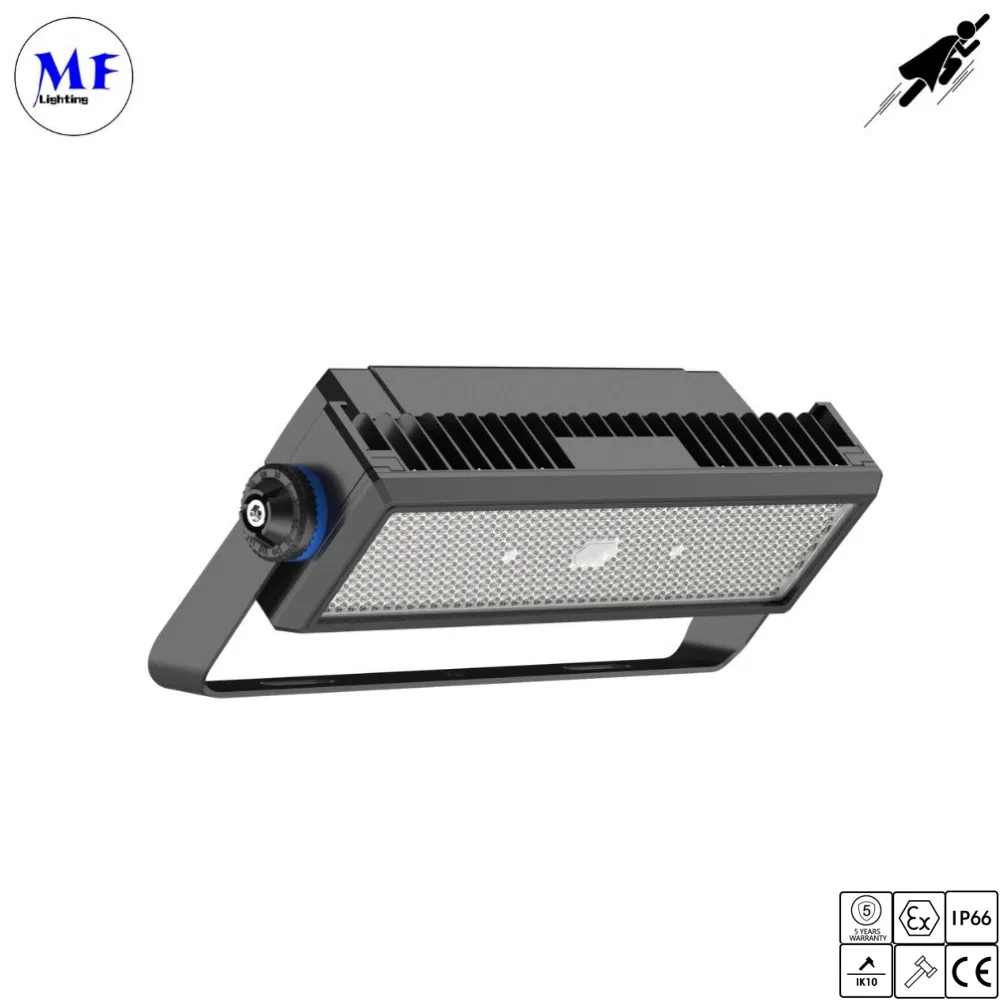

High Power Module Outdoor Waterproof LED Flood Light specifically designed for stadium, tennis sports, and soccer court lighting applications.
New generation sports lighting combining world-class performance, energy saving, and cutting-edge optical technology.
Supports Slow Motion Replay (up to 2000fps) for 4K camera high-definition recording without flickering effects.

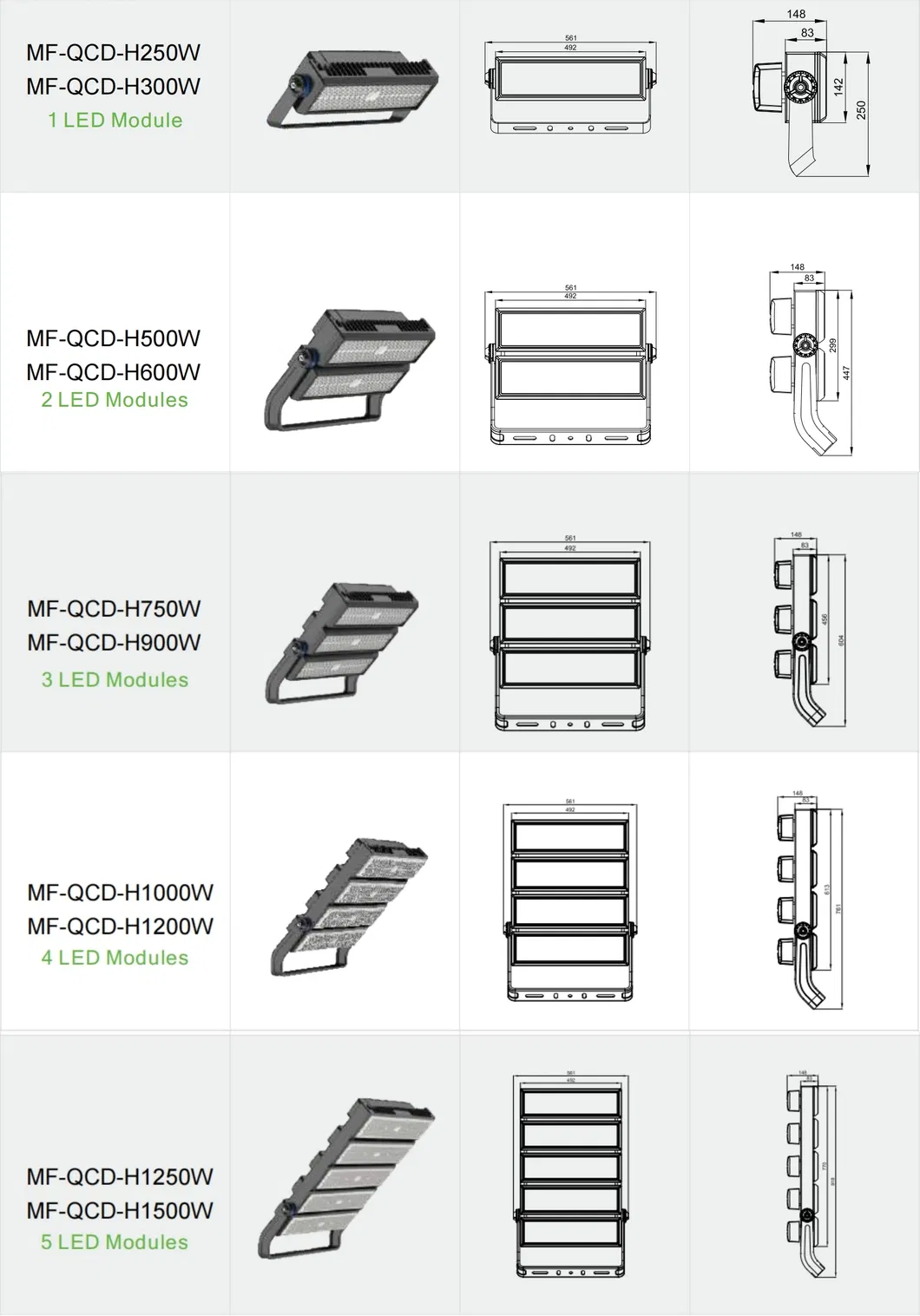

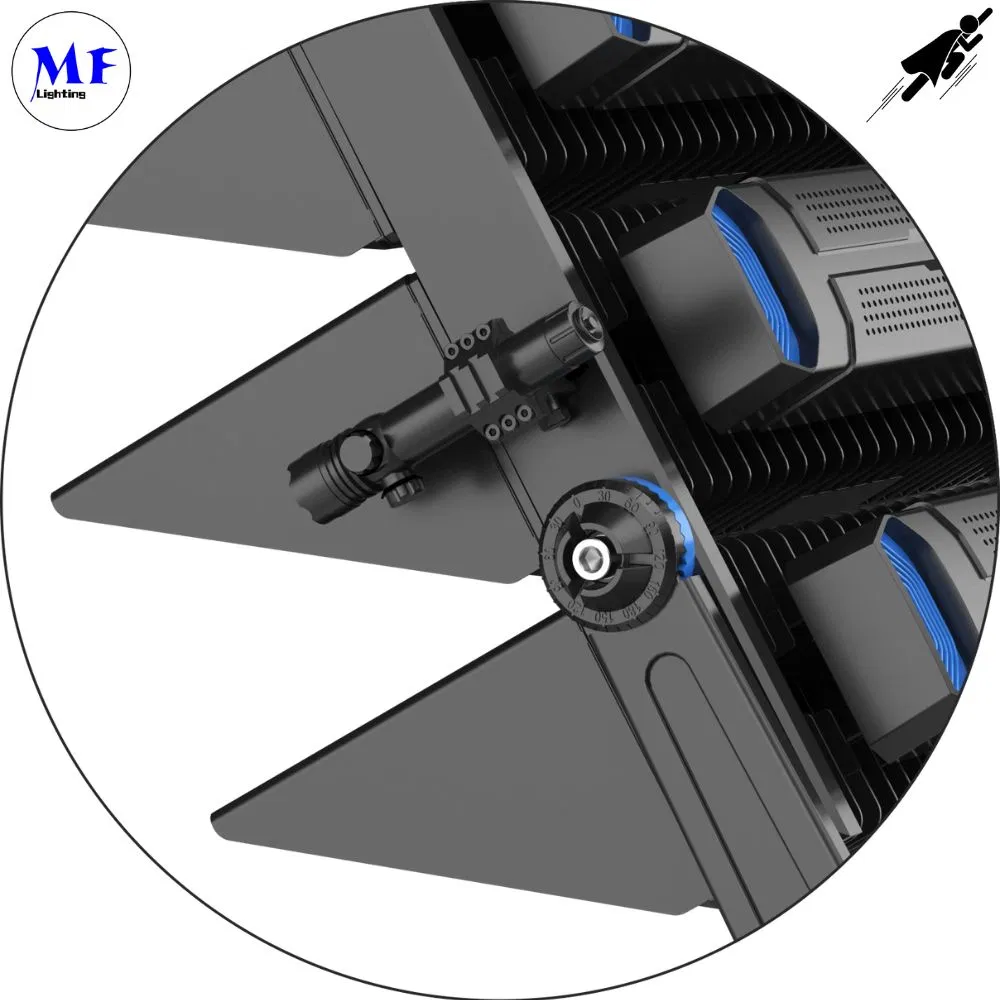

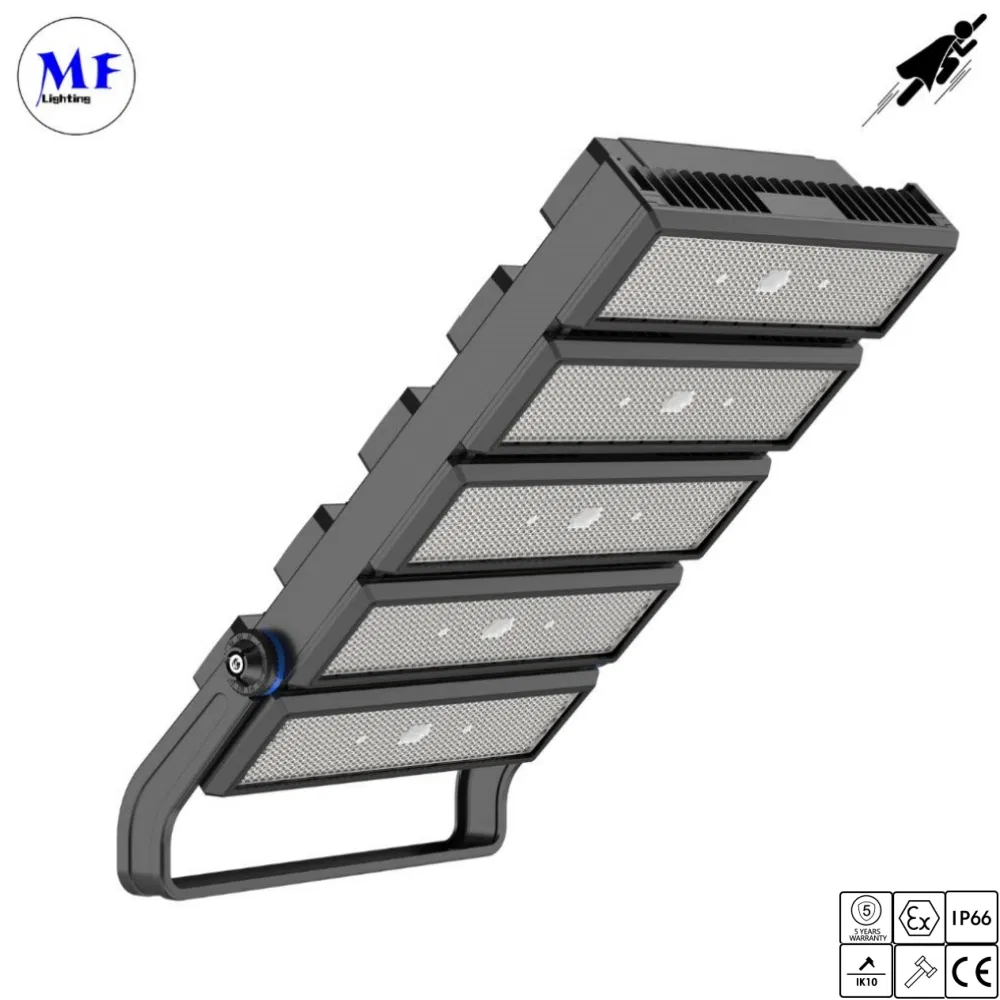

Adopt modular design based on 250-300W per module, scalable up to 1500W. Racked angle adjustment with laser aimer support.

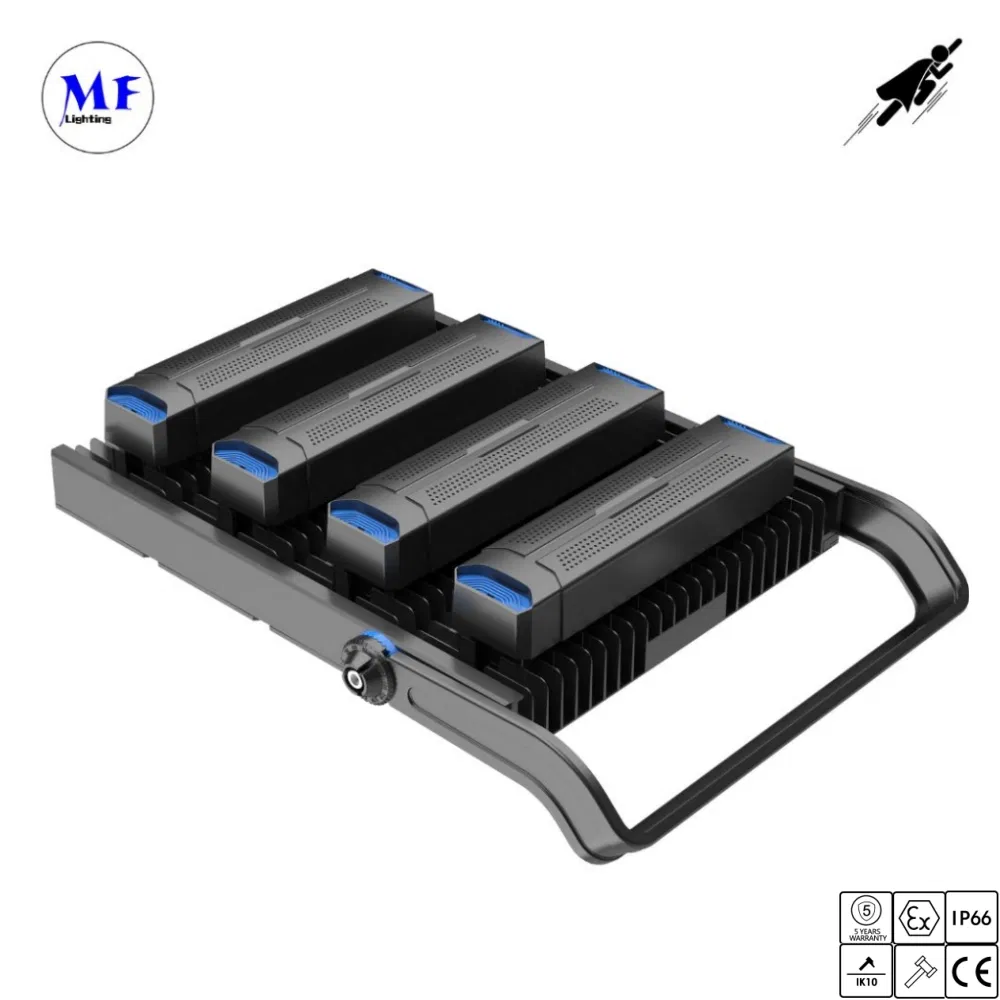

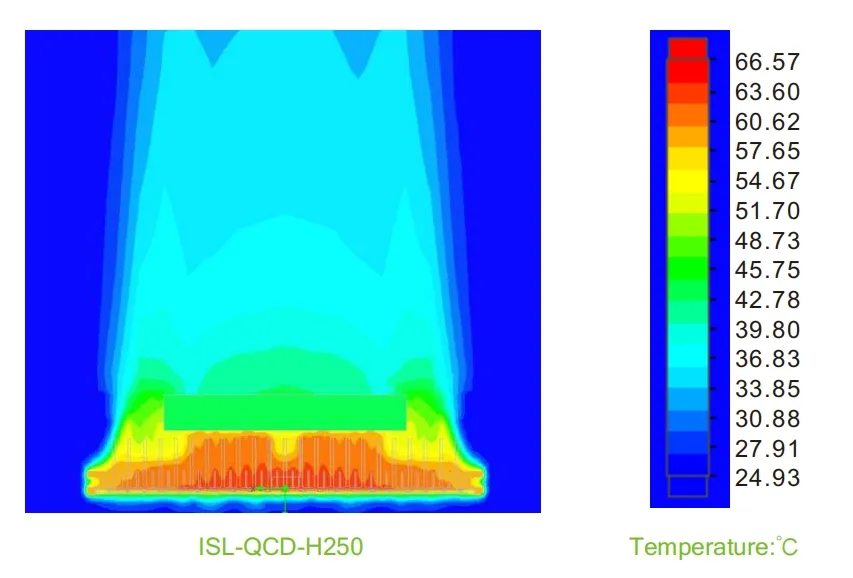

Passive cooling via conduction, radiation, and convection. Fin-design increases heat dissipation areas for longer lifespan.

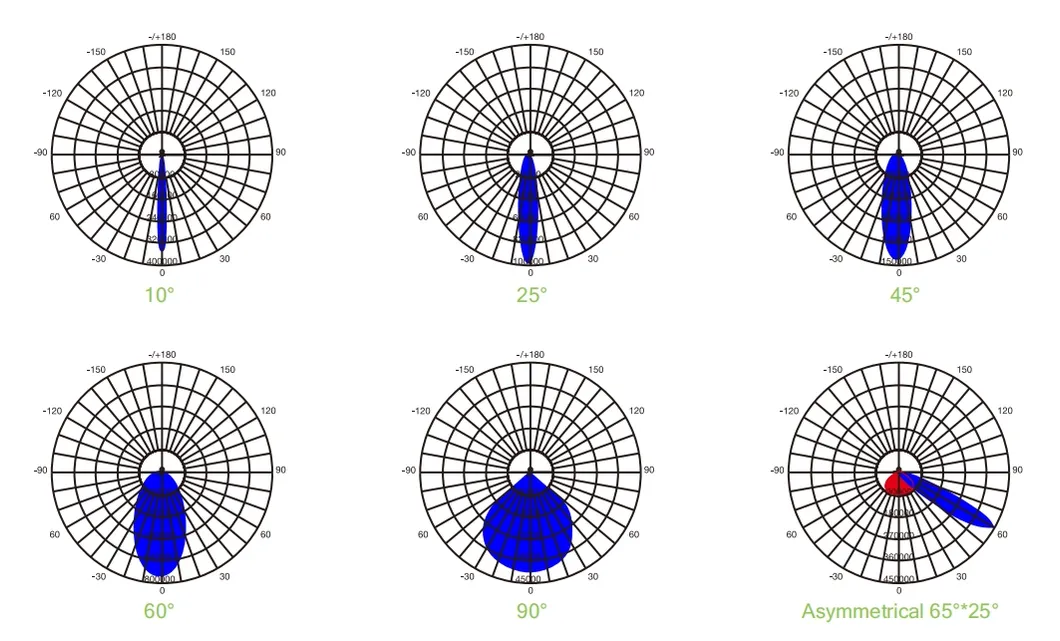

Designed with asymmetrical optical lenses to focus light on the ground, eliminating spill light and glare for residents and audience.
High anti-corrosion treatment meeting up to 3000H neutral salt spray tests, ideal for coastal ports and wharves.

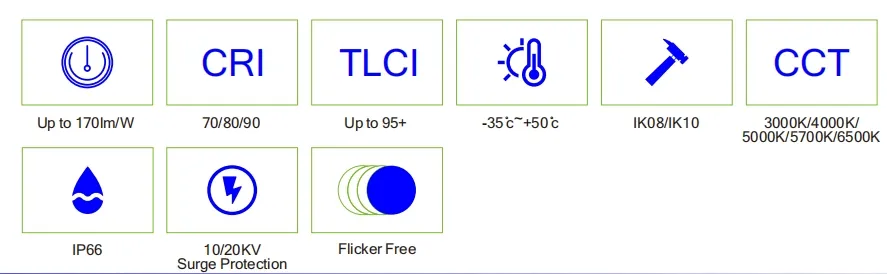

SuperMan II Family Plan A (150lm/w)
| Model No. | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 36,000 lm | 72,000 lm | 108,000 lm | 144,000 lm | 180,000 lm |
| Input Voltage | 100-305Vac 50/60Hz | ||||
| CCT | 3000K / 4000K / 5000K / 5700K | ||||
| IP/IK Class | IP66 / IK08-IK10 | ||||
SuperMan II Family Plan B (170lm/w)
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 40,800 lm | 81,600 lm | 122,400 lm | 163,200 lm | 204,000 lm |
| Light Source | SMD3030 / SMD3737 | ||||
SuperMan II Family Plan C (150lm/w - High Power)
| Rated Power | 300W | 600W | 900W | 1200W | 1500W |
| Luminous Flux | 45,000 lm | 90,000 lm | 135,000 lm | 180,000 lm | 225,000 lm |
Excellent heat dissipation and guaranteed lifespan are achieved through high-quality die-casting module design, increasing conduction and convection performance.

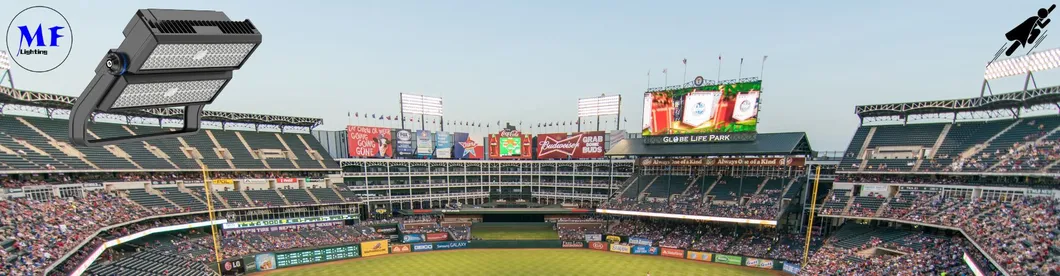

LED High Mast Flood Lights are ideal for large outdoor areas requiring high-intensity illumination:
1. Installation should be performed by a certified electrician based on local regulations.
2. Verify local voltage requirements (100-305Vac) before installation.
3. Ensure power is off and the lamp has cooled completely before revamping or cleaning.
4. Clean fixtures using a soft cloth and PH neutral detergent.
5. Do not cover the fixtures with flammable materials.
