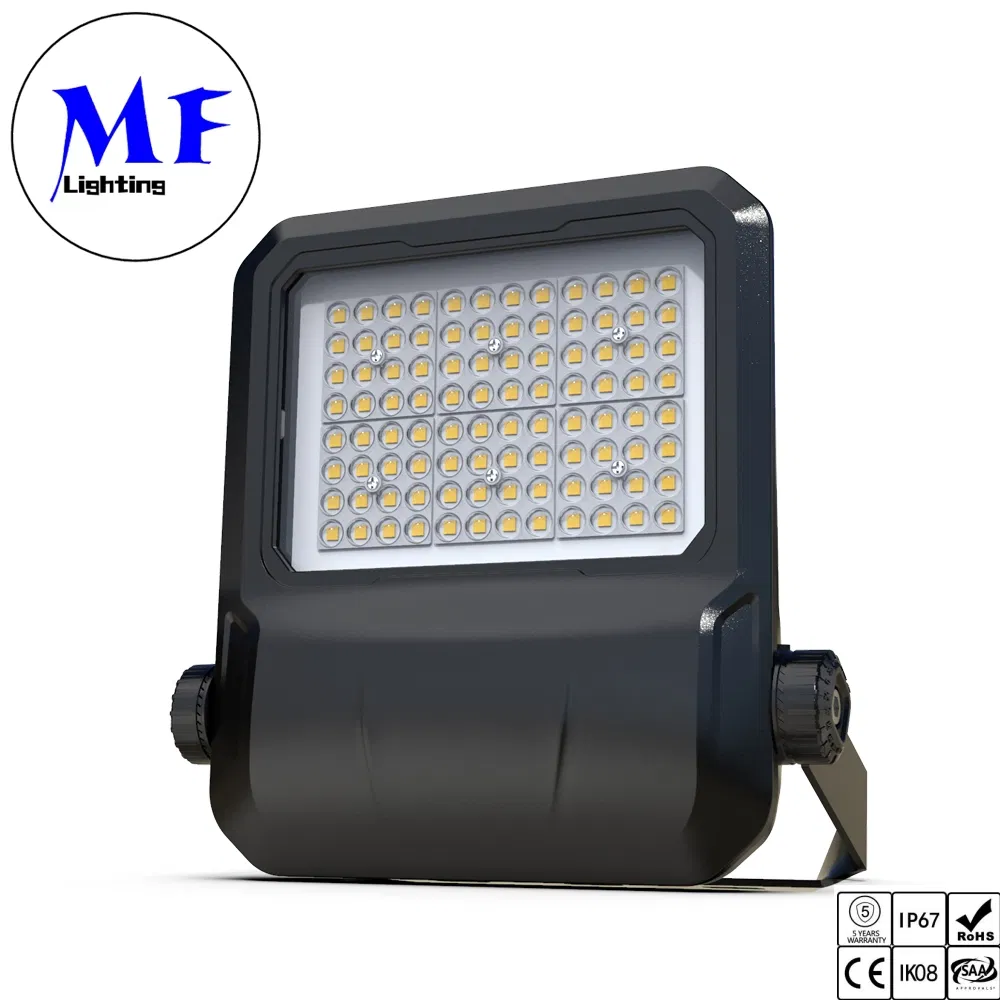

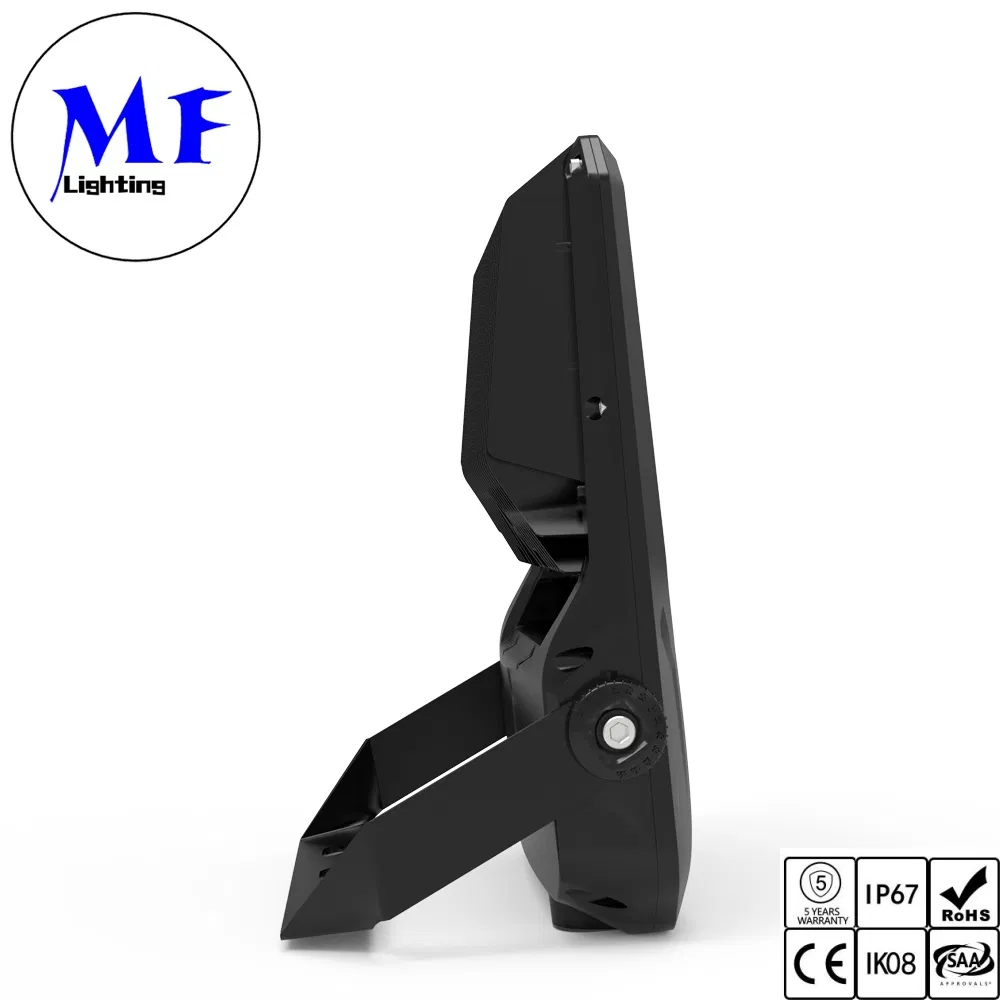

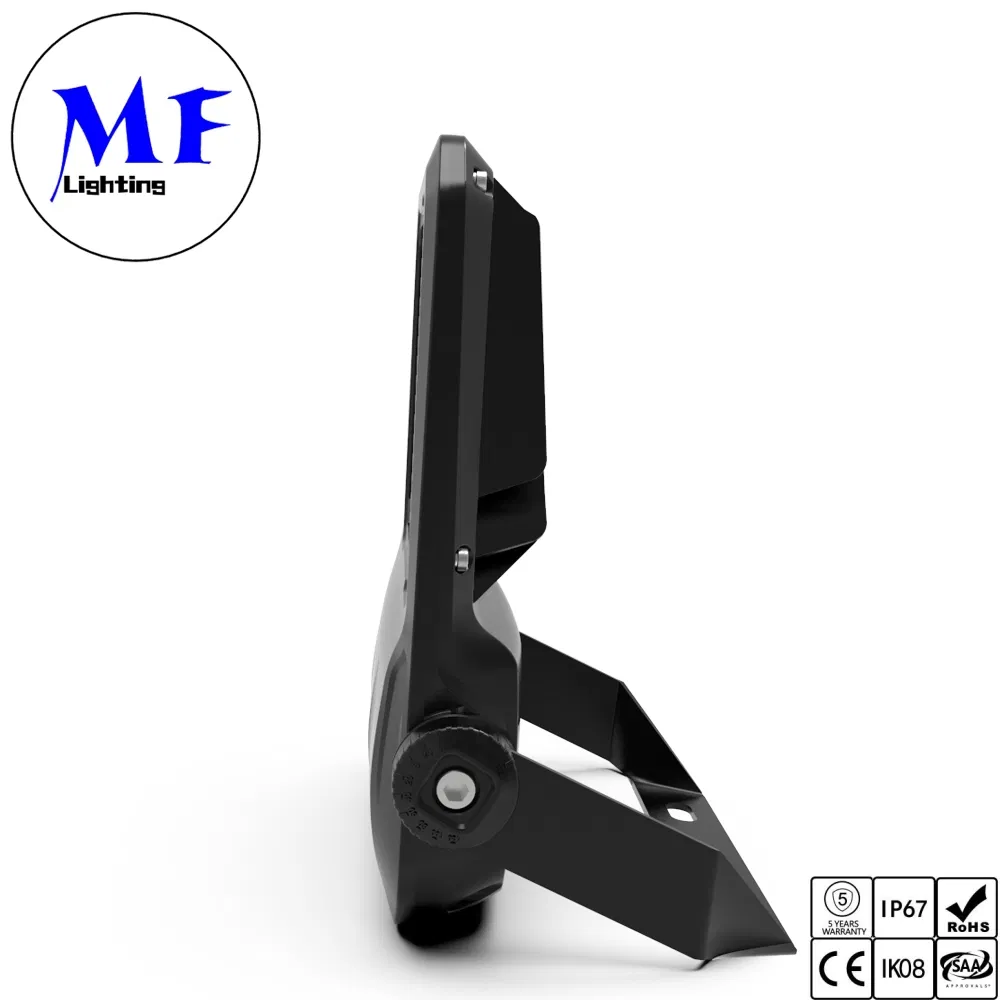

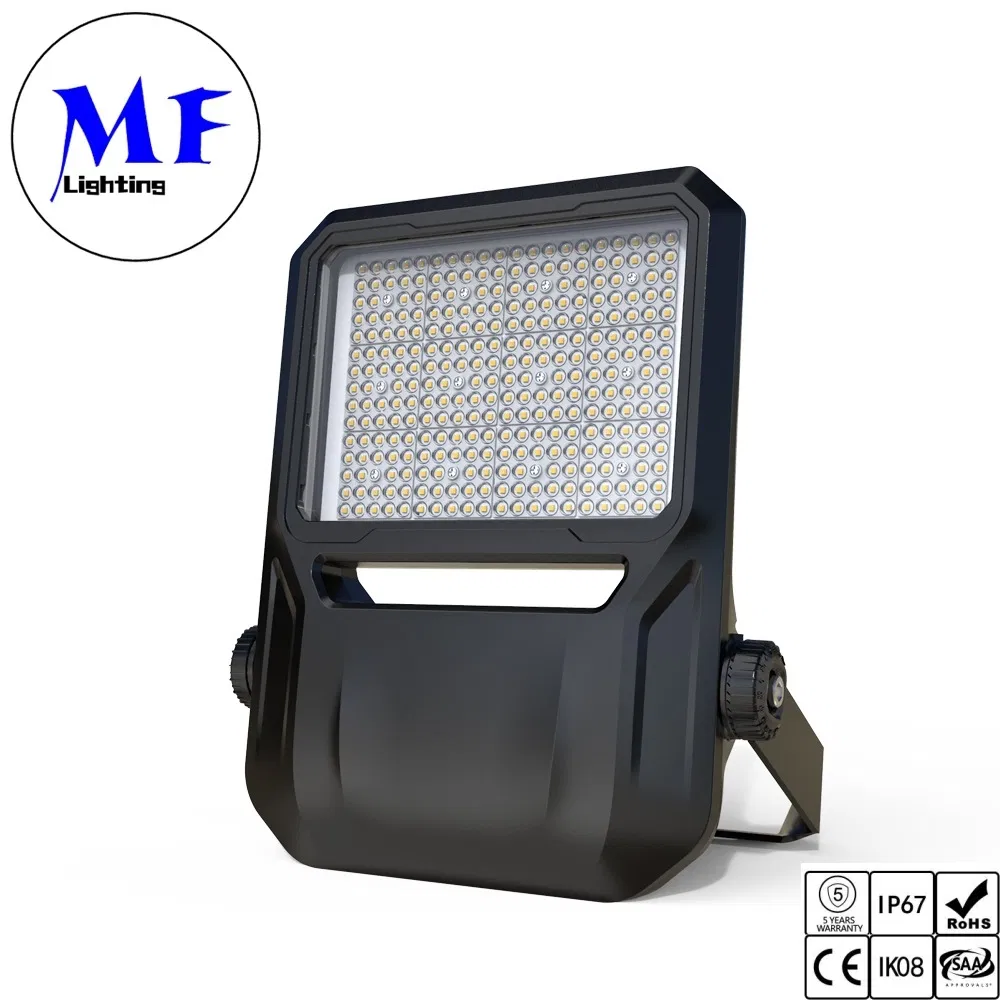

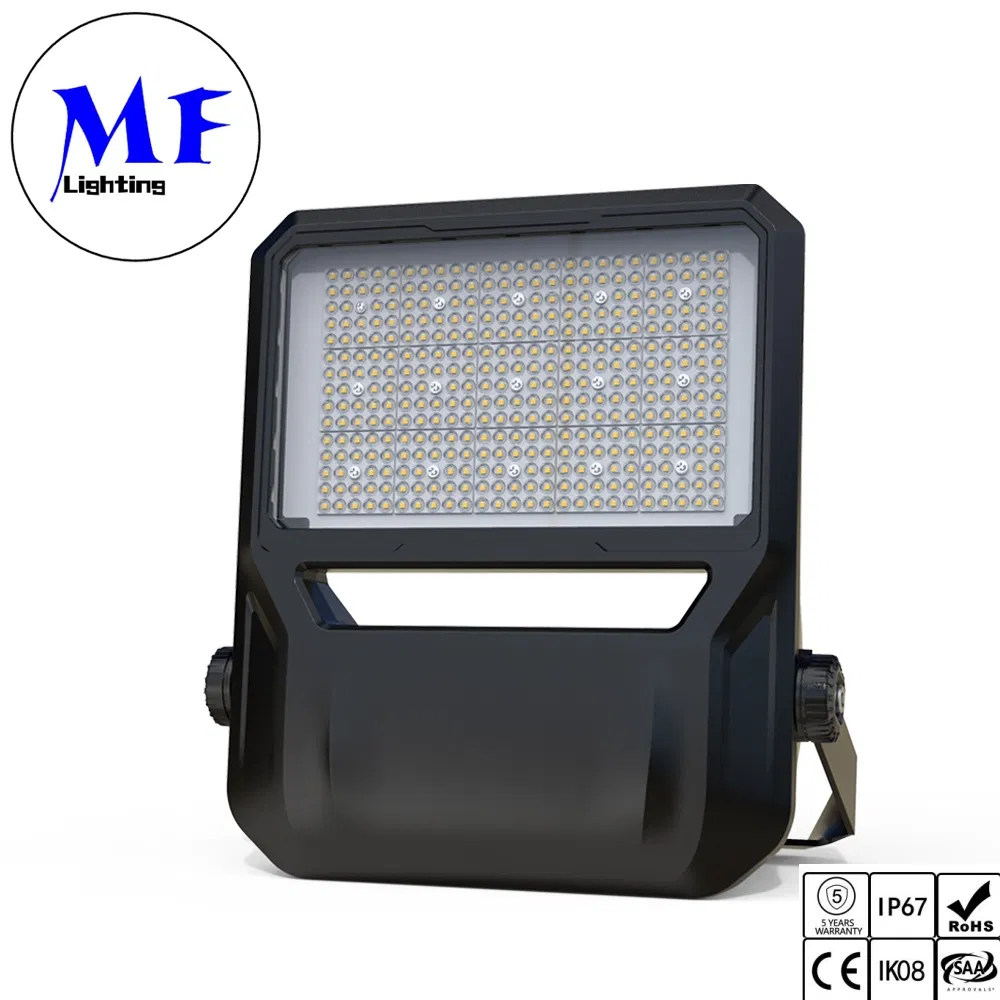

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Sport Field Outdoor Stadium Garden Landscape LED Flood Light

High-performance outdoor lighting solution available in 100W, 150W, 200W, 300W, and 400W. IP66 Waterproof and Dustproof for roadway, square, and court applications.

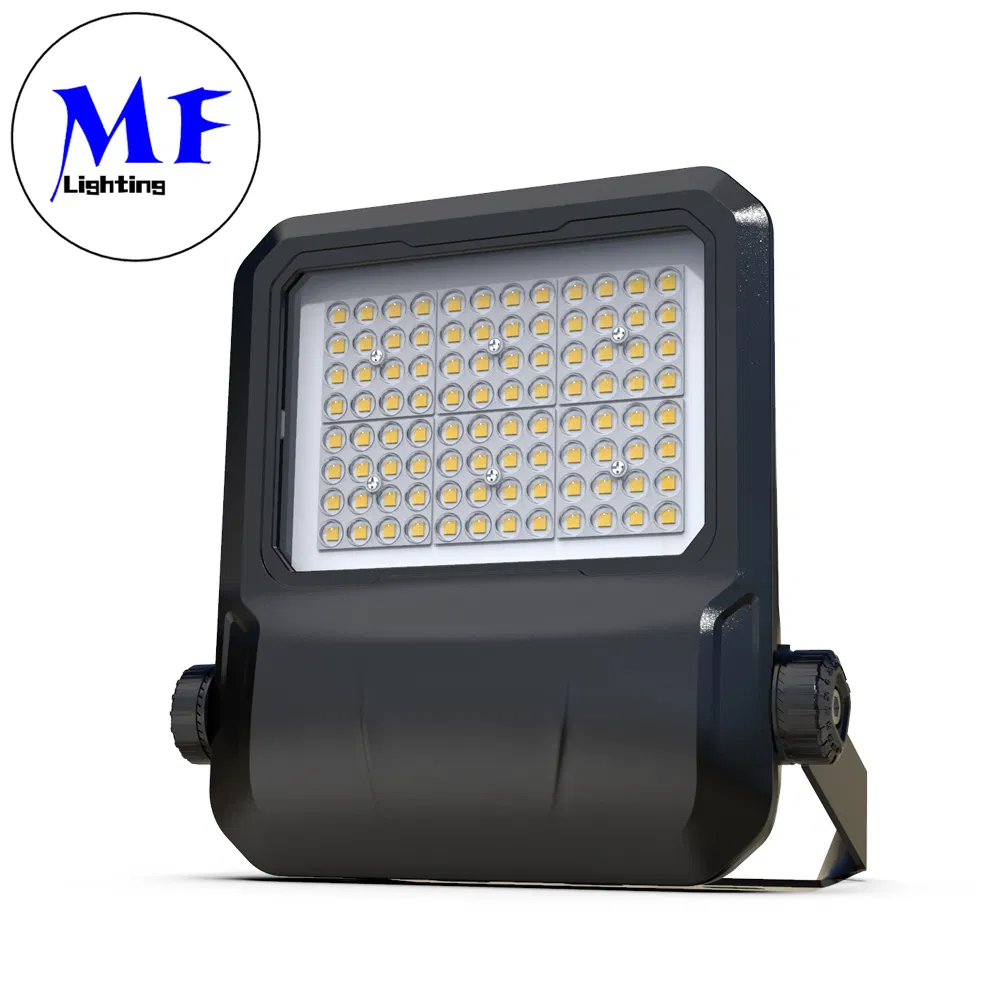

LED Flood Light 1

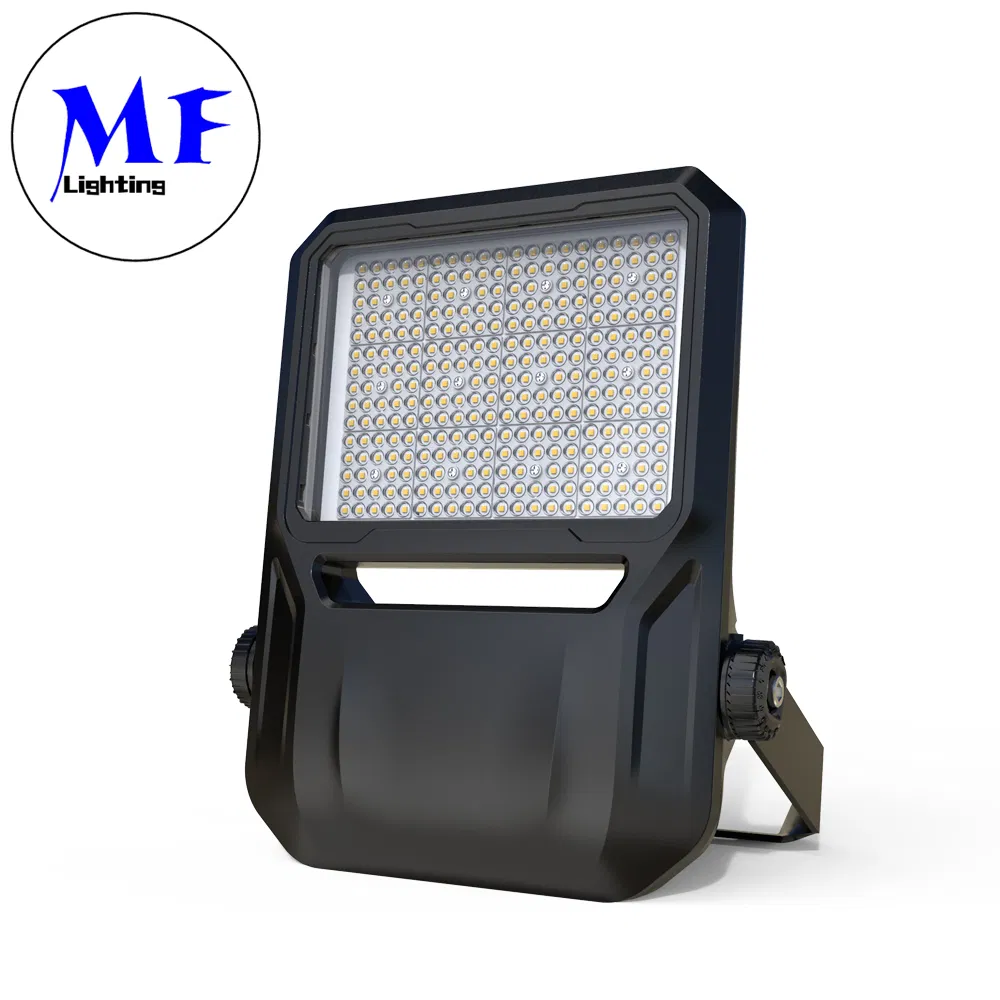

LED Flood Light 2

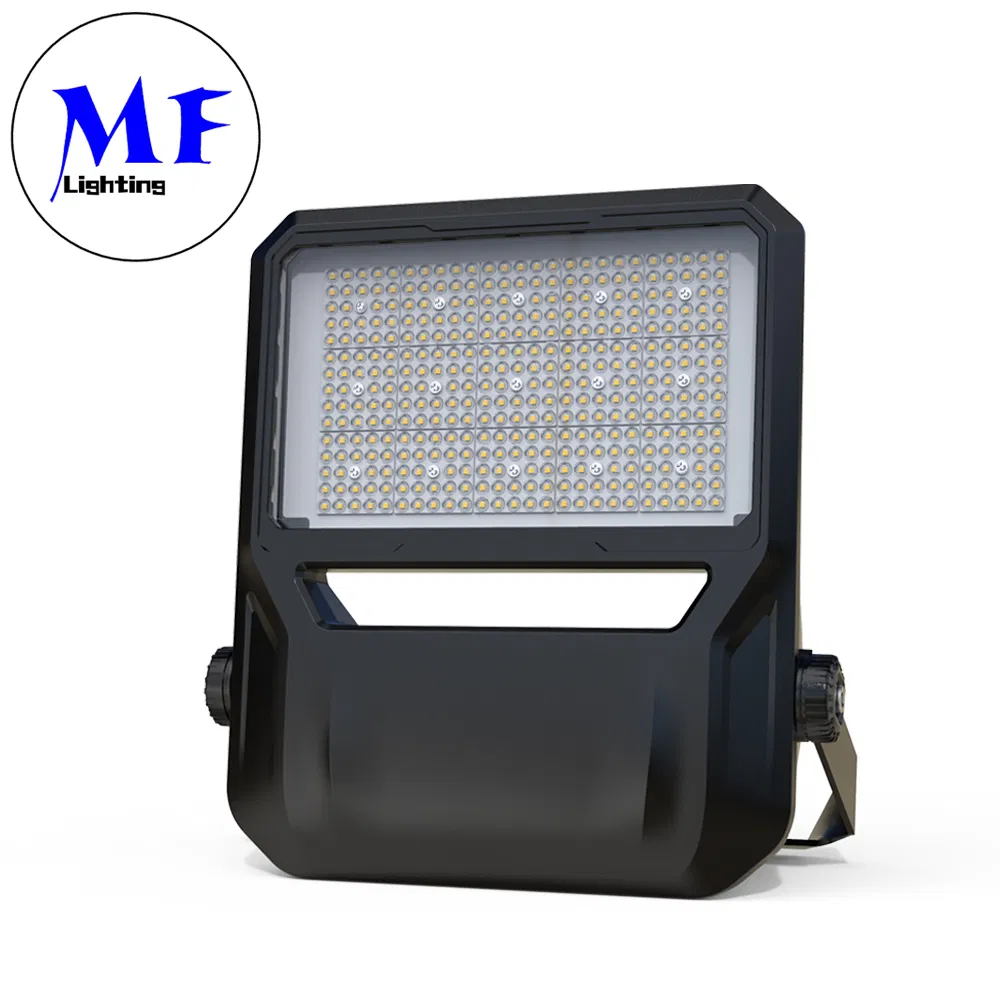

LED Flood Light 3

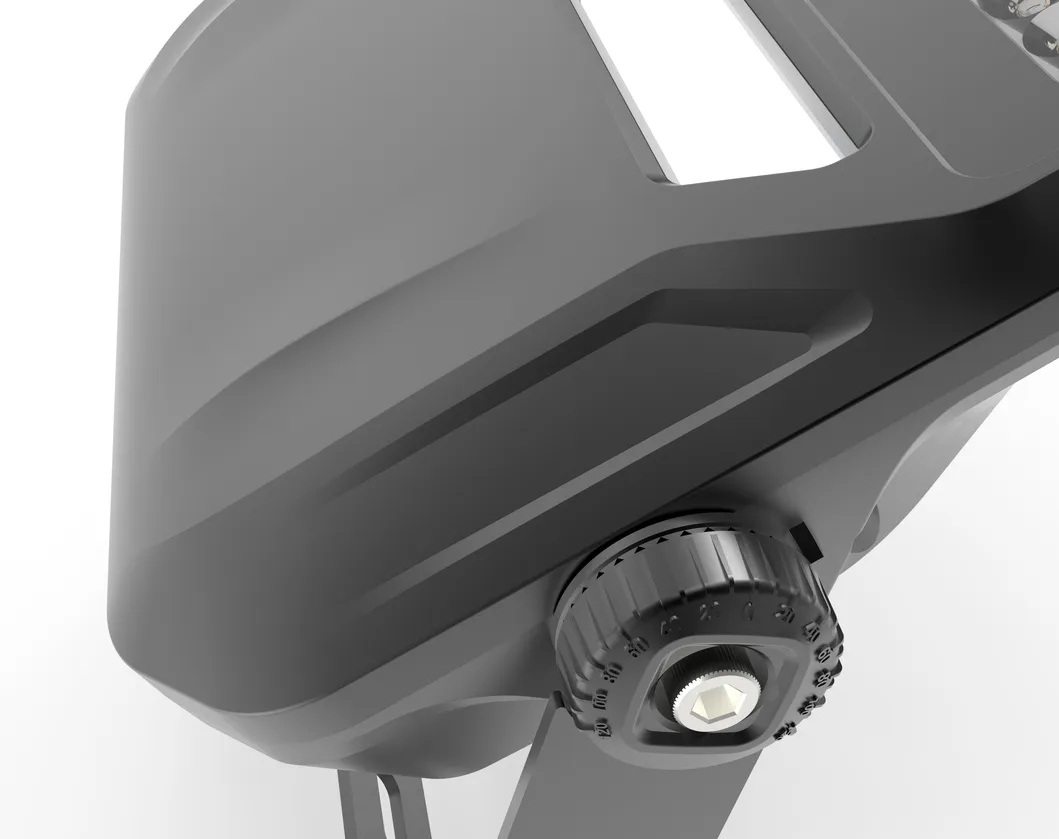

Flood Light Structure

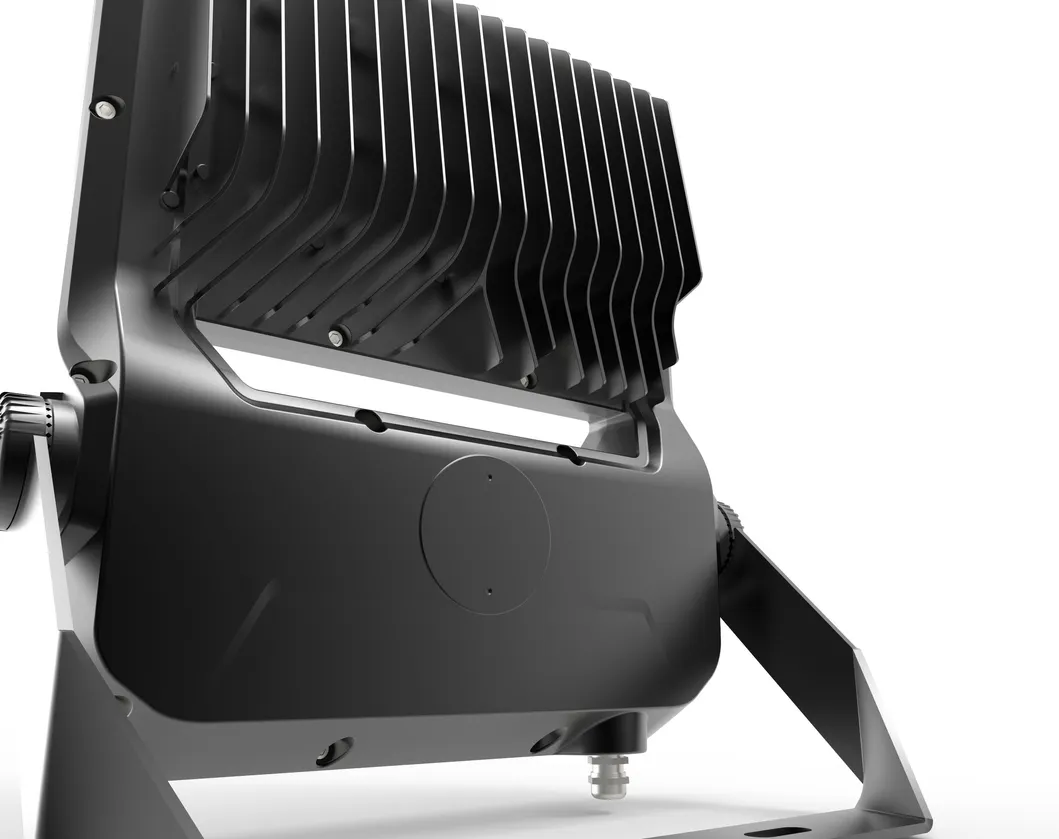

Flood Light View

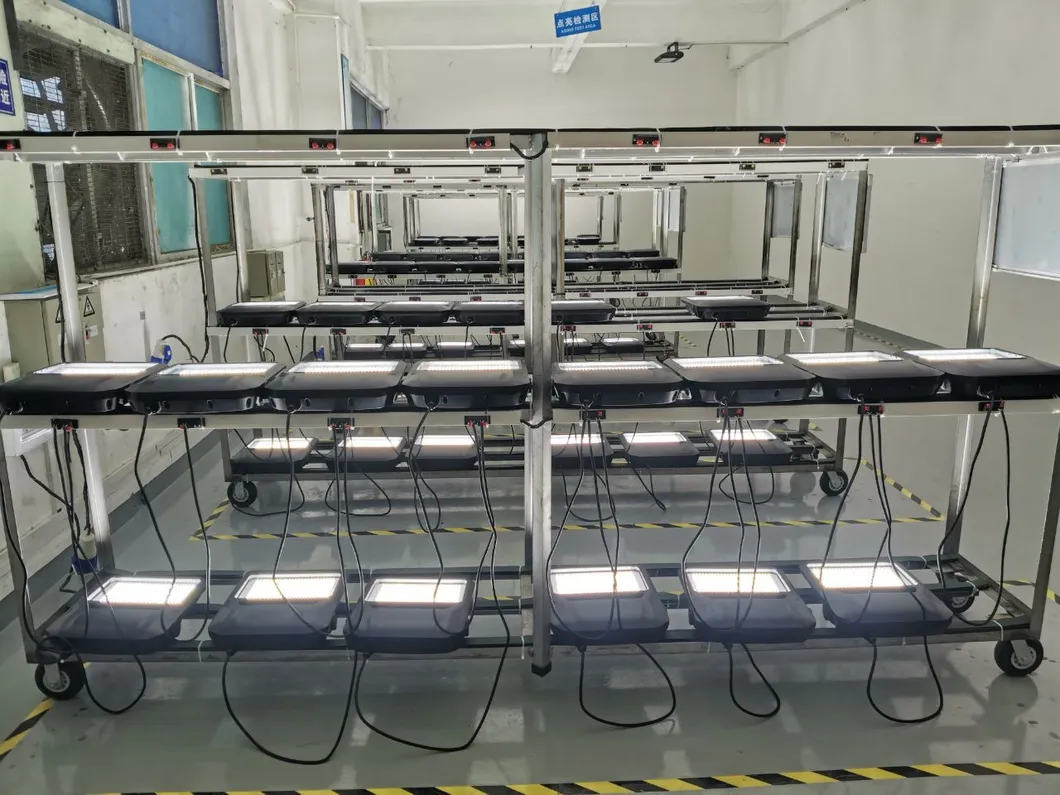

Outdoor Application
Basic Information
Model SeriesMF SKY series Flood light
Power Range20W-400W
IP RatingIP67
IK RatingIK08 / IK09
Operating VoltageAC 100-277V
Luminous Flux130lm/W - 150lm/W
CRI>80ra
MaterialAluminum Body
Warranty5 Years
Key Features
  • Massive light output of up to 39,200lm
  • Ultra-high system efficiency of up to 140lm/W
  • High quality LED Chip and Driver components
  • Long lifespan: >102,000 hours to L70
  • Professionally Designed True Asymmetric Flat Optics
  • Tough IP67 and IK09 construction
  • Suitable for coastal areas (with optional 304 stainless steel bracket)
  • IP67 Waterproof and Dust proof protection
Features Chart
Product Characteristics
Characteristic 1

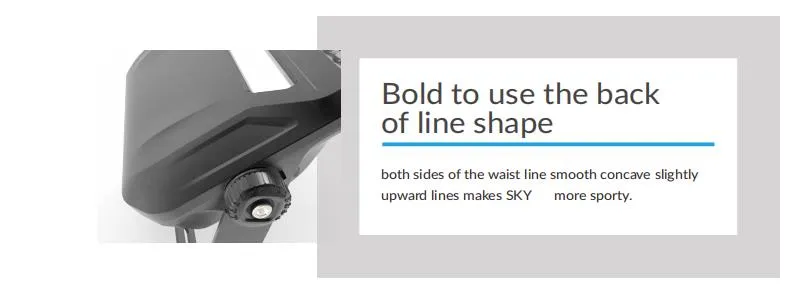

Characteristic 2

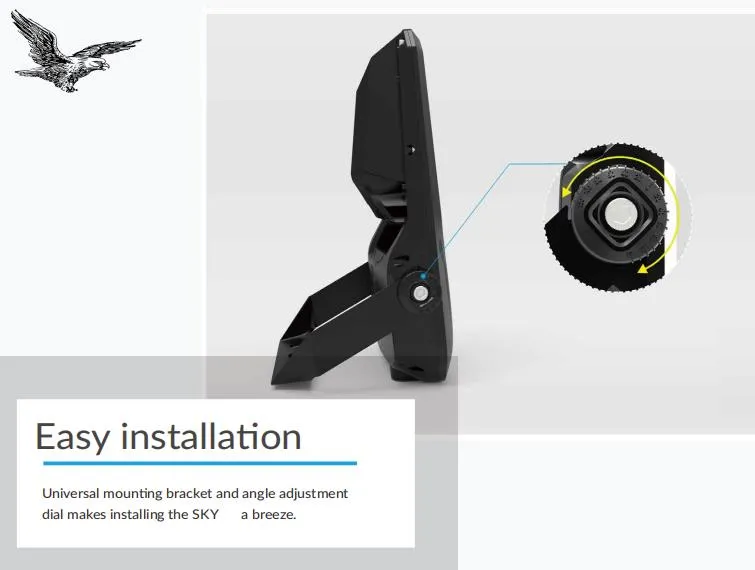

Characteristic 3

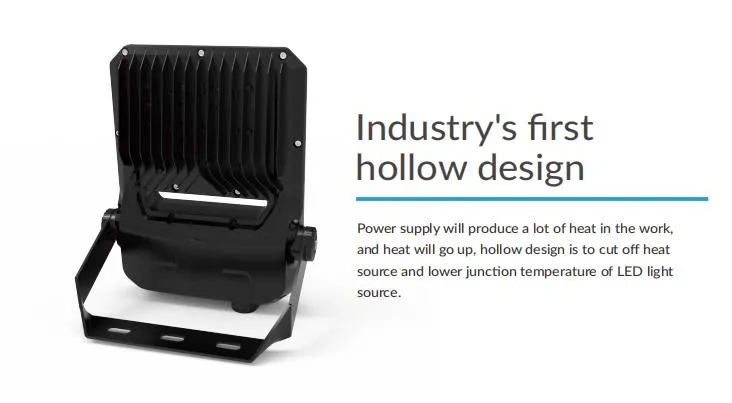

Characteristic 4

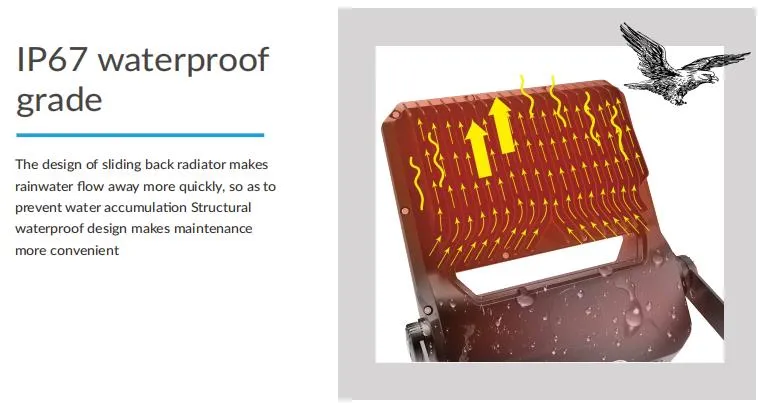

Characteristic 5

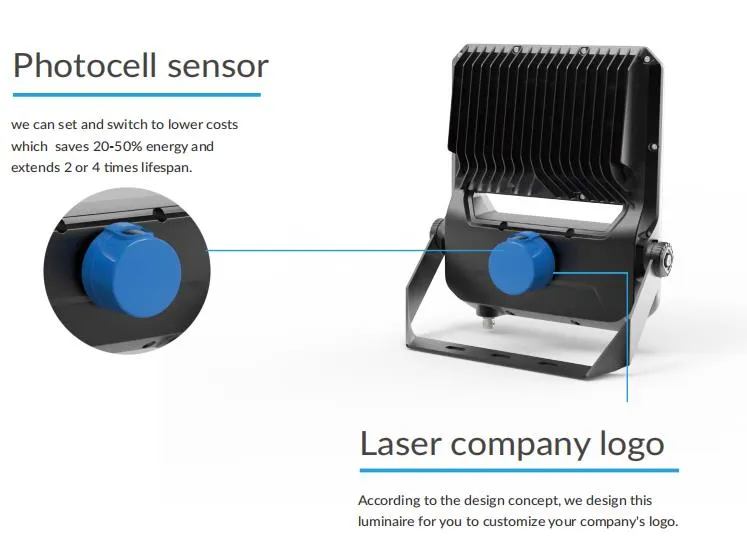

Characteristic 6
📋Specifications
CODE POWER LUMEN OUTPUT EFFICACY
MF-SKY-5050W7,000lm140lm/W +10
MF-SKY-7575W10,500lm140lm/W +10
MF-SKY-100100W14,000lm140lm/W +10
MF-SKY-150150W21,000lm140lm/W +10
MF-SKY-180180W25,200lm140lm/W +10
MF-SKY-200200W28,000lm140lm/W +10
MF-SKY-240240W33,600lm140lm/W +10
MF-SKY-280280W39,200lm140lm/W +10
Technical Data Summary
Light SourceSMD 5050 Power SupplyInventronics / Mean-Well
Lifetime>102,000hrs Voltage100-277V/AC, 50-60Hz
CCT3000K-6500K Power Factor≥0.97
Symmetric30°, 60°, 90° AsymmetricP45°
🏗Production & Dimensions

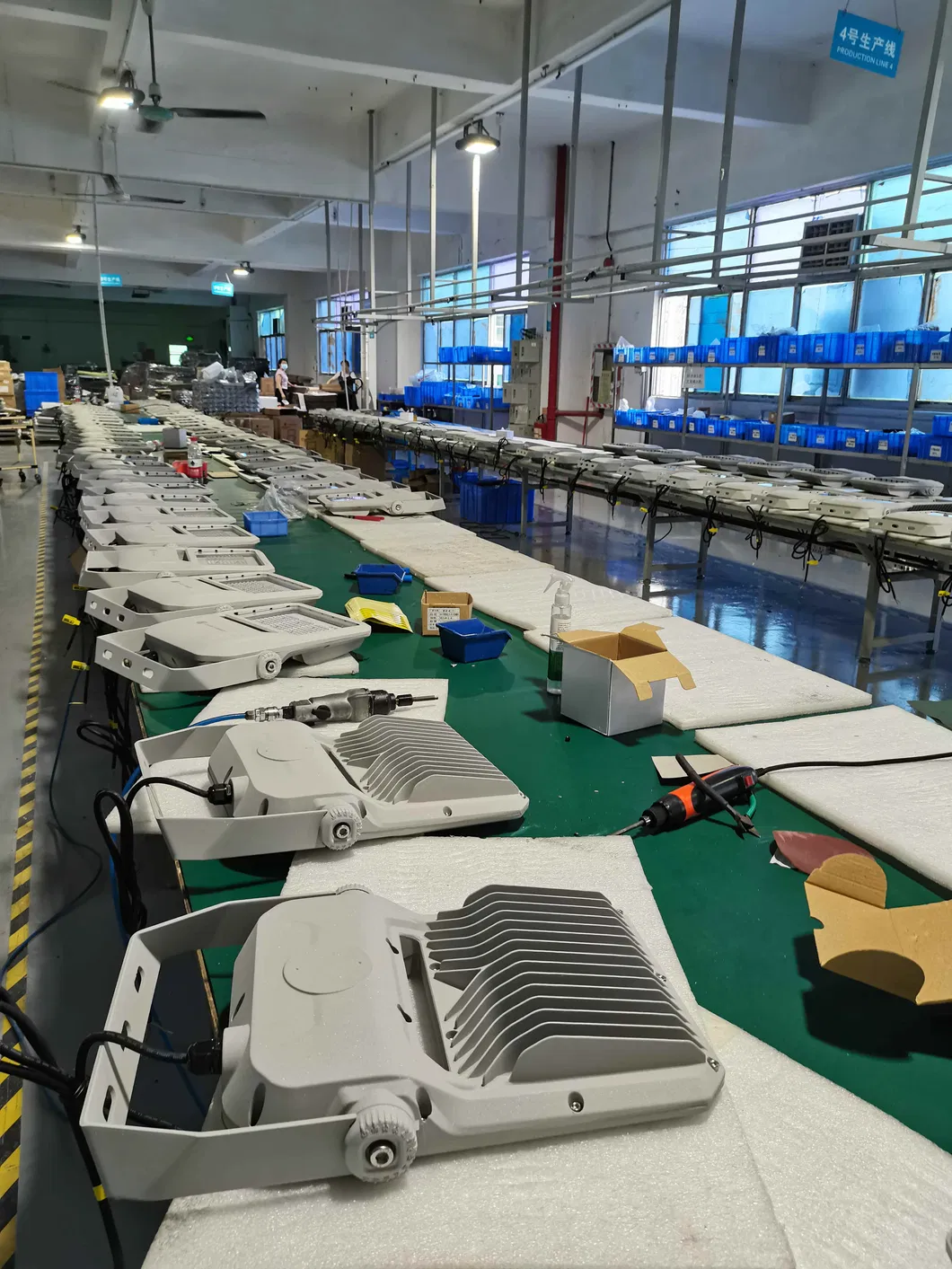

Production 1

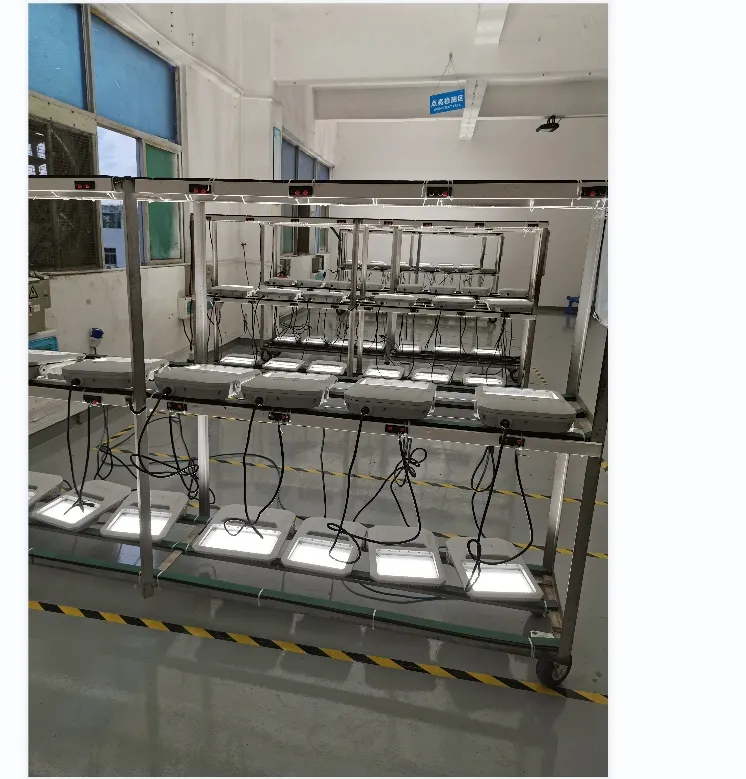

Production 2

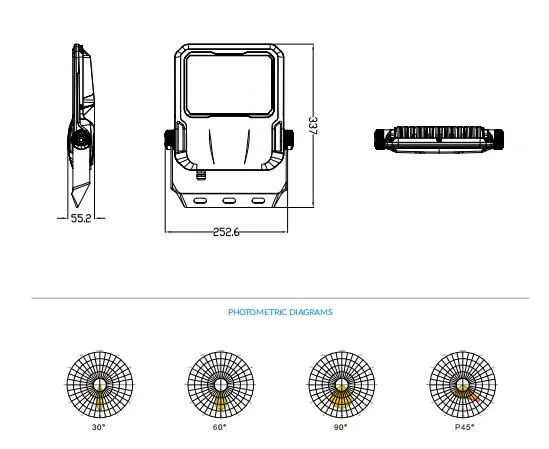

Dimension 1

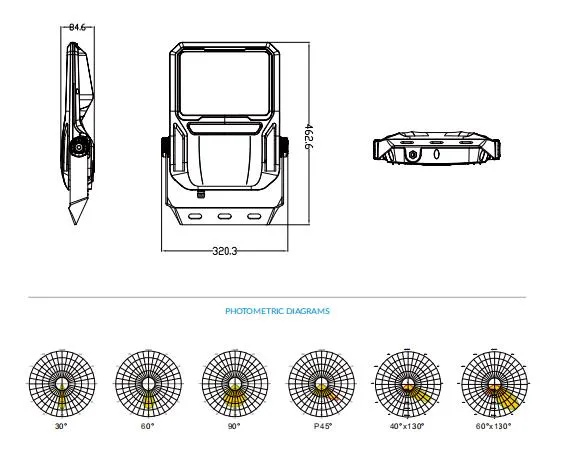

Dimension 2

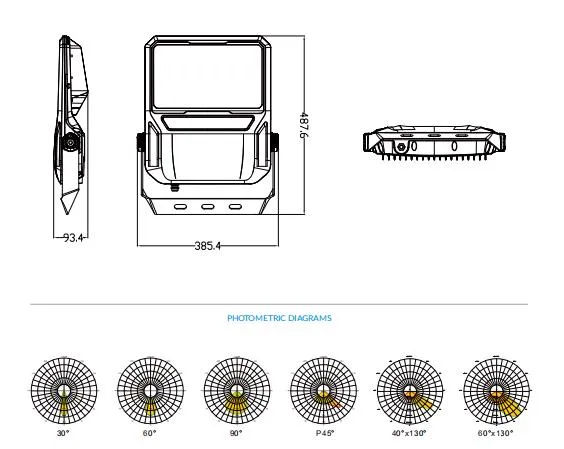

Dimension 3
🏢Applications
COMMERCIAL PUBLIC INDUSTRIAL
SupermarketsAirportsManufacture
Large retailersStadiumWarehouses
SchoolTrain stationsParking lots
BillboardBus stationsExhibition centers
BuildingTunnelsGas stations

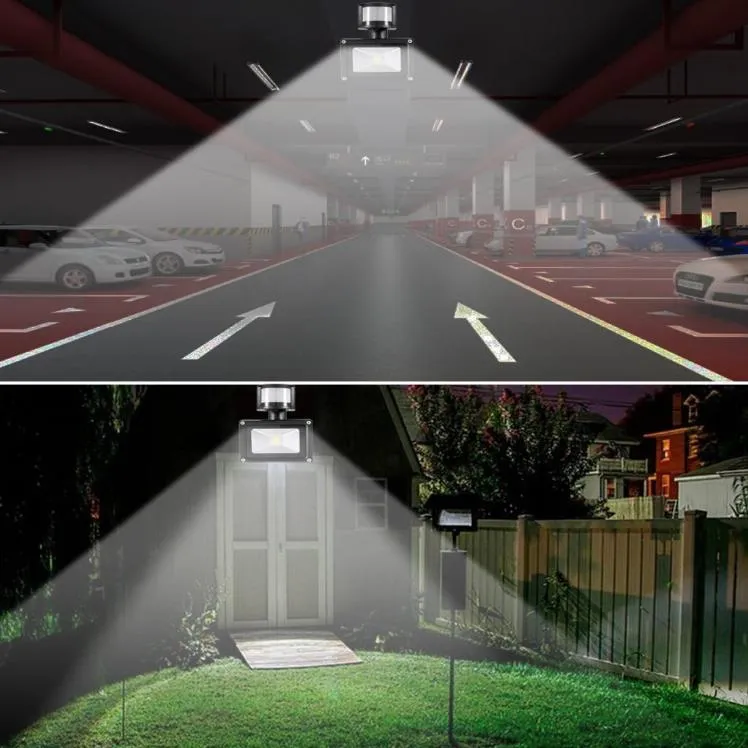

Application Gallery 1

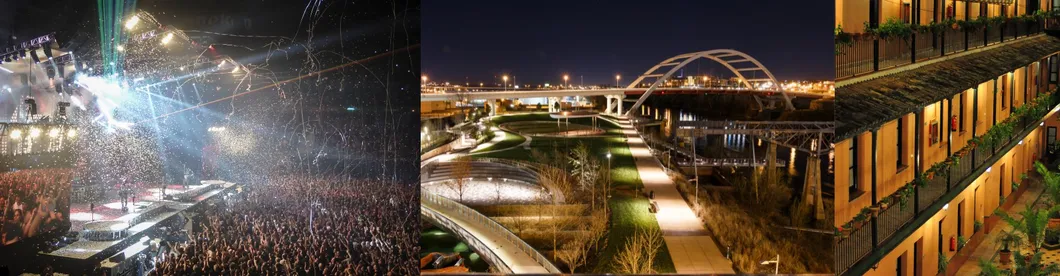

Application Gallery 2

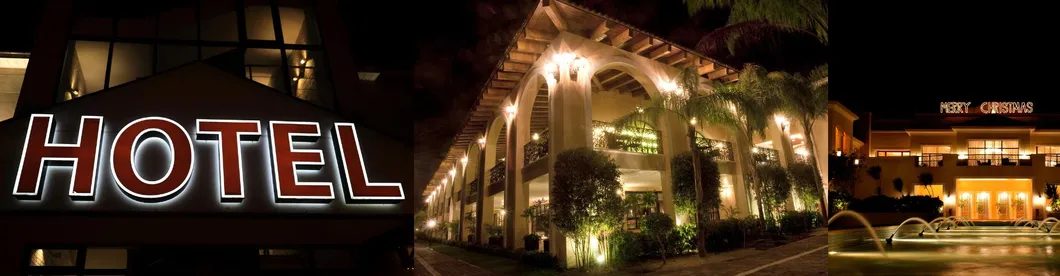

Application Gallery 3

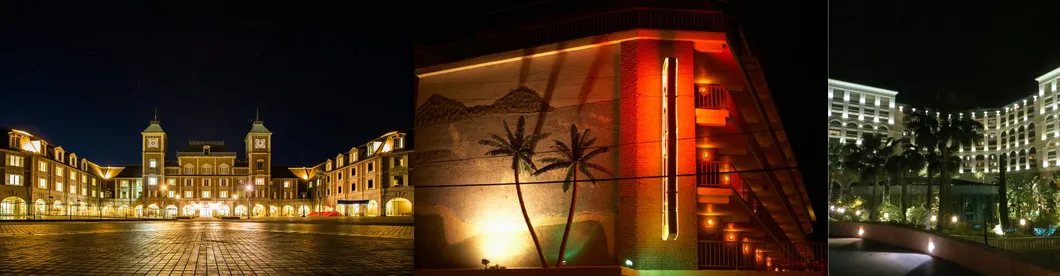

Application Gallery 4
📦Packaging

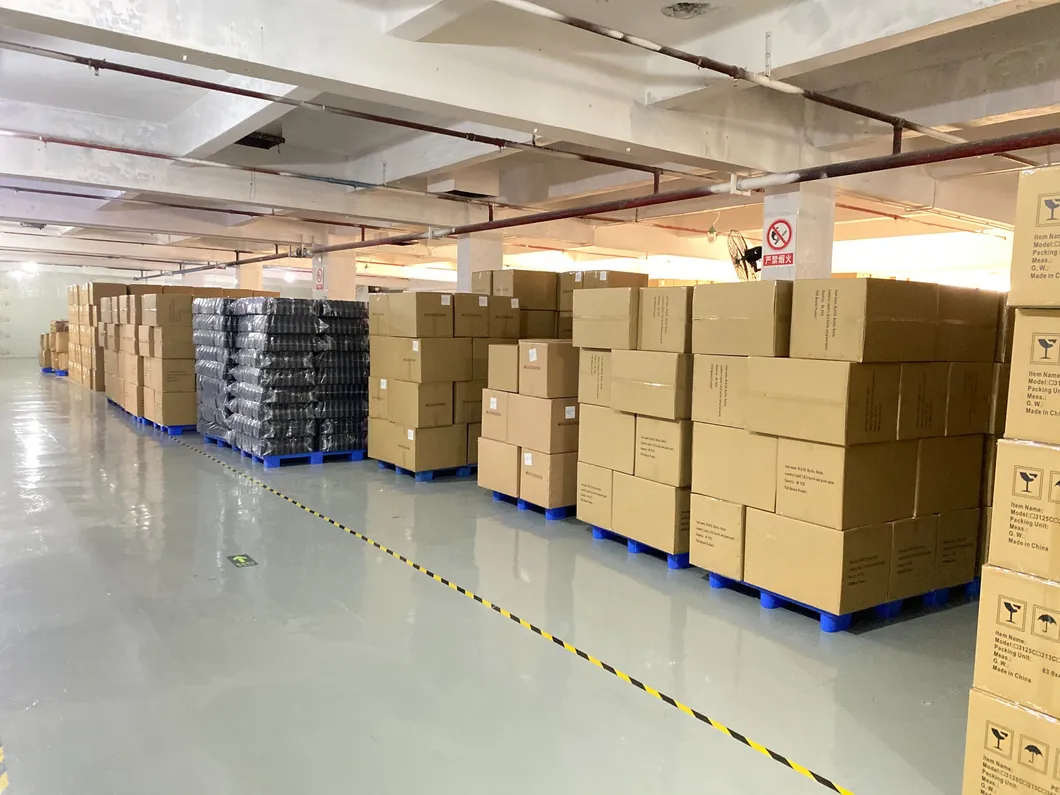

Packaging 1

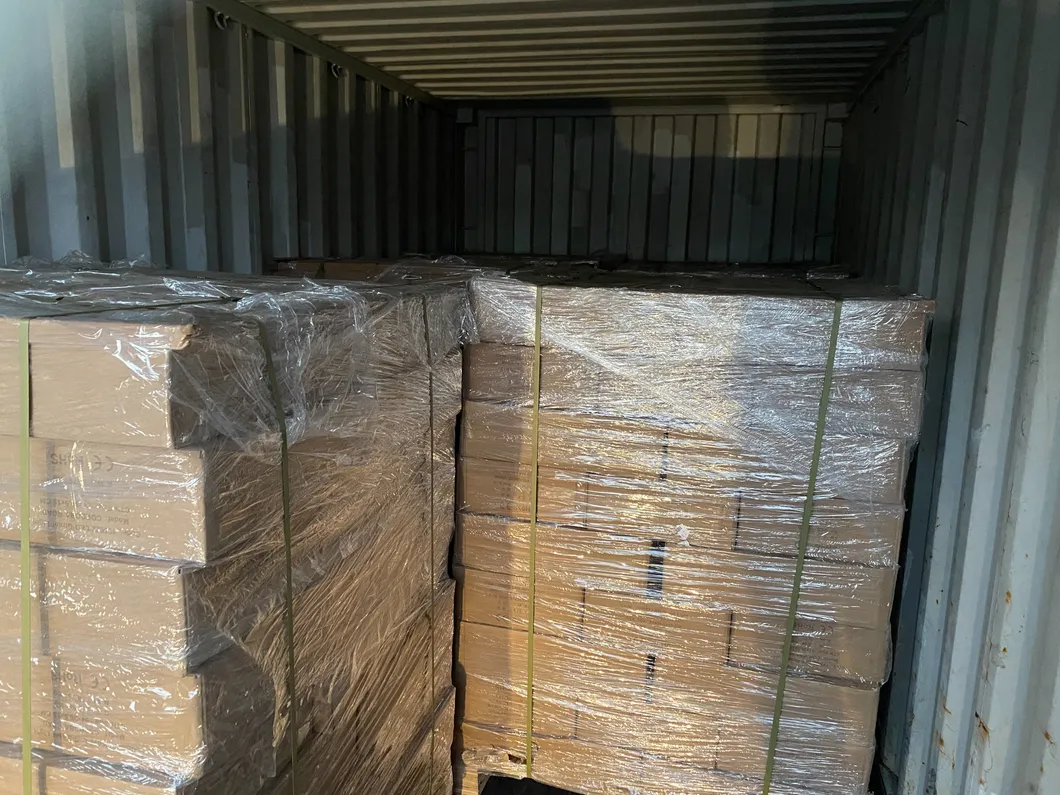

Packaging 2

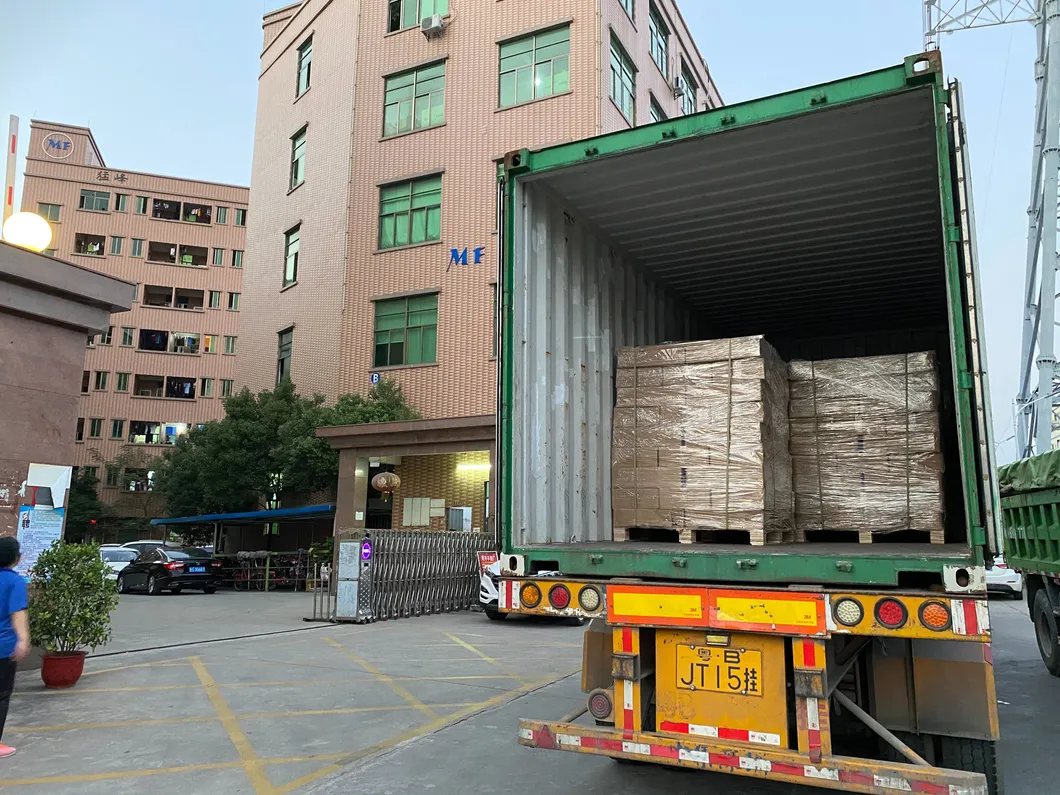

Packaging 3
Matters Needing Attention

Before installing the lighting fixtures, please read this instruction manual carefully.

  1. Fixtures should be installed, connected and tested by a certified electrician based on local regulations.
  2. Lamps should always be installed or replaced carefully.
  3. Check local voltage requirements before installation.
  4. Revamping only when power is off and the lamp is cooled down.
  5. Clean with a soft cloth and PH neutral detergent when power is off.
  6. Don't cover fixtures with flammable materials.
  7. Replacements must be made by authorized personnel to avoid hazards.
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of these LED flood lights? A1: These flood lights are designed for a long lifespan of over 102,000 hours (L70).
Q2: Are these lights suitable for coastal or high-corrosion environments? A2: Yes, they are suitable for coastal areas when equipped with our optional 304 stainless steel bracket for enhanced durability.
Q3: What are the available dimming and control options? A3: We offer various options including 0-10V, Dali, Sensor controls, LoRa, and Zhaga interfaces.
Q4: What is the IP and IK rating of the MF SKY series? A4: The series features a tough IP67 waterproof/dustproof rating and an IK09 impact resistance construction.
Q5: What is the standard warranty period? A5: We provide a 5-year warranty for this product line to ensure long-term reliability.
Q6: Which beam angles are available for different lighting needs? A6: We offer symmetric angles of 30°, 60°, and 90°, as well as an asymmetric P45° option for specialized sport and roadway lighting.
